GSM160A48-R7B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> GSM160A48-R7B

GSM160A48-R7B: DescriptionAC/DC DESKTOP ADAPTER 48V 160W; CategoryPower/power management; File Size310KB，5 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

GSM160A48-R7B Overview

AC/DC DESKTOP ADAPTER 48V 160W

GSM160A48-R7B Parametric

Parameter Name	Attribute value
Use area	internationality
form	Desktop (Class I)
input type	Cable (sold separately)
Voltage - input	80 ~ 264 VAC
Voltage - Output	48V
Current - Output (maximum)	3.34A
Power (W)	160W
No-load power consumption	150mW (maximum)
polarization	-
application	Medical type
efficiency	Class VI
Operating temperature	-30°C ~ 70°C
Output connector	Power DIN, 4 pin
size/dimensions	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)
Approval	CB，CE，cURus，TUV
input connector	IEC 320-C14
Wire length	47.2"（1.20m）

Preview

Download Datasheet

View All

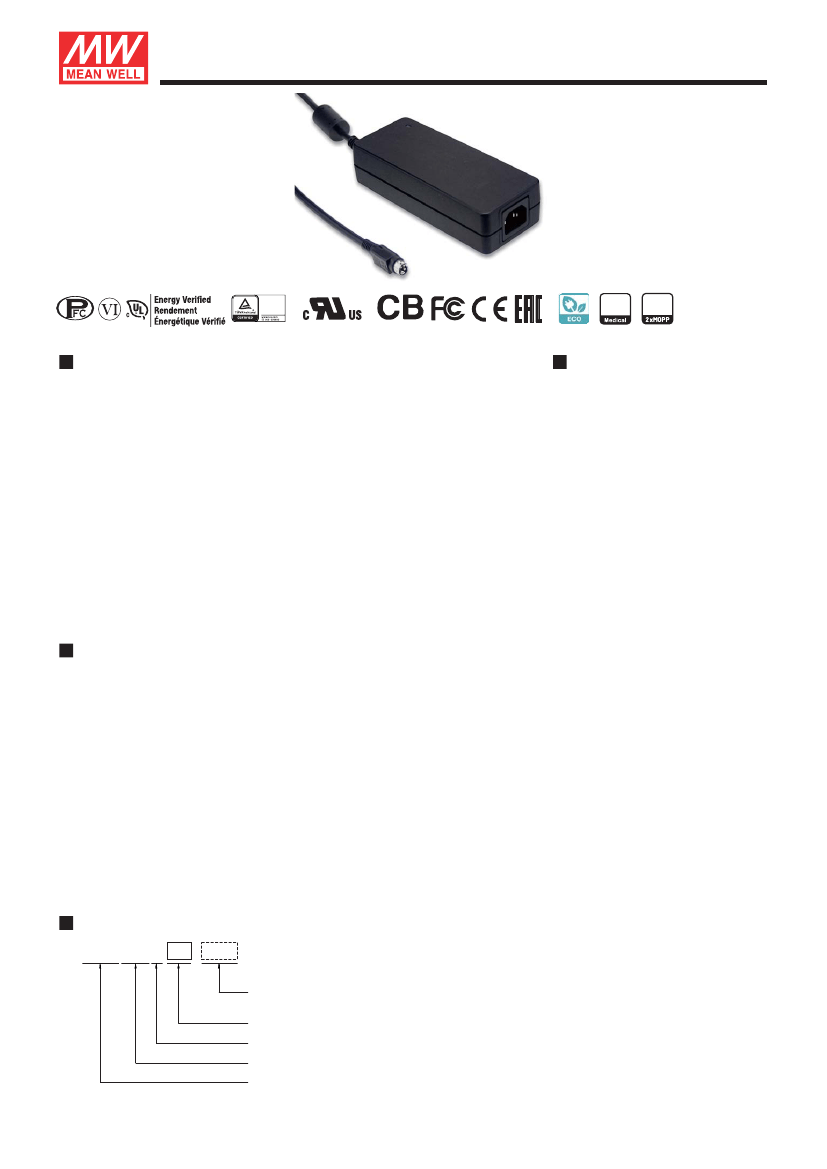

160W AC-DC Reliab le Green Medical Adaptor

GSM160A

series

EN 60601-1

IEC 60601-1

EN60601-1 ANSI/AAMI ES60601-1 IEC60601-1

+ +

Applications

Mobile clinical workstation

Oral irrigator

Portable hemodialysis machine

Breath Machine

Medical computer monitor

Features

3 pole AC inlet IEC320-C14, Class

Ⅰ

power unit

Medical safety approved (2 x MOPP) accroding to

ANSI/AAMI ES60601-1 and IEC/EN60601-1

Extremely low leakage current

No load power consumption<0.15W

Energy efficiency level VI and meet CoC Version 5

-30~+70

℃

wide range working temperature

Protections: Short circuit / Overload / Over voltage / Over temperature

LED indicator for power on

Lifetime > 85 K hours

3 years warranty

Description

GSM160A is a highly reliable, 160W desktop style single-output green medical adaptor series. This product

is equipped with a 3-pin (

with

FG) standard IEC320-C14 power plug, adopting the input range from 80VAC to

264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy

the demands for various kinds of medical electrical devices. The circuitry design meets the international medical

standards (2*MOPP), having an ultra low leakage current (<100 A), fitting the medical devices in direct electrical

contact with the patients.

With the efficiency up to 94% and the extremely low no-load power consumption below 0.15W,

GSM160A is

compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet

Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to

save the energy when it is either

under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic

case. GSM160A is approved with the international medical safety certificates.

Model Encoding

GSM160 A 12 - R7B

DC plug type

Output voltage

IEC320-C14 AC inlet

Rated wattage

Series name

{

R7B:

Standard model,

Power DIN 4Pin with lock type

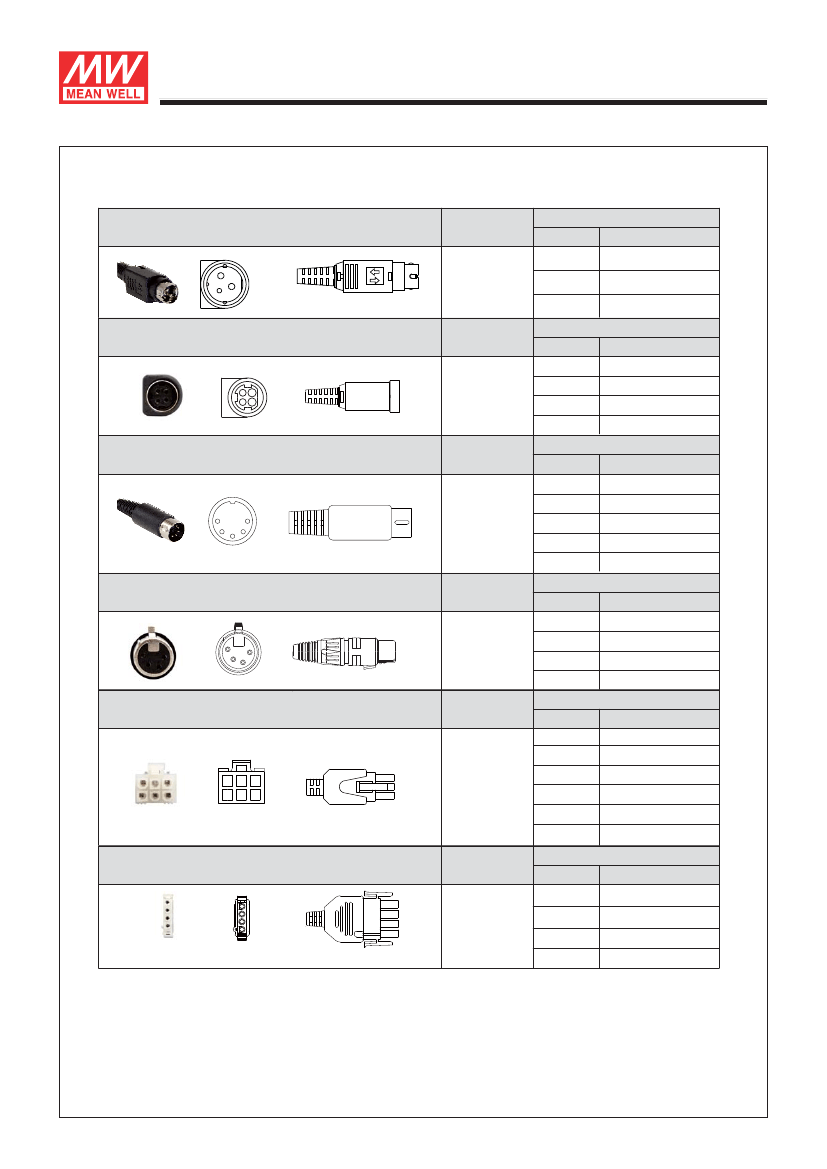

Other options available by customer requested (see Page 4~5)

File Name:GSM160A-SPEC 2018-01-12

GSM160A48-R7B Related Products

	GSM160A48-R7B	GSM160A12-R7B	GSM160A24-R7B	GSM160A20-R7B	GSM160A15-R7B
Description	AC/DC DESKTOP ADAPTER 48V 160W	AC/DC DESKTOP ADAPTER 12V 138W	AC/DC DESKTOP ADAPTER 24V 160W	AC/DC DESKTOP ADAPTER 20V 160W	AC/DC DESKTOP ADAPTER 15V 144W
Use area	internationality	internationality	internationality	internationality	internationality
form	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)	Desktop (Class I)
input type	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)	Cable (sold separately)
Voltage - input	80 ~ 264 VAC	80 ~ 264 VAC	80 ~ 264 VAC	80 ~ 264 VAC	80 ~ 264 VAC
Voltage - Output	48V	12V	24V	20V	15V
Current - Output (maximum)	3.34A	11.5A	6.67A	8A	9.6A
Power (W)	160W	138W	160W	160W	144W
No-load power consumption	150mW (maximum)	150mW (maximum)	150mW (maximum)	150mW (maximum)	150mW (maximum)
application	Medical type	Medical type	Medical type	Medical type	Medical type
efficiency	Class VI	Class VI	Class VI	Class VI	Class VI
Operating temperature	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C
Output connector	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin	Power DIN, 4 pin
size/dimensions	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)	6.89" long x 2.83" wide x 1.38" high (175.0mm x 72.0mm x 35.0mm)
Approval	CB，CE，cURus，TUV	CB，CE，cURus，TUV	CB，CE，cURus，TUV	CB，CE，cURus，TUV	CB，CE，cURus，TUV
input connector	IEC 320-C14	IEC 320-C14	IEC 320-C14	IEC 320-C14	IEC 320-C14
Wire length	47.2"（1.20m）	47.2"（1.20m）	47.2"（1.20m）	47.2"（1.20m）	47.2"（1.20m）
