DETN01N-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> DETN01N-15

DETN01N-15: DescriptionDC DC CONVERTER +/-15V 1W; CategoryPower/power management; File Size148KB，4 Pages; ManufacturerMEAN WELL; Websitehttp://www.meanwell.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DETN01N-15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DETN01N-15	-	-	View	Buy Now

DETN01N-15 Overview

DC DC CONVERTER +/-15V 1W

DETN01N-15 Parametric

Parameter Name	Attribute value
type	isolation module
Number of outputs	2
Voltage - Input (minimum)	21.6V
Voltage - input (maximum)	26.4V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (maximum)	34mA，34mA
Power (W)	1W
Voltage - Isolation	3000V
application	ITE (Business)
characteristic	SCP
Operating temperature	-40°C ~ 90°C (with derating)
efficiency	78%
Installation type	surface mount
Package/casing	12-SMD module, 10-lead
size/dimensions	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)
Supplier device packaging	-

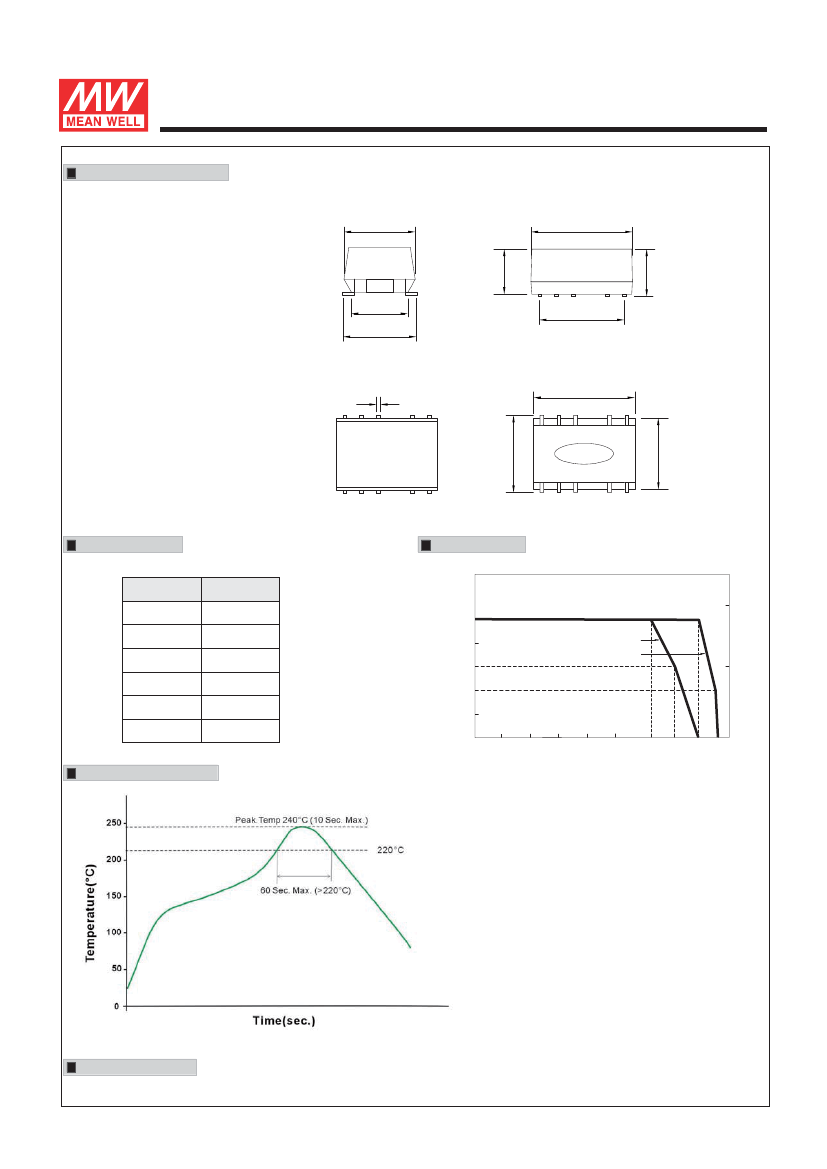

Preview

Download Datasheet

View All

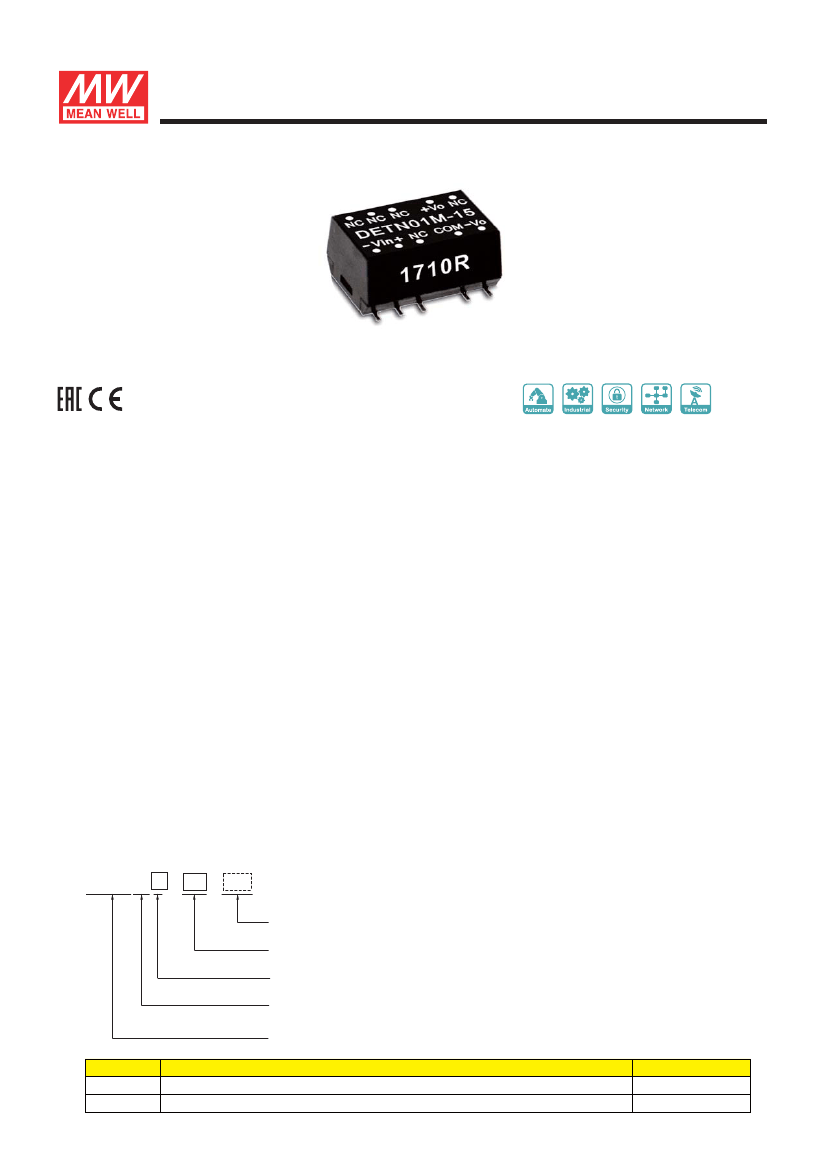

1W SMD Package DC-DC Unregulated Converter

DETN01

series

■

Features

SMD package with industry standard pinout

Operating temperature range -40 ~ +90

℃

Comply to EN55032 radiated Class B without additional

components

High efficiency up to 83%

Protection: Short circuit

3KVDC I/O isolation

Low cost

3 years warranty

■

Applications

Telecom

datacom system

Wireless network

Industrial control facility

Instrument

Analyzer

Detector

Data switch

■

Description

DETN01 series is 1 W isolated and unregulated module type DC-DC converter with S MD package. It

features international standard pins, a high efficiency up to 83%, wide working temperature range -40~+90℃,

3KVDC I/P-O/P isolation voltage, compliance to EN55032 radiated Class B without additional components,

short circuit protection, etc. The models account for different input voltage

5V/12V/24V

±10%

and various

output voltage,

5V/

12V/

15V for Dual output which are suitable for all kinds of systems,

uch as

industrial control, telecommunication field, distributed power architecture, and so on.

■

Model Encoding

DETN01 L - 12 - SC

Performance difference

Output voltage (±5/

12/

15Vdc)

Input voltage (L: 4.5 ~ 5.5Vdc

，

M: 10.8 ~ 13.2Vdc

，

N: 21.6 ~ 26.4Vdc)

Rated wattage

Series name

Type

Blank

Description

-40~+90

℃

working temperature with max. 1 second short protection

-40~+105

℃

working temperature with continuous short protection

Note

In Stock

Optional

File Name:DETN01-SPEC 2018-01-15

DETN01N-15 Related Products

	DETN01N-15	DETN01L-15	DETN01N-05	DETN01M-12	DETN01M-15	DETN01N-12	DETN01L-05	DETN01M-05	DETN01L-12
Description	DC DC CONVERTER +/-15V 1W	DC DC CONVERTER +/-15V 1W	DC DC CONVERTER +/-5V 1W	DC DC CONVERTER +/-12V 1W	DC DC CONVERTER +/-15V 1W	DC DC CONVERTER +/-12V 1W	DC DC CONVERTER +/-5V 1W	DC DC CONVERTER +/-5V 1W	DC DC CONVERTER +/-12V 1W
type	isolation module	isolation module	isolation module	isolation module	isolation module	isolation module	isolation module	isolation module	isolation module
Number of outputs	2	2	2	2	2	2	2	2	2
Voltage - Input (minimum)	21.6V	4.5V	21.6V	10.8V	10.8V	21.6V	4.5V	10.8V	4.5V
Voltage - input (maximum)	26.4V	5.5V	26.4V	13.2V	13.2V	26.4V	5.5V	13.2V	5.5V
Voltage - Output 1	15V	15V	5V	12V	15V	12V	5V	5V	12V
Voltage - Output 2	-15V	-15V	-5V	-12V	-15V	-12V	-5V	-5V	-12V
Current - Output (maximum)	34mA，34mA	34mA，34mA	100mA，100mA	42mA，42mA	34mA，34mA	42mA，42mA	100mA，100mA	100mA，100mA	42mA，42mA
Power (W)	1W	1W	1W	1W	1W	1W	1W	1W	1W
Voltage - Isolation	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V	3000V
application	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)	ITE (Business)
characteristic	SCP	SCP	SCP	SCP	SCP	SCP	SCP	SCP	SCP
Operating temperature	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)	-40°C ~ 90°C (with derating)
efficiency	78%	80%	76%	82%	83%	77%	78%	82%	78%
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead	12-SMD module, 10-lead
size/dimensions	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)	0.60" long x 0.42" wide x 0.28" high (15.2mm x 10.7mm x 7.1mm)
