LUMOTAST 75 IP40
1
LUMO
75 (40)

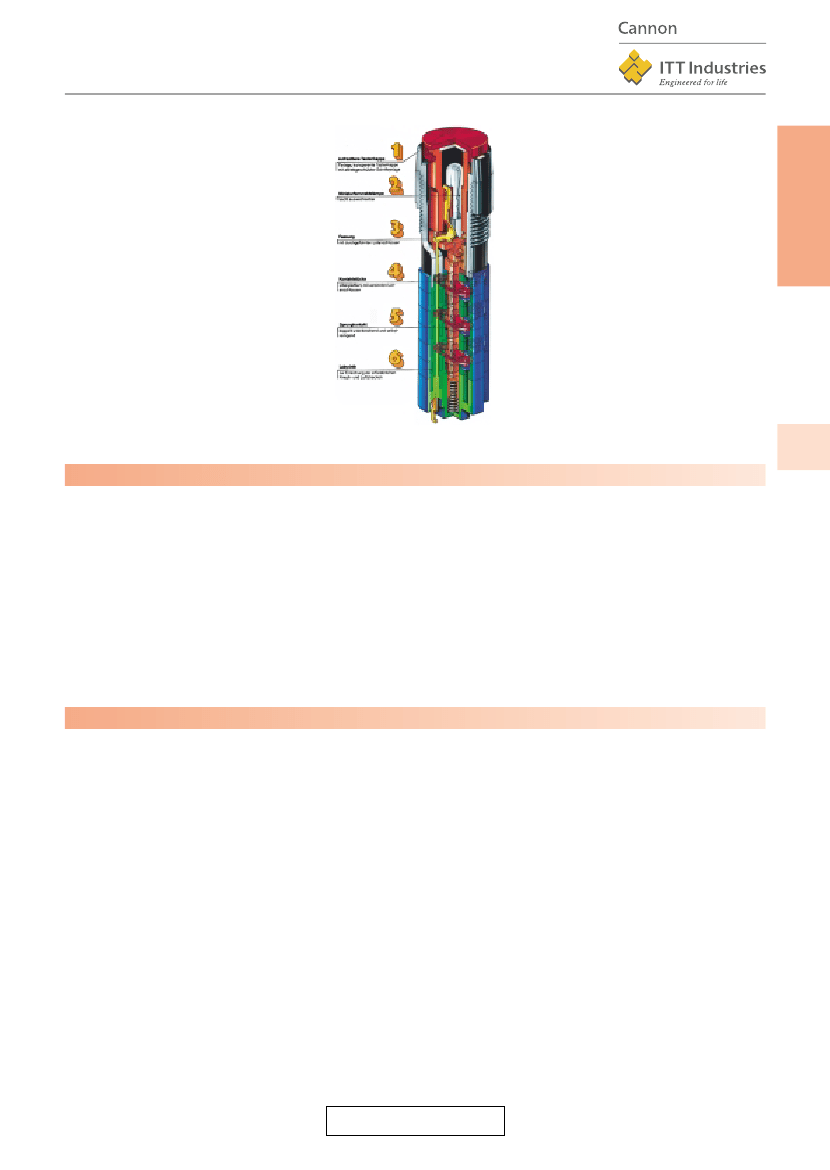

General data
LUMOTAST 75 IP40 pushbutton range
Illuminated pushbuttons, signal lamps and keylock switches
• Mounting hole diameter 16.2 mm
• Degree of protection IP40
• Solder terminals for the following wire cross-sections:
- Installed 0.5 mm
2
max.
- Factory terminated 0.35 mm
2
max.
• 250 V/4 A max.
• 3 NC + 3 NO max.
• Lamp socket T 4.5
Content
LUMOTAST 75 illuminated pushbutton IP40
LUMOTAST 75 illuminated pushbutton IP40, protruding lens, round collar
LUMOTAST 75 illuminated pushbutton IP40, flush lens, square collar
LUMOTAST 75 illuminated pushbutton IP40, flush lens, rectangular collar
LUMOTAST 75 illuminated pushbutton IP40, protruding lens, square collar
LUMOTAST 75 keylock switch IP40
LUMOTAST 75 keylock switch IP40, round collar
LUMOTAST 75 keylock switch IP40, rectangular collar
LUMOTAST 75 IP40 signal lamp with lamp socket T 4.5
LUMOTAST 75 IP40 signal lamp with lamp socket T 4.5, round collar, protruding lens
LUMOTAST 75 IP40, signal lamp, square collar, flush lens
LUMOTAST 75 IP40 signal lamp, rectangular collar, flush lens
LUMOTAST 75 IP40 signal lamp, square collar, protruding lens
1 - 38
1 - 40
1 - 41
1 - 42
1 - 43
1 - 44
1 - 45
1 - 46
1 - 48
1 - 49
1 - 50
1 - 50
1 - 51
Pushbuttons
Stock items
are marked
by
bold printed
order numbers.
1 - 37
LUMOTAST 75 IP40

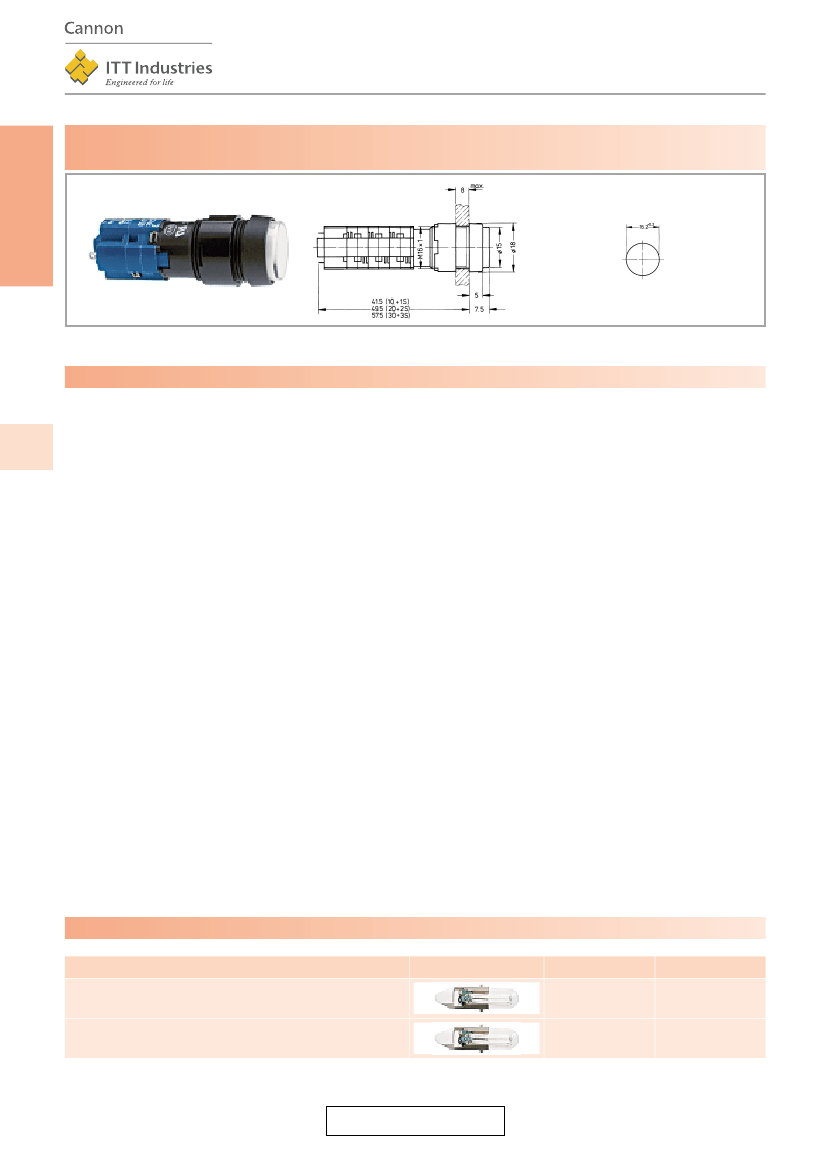

LUMOTAST 75 illuminated pushbutton IP40
1
Pict.: colourless
Mounting hole
Technical data
General information
Form of lens
Form of collar
Colour of collar
Dimensions
Length of collar
Width of collar
Diameter of collar
Overall height
Mounting depth
Mounting hole
Mechanical design
Mounting
Terminals
Contact system
Contact function
Contact arrangement
Contact materials
Illuminability
Lamp socket
Mechanical characteristics
Operating force max.
Operating travel
Switching travel NC
Switching travel NO
Robustness min.
Electrical characteristics
Rated voltage AC max.
Rated voltage DC max.
Rated voltage AC/DC min.
see order block
see order block
see order block
see order block
see order block
see order block
7.5 mm
41,5/49,5/57,5 mm
16.2 mm
ring nut
solder terminals,
tin-plated
snap-action bridge contact
see order block
see order block
Ag
yes
T 4.5
3 ... 6.5 N
2.7 mm
1.6 mm
0.9 mm
100 N
250 V
220 V
12 V
Rated current AC max.
Rated current DC max.
Rated current AC/DC min.
Contact resistance acc.
to life max.
Protection class
Other specifications
Operating life, at 250
V/2 A (operations)
Operating life, at 250
V/4 A (operations)
Degree of protection
from front side
Ambient temp. operating
min.
Ambient temp. operating
without lamp max.
Ambient temp. operating
with lamp max.
Storage temperature min.
Storage temperature max.
Resistance to constant
environment
Resistance at variable
environment
Approvals
Flame class acc. to UL 94
Hot wire ignition acc.
to IEC 695-2-1
4A
0.2 A
5 mA
200 mΩ
II
LUMO
75 (40)
200000 (momentary)
60000 (momentary),
10000 (latching)
IP40
-25 °C
+70 °C
+55 °C
-40 °C
+80 °C
according to
IEC 600 68-2-3 and 2-30
according to
IEC 600 68-2-14 and 2-33
ENEC 25 T 55 (70), UL,
CSA
V1
yes
Accessories LUMOTAST 75 illuminated pushbutton IP40
Description
Order no.
Page
Filament lamp, T 4.5 base, 12 V
Filament lamp, T 4.5 base, 24 V
1.90.100.022/0000
5 - 6
1.90.100.023/0000
5 - 6
1 - 38
Stock items
are marked
by
bold printed
order numbers.
Pushbuttons
LUMOTAST 75 IP40

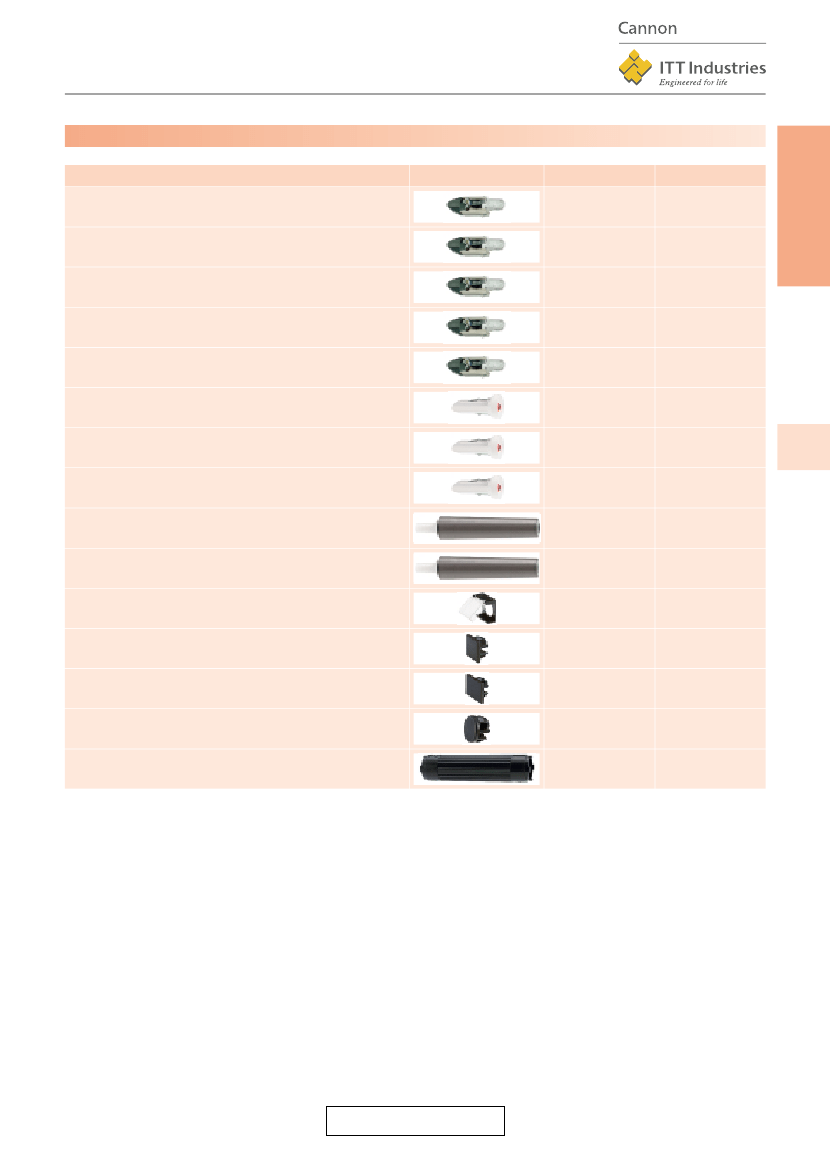

Accessories LUMOTAST 75 illuminated pushbutton IP40
Description
Order no.
Page
LED T 4.5 superbright, red, 24 V
LED T 4.5 superbright, green, 24 V
LED T 4.5 superbright, yellow, 24 V
LED T 4.5 superbright, blue, 24 V
LED T 4.5 superbright, white, 24 V
LED T 4.5, red, 3 V
LED T 4.5, green, 3 V
LED T 4.5, yellow, 3 V
Lamp extractor for T 4.5/5.5, lamp diameter 4 mm
Lamp extractor for lamp diameter 5-6 mm
Protective cap (for 18 x 24 collar)
Blanking cap, black, to cover spare holes,
dimensions 18 x 18 mm
Blanking cap, black, to cover spare holes,
dimensions 18 x 24 mm
Blanking cap, black, to cover spare holes, round 18 mm
Fixing spanner M 15, M 16
1.90.690.331/0000
5 - 20
1.90.690.332/0000
5 - 20
1.90.690.333/0000
5 - 20
1.90.690.334/0000
5 - 20
1.90.690.335/0000
5 - 20
1.90.692.001/0000
5 - 19
1.90.692.002/0000
5 - 19
1.90.692.003/0000
5 - 19
1.90.900.002/0000
5 - 24
1.90.900.004/0000
5 - 24
5.05.800.027/0000 5 - 30
5.52.006.020/0103 5 - 33
5.52.006.021/0100 5 - 33
5.52.006.022/0100 5 - 33
5.58.002.019/0105
5 - 25
1
LUMO
75 (40)
Pushbuttons
Stock items
are marked
by
bold printed
order numbers.
1 - 39
LUMOTAST 75 IP40

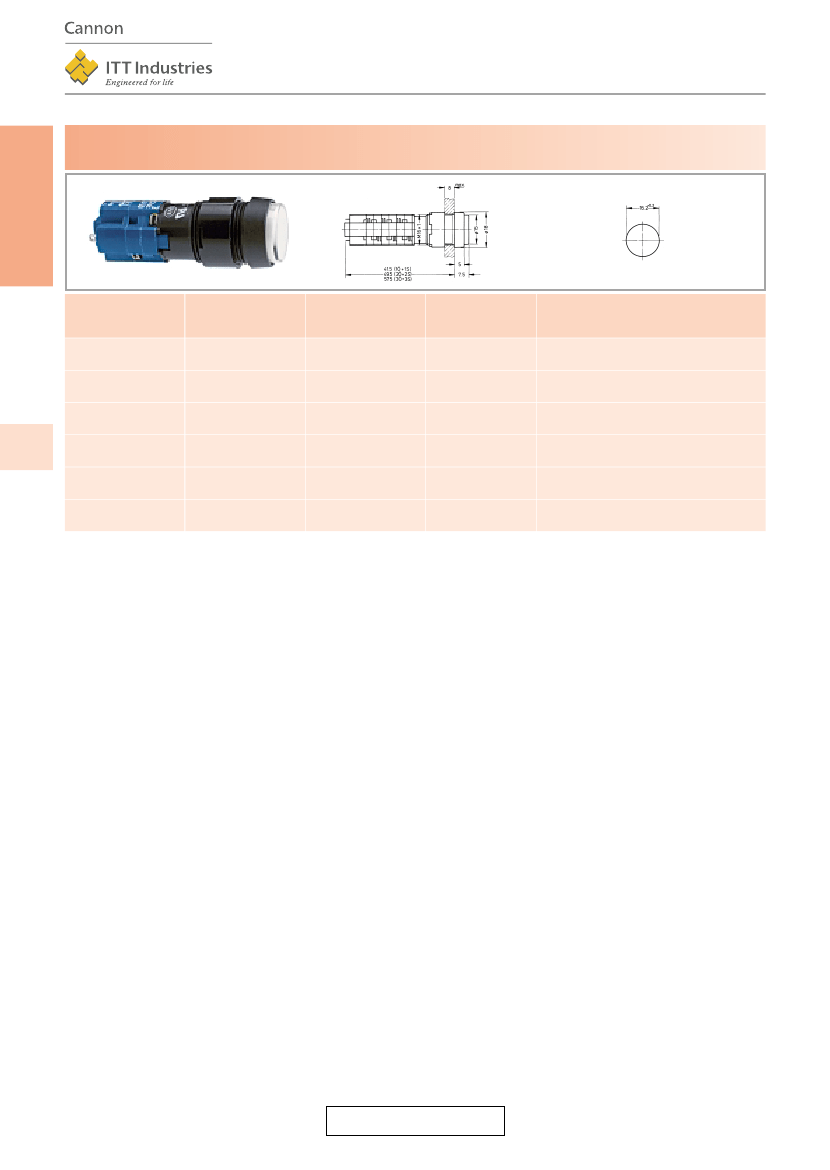

LUMOTAST 75 illuminated pushbutton IP40, protruding lens, round collar
1
Pict.: colourless
Mounting hole
Contact arrangement Contact function
Colour of collar
Order no.
without lens
Note
1 NC + 1 NO
1 NC + 1 NO
2 NC + 2 NO
LUMO
75 (40)
momentary
latching
momentary
latching
momentary
latching
black
black
black
black
black
black
2 NC + 2 NO
3 NC + 3 NO
3 NC + 3 NO
1.15.108.451/0000
Please include the desired lens and
diffuser in your order.
1.15.108.551/0000
Please include the desired lens and
diffuser in your order.
1.15.108.452/0000 Please include the desired lens and
diffuser in your order.
1.15.108.552/0000 Please include the desired lens and
diffuser in your order.
1.15.108.453/0000 Please include the desired lens and
diffuser in your order.
1.15.108.553/0000 Please include the desired lens and
diffuser in your order.
Technical data see page 1 - 38
Lens, round, transparent colourless, for filament lamp or LED:
5.49.257.011/1002
Lens, round, transparent red, for LED:
5.49.257.011/1301
Lens, round, transparent red, for filament lamp:
5.49.257.011/1303
Lens, round, transparent yellow, for filament lamp or LED:
5.49.257.011/1402
Lens, round, transparent green, for filament lamp:
5.49.257.011/1502
Lens, round, transparent green, for LED:
5.49.257.011/1503
Lens, round, transparent blue, for filament lamp:
5.49.257.011/1601
Accessories:
Diffuser, round, for filament lamp, without legend:
5.72.050.000/0202
Diffuser, round, for LED, without legend:
5.72.050.000/0214
1 - 40
Stock items
are marked
by
bold printed
order numbers.
Pushbuttons
LUMOTAST 75 IP40

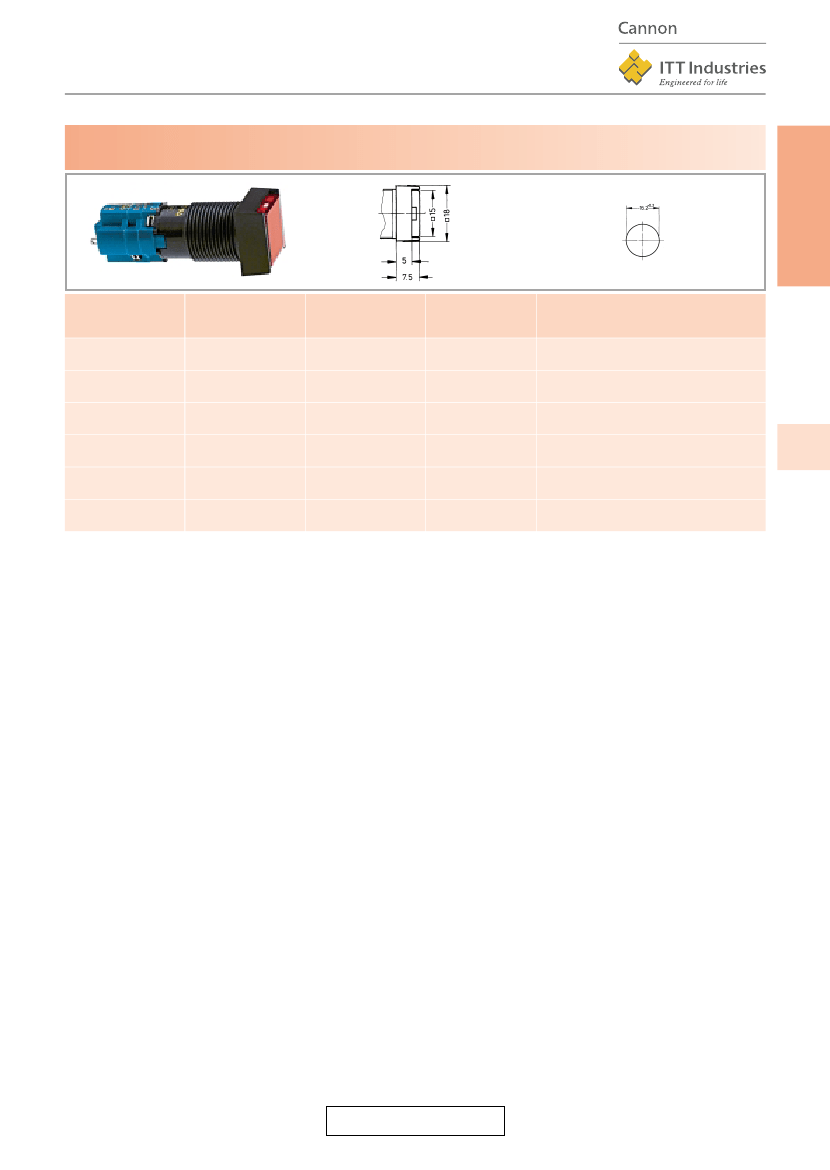

LUMOTAST 75 illuminated pushbutton IP40, flush lens, square collar
1
Pict.: red, without ring nut
Mounting hole
Contact arrangement Contact function
Colour of collar
Order no.
without lens
Note
1 NC + 1 NO
1 NC + 1 NO
2 NC + 2 NO
2 NC + 2 NO
3 NC + 3 NO
3 NC + 3 NO
momentary
latching
momentary
latching
momentary
latching
black
black
black
black
black
black
1.15.108.251/0000
Please include the desired lens and
diffuser in your order.
1.15.108.351/0000
Please include the desired lens and
diffuser in your order.
1.15.108.252/0000 Please include the desired lens and
diffuser in your order.
1.15.108.352/0000 Please include the desired lens and
diffuser in your order.
1.15.108.253/0000 Please include the desired lens and
diffuser in your order.
1.15.108.353/0000 Please include the desired lens and
diffuser in your order.
LUMO
75 (40)
Technical data see page 1 - 38
Lens, square, transparent colourless, for filament lamp or LED:
5.49.275.036/1002
Lens, square, transparent red, for LED:
5.49.275.036/1301
Lens, square, transparent red, for filament lamp:
5.49.275.036/1303
Lens, square, transparent yellow, for filament lamp or LED:
5.49.275.036/1402
Lens, square, transparent green, for filament lamp:
5.49.275.036/1502
Lens, square, transparent green, for LED:
5.49.275.036/1503
Lens, square, transparent blue, for filament lamp:
5.49.275.036/1601
Accessories:
Sealing cap IP65 (for 18 x 18 collar): 5.05.200.009/0000
Protective cap (for 18 x 18 collar): 5.05.800.030/0000
Diffuser, square, for filament lamp, without legend:
5.73.013.000/0202
Diffuser, square, for LED, without legend:
5.73.013.000/0214
Pushbuttons
Stock items
are marked
by
bold printed
order numbers.
1 - 41
