12TW47-8 datasheet, PDF - EEWORLD Datasheet

12TW47-8: DescriptionToggle Switch, DPDT, Momentary, Wire Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size76KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

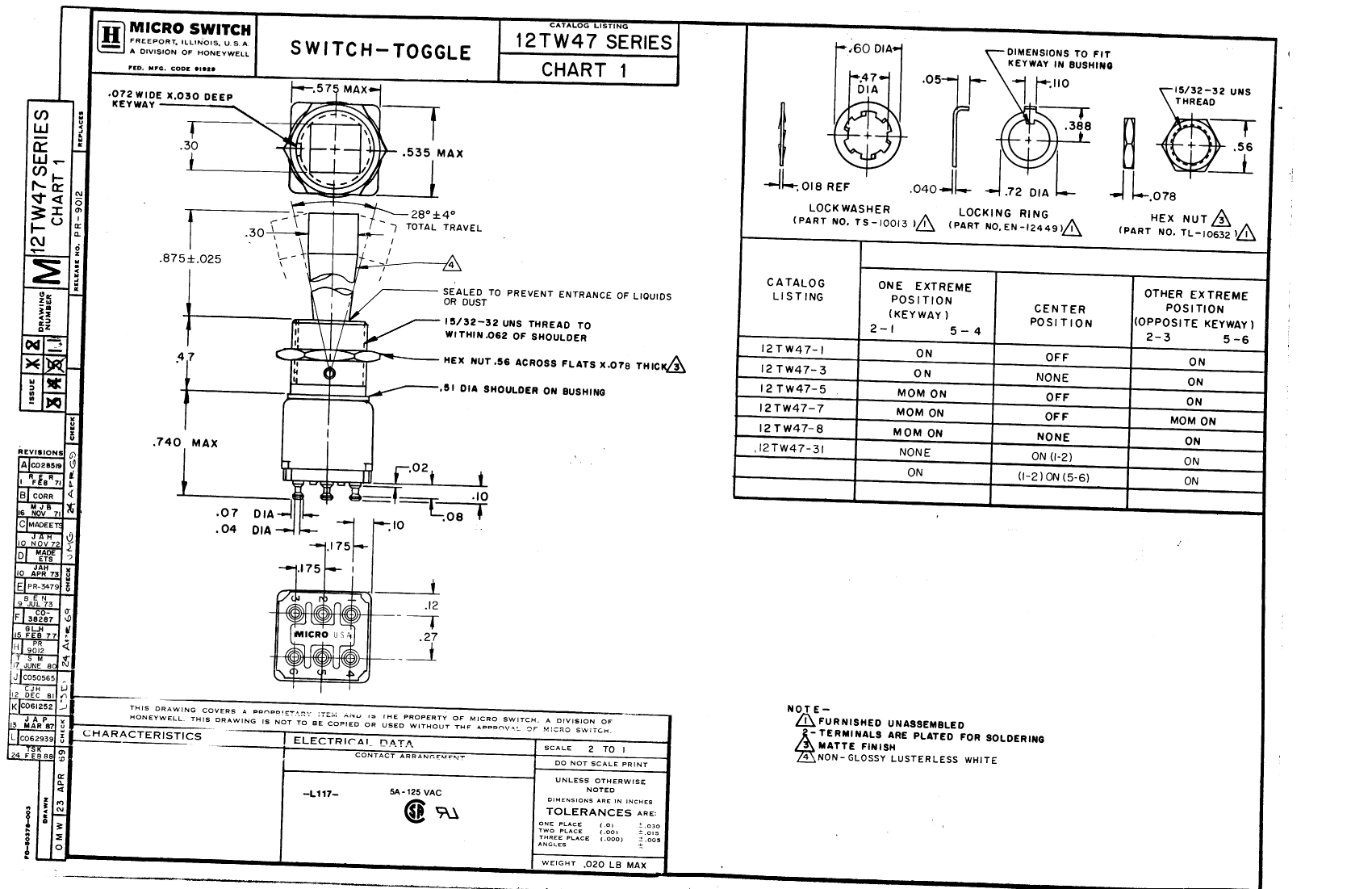

12TW47-8 Overview

Toggle Switch, DPDT, Momentary, Wire Terminal, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	13.59 mm
body height	16.76 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	12TW47
Installation features	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	WIRE
Base Number Matches	1

	12TW47-8	12TW47-31	1201088311	12TW47-5	12TW47-7
Description	Toggle Switch, DPDT, Momentary, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Wire Terminal, Panel Mount-threaded	Micro-Change (M12) Double-Ended Cordset, 4 Poles, Male (Straight) to Male	Toggle Switch, DPDT, Latched And Momentary, Wire Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Momentary, Wire Terminal, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	-	unknow	unknown
ECCN code	EAR99	EAR99	-	EAR99	EAR99
body width	13.59 mm	13.59 mm	-	13.59 mm	13.59 mm
body height	16.76 mm	16.76 mm	-	16.76 mm	16.76 mm
Body length or diameter	14.61 mm	14.61 mm	-	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	-	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	-	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	-	125 V	125 V
Manufacturer's serial number	12TW47	12TW47	-	12TW47	12TW47
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	-	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
seal	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
surface mount	NO	NO	-	NO	NO
Switch action	MOMENTARY	LATCHED	-	LATCHED AND MOMENTARY	MOMENTARY
switch function	DPDT	DPDT	-	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	-	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	WIRE	WIRE	-	WIRE	WIRE
Base Number Matches	1	1	-	1	1
