BHM
CONNECTOR
T3
ca
4.0/8.0mm pitch/Disconnectable Crimp style Wire-to-wire connectors
Specifications –––––––––––––––––––
• Current rating: 1.0A AC, DC max.
• Voltage rating: 600V AC, DC max.
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000M
Ω
min.
• Withstanding voltage: 1,800V AC/minute
• Applicable wire: AWG #28 to #22
0.08 to 0.33mm
2
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
JS
1
H
JS
2
T0
3a
3
G

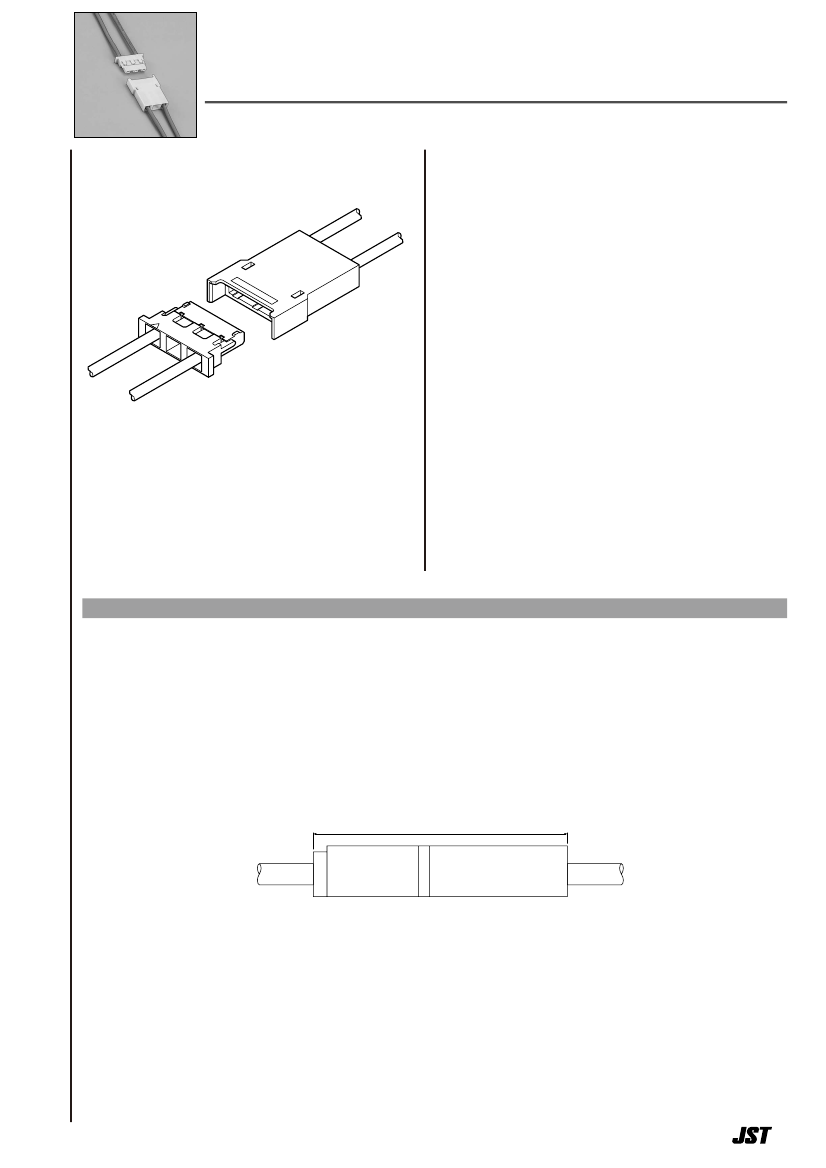

Wire-to-wire version connectors, designed
for liquid crystal display back light lamps.
• Contact lances
• Box shaped housing
Assembly layout
H
Standards ––––––––––––––––––––––
1
Certified LR20812
0
Recognized E60389
18.4
1
BHM CONNECTOR

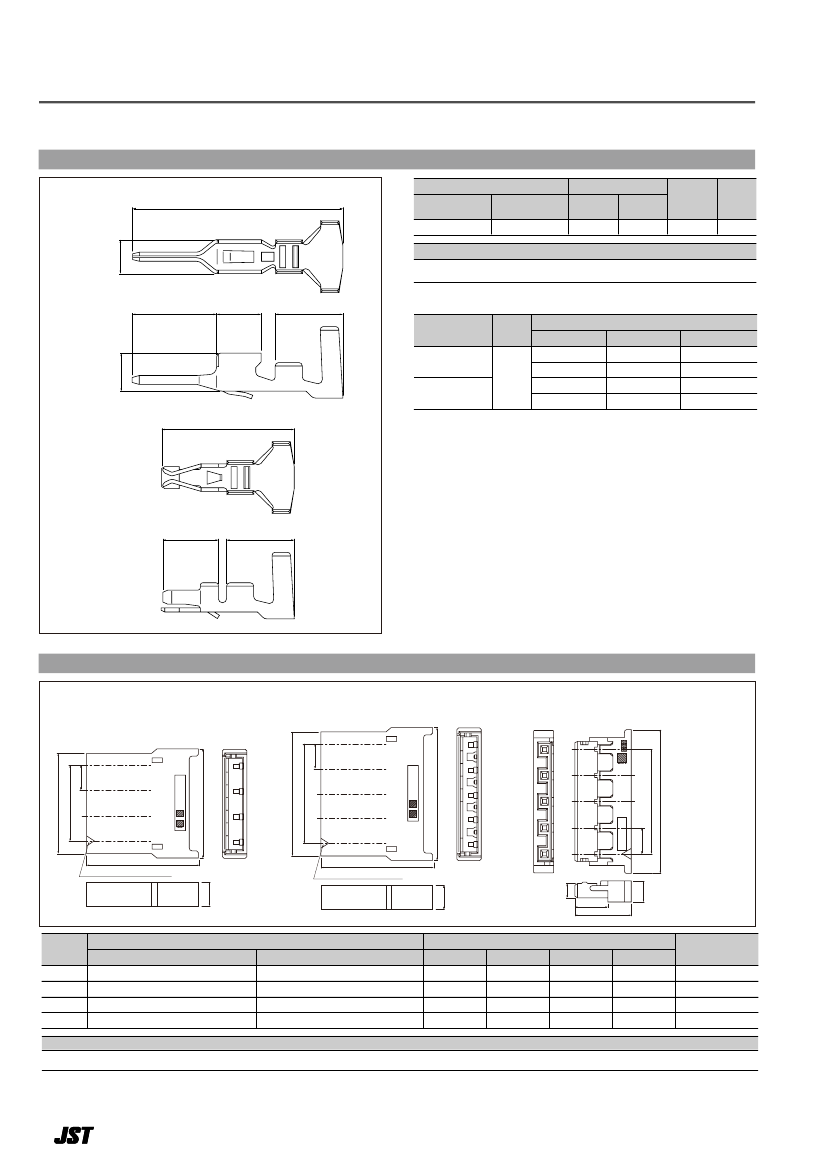

Contact
Pin contact
Model No.
11.7
Applicable wire
mm
2
AWG #
28
∼
22
Pin contact
Socket contact
Insulation O.D. Q'ty /
(mm)
reel
1.6
∼
2.4
4,000
SBHM-001T-P0.5 SBH-001T-P0.5
0.08
∼
0.33
1.9
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
RoHS compliance
4.7
2.5
3.7
Contact
SBHM-001T-P0.5
2.1
Crimping
machine Crimp applicator
MKS-L
AP-K2N
Applicator
Dies
Crimp applicator with dies
MK/SBH/M-001-05 APLMK SBH/M001-05
SC/SBH/M-001-05 APLSC SBH/M001-05
MK/SBH/M-001-05 APLMK SBH/M001-05
SC/SBH/M-001-05 APLSC SBH/M001-05
*
MKS-SC1-1
MKS-L
SBH-001T-P0.5
*
MKS-SC1-1
Socket contact
7.35
Note: *Strip-crimp applicator
3.1
3.7
Housing
Receptacle housing (for pin contact)
(2 to 4 circuits)
(5 circuits)
4.0
Socket housing (for socket contact)
4.0
D
A
C
3
4
5
H JST
H JST
D
A
C
H JST
2
17.4
Circuit No.1 identification
3.7
17.4
Circuit No.1 identification
2.2
3.7
3.2
5.1
8.8
Circuits
2
3
4
5
Model No.
Receptacle housing
BHMR-02V
BHMR-03V
BHMR-04V
BHMR-05V-R
Socket housing
BHR-02VS-1
BHR-03VS-1
BHR-04VS-1
BHR-05VS-1
Material
PA 66, UL94V-0, natural (white)
Dimensions (mm)
A
4.0
8.0
12.0
16.0
1
4.0
A
B
B
9.8
13.8
17.8
21.8
C
9.1
13.1
17.1
21.1
D
7.8
11.8
15.8
19.8
Q'ty / bag
1,000
1,000
1,000
1,000
RoHS compliance
Note: BHMR-05V-R and BHR-05VS-1 have ribs against prying.
2
