URZ2D102MRD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> URZ2D102MRD

URZ2D102MRD: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 22 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size47KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

URZ2D102MRD Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 22 uF, THROUGH HOLE MOUNT

URZ2D102MRD Parametric

Parameter Name	Attribute value
Maximum operating temperature	105 Cel
Minimum operating temperature	-55 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	25 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN (472) OVER COPPER
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	RZ
capacitance	22 uF
packaging shape	CYLINDRICAL PACKAGE
Capacitor type	NON SOLID
Terminal shape	WIRE
polarity	POLARIZED
tangent angle	0.16
ripple current	55mA
leakage current	16.5uA

Preview

Download Datasheet

View All

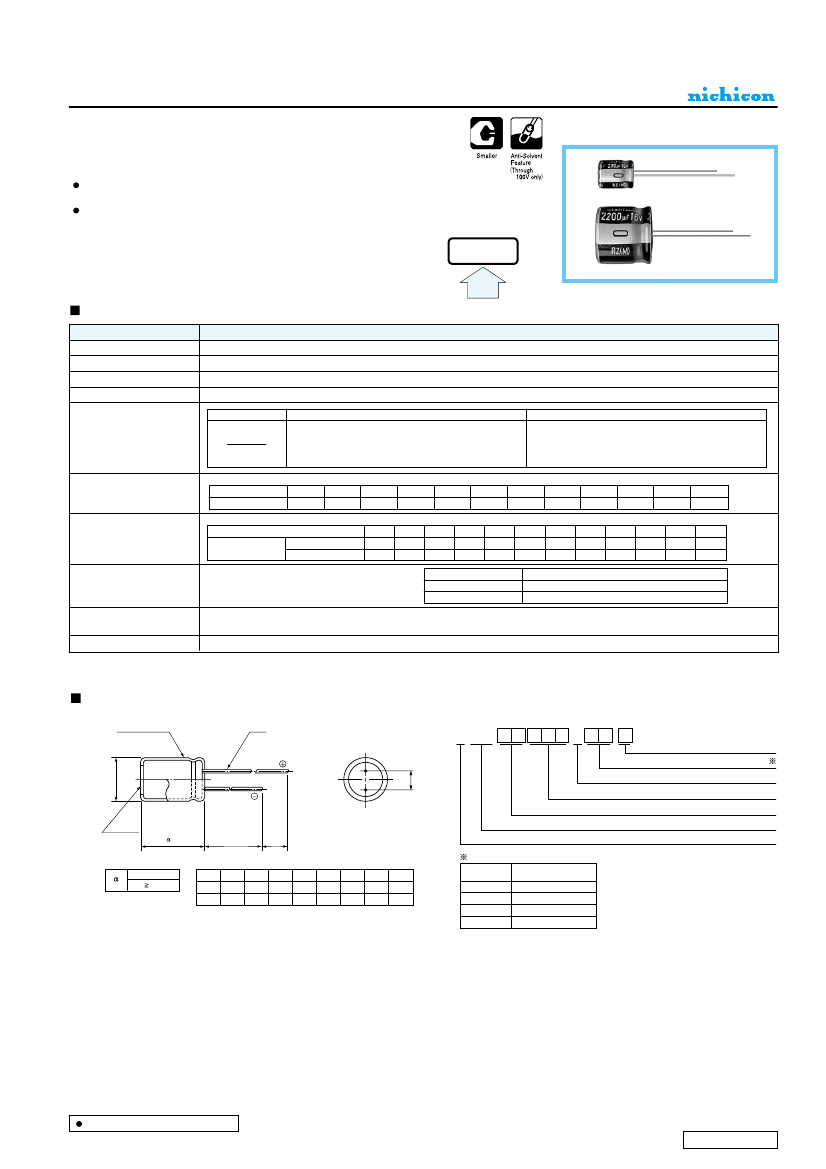

ALUMINUM ELECTROLYTIC CAPACITORS

Compact & Low-Profile Sized, Wide Temperature Range

series

Very small case sizes same as RS series, but operating over wide

temperature range of – 55 (– 40) ~ +105˚C.

Adapted to the RoHS directive (2002/95/EC).

(Through 100V only)

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

– 55 ~ +105˚C (6.3 ~ 100V) , – 40 ~ +105˚C (160 ~ 400V)

6.3 ~ 400V

0.1 ~ 10000µF

± 20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 100

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

160 ~ 400

After 1 minute's application of rated voltage,

= 0.04CV+100 (µA) or less

Leakage Current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20˚C

tan

Rated voltage (V)

tan

(

MAX.

)

6.3

0.28

0.24

0.20

6.3

0.16

0.14

0.12

0.10

100

0.08

160

0.20

100

200

0.20

160

200

250

0.20

250

400

0.25

400

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

After 1000 hours' application of rated voltage

at 105˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours, and after performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

9 10 11

Size code

UR Z 1 A 3 3 1 MPD

Configuration

P ±

0.5

φD

0.5 MAX

Capacitance tolerance (±20%)

Rated Capacitance (330µF)

Rated voltage (10V)

Pressure

relief vent

(φ8up)

Series name

MAX

MIN

Type

Configuration

(mm)

(φD < 20) 1.5

(φD 20) 2.0

φD

φd

2.0

0.5

6.3

2.5

0.5

3.5

0.6

5.0

0.6

12.5

5.0

0.6

7.5

0.8

7.5

0.8

10.0

1.0

5 · 6.3

8 · 10

12.5 ~ 18

Pb-free leadwire

Pb-free PET sleeve

•

Please refer to page 21 about the end seal configulation.

Please refer to page 21, 22, 23 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.

CAT.8100V
