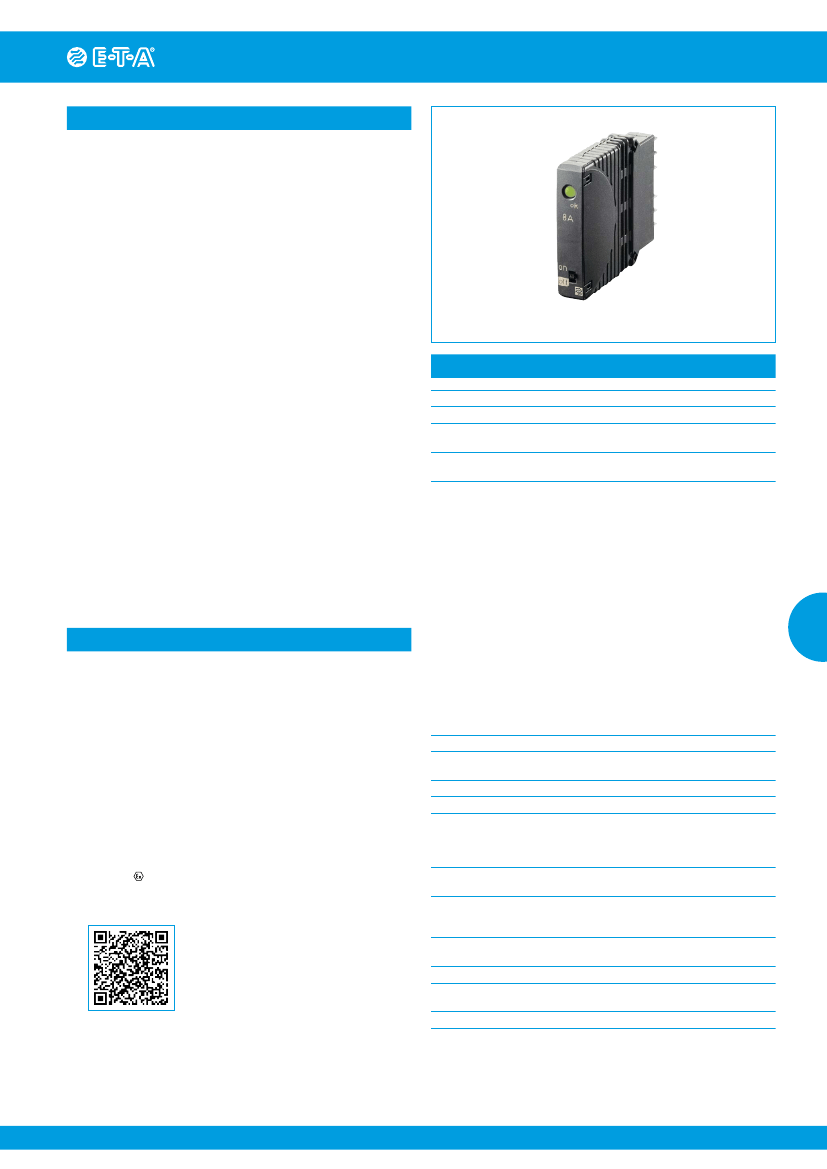

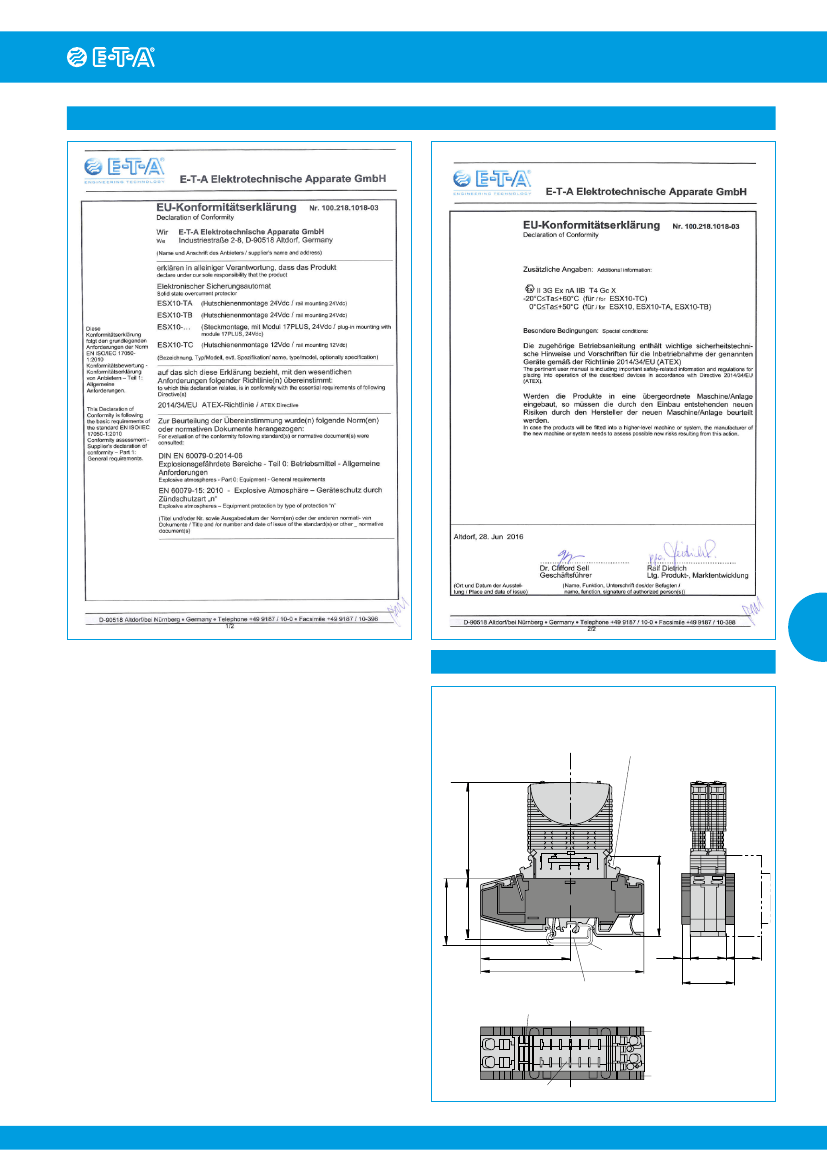

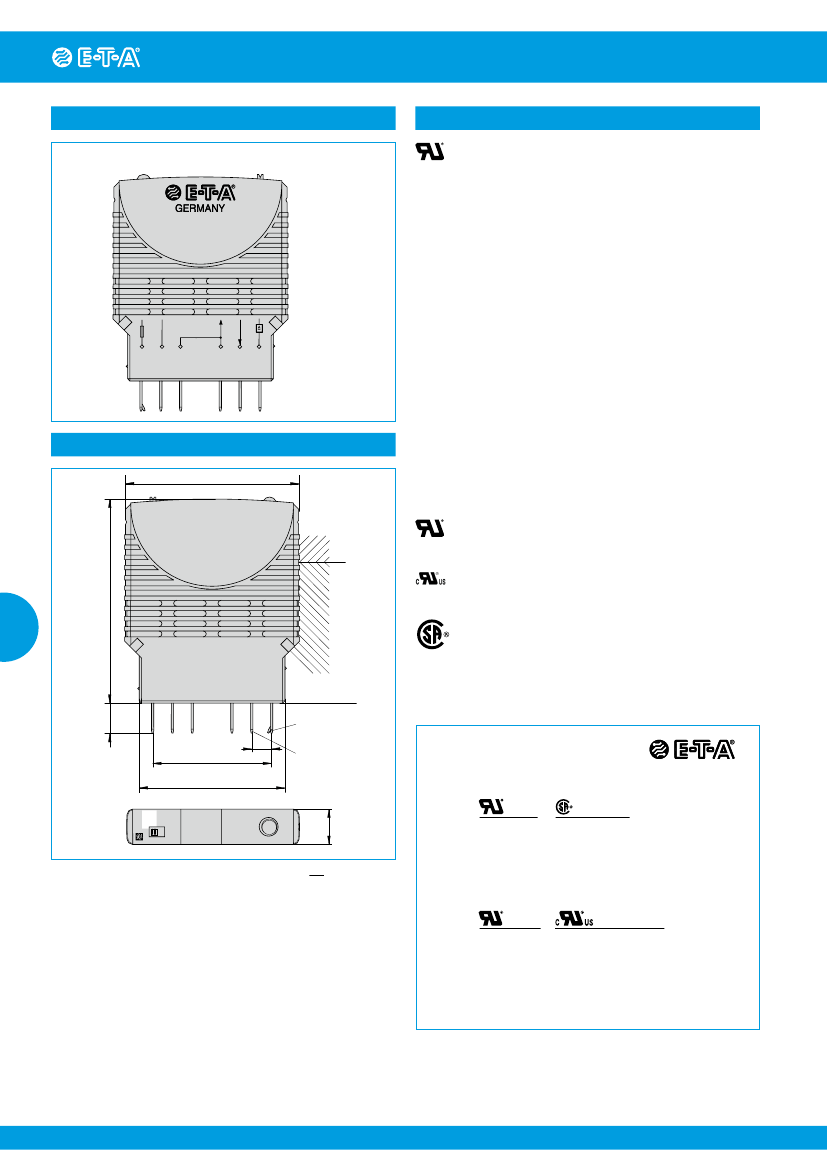

Electronic Circuit Protector ESX10

Description

Electronic circuit protector type ESX10 is designed to ensure

selective

disconnection of DC 24 V load systems.

DC 24 V power supplies, which are widely used in industry today, will

shut down the output in the event of an overload with the result that

one faulty load in the system can lead to complete disconnection of

all loads. As well as an unidentified failure this also means stoppage

of the whole system.

Through

selective

disconnection the ESX10 responds much faster

to overload or short circuit conditions than the switch-mode power

supply. This is achieved by active current limitation. The ESX10 limits

the highest possible current to values between 1.3 to 1.8 times the

selected rated current of the circuit protector. Thus it is possible to

switch on

capacitive loads of up to 75,000 µF

lamp loads, but they

are disconnected only in the event of an overload or short circuit.

For optimal alignment with the characteristics of the application the

current rating of the ESX10 can be selected in fixed values from

0.5 A...12 A. Failure and status indication are provided by a multicolour

LED and an integral short-circuit-proof status output or a potential-free

signal contact.

The ESX10, with a width of only 12.5 mm, can be plugged into the

E-T-A power distribution socket Module 17plus ensuring ease of

installation and saving space in control cabinets.

Upon detection of overload or short circuit in the load circuit, the

MOSFET of the load output will be blocked to interrupt the

current flow. The MOSFET and the load circuit may be re-activated

via the remote electronic reset input or manually by means of the

ON/OFF button. When starting up the system, the load circuit may

also be manually disconnected.

US patent number:

US 6,490,141 B2

ESX10

Technical data

Operating data

Operating voltage U

Current rating I

Closed current I

Status indication

by means of

(Tambient = 25 °C, operating voltage US = DC 24 V)

Features

Selective load protection, electronic trip characteristics.

Active current limitation for safe connection of capacitive loads

up to 75,000 µF and on overload/short circuit.

Current ratings 0.5 A...12 A.

Reliable overload disconnection with 1.1 x I

plus, even with long

load lines or small cable cross sections (see table 3).

Manual ON/OFF button (S1).

Clear status and failure indication through LED, status output SF

or Si contact F.

Electronic reset input RE (option).

Integral fail-safe element.

Width per unit only 12.5 mm.

Plug-in mounting utilising power distribution system Module 17plus

or SVSxx optionally (see product group Power distribution systems)

Additional versions with ATEX approval available.

Marking:

II 3G Ex nA IIB T4 Gc X

ESX10-...-E

Please observe separate operating instructions:

DC 24 V (18...32 V)

fixed current ratings: 0.5 A, 1 A, 2 A, 3 A,

4 A, 6 A, 8 A, 10 A, 12 A

ON condition: typically 20...30 mA

depending on signal output

multicolour LED:

GREEN:

unit is ON, power-MOSFET

is switched on

- status output SF ON, supplies +DC 24 V

ORANGE:

in the event of overload or short circuit

until electronic disconnection

RED:

- unit electronically disconnected

- load circuit/Power-MOSFET OFF

OFF:

- manually switched off (S1 = OFF)

or device is dead

- undervoltage (U

< 8 V)

- after switch-on till the end of the

delay period

status output SF (option)

potential-free signal contact F (option)

ON/OFF/ condition of switch S1

Power-MOSFET switching output

(high side switch)

Overload disconnection

typically 1.1 x I

(1.05...1.35 x I

)

Short-circuit current I

active current limitation (see table 1)

Trip time

see time/current characteristics

for electronic disconnection typically 3 s at I

Load

> 1.1 x I

typically 3 s...100 ms at I

Load

> 1.8 x I

(or 1.5 x I

/1.3 x I

)

Temperature disconnection internal temperature monitoring with

electronic disconnection

Low voltage monitoring

load output

with hysteresis, no reset necessary

load “OFF” at U

< 8 V

Starting delay t

start

typically 0.5 sec after every switch-on

and after applying U

Disconnection of load circuit electronic disconnection

Free-wheeling circuit

external free-wheeling diode

recommended with inductive load

Several load outputs must not be connected in parallel

Load circuit

Load output

1642

www.e-t-a.de
