MGT325 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Thermal management products> MGT325

MGT325: DescriptionTOOL FOR MAXI GRIP 32.5X32.5; CategoryThermal management products; File Size3MB，1 Pages; ManufacturerERP; Environmental Compliance

Download Datasheet Parametric View All

MGT325 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MGT325	-	-	View	Buy Now

MGT325 Overview

TOOL FOR MAXI GRIP 32.5X32.5

MGT325 Parametric

Parameter Name	Attribute value
Accessory type	Disassembly and assembly tools
Supporting products/related products	Heat sink mounting assembly 32.5mm x 32.5mm

Preview

Download Datasheet

View All

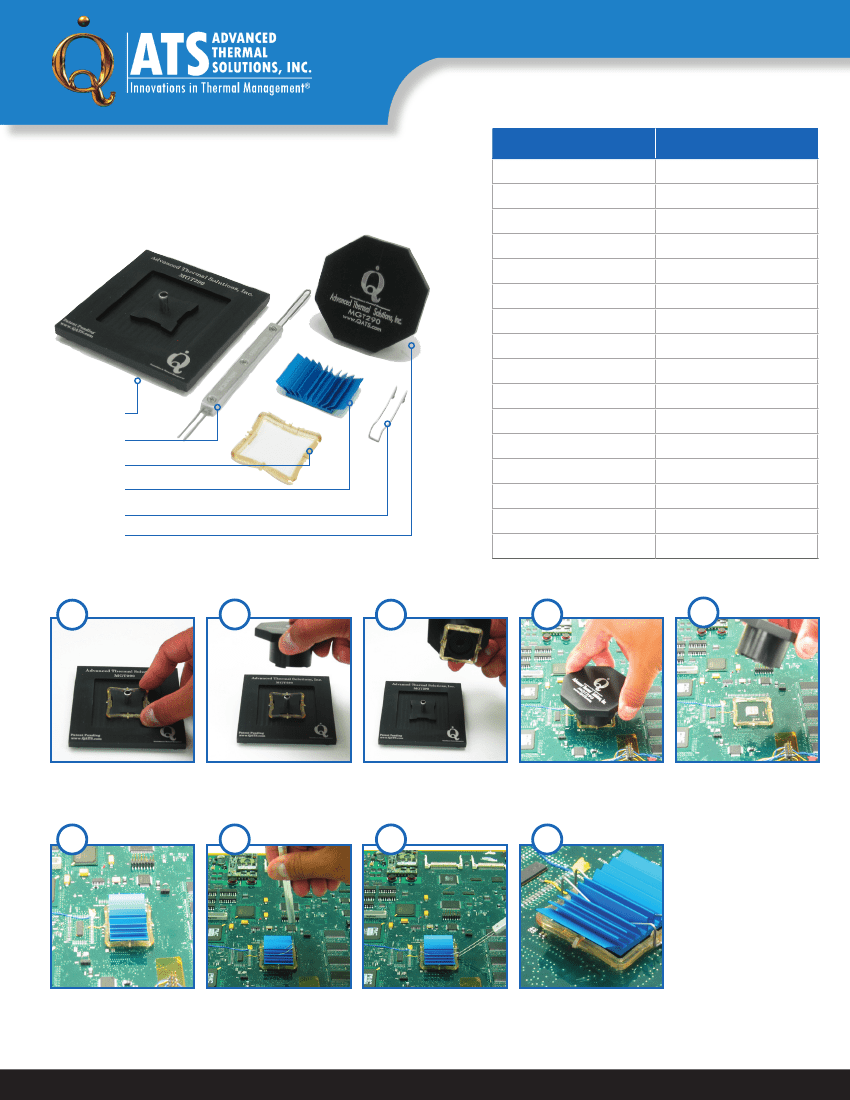

MAXIGRIP TOOL

maxiGRIP™ Tool

Part Number

MGT170

MGT190

MGT210

MGT230

MGT250

MGT270

MGT290

MGT300

MGT310

Component Size (mm)

17x17

19x19

21x21

23x23

25x25

27x27

29x29

30x30

31x31

32.5x32.5

33x33

35x35

37.5x37.5

40x40

42.5x42.5

45x45

Aluminum tool for installatation and removal

of maxiGRIP™ Heat Sink attachment.

BASE PLATE

SPRING CLIP TOOL

FRAME CLIP

HEAT SINK

SPRING CLIP

KNOB TOOL

MGT325

MGT330

MGT350

MGT375

MGT400

MGT425

MGT450

INSTALLATION GUIDE

Place Frame Clip into pocket of

tooling Base Plate.

Position the Knob Tool over the

Frame Clip

Rotate the knob tool 45° clockwise Position the Knob Tool with Frame

locking the Frame Clip to the Knob Clip over the component, rotate

Tool and lift away from base plate. 45° counter-clockwise releasing

the Frame Clip

Lift to remove the Knob Tool -

leaving the Frame Clip attached to

the component.

For more

information,

please contact

Advanced Thermal

Solutions, Inc.

781-769-2800,

ats-hq@qats.com

or www.qats.com

R1_1117

Place the Heat Sink squarely in the Secure the “Open End” of the

Spring Clip under the lip of the

Frame Clip over the component.

Note the direction of air flow when

frame clip.

placing your Heat Sink.

Using the “Forked End” of the

Spring Clip tool, “latch over” the

“Closed End” of the Spring Clip on

to the Frame Clip tab.

Inspect the installation. Double

check to make sure the Heat Sink

is securely attached.

89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
