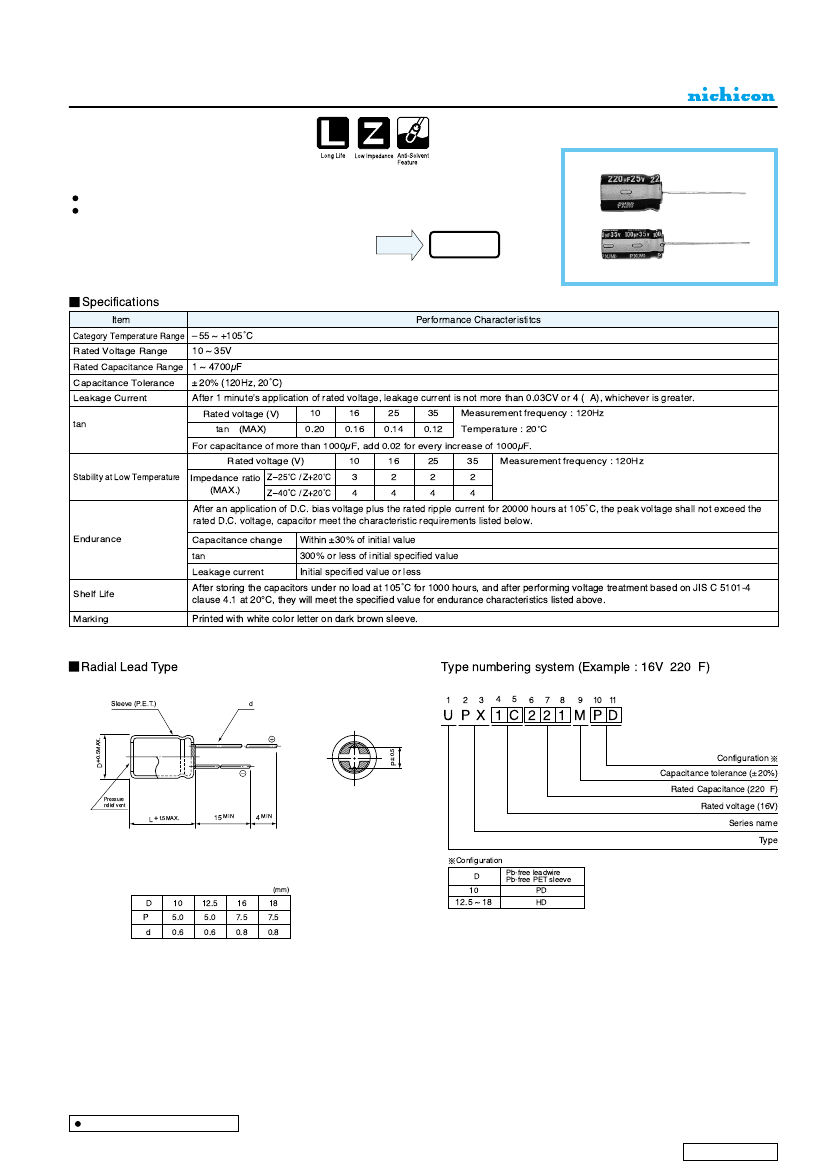

ALUMINUM ELECTROLYTIC CAPACITORS
PX
Long Life Assurance
series
Load life of 20000 hours at 105°C.
Adapted to the RoHS directive (2002/95/EC).
PM
Long Life
PX
Specifications
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Item
10
16
25
35 Measurement frequency : 120Hz
Rated voltage (V)
tan
δ
(MAX)
0.20 0.16 0.14 0.12 Temperature : 20ûC
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
10
16
25
35 Measurement frequency : 120Hz
Rated voltage (V)
Stability at Low Temperature Impedance ratio ZÐ25ûC / Z+20ûC 3
2
2
2
(MAX.)
ZÐ40ûC / Z+20ûC 4
4
4
4
Endurance
Shelf Life
Marking
Ð55 ~ +105ûC
10 ~ 35V
1 ~ 4700µF
±20% (120Hz, 20ûC)
After 1 minute's application of rated voltage, leakage current is not more than 0.03CV or 4 (
µ
A), whichever is greater.
Performance Characteristitcs
After an application of D.C. bias voltage plus the rated ripple current for 20000 hours at 105ûC, the peak voltage shall not exceed the
rated D.C. voltage, capacitor meet the characteristic requirements listed below.
Capacitance change
Within ±30% of initial value
300% or less of initial specified value
tan
δ
Initial specified value or less
Leakage current
After storing the capacitors under no load at 105ûC for 1000 hours, and after performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20¡C, they will meet the specified value for endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Sleeve (P.E.T.)
D+
0.5MAX.
φ
Type numbering system (Example : 16V 220
µ
F)
d
U PX 1C 2 2 1 MPD
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (220
µ
F)
Rated voltage (16V)
Series name
Type
Configuration
Pb-free leadwire
φ
D
Pb-free PET sleeve
10
PD
12.5 ~ 18
HD
P ±
0.5
1 2 3 4 5 6 7 8 9 10 11
φ
Pressure
relief vent
L +
1.5MAX.
15
MIN
4
MIN
φ
D
P
φ
d
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
(mm)
•
Please refer to page 21 about the end seal configulation.
Please refer to page 21, 22, 23 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.

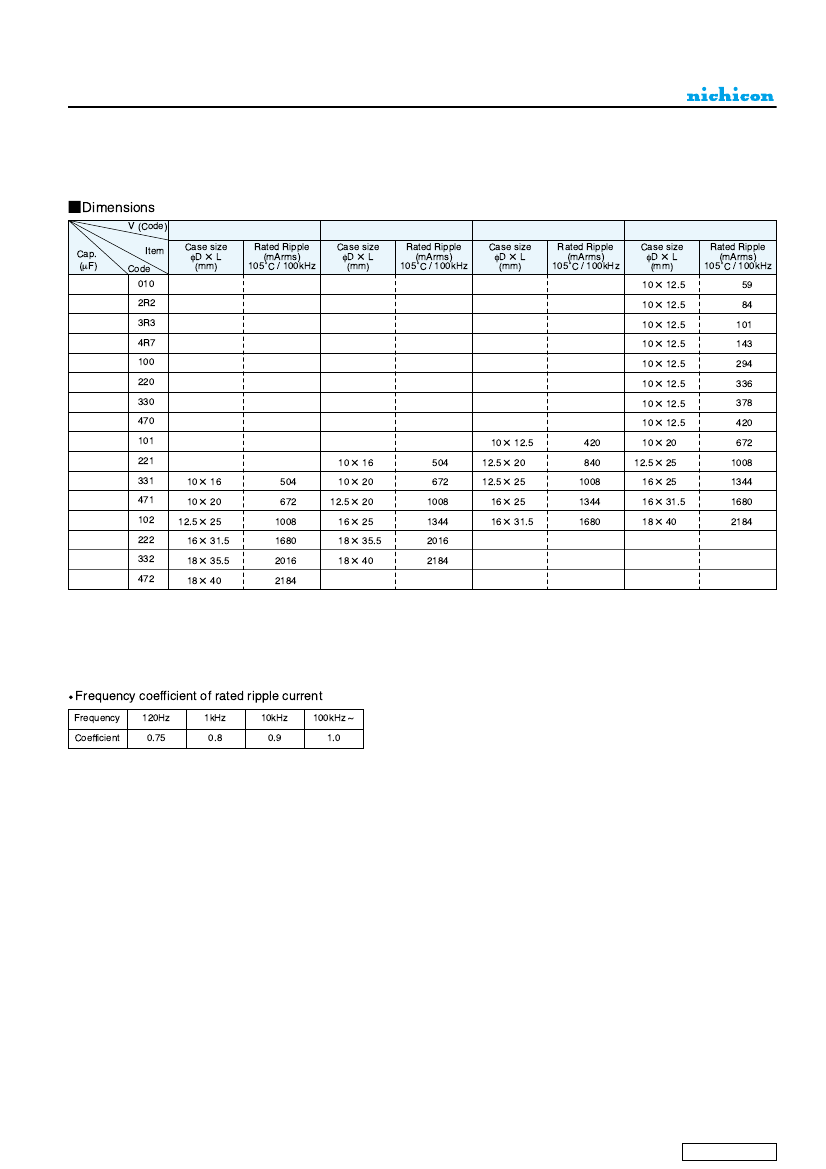

Dimension table in next page.
CAT.8100V
