10123536-102LF datasheet, PDF - EEWORLD Datasheet

10123536-102LF: DescriptionVS2 4X10 RH ST 2S; CategoryThe connector The connector; File Size931KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

10123536-102LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	10123536-102LF	-	-	View	Buy Now

VS2 4X10 RH ST 2S

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
body width	0.811 inch
subject depth	1.331 inch
body length	0.862 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.5004 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.397 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	120
Evacuation force-minimum value	.15012 N

Lin-Soe Ngwe

Art Lin

Heaven Cen

Pei-Ming Zheng

2012/12/05

2016/11/01

2016/11/17

2016/11/18

ELX-DG-25255-1

Released

D

PDS: Rev :D

STATUS:Released

Printed: Nov 19, 2016

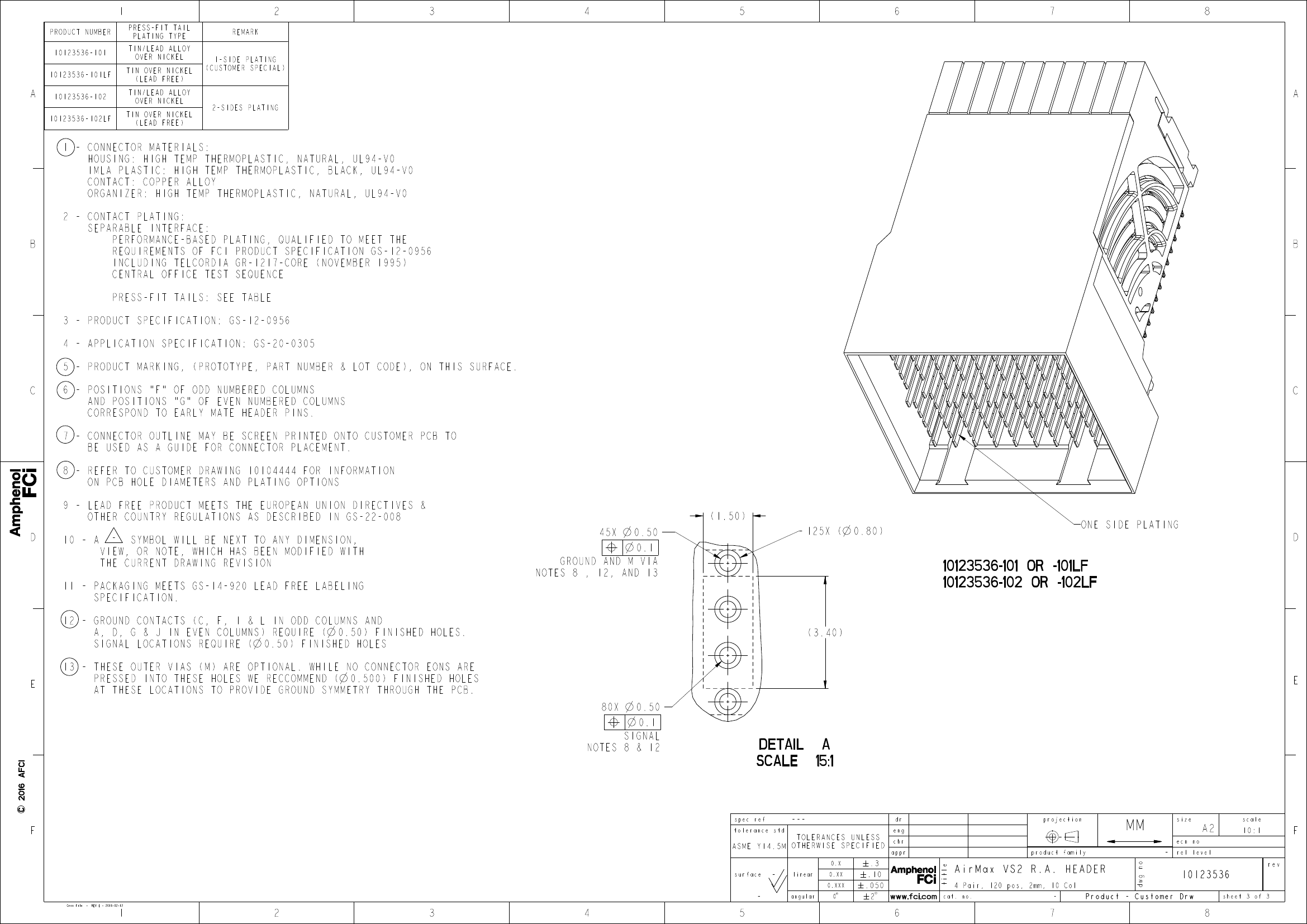

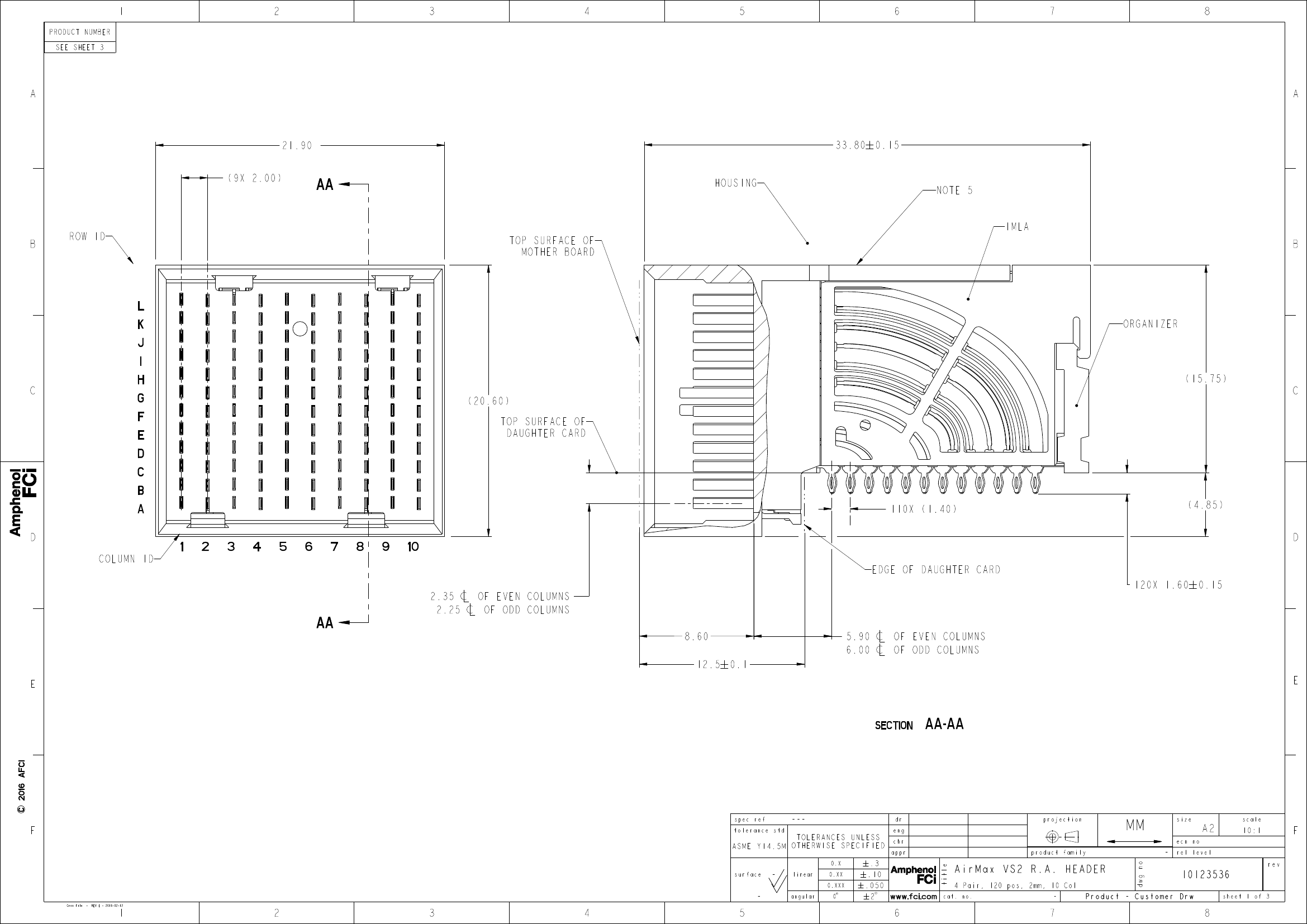

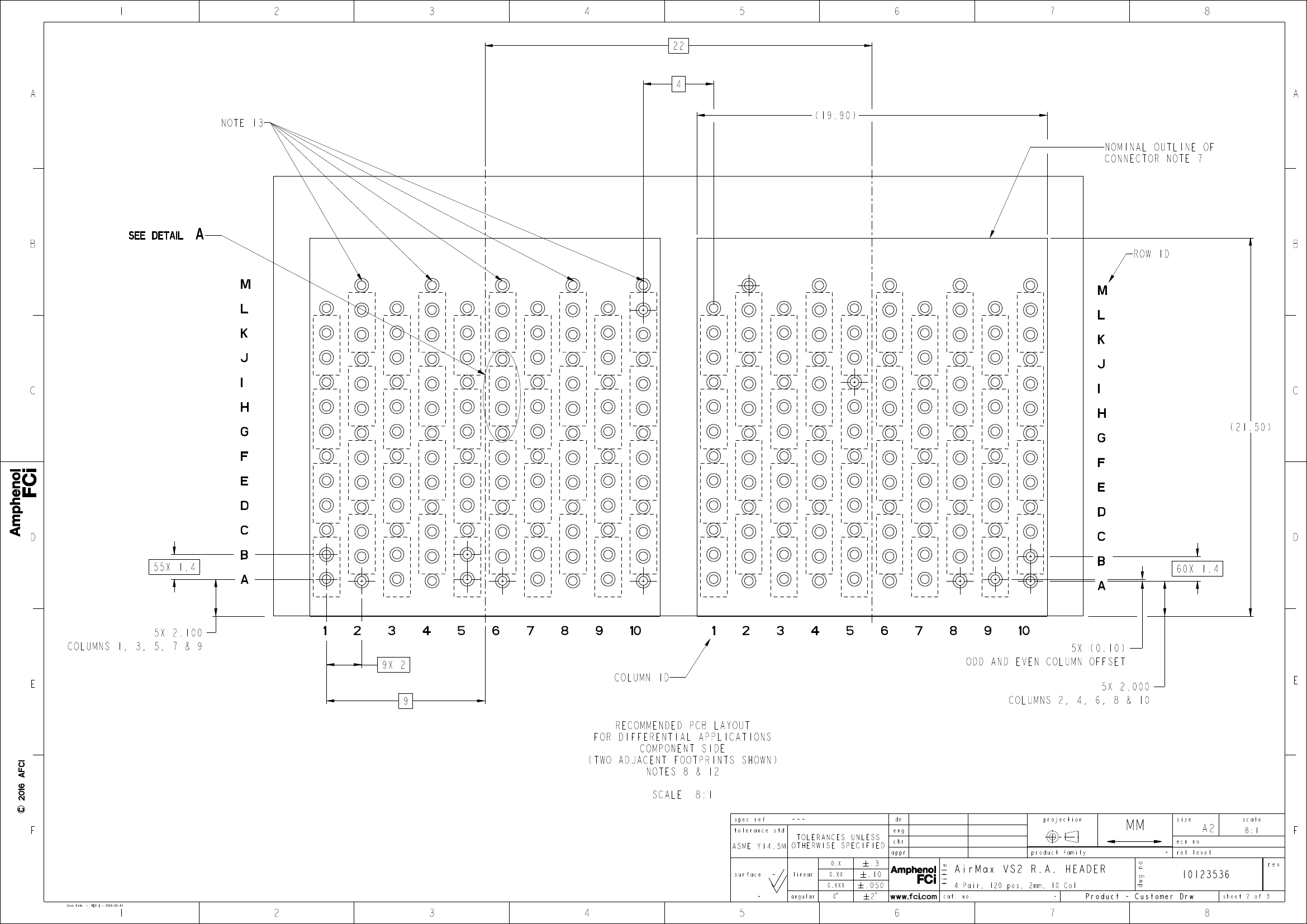

	10123536-102LF
Description	VS2 4X10 RH ST 2S
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
body width	0.811 inch
subject depth	1.331 inch
body length	0.862 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
maximum insertion force	.5004 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.397 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.063 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	120
Evacuation force-minimum value	.15012 N
