Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5003

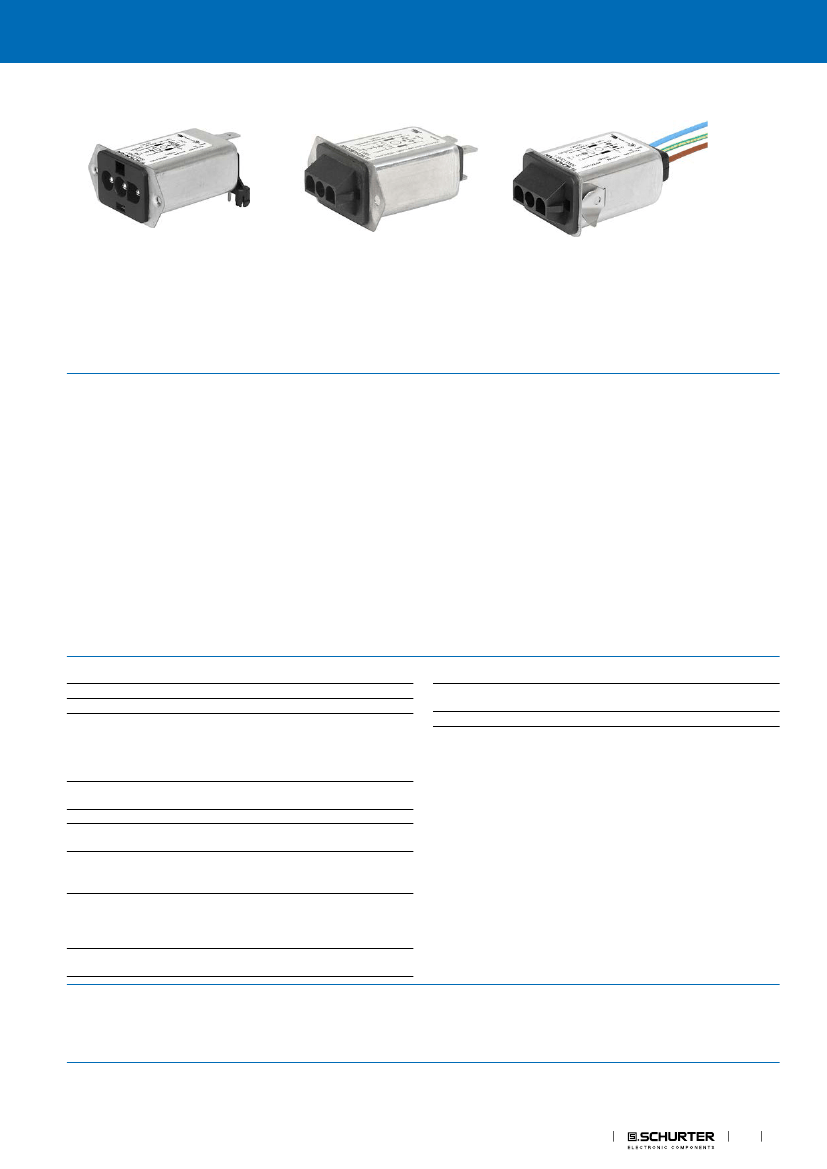

Appliance Inlet DC Filter, ECO Design, Front- or Rear Side Mounting
Screw-on mounting, front or back side
PCB snap-in version
MOLEX HCS-125 connector
Screw-on mounting, front or back side
Quick connect terminals 6.3 x 0.8 mm
AMP Universal MATE-N-LOK or MOLEX MLX
Snap-in mounting
with wires (stranded)
AMP Universal MATE-N-LOK or MOLEX MLX
Approvals and Compliances
Description
- Panel Mount :
Screw-on version from front or rear side, snap-in version from front
side, PCB Version from rear side
- 2 Functions :
Appliance Inlet , DC line filter in standard version
- Solder, quick connect or wires (stranded)
See below:
Characteristics
- Compact high-performance DC-filter
Optimal shielding due to completely closed filter case, unpotted
- Applications:
- Mission Critical Ethernet LAN Routers
- High uptime Ethernet LAN Switches
- Fiber Optic WAN Switches
- Fiber Optic WAN Multiplexer
Other versions on request
-
-
-
-
-
Snap-in for panel thickness >2mm to 3mm
flexible wire with various lenghts
Quick connect terminals 4.8 x 0.8 mm
Capacity CY 5.5 nF
with long earth pin in connector
References
Weblinks
PCB Mounting
Alternative: version 5120 for AC applications
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Accessories, Detailed request for product
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
15 A / 125 VDC
3 - 15 A @ Ta 40 °C / 125 VDC
> 0.5 kVDC between (VAC 1 min., DIN
EN 50155)
> 1.1 kVDC between protective conduc-
tor and live parts
Test voltage (2 sec)
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
Suitable for appliances with protection
class I
Quick connect terminals 6.3 x 0.8 mm
Wire leads AWG 18 (10-15A AWG 16),
150 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 2 mm
(all steps with one variant)
Themoplast / steel tin-plated, black /
metallic, UL 94V-0
Line Filter
MTBF
DC Standard Version, UL 1283
Technical Details
> 3'900'000 h acc. to MIL-HB-217 F
Allowable Operation Tempe-
rature
Climatic Category
Protection Class
Terminal
Panel Thickness S
Material: Housing
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
EMC Products
1
5003
Approvals
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: 5003
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number: 40020642
UL File Number: E72928
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60320-1
IEC 61058-1
UL 498
UL 1283
CSA C22.2 no. 42
Description
Appliance couplers for household and similar general purposes
Switches for appliances. Part 1. General requirements
Standard for Attachment Plugs and Receptacles
Electromagnetic interference filters
General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

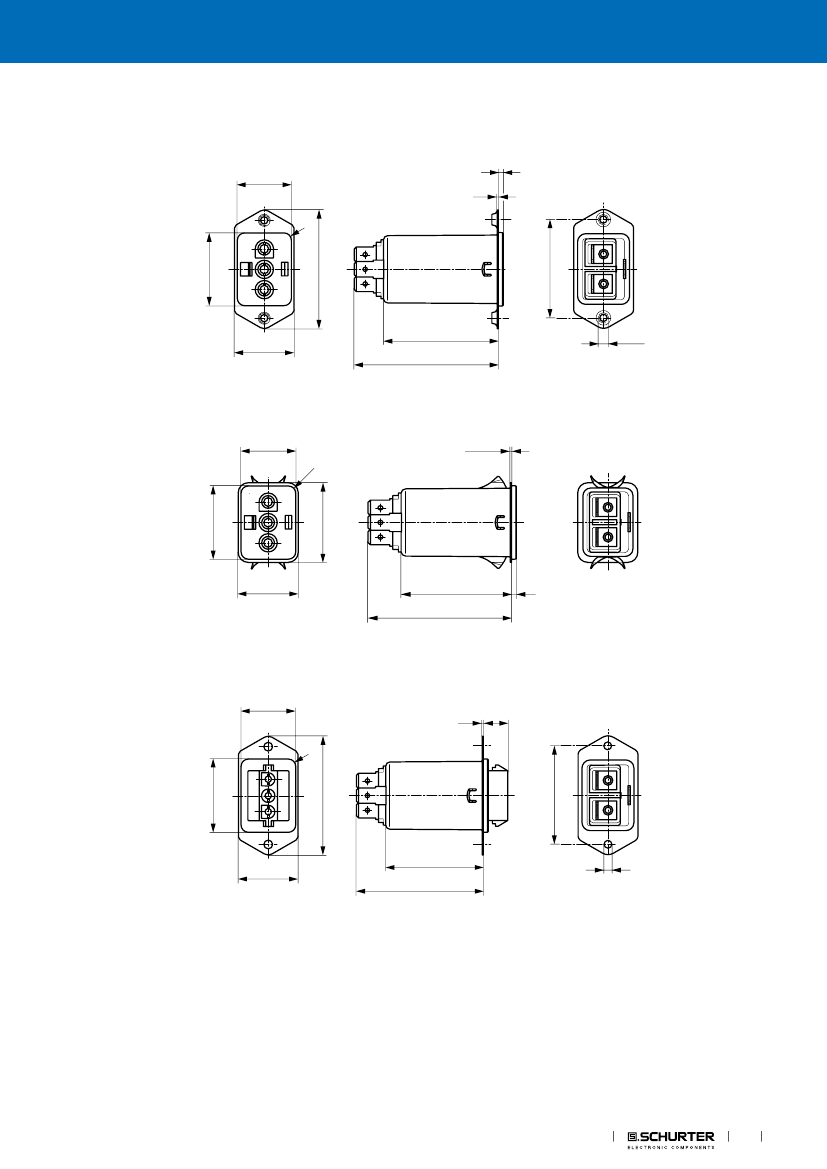

Dimensions [mm]
Front- or rear side mounting for screws with nuts or blind rivets, mating connector Molex HCS-125
2
max. 22.4
0.5
R3
max. 30
40
±0.20
47
59
48.6
24.6
3.6
2
EMC Products
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5003

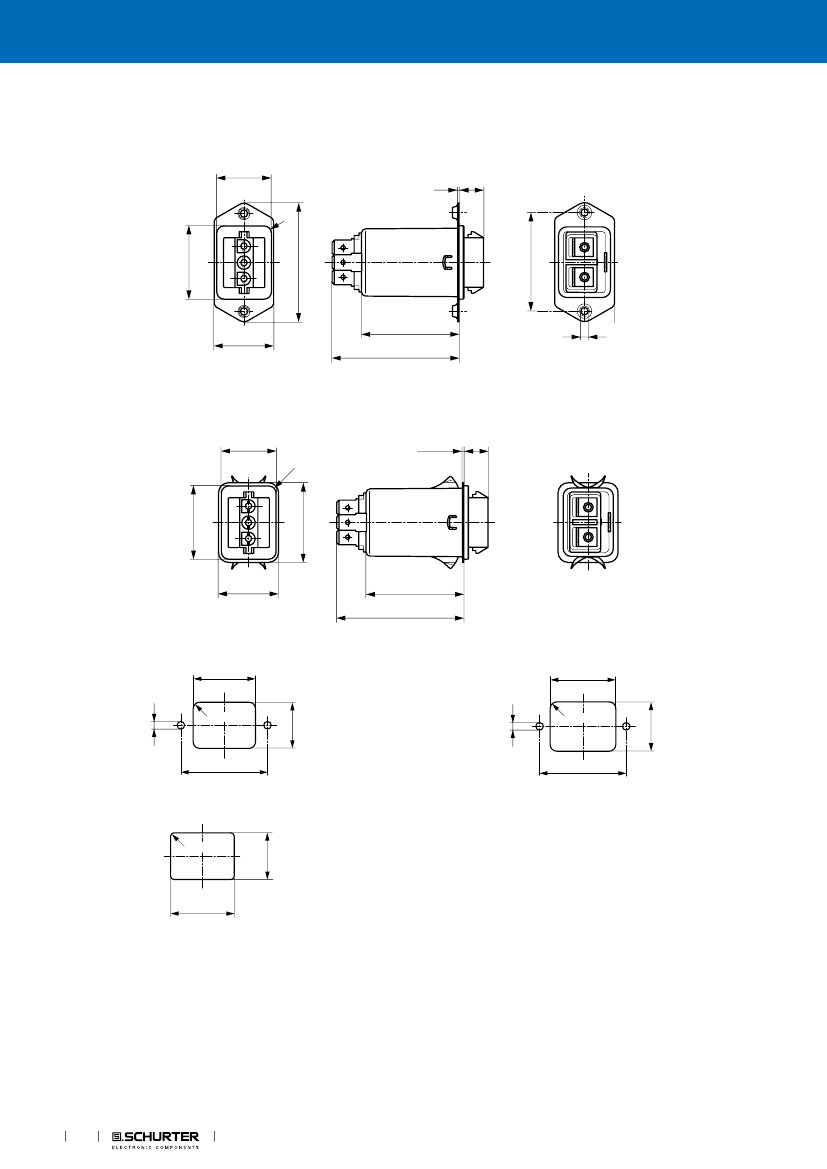

Rear side mounting with pre-formed, threaded holes for M3 screws, mating connector Molex HCS-125
2
max. 22.4
0.5
R3
max. 30
40
±0.20
47
59
48.6
24.6
M3x0.5
Snap-in mounting from front side, mating connector Molex HCS-125
max. 22.4
R3
min. 0.5
max. 30
24.6
59
32.6
47
2
Front or rear side mounting for screws with nuts or blind rivets, mating connector AMP Universal MATE-N-LOK oder Molex MLX
max. 22.4
0.5
R3
max. 30
40
±0.20
40
52
10
48.6
24.6
3.6
EMC Products
3
5003
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
Rear side mounting with pre-formed, threaded holes for M3 screws, mating connector AMP Universal MATE-N-LOK or Molex MLX
max. 22.4
0.5
R3
max. 30
40
±0.20
40
52
10
48.6
24.6
M3x0.5
Snap-in mounting from front side, mating connector AMP Universal MATE-N-LOK or Molex MLX
max. 22.4
R3
min. 0.5
10
max. 30
24.6
52
32.6
40
29
±0.1
30.3
+0.20
0
3.5
21.5
3.5
max.R3
40
±0.15
40
±0.15
Panel cutout for front side mounting
Panel cutout for rear side mounting
max.R 1.5
29.4
±0.10
Panel cutout for snap-in mounting
4
EMC Products
21.5
±0.10
22.8
max.R3
+0.20
0
±0.1
Power Entry Modules with Line Filter
https://www.schurter.com /PG06
5003

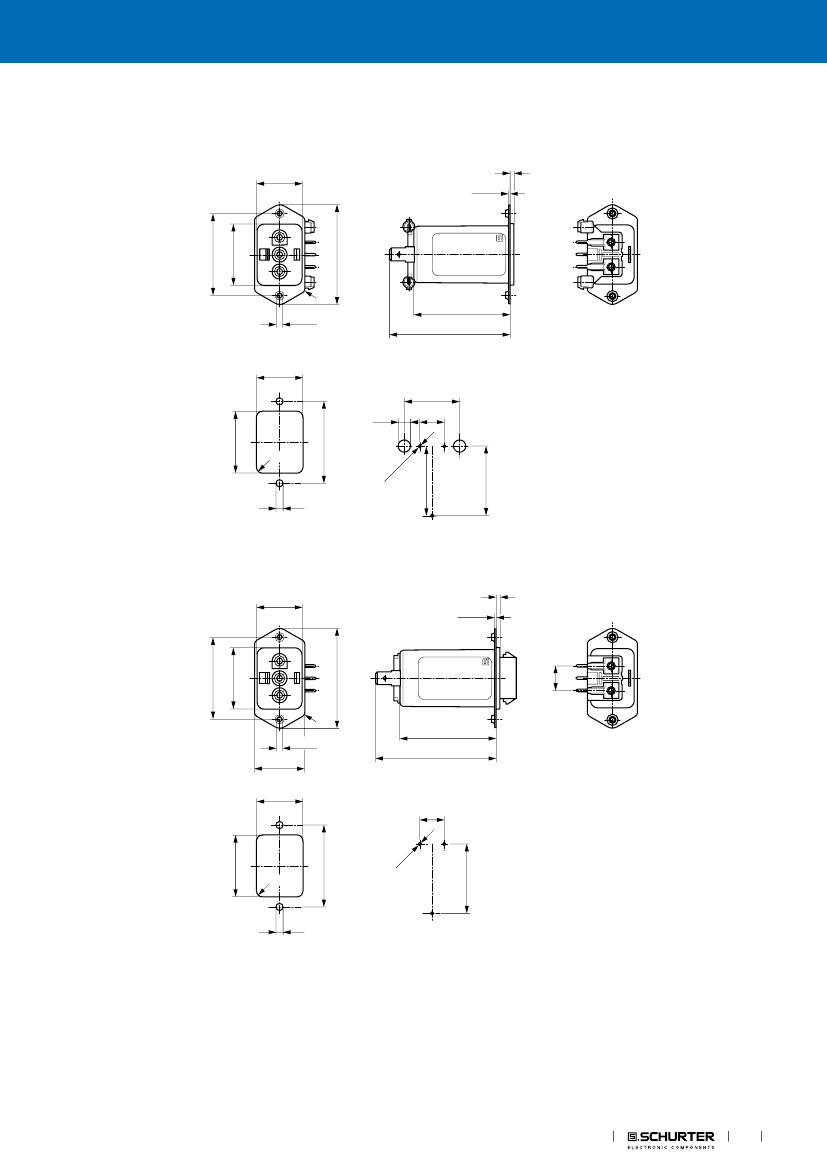

PCB snap-in rear-side mounting with pre-formed threaded holes for M3 screws, mating connector Molex HCS-125
2
max. 22.4
min. 0.5
max. 30
R3
M3x0.5
59
47
22.8
+0.20
0
48.6
40
27
±0.10
ø6
±0.05
+0.20
0
12
±0.10
30.3
+0
0 .10
max.R3
40
±0.15
33.9
±0.10
ø3.5
PCB rear-side mounting with pre-formed threaded holes for M3 screws, mating connector Molex HCS-125
2
min. 0.5
max. 22.4
max. 30
48.6
34
±0.10
ø1
.6
40
R3
M3x0.5
59
24.6
+0.20
0
47
22.8
12
±0.10
+0.20
0
40
±0.15
ø1
.6
+0
0 .10
max.R3
ø3.5
33.9
±0.10
30.3
EMC Products
12
5
