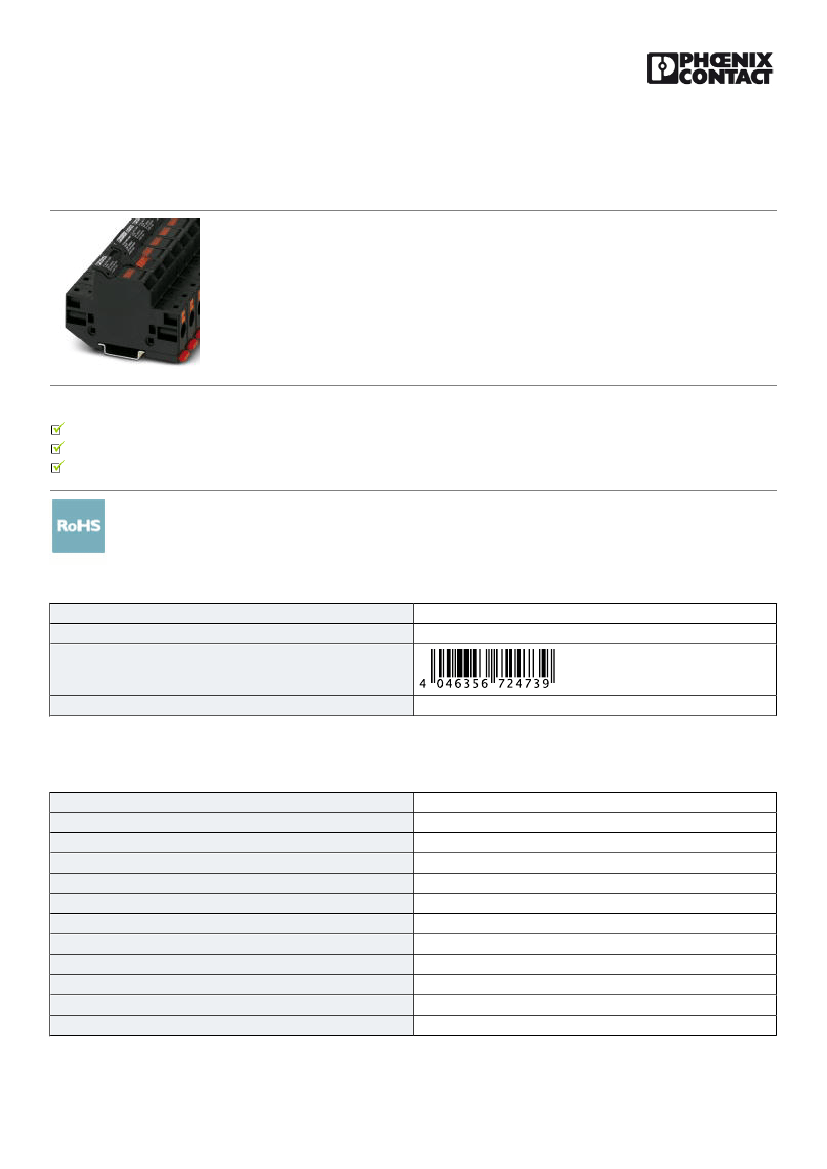

Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Fuse modular terminal block, connection method: Push-in connection, cross section: 1.5 mm²- 10 mm², AWG:
16 - 6, nominal current: 20 A, nom. voltage: 1000 V, width: 17.6 mm, fuse type: Midget / 10.3 x 38, mounting
type: NS 35/7,5, NS 35/15, color: black
Your advantages
Fuse holder for fusing PV strings 1000 V DC
For 10 x 38 gPV fuse-links in accordance with IEC 60269-6
Quick identification of faulty fuses regardless of the current direction, thanks to LED status indicator
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356724739
10 pc
10 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum power dissipation for nominal condition
Fuse
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
1
2
10 mm²
black
PA
V0
3W
Midget / 10.3 x 38
6 kV
3
III
IIIa
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Technical data
General
Maximum power dissipation
LED voltage range
Connection in acc. with standard
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
3 W (Fuse insert)
250 V AC ... 1000 V AC
IEC 60269-1/-2
20 A (the current is determined by the fuse used)
20 A (the current is determined by the fuse used)
1000 V (the voltage is determined by the fuse used)
No
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
17.6 mm
87 mm
63 mm
70.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Connection method
Stripping length
1.5 mm²
10 mm²
1.5 mm²
10 mm²
16
6
1.5 mm²
1.5 mm²
10 mm²
Push-in connection
18 mm
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60269-1/-2
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/3062143
Fuse modular terminal block - PT 10,3-HESILED 1000V - 3062143
Approvals
Approvals
Approvals
UL Listed
Ex Approvals
Approval details
UL Listed
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
1000 V
32 A
16-6
FILE E 353282
