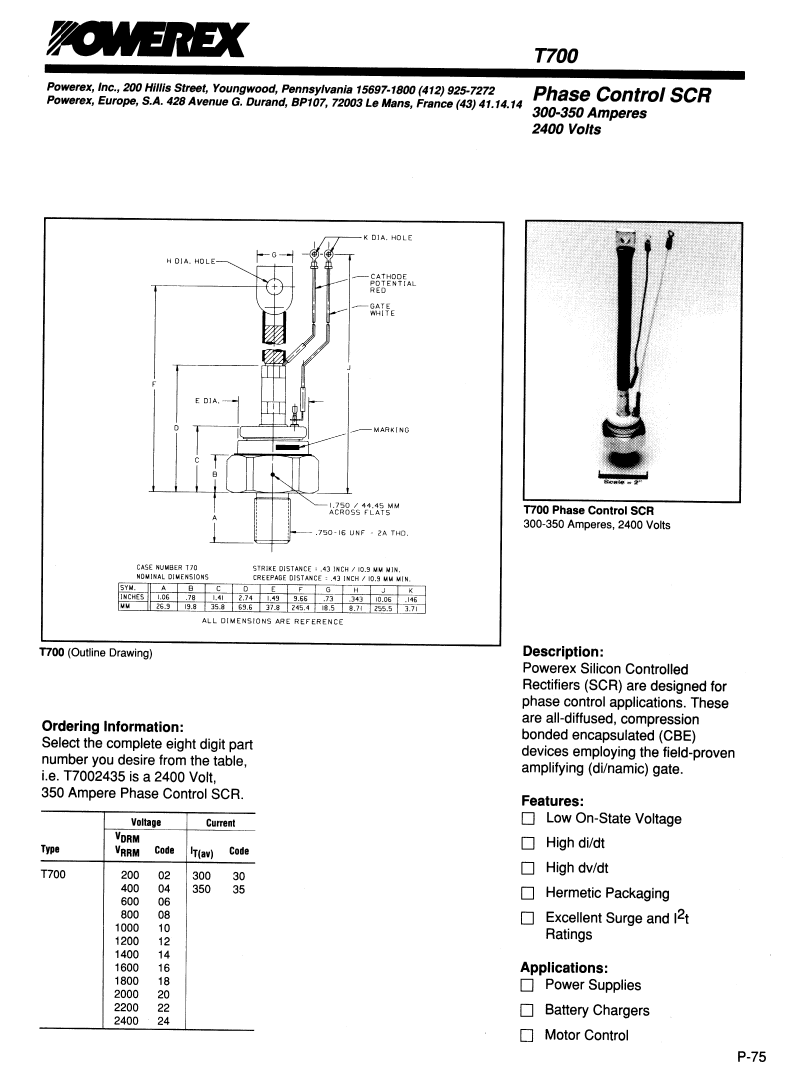

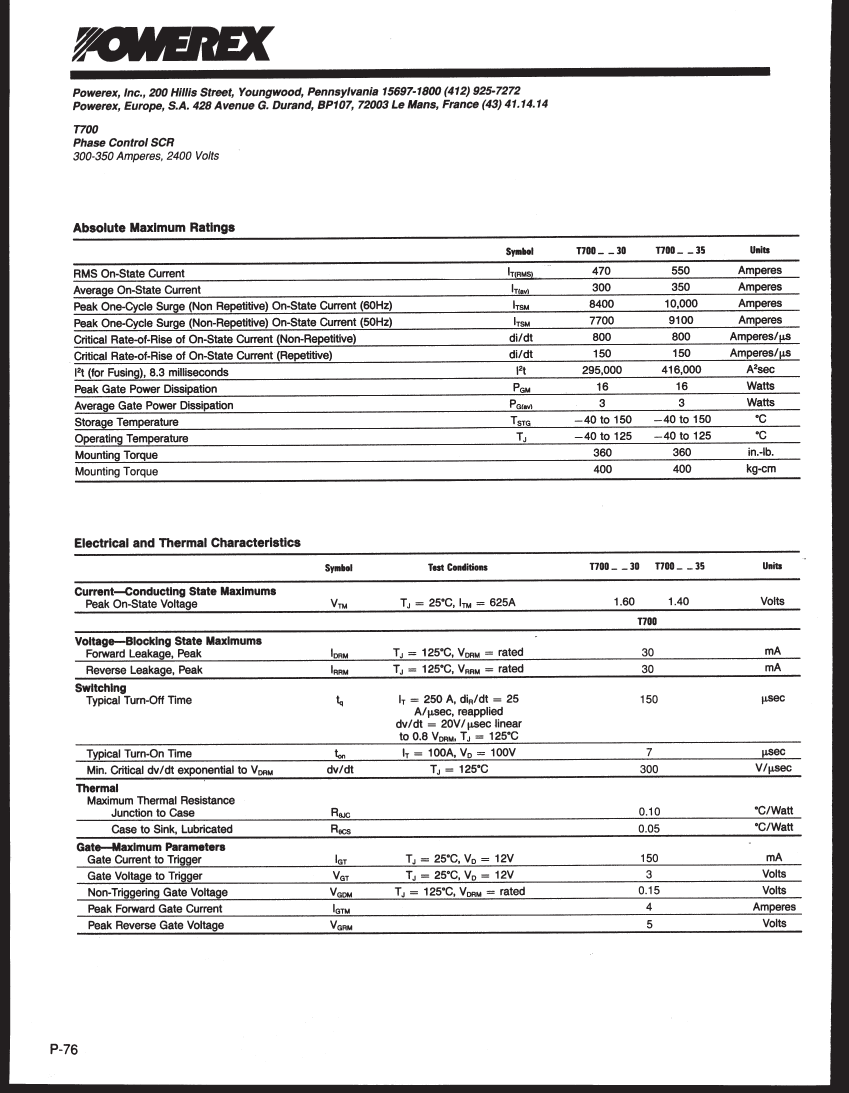

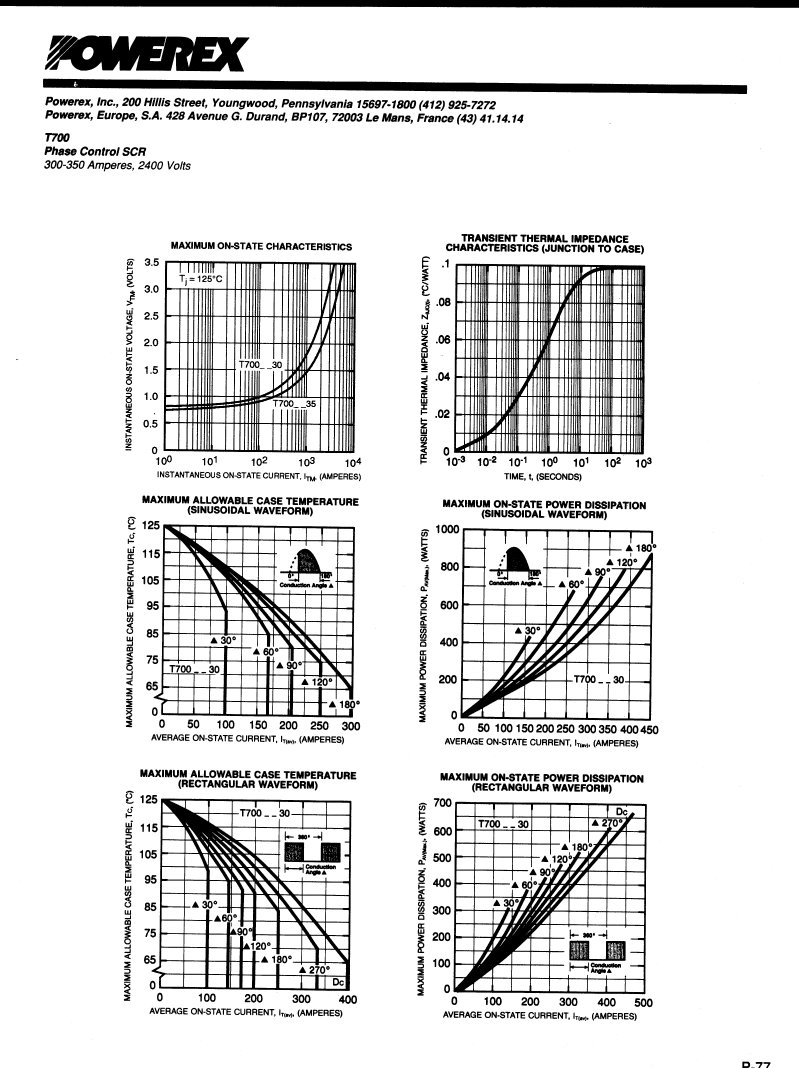

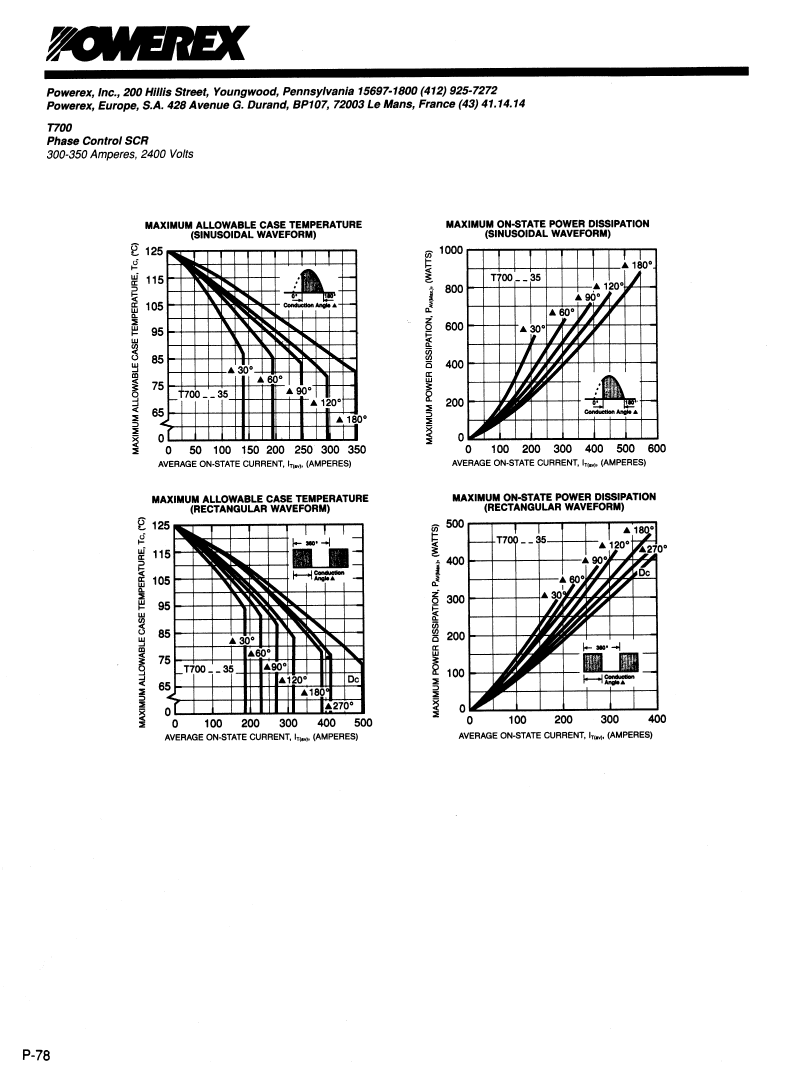

T700023504BY datasheet, PDF - EEWORLD Datasheet

T700023504BY: DescriptionSCR PHASE CTRL MOD 200V 350A; Categorysemiconductor Discrete semiconductor; File Size938KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx; Environmental Compliance

Download Datasheet Parametric Compare View All

T700023504BY Overview

SCR PHASE CTRL MOD 200V 350A

Parameter Name	Attribute value
Voltage - Off state	200V
Voltage - Gate Trigger (Vgt) (Maximum)	3V
Current - Gate Trigger (Igt) (maximum)	150mA
Voltage - On State (Vtm) (Maximum)	1.4V
Current - On-State (It(AV)) (Maximum)	350A
Current - On State (It (RMS)) (Maximum)	550A
Current - Off state (maximum)	30mA
Current - Non-repetitive surge 50, 60Hz (Itsm)	9100A，10000A
SCR type	Standard recovery type
Operating temperature	-40°C ~ 125°C
Installation type	Base, terminal installation
Package/casing	TO-209 variant
Supplier device packaging	TO-209 variant

	T700023504BY	T700163504BY	T700203504BY	T700123504BY	T700022504BY	T700043004BY	T700042504BY
Description	SCR PHASE CTRL MOD 200V 350A	Phase Control SCR	SCR PHASE CTRL MOD 2000V 350A	SCR PHASE CTRL MOD 1200V 350A	SCR PHASE CTRL MOD 200V 250A	SCR PHASE CTRL MOD 400V 300A	SCR PHASE CTRL MOD 400V 250A
Voltage - Off state	200V	-	2kV	1.2kV	200V	400V	400V
Voltage - Gate Trigger (Vgt) (Maximum)	3V	-	3V	3V	3V	3V	3V
Current - Gate Trigger (Igt) (maximum)	150mA	-	150mA	150mA	150mA	150mA	150mA
Voltage - On State (Vtm) (Maximum)	1.4V	-	1.4V	1.4V	-	1.6V	-
Current - On-State (It(AV)) (Maximum)	350A	-	350A	350A	250A	300A	250A
Current - On State (It (RMS)) (Maximum)	550A	-	550A	550A	-	470A	-
Current - Off state (maximum)	30mA	-	30mA	30mA	-	30mA	-
Current - Non-repetitive surge 50, 60Hz (Itsm)	9100A，10000A	-	9100A，10000A	9100A，10000A	-	7700A，8400A	-
SCR type	Standard recovery type	-	Standard recovery type	Standard recovery type	Standard recovery type	Standard recovery type	Standard recovery type
Operating temperature	-40°C ~ 125°C	-	-40°C ~ 125°C	-40°C ~ 125°C	-	-40°C ~ 125°C	-
Installation type	Base, terminal installation	-	Base, terminal installation	Base, terminal installation	Base, terminal installation	Base, terminal installation	Base, terminal installation
Package/casing	TO-209 variant	-	TO-209 variant	TO-209 variant	TO-209 variant	TO-209 variant	TO-209 variant
Supplier device packaging	TO-209 variant	-	TO-209 variant	TO-209 variant	TO-209 variant	TO-209 variant	TO-209 variant
