Part Number

Search

9105-18 BLK

Description
TEST LEAD BANANA TO BANANA 18"
CategoryTopical application    Test and measurement
File Size36KB,1 Pages
ManufacturerE-Z-HOOK
Environmental Compliance
Download Datasheet Parametric Compare View All

9105-18 BLK Overview

TEST LEAD BANANA TO BANANA 18"

9105-18 BLK Parametric

Parameter NameAttribute value
stacking methodNot stackable
Configurationbanana plug to banana plug
first connectorBanana plug, single circuit
Second connectorBanana plug, single
cable length18.0"(457.20mm)
typepatch cord
content1 lead, black
Material - InsulationPolyvinyl chloride (PVC)
Wire gauge22 AWG
Voltage - Rated1000V(1kV)
grade-
Rated current2.5A

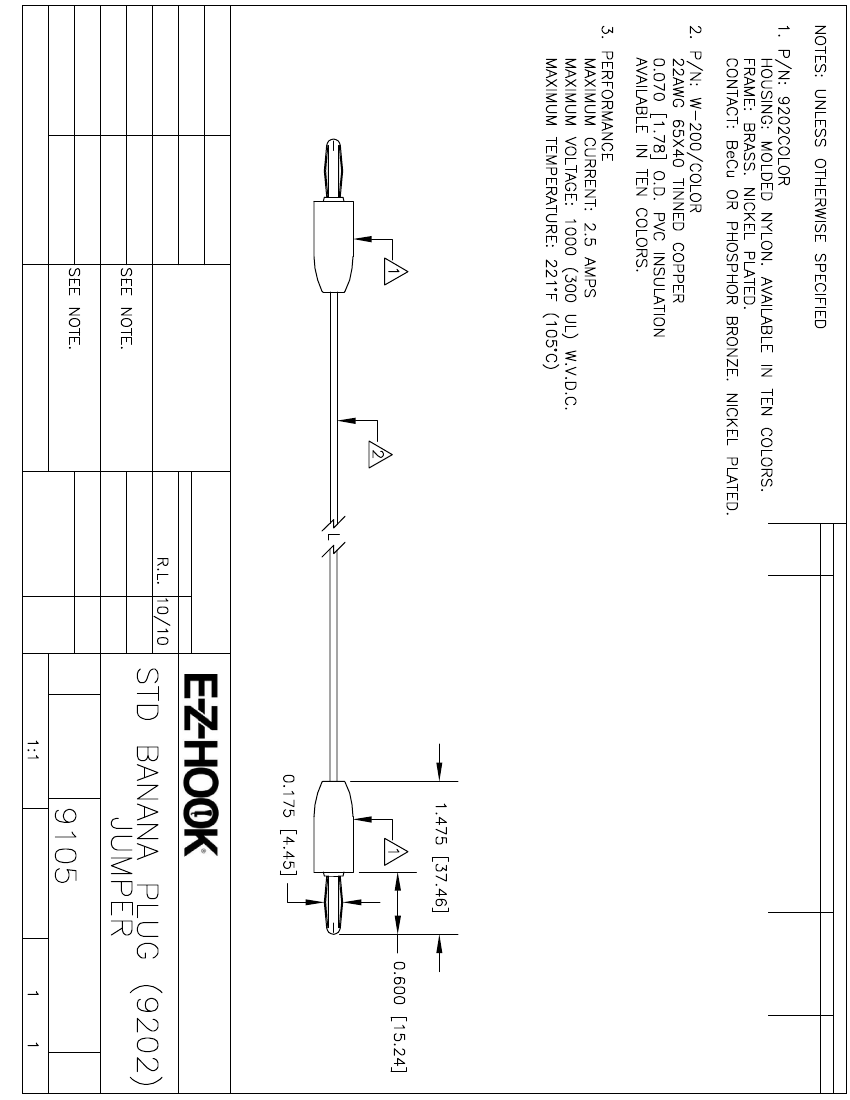

REVISIONS
LTR
DESCRIPTION
DATE
APPROVED
UNLESS OTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
TOLERANCES ARE:
FRACTIONS DECIMALS ANGLES
±
±
.XX ±
.XXX ±
CONTRACT NO.
CONTRACT NO.
APPROVALS
APPROVALS
DRAWN
MATERIAL
APPROVED BY
APPROVED BY
DATE
DATE
DESCRIPTION
DESCRIPTION
DIVISION OF TEKTEST INC.
ARCADIA, CA 91006 U.S.A.
ARCADIA, CA 91006 U.S.A.
FINISH
NEXT ASSY
USED ON
USED ON
APPLICATION
APPLICATION
DO NOT SCALE DRAWING
SIZE
CODE IDENT NO. DRAWING NO.
DRAWING NO.
REV.
REV.
A 08505
A 08505
SCALE
SHEET
OF
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY TO E-Z-HOOK. THE INFORMATION IS NOT TO BE REPRODUCED WITHOUT PRIOR WRITTEN PERMISSION OF E-Z-HOOK, DIV. OF TEKTEST INC.
MAXIMUM TESTED RATINGS IN A HANDS-FREE CONTROLLED ENVIRONMENT. MAXIMUM RATINGS ARE NOT TO BE USED CONCURRENTLY.

9105-18 BLK Related Products

9105-18 BLK 9105-18 RED 9105-36 BLK 9105-36 RED
Description TEST LEAD BANANA TO BANANA 18" TEST LEAD BANANA TO BANANA 18" TEST LEAD BANANA TO BANANA 36" TEST LEAD BANANA TO BANANA 36"
stacking method Not stackable Not stackable Not stackable Not stackable
Configuration banana plug to banana plug banana plug to banana plug banana plug to banana plug banana plug to banana plug
first connector Banana plug, single circuit Banana plug, single circuit Banana plug, single circuit Banana plug, single circuit
Second connector Banana plug, single Banana plug, single Banana plug, single Banana plug, single
cable length 18.0"(457.20mm) 18.0"(457.20mm) 36.0"(914.40mm) 36.0"(914.40mm)
type patch cord patch cord patch cord patch cord
content 1 lead, black 1 lead, red 1 lead, black 1 lead, red
Material - Insulation Polyvinyl chloride (PVC) Polyvinyl chloride (PVC) Polyvinyl chloride (PVC) Polyvinyl chloride (PVC)
Wire gauge 22 AWG 22 AWG 22 AWG 22 AWG
Voltage - Rated 1000V(1kV) 1000V(1kV) 1000V(1kV) 1000V(1kV)
Rated current 2.5A 2.5A 2.5A 2.5A
