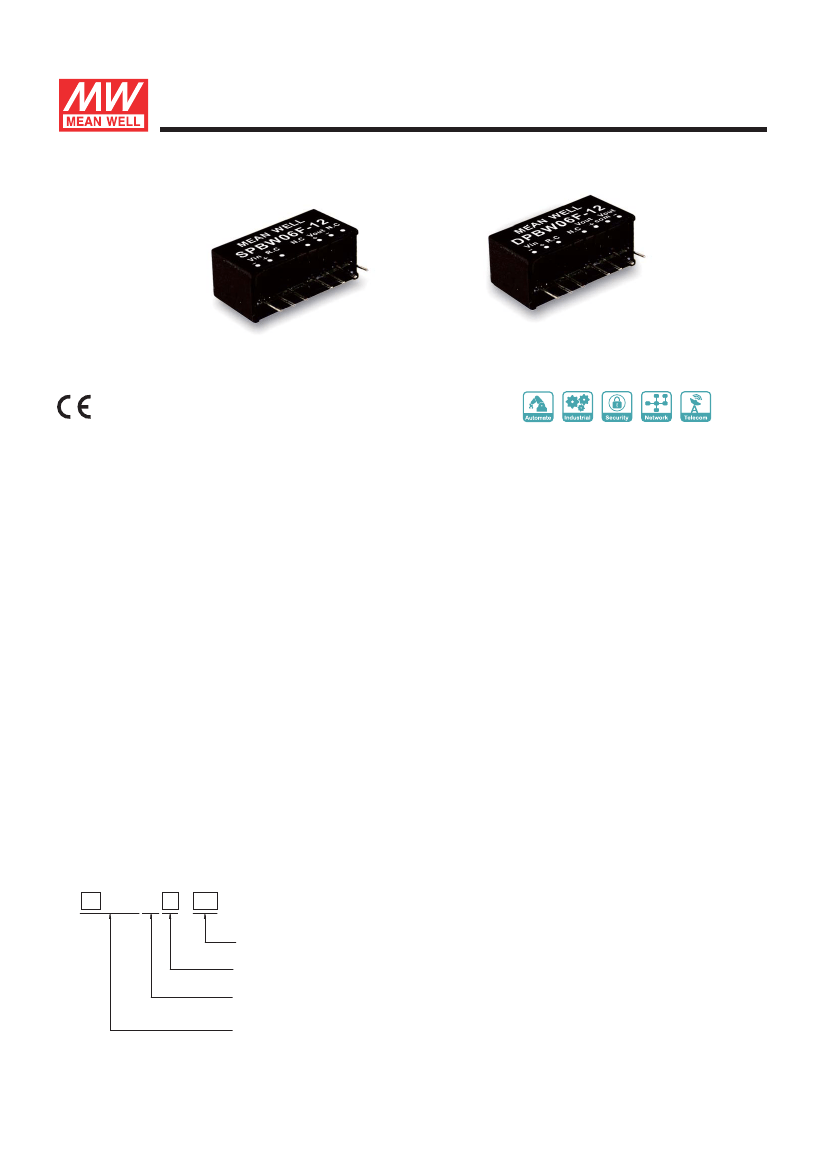

6W SIP Package DC-DC Regulated Converter
SPBW06 & DPBW06
series
■
Features
SIP8 package with industry standard pinout
4:1 ultrawide input range
Operating temperature range -40 ~ +85
℃
No minimum load required
High efficiency up to 89%
Protections: Short circuit (Continuous) / Overload
1.5KVDC I/O isolation
Remote ON/OFF control
3 years warranty
■
Applications
Telecom
/
datacom system
Wireless network
Industrial control facility
Instrument
Analyzer
Detector
Data switch
■
Description
SP BW06 and DP BW06 series are 6 W isolated and regulated module type DC-DC converter with SIP 8
package. It features international standard pins, a high efficiency up to 89%, wide working temperature
range -40~+ 85
℃
, 1 . 5 KVDC I/P-O/P isolation voltage, continuous -mode short circuit protection, etc.
The models account for different input voltage
9~36V and 18~75V 4:1 wide input range,
and various
output voltage, 3 . 3V /5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are
suitable for all kinds of systems,
s
uch as industrial control, telecommunication field, distributed power
architecture, and so on.
■
Model Encoding
S PBW06 F - 12
Output voltage (3.3/5/12/15Vdc
,
±5/±12/±15Vdc)
Input voltage (F: 9~36Vdc
,
G: 18~75Vdc)
Rated wattage
Series name
{
S:Single output
D:Dual output
File Name:SPBW06,DPBW06-SPEC 2017-03-06
6W SIP Package DC-DC Regulated Converter
SPBW06 & DPBW06
series
OUTPUT
MODEL SELECTION TABLE
INPUT
ORDER NO.
INPUT VOLTAGE
(RANGE)
INPUT CURRENT
NO LOAD
4mA
4mA
5mA
24V
(9 ~ 36V)
5mA
4mA
6mA
7mA
3mA
3mA
3mA
48V
(18 ~ 75V)
5mA
4mA
3mA
4mA
FULL LOAD
310mA
298mA
288mA
288mA
298mA
288mA
288mA
155mA
150mA
145mA
145mA
150mA
145mA
145mA
OUTPUT
VOLTAGE
3.3V
5V
12V
15V
±
5V
±
12V
±
15V
3.3V
5V
12V
15V
±
5V
±
12V
±
15V
OUTPUT
CURRENT
0 ~ 1500mA
0 ~ 1200mA
0 ~ 500mA
0 ~ 400mA
±
0 ~ 600mA
±
0 ~ 250mA
±
0 ~ 200mA
0 ~ 1500mA
0 ~ 1200mA
0 ~ 500mA
0 ~ 400mA
±
0 ~ 600mA
±
0 ~ 250mA
±
0 ~ 200mA
EFFICIENCY
(TYP.)
CAPACITOR LOAD
(MAX.)
SPBW06F-03
SPBW06F-05
SPBW06F-12
SPBW06F-15
DPBW06F-05
DPBW06F-12
DPBW06F-15
SPBW06G-03
SPBW06G-05
SPBW06G-12
SPBW06G-15
DPBW06G-05
DPBW06G-12
DPBW06G-15
81%
85%
88%
88%
86%
88%
88%
82%
85%
88%
87%
85%
89%
88%
4700
μ
F
2200
μ
F
1100
μ
F
470
μ
F
*1400
μ
F
*660
μ
F
*220
μ
F
4700
μ
F
2200
μ
F
1100
μ
F
470
μ
F
*1400
μ
F
*660
μ
F
*220
μ
F
* For each output
File Name:SPBW06,DPBW06-SPEC 2017-03-06
6W SIP Package DC-DC Regulated Converter
SPBW06 & DPBW06
series
SPECIFICATION
VOLTAGE RANGE
FILTER
PROTECTION
VOLTAGE ACCURACY
RATED POWER
OUTPUT
RIPPLE & NOISE
F: 9~36Vdc , G: 18~75Vdc
Internal capacitor
Fuse recommended. 24Vin models: 1.25A fast-acting Type, 48Vin models: 630mA fast-scting Type
±1.5%
6W
Note.2
100mVp-p
SURGE VOLTAGE (100ms max.)
24Vin models : 50Vdc, 48Vin models : 100Vdc
INPUT
INTERNAL POWER DISSIPATION
500mW
LINE REGULATION
Note.3
±0.2%
LOAD REGULATION
Note.4
Single output models:
±
0.5%, Dual output models:
±
1%
SWITCHING FREQUENCY
(Typ.)
580KHz
SHORT CIRCUIT
OVERLOAD
REMOTE CONTROL
COOLING
WORKING TEMP.
CASE TEMPERATURE
WORKING HUMIDITY
Protection type : Continuous, automatic recovery
Protection type : Recovers automatically after fault condition is removed
Power ON: R.C. ~ -Vin high impedance open ; Power OFF: supplying 2~4mA for R.C. pin
(Please refer to the application circuit in following page)
Free-air convection
-40 ~ +85℃ (Refer to "Derating Curve")
+100
℃
max.
20% ~ 90% RH non-condensing
0.03% /
℃
(0 ~ 65
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
I/P-O/P:1.5KVDC
PROTECTION
FUNCTION
ENVIRONMENT
STORAGE TEMP., HUMIDITY
-55 ~ +1 25
℃
, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
VIBRATION
WITHSTAND VOLTAGE
SOLDERING TEMPERATURE
1.5mm from case of 1 ~ 3sec./260
℃
max.
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
ISOLATION CAPACITANCE
(Typ.)
50pF
Parameter
EMC EMISSION
SAFETY &
EMC
(
Note.
5)
EMC IMMUNITY
Conducted
Radiated
Parameter
ESD
Radiated Susceptibility
EFT/Burest
Surge
Conducted
Magnetic Field
MTBF
DIMENSION (L*W*H)
OTHERS
CASE MATERIAL
PACKING
NOTE
1850Khrs MIL-HDBK-217F(25
℃
)
21.8*9.2*11.1mm (0.86*0.36*0.44 inch)
Non-Conductive black plastic (UL 94V-0 rated)
4.8g
Standard
EN55032(CISPR32)
EN55032(CISPR32)
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
Test Level / Note
N/A
Class A with external components
Test Level / Note
Level 2,
±
8KV air,
±
4KV contact
Level 2, 3V/m
Level 1, 0.5KV
Level 1, 0.5KV Line-Line
Level 2, 3V(e.m.f.)
Level 2, 3A/m
1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25
℃
70% RH ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1
μ
f & 47
μ
f capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 0% to 100% rated load.
5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please
refer to EMI testing of component power supplies.(as available on http://www.meanwell.com)
File Name:SPBW06,DPBW06-SPEC 2017-03-06
6W SIP Package DC-DC Regulated Converter
SPBW06 & DPBW06
series
Mechanical Specification
All dimensions in mm(inch)
Tolerance:x.x
±
0.5mm(
x.xx
±
0.02")
Pin pitch tolerance:
±
0.05mm (
±
0.002")
21.8(0.86)
4.1(0.16)
2.5(0.10)
17.8(0.70)
Bottom View
0.5(0.02)
Front View
3.5(0.14)
0.3(0.01)
1
2
3
5
6
7
8
2(0.08)
0.5(0.02)
Plug Assignment
Pin-Out
Pin No.
1
SPBW06
(Single output)
-Vin
+Vin
R.C.
N.C.
+Vout
-Vout
N.C.
DPBW06
(Dual output)
Derating Curve
9.2(0.36)
11.1(0.44)
100
for 12 / 15Vout &
±12
/ 15Vout
LOAD (%)
80
60
50
40
20
for 3.3 / 5Vout &
±
5Vout
-Vin
+Vin
R.C.
N.C.
+Vout
Common
-Vout
2
3
5
6
7
8
Natural convection
-40
-20
0
20
40
61 65
85
100
Ta (
℃
)
File Name:SPBW06,DPBW06-SPEC 2017-03-06
6W SIP Package DC-DC Regulated Converter
SPBW06 & DPBW06
series
Remote ON/OFF Control
The remote ON/OFF input feature of the converter allows external circuitry to turn the converter ON or OFF. Active-high remote ON/OFF is available as
standard. The converter is turned ON if the remote ON/OFF pin is open circuit. Supply the ON/OFF pin at 2mA to 4mA will turn the converter OFF. The
signal level of the ON/OFF pin is defined with respect to ground. If not using the ON/OFF pin, leave the pin open (module will be ON, recommended
application as below)
ON/OFF pin appliend current via 1KΩ
+Vin
1K
Ω
ON/OFF
2~4mA
current
source
-Vin
SPBW06/
DPBW06
Application circuit
EMC Suggestion Circuit
※Required
external components to meet EN55032 class A/B emission are as below:
C4
L1
+Vin
+Vin
+Vout
+Vout
Lo ad
C1
C2
SPBW06 / DPBW06
-Vin
-Vin
C3
-Vout
-Vout
Model No.
SPBW06F-03
SPBW06F-05
SPBW06F-12
DPBW06F-15
DPBW06F-05
DPBW06F-12
DPBW06F-15
SPBW06G-03
SPBW06G-05
SPBW06G-12
SPBW06G-15
DPBW06G-05
DPBW06G-12
DPBW06G-15
C1
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
1
μ
F/100V
1
μ
F/100V
1
μ
F/100V
1
μ
F/100V
1
μ
F/100V
1
μ
F/100V
1
μ
F/100V
C2
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
E N 55022 C lass A
C3
C4
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
150pF/2KV 150pF/2KV
L1
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
C1
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
10
μ
F/50V
2.2
μ
F/100V
2.2
μ
F/100V
2.2
μ
F/100V
2.2
μ
F/100V
2.2
μ
F/100V
2.2
μ
F/100V
2.2
μ
F/100V
E N 55022 C lass B
C2
C3
C4
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
2.2
μ
F/100V 1500pF/2KV 1500pF/2KV
2.2
μ
F/100V 1500pF/2KV 1500pF/2KV
2.2
μ
F/100V 1500pF/2KV 1500pF/2KV
2.2
μ
F/100V 1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
NC
1500pF/2KV 1500pF/2KV
L1
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
10
μ
H
Note: All of capacitors are ceramic capacitors
Installation Manual
Please refer to :
http://www.meanwell.com/manual.html
File Name:SPBW06,DPBW06-SPEC 2017-03-06
