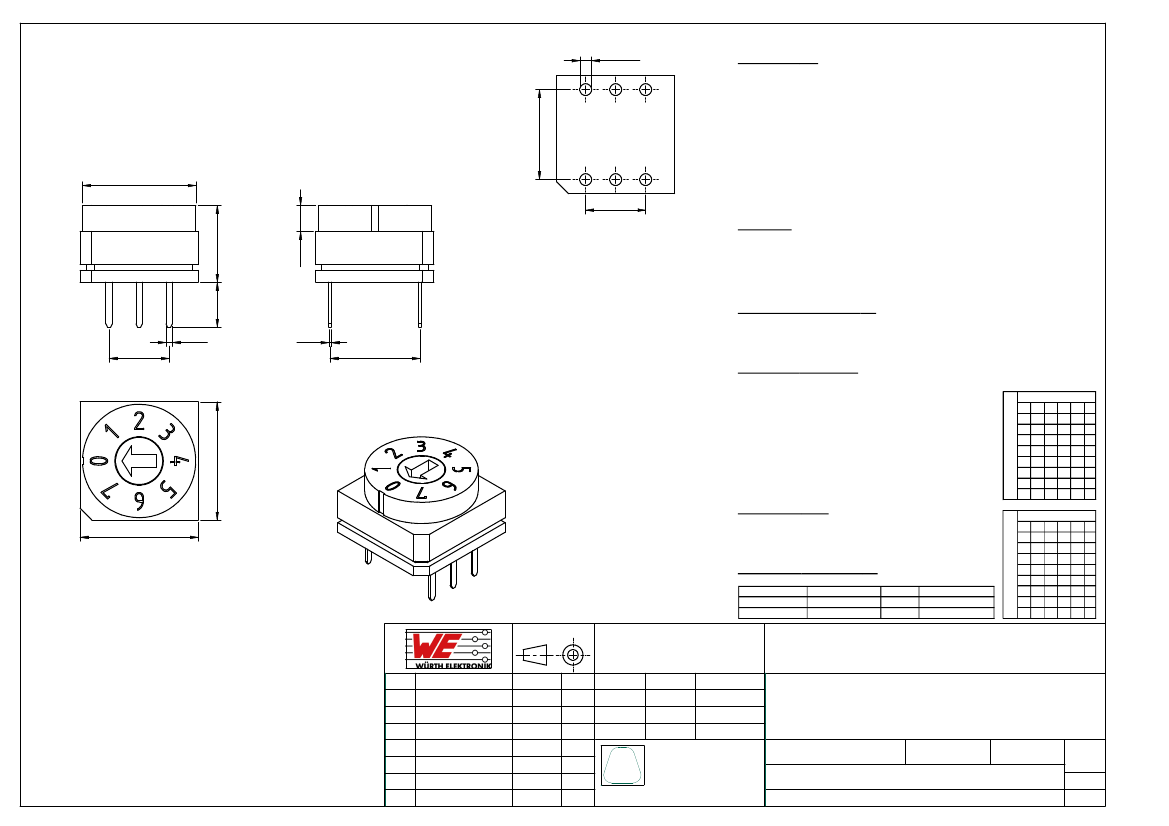

TECHNICAL CHARACTERISTICS
O
1,00
8
7,62
C
2
1
9,60 ±0,1
C
5,08
4
SPECIFICATION
>Contact Rating:
Switching:
150mA, 24VDC
Non-Switching:
400mA, 24VDC
>Contact Resistance:
Initial:
80mOHM max.
After Life Test:
200mOHM max.
>Insulation Resistance:
min. 100MOHM at 250VDC
>Dielectric Strength:
250VAC for 1 minute
>Operating Force:
700g max.
>Life cycle:
10.000 steps
>Position:
8
>Actuator:
Arrow type
MATERIAL
>Cover:
PA66 UL 94V-0, color light grey
>Base:
PA66 UL 94V-0, color black
>Actuator
: POM UL HB
>Contact:
Gold Plated
>Terminal:
Gold Plated
SOLDERING INFORMATION
>Terminal in THT version
>Wave soldering 260°C for 10 sec. max
>Hand soldering at 350°C for 3 sec. max
WASHABLE DEFINITION
Please do not submerse washable products into water or
cleaning agents or put them in locations exposed to
water or liquids completely. When cleaning by hand
(brushing), please do not use excessive force on our
switch to avoid malfunction afterwards, because you
could deform function relevant areas or you could
damage sealing functions. Do not clean washable series
immediately after soldering. The cleaning agent may be
absorbed into the switch through respiration while the
switch cools.
ENVIRONMENTAL
>Storage condition: -40°C ~ +85°C
>Operation condition: -40°C ~ +85°C
>Compliance: Lead Free, ROHS, Reach
PACKAGING INFORMATION
>Tube
6,50
2,20
RECOMMENDED LAYOUT
0,54
5,08
3,80
0,20
7,62
0
1
2
3
4
5
6
7
Real Code
C 1 2 4 8
10,00
08 Position
08 Position
10,00
Scale - 3:1
This electronic component is designed and developed with the intention
for use in general electronics equipments.
Before incorporating the components into any equipments in the field
such as aerospace, aviation, nuclear control, submarine, transportation,
(automotive control, train control, ship control), transportation signal,
disaster prevention, medical, public information network etc. where
higher safety and reliability are especially required or if there is possibility
of direct damage or injury to human body, Wurth Elektronik must be
asked for a written approval.
In addition, even electronic component in general electronic equipments,
b revised MatchCode 14-07-25 AL
when used in electrical circuits that require high safety, reliability
a
Washable Definition
14-03-05 DaF
functions or performance, the sufficient reliability evaluation-check for the
safety must be performed before by the user before usage.
REV FILE
DATE BY
Projection
GENERAL TOLERANCE
.x = +/- 0,2
.xx = +/- 0,15
Date
Drawn 13-03-25
Checked 13-03-25
Part number Color of Actuator Position
Code
428 527 320 908
dark grey
08
Real Code
428 527 320 909
ivory
08
Complement Code
Complement Code
C 1 2 4 8
0
1
2
3
4
5
6
7
Basic material
Name
Jelisarow
Hsu
DESCRIPTION
WS-ROTV 10x10 Rotary Switch, 08 position, THT version
WE
eiCan
Würth Elektronik
eiCan
Scale
3:1
Position
42852732090x
