1-281695-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-281695-7

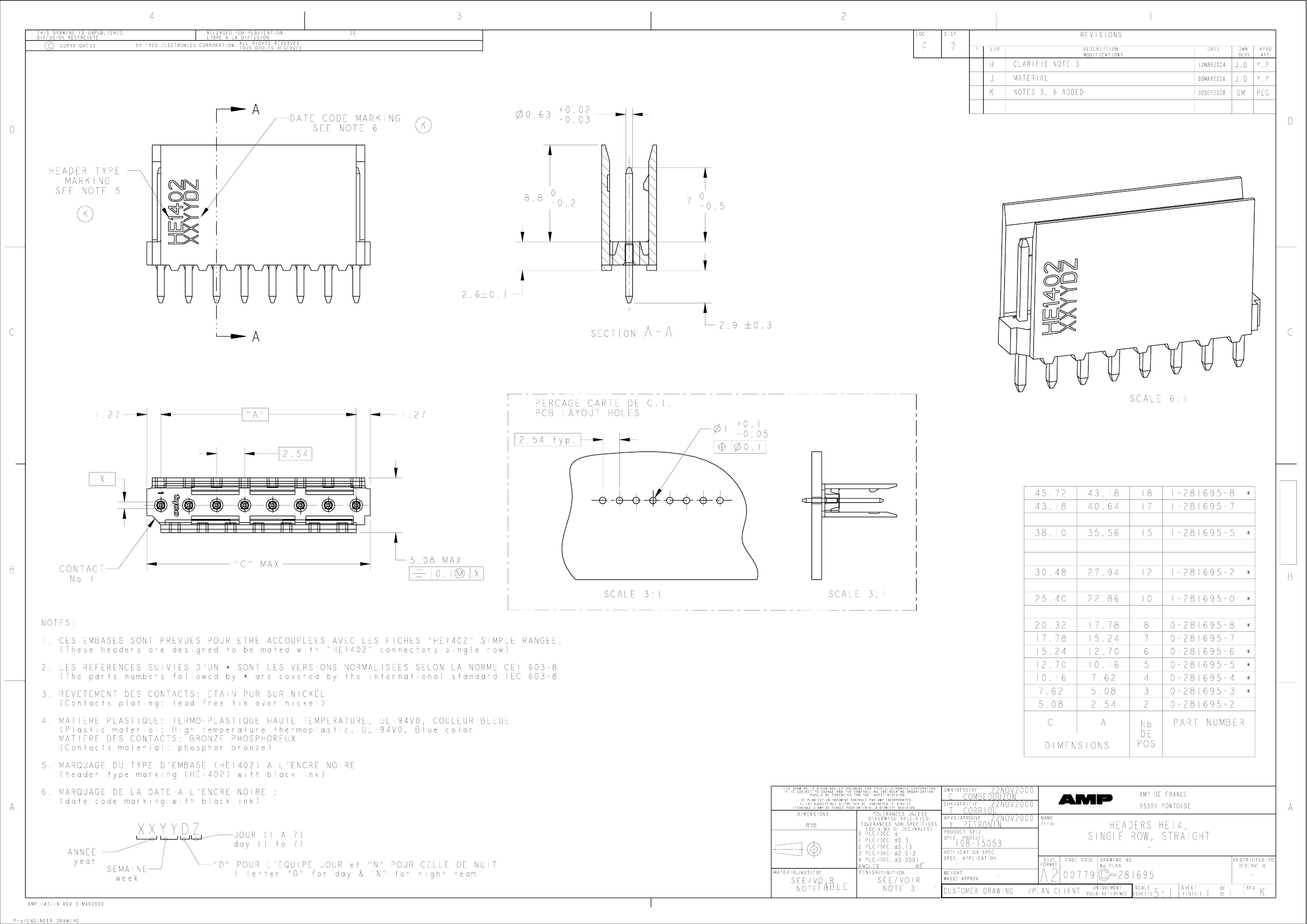

1-281695-7: Description17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE; CategoryThe connector The connector; File Size127KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-281695-7 Overview

17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE

1-281695-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	281695
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	17
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

1-281695-7 Related Products

	1-281695-7	ABLSG-9.000MHZ-S-C-	ABLSG-9.000MHZ-S-C-4-R	ABLSG-9.000MHZ-S-C-H-	ABLSG-9.000MHZ-S-D-4-H-F-T	ABLSG-9.000MHZ-S-D-4-R-FB-T	ABLSG-9.000MHZ-S-D-4-W-F-T	ABLSG-9.000MHZ-S-D-7-W-F-T
Description	17 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, LEAD FREE	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, ROHS COMPLIANT, HC/49US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN	Series - Fundamental Quartz Crystal, 9MHz Nom, HC-49/US, SMD, 3 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	HC-49/US, SMD, 3 PIN	ROHS COMPLIANT, HC/49US, SMD, 3 PIN	HC-49/US, SMD, 3 PIN	HC-49/US, SMD, 3 PIN	HC-49/US, SMD, 3 PIN	HC-49/US, SMD, 3 PIN	HC-49/US, SMD, 3 PIN
Reach Compliance Code	unknow	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Objectid	-	1542483711	1542483676	1542483703	145142043518	145142051462	145142051465	145142051472
YTEOL	-	6.73	6.73	6.73	6.73	6.73	6.73	6.73
Other features	-	AT-CUT; BULK	AT-CUT; BULK	AT-CUT; BULK	AT CUT	BT CUT	AT CUT	AT CUT
Ageing	-	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	-	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL	SERIES - FUNDAMENTAL
Drive level	-	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW	100 µW
frequency stability	-	0.005%	0.015%	0.0035%	0.0035%	0.015%	0.0025%	0.0025%
frequency tolerance	-	50 ppm	30 ppm	50 ppm	30 ppm	30 ppm	30 ppm	15 ppm
JESD-609 code	-	e3	e3	e3	e3	e3	e3	e3
Installation features	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	-	9 MHz	9 MHz	9 MHz	9 MHz	9 MHz	9 MHz	9 MHz
Maximum operating temperature	-	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-	-30 °C	-30 °C	-30 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	-	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	L11.4XB4.7XH4.2 (mm)/L0.449XB0.185XH0.165 (inch)	11.4 mm X 4.7 mm X 4.2 mm	11.4 mm X 4.7 mm X 4.2 mm	11.4 mm X 4.7 mm X 4.2 mm	11.4 mm X 4.7 mm X 4.2 mm
Series resistance	-	60 Ω	60 Ω	60 Ω	60 Ω	60 Ω	60 Ω	60 Ω
surface mount	-	YES	YES	YES	YES	YES	YES	YES
Terminal surface	-	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
