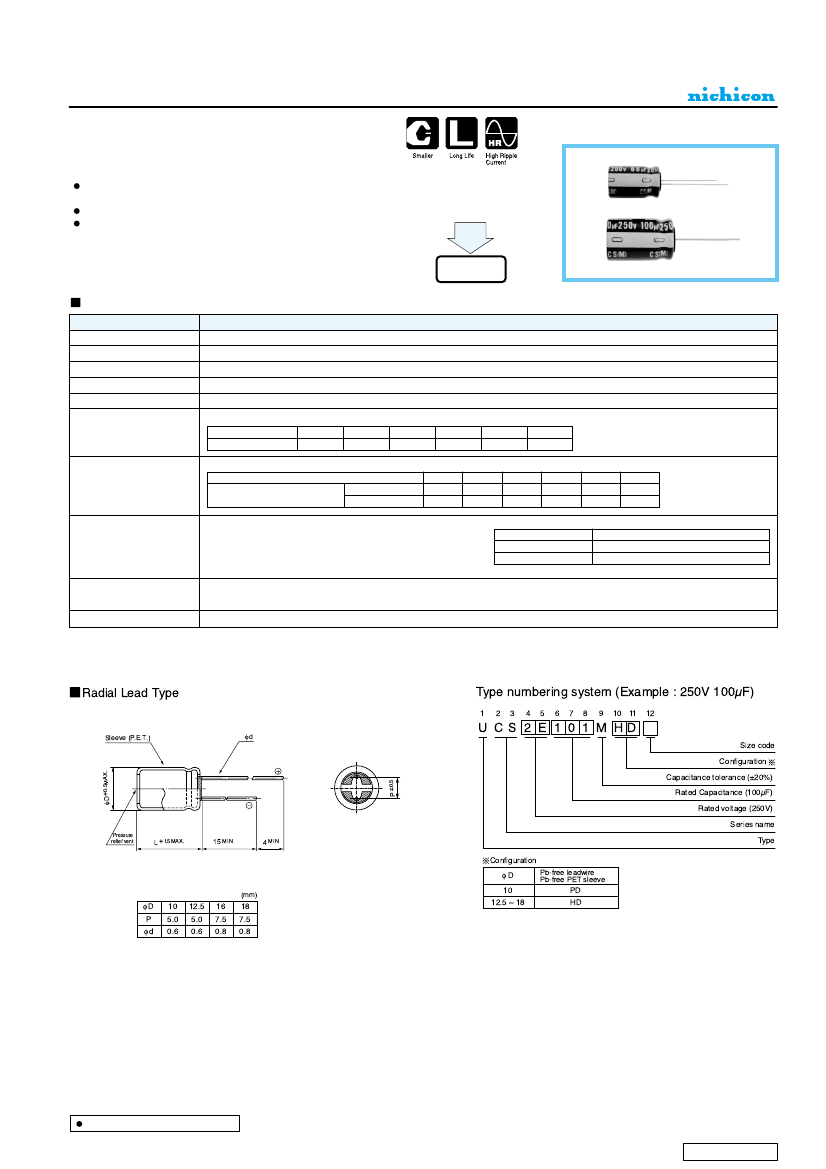

ALUMINUM ELECTROLYTIC CAPACITORS
CS
Miniature Sized, High Ripple Current, Long Life
series
High ripple current and Long Life product withstanding
load life of 8000 to 10000 hours at +105°C.
Suited for ballast application.
Adapted to the RoHS directive (2002/95/EC).
CA
Smaller
CS
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Performance Characteristics
– 40 ~ +105°C (160 ~ 400V) , – 25 ~ +105°C (450V)
160 ~ 450V
6.8 ~ 330µF
± 20% at 120Hz, 20°C
After 1 minutes' application of rated voltage, leakage current is not more than 0.04CV+100 (µA)
Measurement frequency : 120Hz, Temperature : 20°C
Rated voltage (V)
tan
δ
(MAX.)
160
0.20
200
0.20
250
0.20
350
0.24
400
0.24
450
0.24
Measurement frequency : 120Hz
Rated voltage (V)
Stability at Low Temperature
Impedance ratio ZT / Z20 (MAX.)
Z– 25°C / Z+20°C
Z– 40°C / Z+20°C
160
3
6
200
3
6
250
3
6
350
5
6
400
5
6
450
6
--
Endurance
After an application of D.C. bias voltage plus the rated ripple
current for 10000 hours (8000 hours for
φ
D =10) at 105°C the
peak voltage shall not exceed the rated D.C. voltage,
capacitors meet the characteristic requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours, and after performing voltage treatment based on JIS C
5101-4 clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Sleeve (P.E.T.)
D+
0.5MAX.
B
Type numbering system (Example : 250V 100µF)
d
U CS 2 E 1 0 1 M HD
T
P ±
0.5
1 2 3 4 5 6 7 8 9 10 11 12
Pressure
relief vent
L +
1.5MAX.
15
MIN
4
MIN
Size code
Configuration
Capacitance tolerance (±20%)
Rated Capacitance (100µF)
Rated voltage (250V)
Series name
Type
B
B
D 10 12.5 16 18
P 5.0 5.0 7.5 7.5
B
d
0.6 0.6 0.8 0.8
(mm)
Configuration
Pb-free leadwire
B
D
Pb-free PET sleeve
10
PD
12.5 ~ 18
HD
•
Please refer to page 21 about the end seal configulation.
Please refer to page 21, 22, 23 about the formed or taped product spec.
Please refer to page 3 for the minimum order quantity.

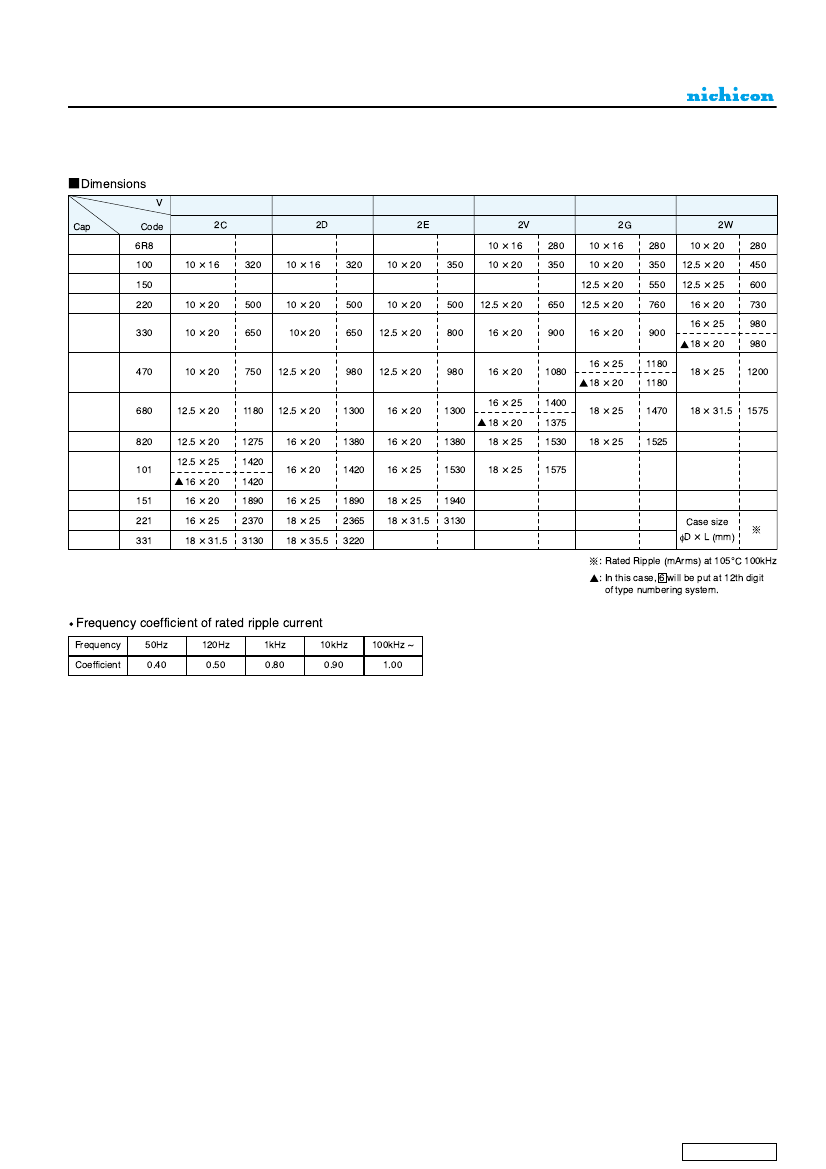

Dimension table in next page.
