BSC019N04NSGATMA1

Description
MOSFET N-CH 40V 100A TDSON-8
CategoryDiscrete semiconductor    The transistor
File Size379KB,10 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric View All

BSC019N04NSGATMA1 Online Shopping

Suppliers Part Number Price MOQ In stock
BSC019N04NSGATMA1 - - View Buy Now

BSC019N04NSGATMA1 Overview

MOSFET N-CH 40V 100A TDSON-8

BSC019N04NSGATMA1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerInfineon
package instructionSMALL OUTLINE, R-PDSO-F5
Contacts8
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time26 weeks
Is SamacsysN
Avalanche Energy Efficiency Rating (Eas)295 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage40 V
Maximum drain current (ID)29 A
Maximum drain-source on-resistance0.0019 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-F5
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals5
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)400 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin (Sn)
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

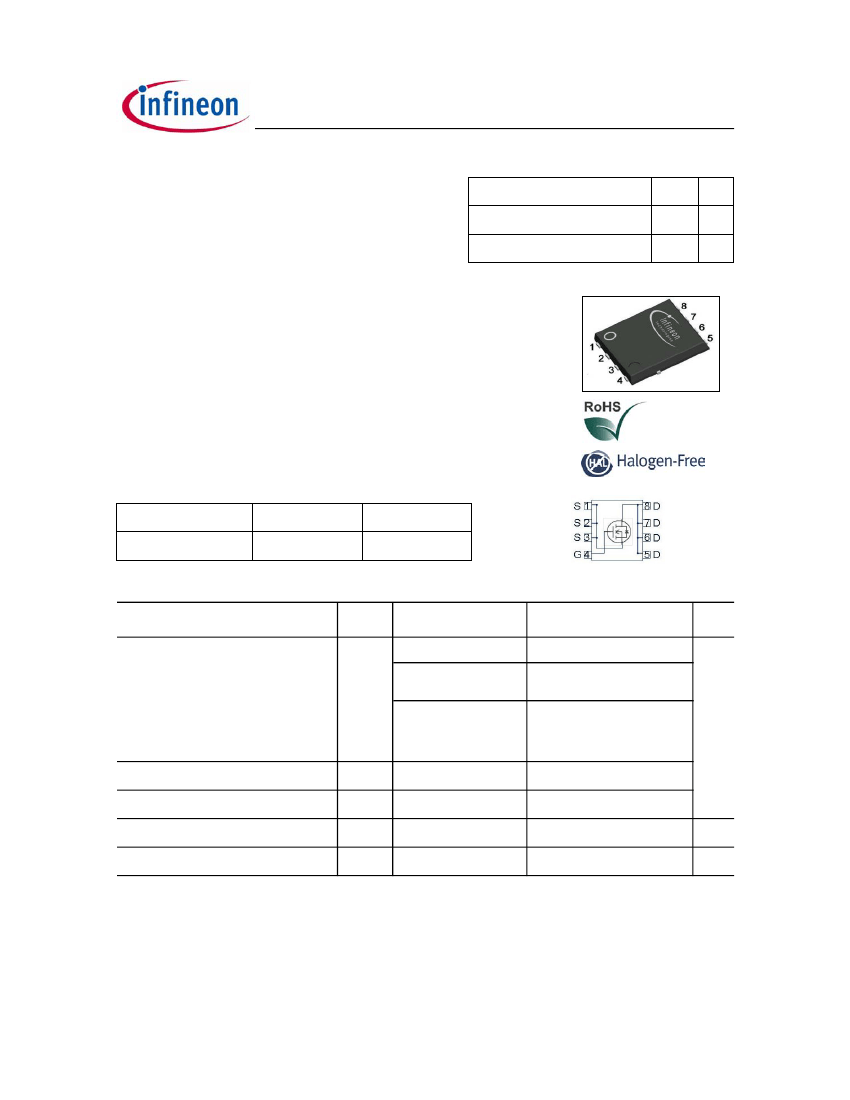

BSC019N04NS G
OptiMOS™3
Power-Transistor
Features
• Fast switching MOSFET for SMPS
• Optimized technology for DC/DC converters
• Qualified according to JEDEC
1)
for target applications
• N-channel; Normal level
• Excellent gate charge x
R
DS(on)
product (FOM)
• Very low on-resistance
R
DS(on)
• Superior thermal resistance
• 100% Avalanche tested
• Pb-free plating; RoHS compliant
• Halogen-free according to IEC61249-2-21
Type
BSC019N04NS G
Package
PG-TDSON-8
Marking
019N04NS
Product Summary
V
DS
R
DS(on),max
I
D
40
1.9
100
PG-TDSON-8
V
mΩ
A
Maximum ratings,
at
T
j
=25 °C, unless otherwise specified
Parameter
Continuous drain current
Symbol Conditions
I
D
V
GS
=10 V,
T
C
=25 °C
V
GS
=10 V,
T
C
=100 °C
V
GS
=10 V,
T
A
=25 °C,
R
thJA
=50 K/W
2)
Pulsed drain current
3)
Avalanche current, single pulse
4)
Avalanche energy, single pulse
Gate source voltage
1)
Value
100
100
Unit
A
29
400
50
295
±20
mJ
V
I
D,pulse
I
AS
E
AS
V
GS
T
C
=25 °C
T
C
=25 °C
I
D
=50 A,
R
GS
=25
J-STD20 and JESD22
Rev. 1.4
page 1
2009-10-22
