ASE2-33.000MHZ-ET

Description
OSC XO 33.000MHZ CMOS SMD
CategoryPassive components
File Size103KB,1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ASE2-33.000MHZ-ET Overview

OSC XO 33.000MHZ CMOS SMD

ASE2-33.000MHZ-ET Parametric

Parameter NameAttribute value
typeXO (Standard)
frequency33MHz
FunctionStandby (power off)
outputCMOS
Voltage - Power2.5V
frequency stability±100ppm
Operating temperature-20°C ~ 70°C
Current - Power (maximum)15mA
grade-
Installation typesurface mount
Package/casing4-SMD, no leads
size/dimensions0.126" long x 0.098" wide (3.20mm x 2.50mm)
Height - Installation (maximum)0.047"(1.20mm)
Current - Power (disabled) (maximum)10µA

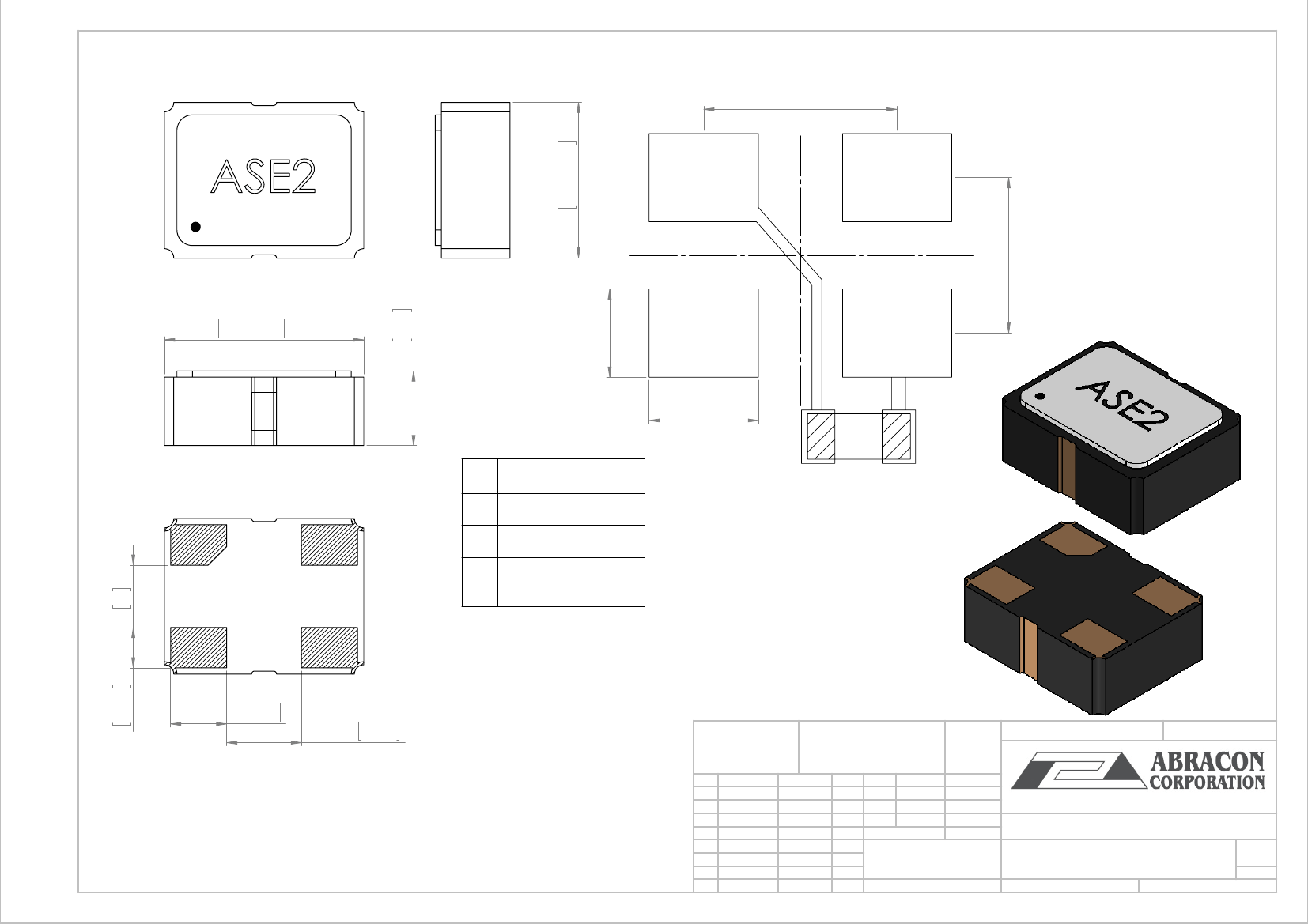

Recommended Land Pattern
4
3
0.098 ±0.008
2.5 ±0.2
0.083
[2.1]
1
0.126 ±0.008
3.2 ±0.2
2
0.047 MAX*
1.2
0.039
[1.0]
0.047
[1.2]
PIN
1
2
0.039
1
FUNCTION
Tri-state
GND/Case
Output
Vdd
0.01uF
3
4
0.026
0.65
0.035
0.90
BOTTOM VIEW
0.047
1.20
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCH(MM)
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
NAME
DRAWN
CHK'D
APPV'D
MFG
Q.A
SAAZVAT
XXXXXX
FINISH:
DEBUR AND
BREAK SHARP
EDGES
0.065
[1.65]
DO NOT SCALE DRAWING
REVISION
-
Note:
1. The outline package configuration varies with
frequency range. Electrical properties, pin configuration,
and land pattern are the same.
2. Recommend using an approximately 0.01µF bypass
capacitor between Pin 2 and 4.
SIGNATURE
DATE
30332 Esperanza, Rancho Santa margarita, California 92688
TITLE:
Oscillator
MATERIAL:
DWG NO.
ASE2
SHEET 1 OF 1
A3
WEIGHT:
SCALE:20:1
