BZX84C5V6LFHT116

Description
ZENER DIODE (AEC-Q101 QUALIFIED
CategoryDiscrete semiconductor    diode
File Size2MB,9 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

BZX84C5V6LFHT116 Online Shopping

Suppliers Part Number Price MOQ In stock
BZX84C5V6LFHT116 - - View Buy Now

BZX84C5V6LFHT116 Overview

ZENER DIODE (AEC-Q101 QUALIFIED

BZX84C5V6LFHT116 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
Other featuresHIGH RELIABILITY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeR-PDSO-G3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.25 W
GuidelineAEC-Q101
Nominal reference voltage5.6 V
surface mountYES
technologyZENER
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10
Maximum voltage tolerance7.14%
Working test current5 mA
Base Number Matches1

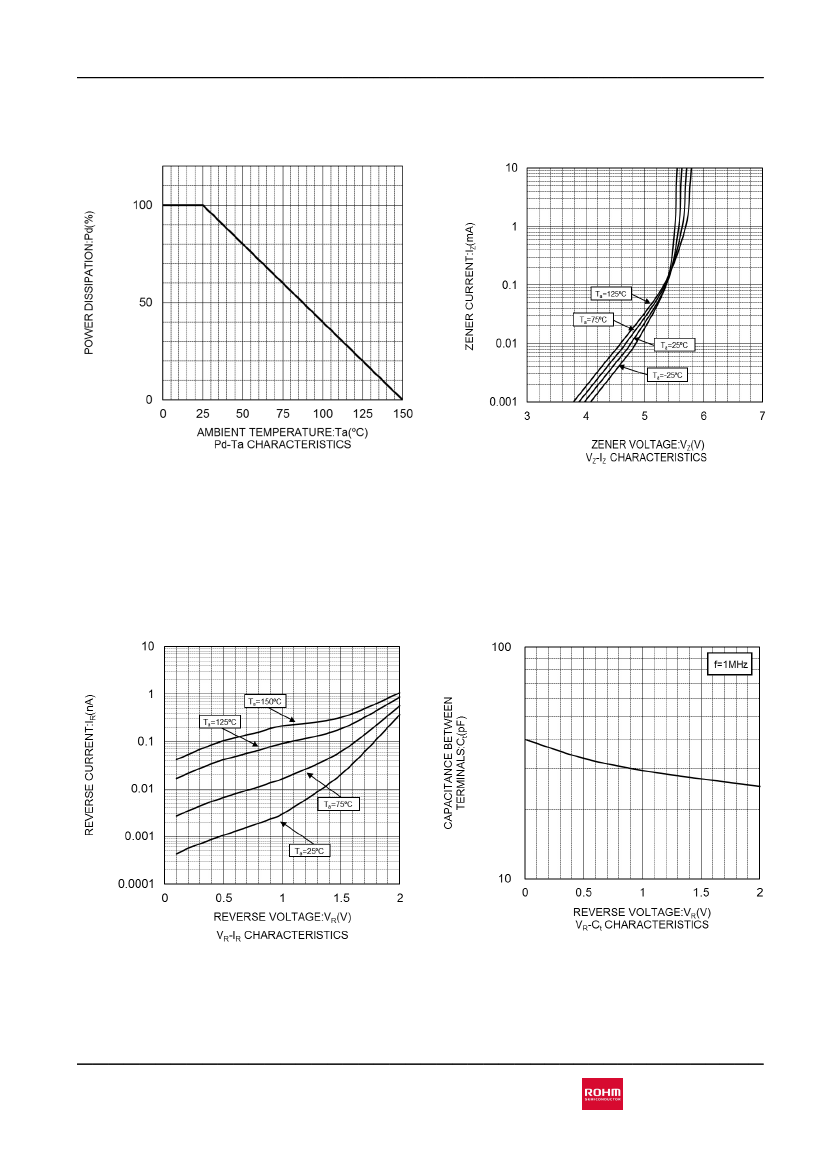

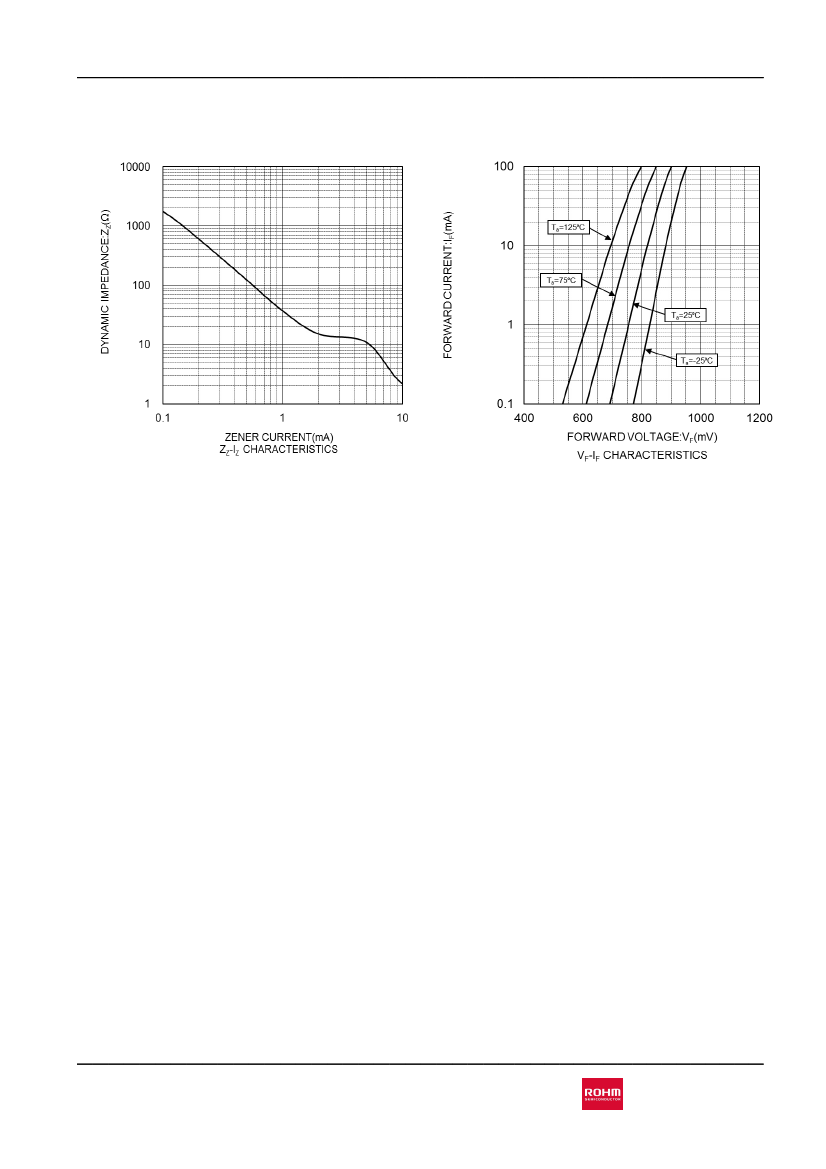

BZX84C5V6LFH
Zener Diode
(AEC-Q101 qualified)
Data sheet





Outline
P
D
250
mW









Feature
Inner Circuit
High reliability
Small mold type
Application
Packaging Specification
Packing
Reel Size(mm)
T
aping Width(mm)
Basic Ordering Unit(pcs)
T
aping Code
Marking
Voltage regulation
Structure
Silicon Epitaxial Planar
Absolute Maximum Rating (T
a
= 25
)
Embossed T
ape
180
8
3000
T116
D3M
Parameter
Power dissipation
Junction temperature
Storage temperature
Symbol
P
D
T
j
T
stg
Condition
on Glass-epoxy substrate
-
-
Limits
250
2.0
150
-65
½
150

Unit
mW
mW/°C
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
1/5






2017/07/24_Rev.002
