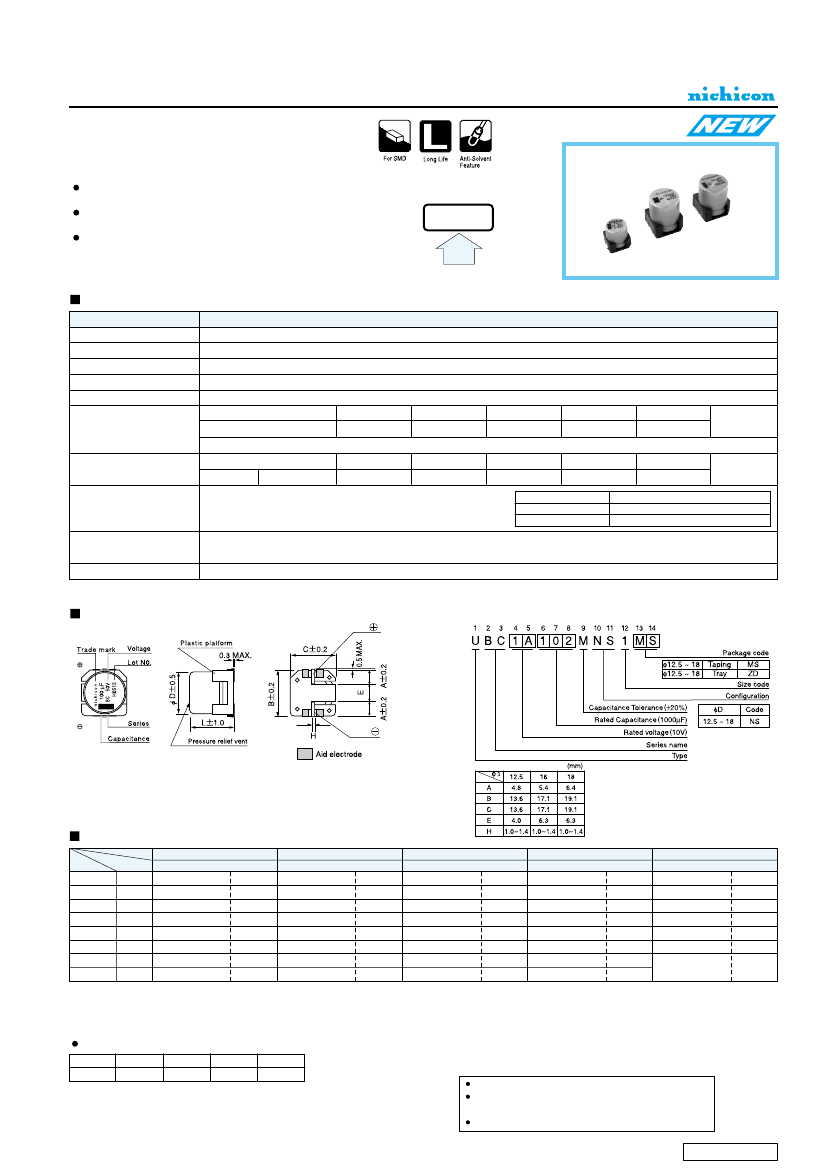

ALUMINUM ELECTROLYTIC CAPACITORS
BC
Chip Type , High Temperature Range,
Vibration Resistance
series
Highly dependable reliability withstanding load life of
1000 hours at +150
°C.
Suited for automobile electronics where heavy duty
services are indispensable.
Adapted to the RoHS directive (2002/95/EC).
BC
High
Temperature
UE
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
Performance Characteristics
– 55 ~ +150°C
10 ~ 50V
100 ~ 3300µF
± 20% at 120Hz, 20°C
After 1 minutes' application of rated voltage, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.
Rated voltage (V)
tan
δ
(MAX.)
10
0.22
16
0.18
25
0.16
35
0.14
50
0.12
120Hz 20
°C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Stability at Low Temperature
Impedance ratio
Z
–
40°C / Z+20°C
(MAX.)
Endurance
10
16
25
35
50
120Hz
8
6
4
4
4
Within ±30% of initial value
300% or less of initial specified value
Initial specified value or less
After 1000 hours
'
application of rated voltage at 150°C, capacitors
meet the characteristics requirements listed at right.
Capacitance change
tan
δ
Leakage current
Shelf Life
Marking
After storing the capacitors under no load at 150°C for 1000 hours, and after performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.
Black print on the case top.
Chip Type
Type numbering system (Example : 10V 1000
µ
F)
Dimensions
V
Cap.(µF)
Code
10
1A
16
1C
25
1E
12.5
×
13.5
12.5
×
13.5
650
700
800
1000
12.5
×
13.5
16
×
16.5
16
×
21.5
18
×
21.5
35
1V
12.5
×
13.5
550
650
750
950
1150
16
×
16.5
16
×
21.5
16
×
21.5
18
×
21.5
50
1H
420
550
650
850
1100
Rated
ripple
100
220
330
470
680
1000
2200
3300
101
221
331
471
681
102
222
332
12.5
×
13.5
12.5
×
13.5
12.5
×
13.5
18
×
21.5
18
×
21.5
800
900
1350
1400
12.5
×
13.5
16
×
16.5
18
×
21.5
750
800
850
1350
12.5
×
13.5
16
×
16.5
16
×
21.5
Case size
φ
D
×
L (mm)
Rated Ripple (mArms) at 150°C 100kHz
Frequency coefficient of rated ripple current
Frequency
Coefficient
120 Hz
0.67
300 Hz
0.79
1 kHz
0.91
10 kHz~
1.00
Taping specifications are given in page 22.
Recommended land size, soldering by reflow are given
in page 25, 26.
Please refer to page 3 for the minimum order quantity.
