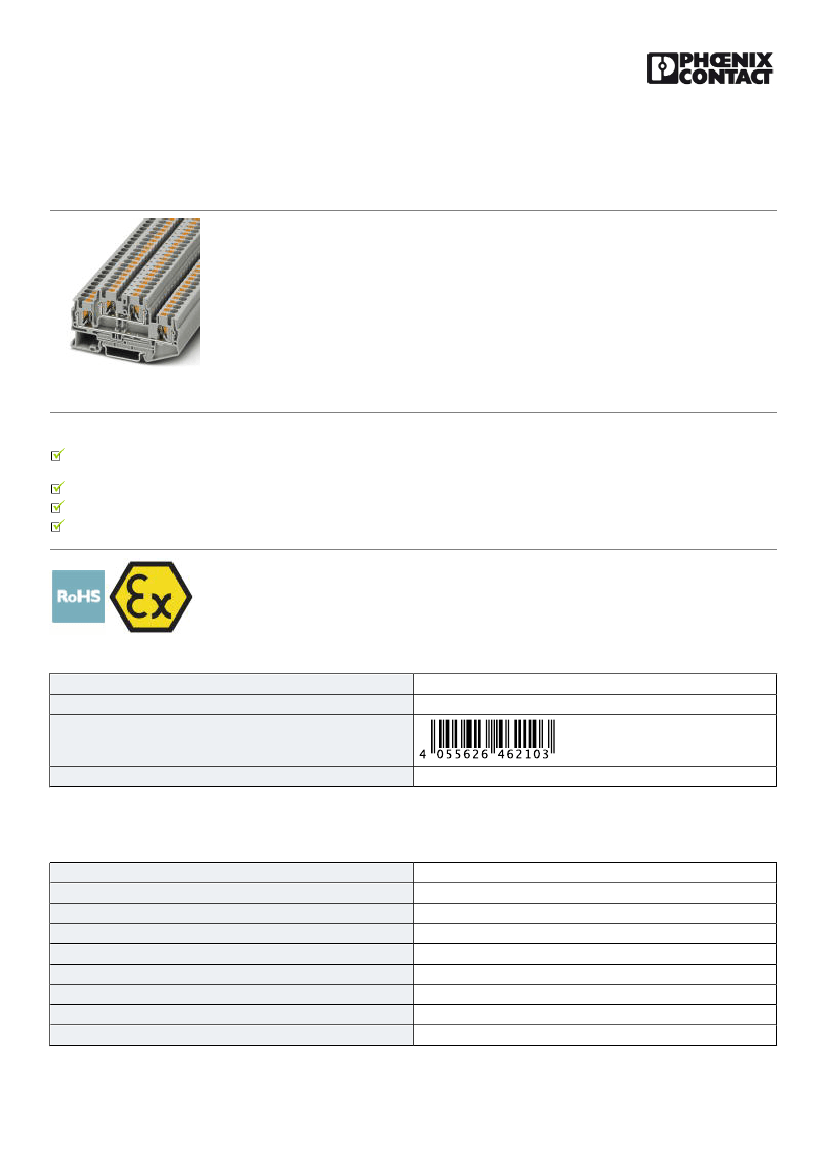

Double-level terminal block - PTTB 4 WH - 3211794
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Double-level terminal block, connection method: Push-in connection, cross section: 0.2 mm² - 6 mm², AWG:
24 - 10, width: 6.2 mm, color: white, mounting type: NS 35/7,5, NS 35/15
The figure shows the product in
gray
Your advantages
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free
wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Tested for railway applications
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4055626462103
2 pc
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Area of application
2
4
4 mm²
white
PA
V0
Railway industry
Machine building
Plant engineering
11/04/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3211794
Double-level terminal block - PTTB 4 WH - 3211794
Technical data
General
Process industry
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
6 kV
3
III
I
1.02 W (the value is multiplied when connecting multiple levels)
IEC 60947-7-1
28 A (with 4 mm² conductor cross section)
32 A (with 6 mm² conductor cross section)
500 V
Yes
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
83.5 mm
47.5 mm
55 mm
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Push-in connection
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
0.25 mm²
4 mm²
0.5 mm²
1 mm²
10 mm ... 12 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
11/04/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/3211794
Double-level terminal block - PTTB 4 WH - 3211794
Technical data
Environmental Product Compliance
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / CSA / PRS / BV / NK / ABS / UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE000010T
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
24-10
http://www.csagroup.org/services-industries/product-listing/
B
300 V
30 A
24-10
C
300 V
30 A
24-10
13631
PRS
http://www.prs.pl/
TE/2107/880590/16
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
39980/A0 BV
NK
http://www.classnk.or.jp/hp/en/
14ME0913
11/04/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/3211794
Double-level terminal block - PTTB 4 WH - 3211794
Approvals
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1591536-PDA
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
24-10
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
28 A
24-10
C
300 V
28 A
24-10
FILE E 60425
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
600 V
5A
24-10
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
300 V
28 A
24-10
C
300 V
28 A
24-10
FILE E 60425
EAC
EAC-Zulassung
cULus Recognized
