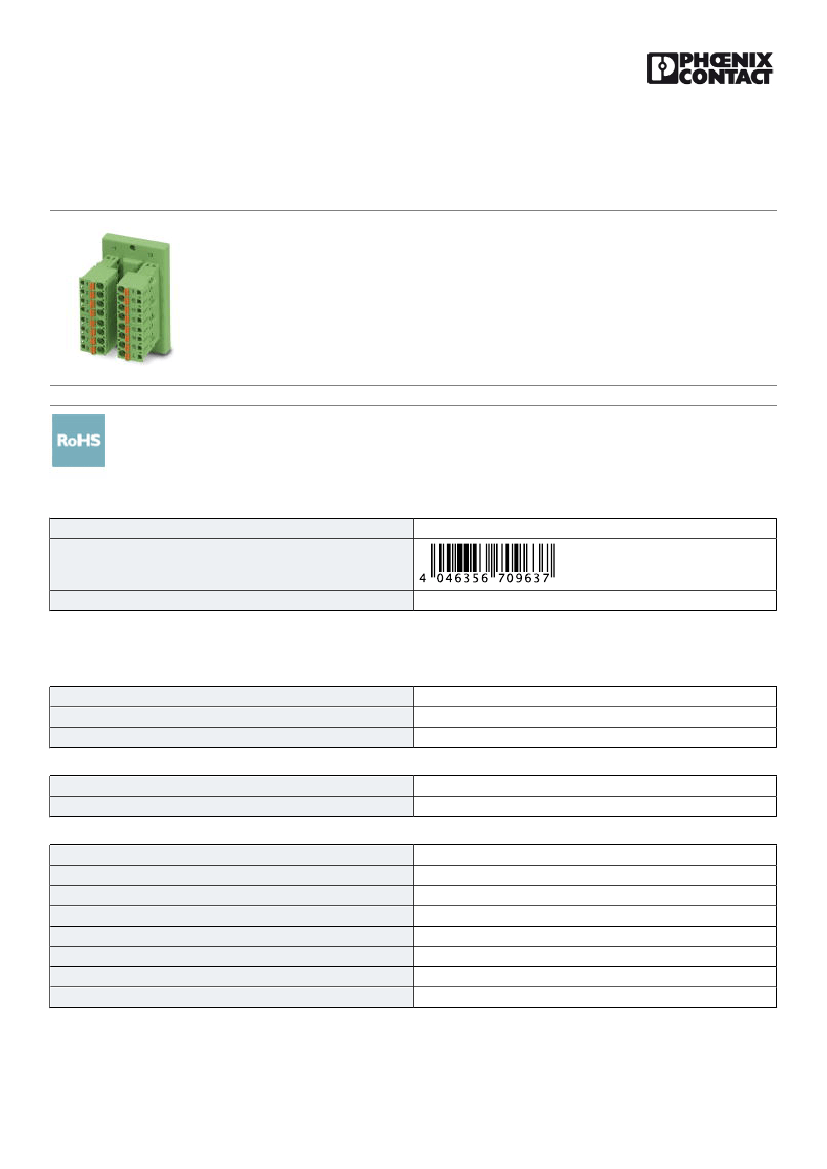

Interface module - DFLK-D15 SUB/M/FKCT - 2903054
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
The VARIOFACE feed-through module implements a 1:1 connection between plug-in push-in spring-cage
connection terminal blocks and a D-SUB miniature pin strip (number of positions: 15). A separate ground tap
is available.
Key Commercial Data
Packing unit
GTIN
GTIN
4046356709637
1 pc
Technical data
Dimensions
Width
Height
Depth
36.5 mm
58.4 mm
46 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
Max. perm. operating voltage
Max. perm. current (per branch)
Max. permissible current (all branches)
Number of positions
Mounting position
Assembly instructions
Degree of protection
25 V AC
60 V DC
2.5 A
37.5 A
15
any
In rows with zero spacing
IP20
Connection data for connection 1
11/05/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/2903054
Interface module - DFLK-D15 SUB/M/FKCT - 2903054
Technical data
Connection data for connection 1
Connection name
Connection method
Stripping length
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
Plug-in push-in spring-cage connection
10 mm
0.2 mm² ... 2.5 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Number of positions
Controller level
D-SUB pin strip
15
Standards and Regulations
Connection in acc. with standard
Standards/regulations
Rated insulation voltage
Rated surge voltage
Degree of pollution
Overvoltage category
CUL
DIN EN 50178
IEC 60664
125 V
1.2 kV (Functional insulation)
2
II
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

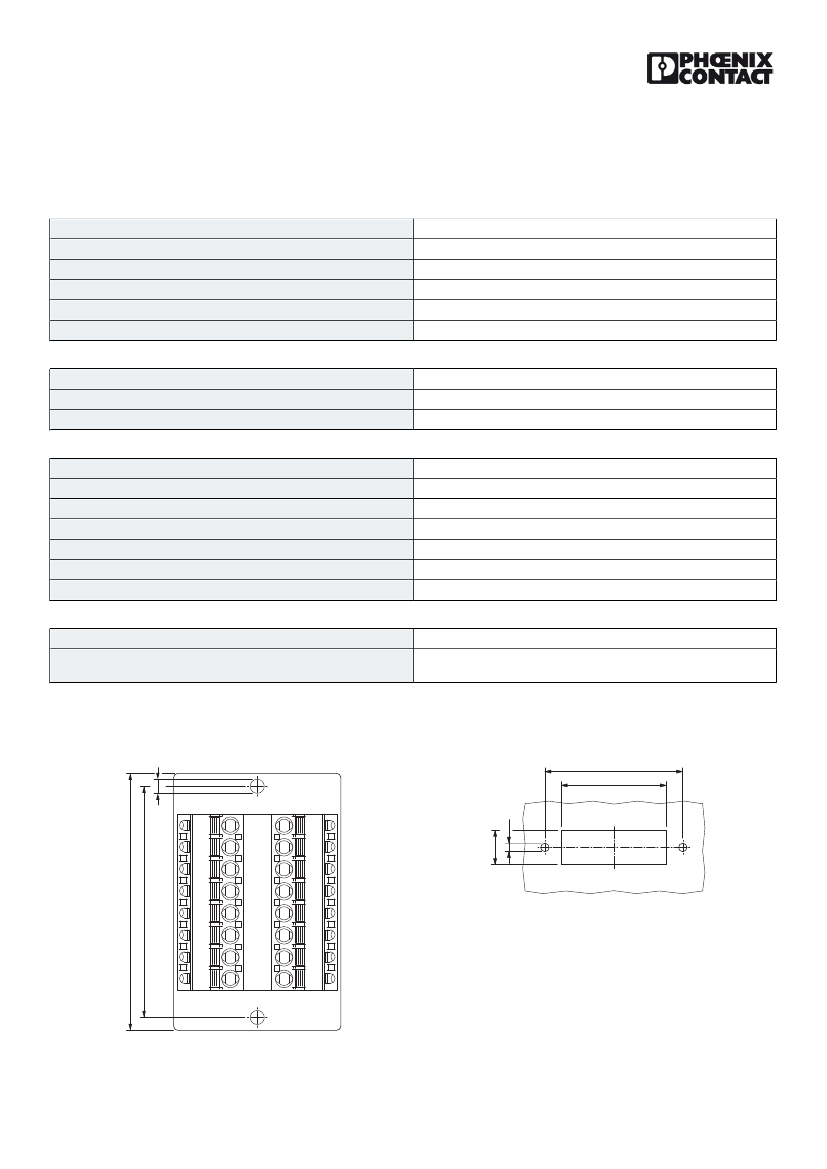

Drawings
Dimensional drawing
Dimensional drawing
52,5
40,2
+0,2
Ø3,2
58,4
52,5
13
+0,2
Ø3,2
11/05/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/2903054
Interface module - DFLK-D15 SUB/M/FKCT - 2903054
Dimensional drawing
36,5
46
36
38
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
1A
30-12
FILE E 238705
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
125 V
1A
30-12
FILE E 238705
EAC
RU C-
DE.A*30.B.01742
11/05/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/2903054
Interface module - DFLK-D15 SUB/M/FKCT - 2903054
Approvals
cULus Recognized
