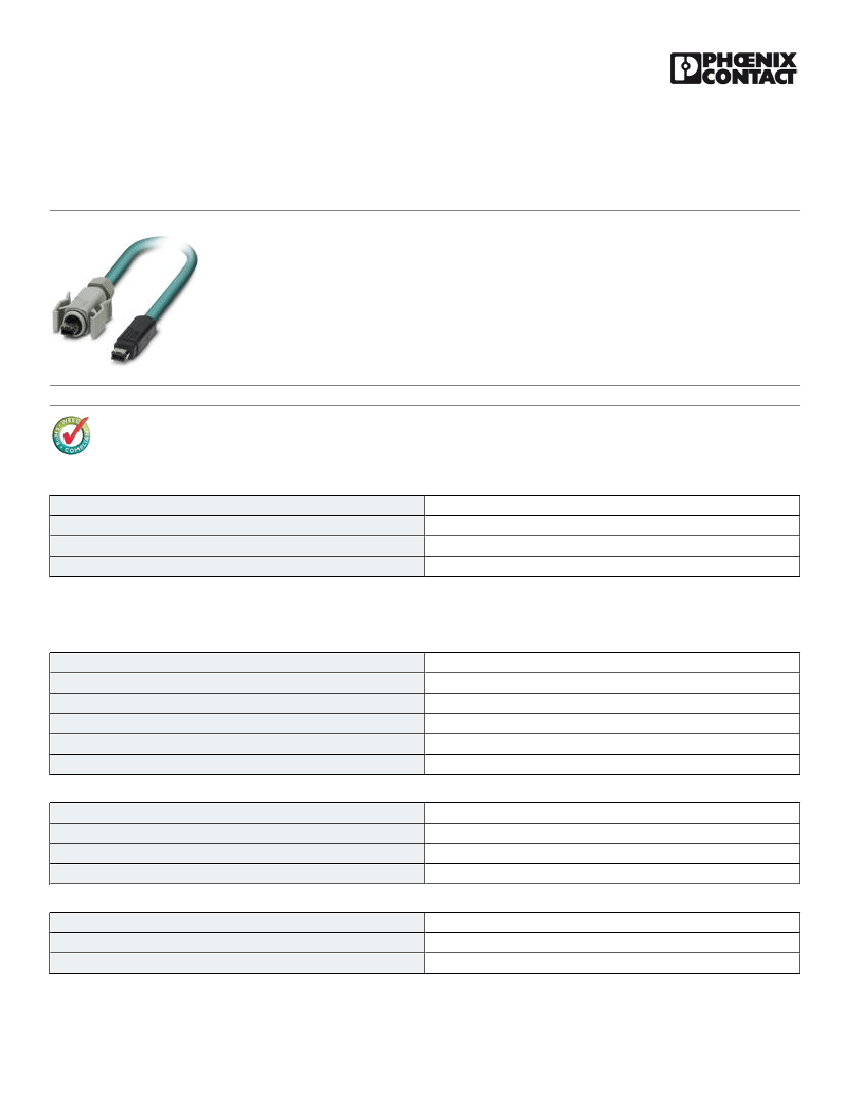

Patch cable - VS-06-2X2X26C7/7-67/SD/ 7,5 - 1655849
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Assembled FireWire cable, shielded, color: RAL 5021 (water blue), PUR outer sheath, FireWire/IP67 on FireWire/
standard, length: 7.5 m
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
525.3 GRM
85444290
Germany
Technical data
Mechanical characteristics
Number of positions
Shielded
Insertion/withdrawal cycles
Cable diameter
Cable structure
Length of cable
6
Yes
≥ 1000
6.70 mm
2x2xAWG26/7 + 2xAWG20/19; S/FTP
7.5 m
Ambient conditions
Ambient temperature (operation)
-20 °C ... 60 °C (cable, fixed installation)
0 °C ... 50 °C (cable, flexible installation)
(Plug / socket)
Degree of protection
IP67/IP20
Material data
Housing material
Sealing material
Outer sheath, material
PA
FPM
PUR
3/3/14 Page 1 / 4
https://www.phoenixcontact.com/us/products/1655849
Patch cable - VS-06-2X2X26C7/7-67/SD/ 7,5 - 1655849
Technical data
Material data
External sheath, color
water blue RAL 5021
Electrical characteristics
Rated voltage (III/3)
Rated current
Transmission characteristics (category)
125 V
1A
FireWire (400 Mbps)
Line characteristics
Cable type
Cable structure
Conductor cross section
AWG signal line
Conductor structure signal line
AWG power supply
Conductor structure, voltage supply
Core diameter including insulation
External cable diameter
Wire colors
External sheath, color
Insulation resistance
Conductor resistance
Transmission characteristics (category)
Working capacitance
Wave impedance
Signal speed
Signal runtime
Shield attenuation
Interference suppression
Coupling resistance
Nominal voltage, cable
Test voltage, cable
Twisted pairs
Type of pair shielding
Overall twist
Shielding
Outer sheath, material
FireWire
2x2xAWG26/7 + 2xAWG20/19; S/FTP
2x 2x 0.14 mm² (signal line)
2x 0.5 mm² (Power supply)
26
7x 0.15 mm
20
19x 0.20 mm
≤ 1.05 mm (signal line)
nom. 1.4 mm (Power supply)
6.7 mm
White-blue, white-orange, white, black
water blue RAL 5021
5 GΩ*km
150 Ω/km
CAT7, for USB 2.0 (480 Mbps)
42 pF (per meter)
100 Ω ±5 % (at 100 MHz)
0.72 c
4.6 ns/m
60 dB (Up to 1000 MHz)
90 dB (Up to 1000 MHz)
5.00 mΩ/m (At 10 MHz)
≤ 125 V
1000 V
2 cores to the pair
Aluminum-lined polyester foil
Two pairs and two power supply wires to the core
Tinned copper braided shield
PUR
3/3/14 Page 2 / 4
https://www.phoenixcontact.com/us/products/1655849
Patch cable - VS-06-2X2X26C7/7-67/SD/ 7,5 - 1655849
Technical data
Line characteristics
Material conductor insulation
Conductor material
Cable weight
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Tensile strength short-term/long-term
Special properties
Flame resistance
Resistance to oil
Other resistance
Ambient temperature (operation)
Cell PE (signal line)
PVC (Power supply)
Bare Cu litz wires
59 kg/km
5xD
5xD
≤ 30 N
Free of substances which would hinder coating with paint or varnish
complying with IEC 60332-2-2
according to EN 60811-2-1
Microbe resistance as per DIN VDE 0282
Hydrolysis resistance as per DIN 53504
-40 °C ... 70 °C (cable, fixed installation)
-10 °C ... 50 °C (cable, flexible installation)
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060306
27060306
27061801
27061801
27061801
27061801
27061801
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000830
EC001855
EC001855
EC001855
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211923
39121522
39121522
39121522
39121522
3/3/14 Page 3 / 4
https://www.phoenixcontact.com/us/products/1655849
Patch cable - VS-06-2X2X26C7/7-67/SD/ 7,5 - 1655849

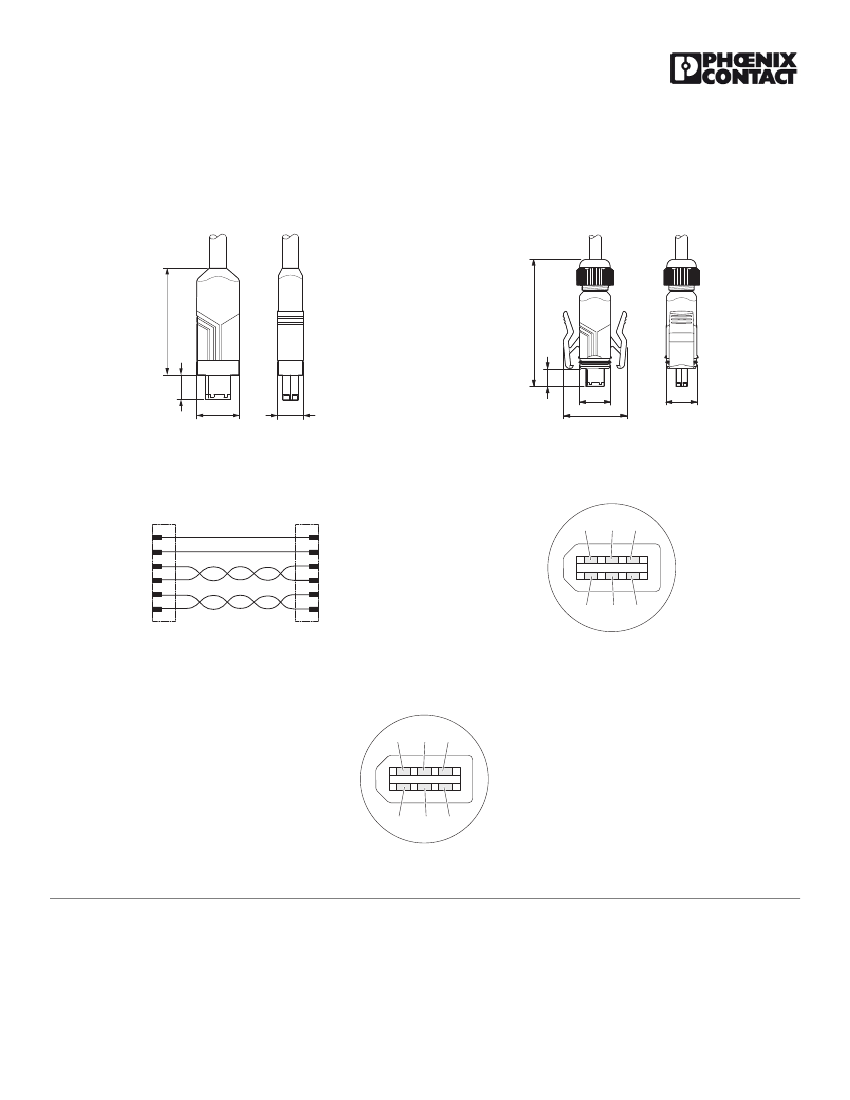

Drawings
Dimensioned drawing
Dimensioned drawing
46
76
10,5
10,5
18
16
10,5
38
18
FireWire connector, standard
FireWire connector, IP67
Circuit diagram
FireWire
1
2
3
4
5
6
Schematic diagram
FireWire
5
1
2
5
6
3
4
6
4
2
3
1
Pin assignment plug FireWire
Schematic diagram
5
3
1
6
4
2
Pin assignment plug FireWire
