DPX-E130-S0A1E Overview

DPX-E130 WITH AMD T16R 600MHZ 4.

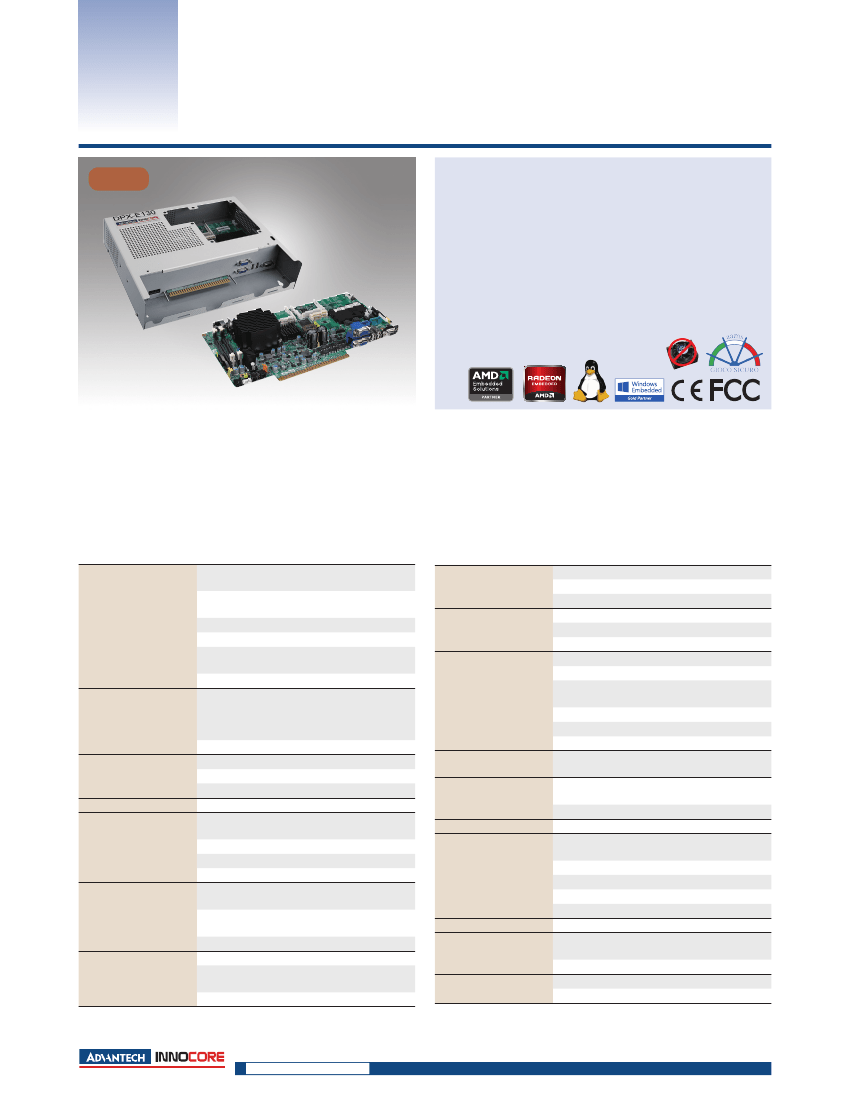

DPX -E130
®
NEW
AMD G-Series Gaming System for
Italy AWP2 and AWP3
Features
ƒ
Ready for Italian AAMS "AWP2" and "AWP3"
ƒ
Powered through JAMMA interface
ƒ
Complete software API package for all AAMS functions
ƒ
Full set of gaming features, security, COMs, I/O
ƒ
Board level or system level with enclosure
ƒ
Low power, passive cooled options
ƒ
High performance, low cost AMD G-Series platform
Introduction
The DPX
®
-E130 is a complete gaming solution designed specifically for the revised Italian AWP3 regulations. A fully featured AAMS compliant software API and libraries are provided
for simple integration of the smart card, fiscal interfaces, security, I/O and COMs to the AAMS servers. The system needs very little power which is drawn from through the JAMMA
interface with onboard regulation to provide a robust power interface for new and retrofit applications under AWP3 and Comma6a. The system, based on the AMD G-Series embedded
chipset, is designed to be low power, high performance with a 5 year life cycle - all at a very competitive price.
Specifications
Complete system solution, enclosure, field proven
API and drivers
AMD G series APU, Dual and Single core
performance & low power
Italian JAMMA interface
Gaming hardware, security and I/O
Audio amplifier for 2 channels. Stereo 3W+3W or
Mono 6W into 4 ohms
Fanless enclosure with transparent window
AMD G-Series embedded BGA APUs.
T56N 1.65 GHz 18W Dual core,
T40E 1.0 GHz 6.5W Dual core
T16R 615 MHz, 4.5W Single core options
AMD 55E Fusion controller hub
2 x SODIMM sockets
DDR3 PC-8500 (1066MT/s) RAM up to 8GB total
Optional* :- Up to 8 GB
AMI UEFI SPI BIOS (Write protectable)
Integrated – AMD Radeon HD6130 Direct X 11,
Open GL 4.1
Video Ports:
Primary:- Analog VGA
Secondary:- Analog VGA
AAMS Smart Card
ISO7816-1,2,3 and ISO / IEC 7810:2003.
Intrusion switch inputs
(3 external, 2 internal)
BIOS customization
High definition audio Codec
Amplified outputs for Stereo 2 channels, 3W per
channel
Stereo line out (option)
LAN
1 x Ethernet Gigabit LAN
Full duplex operation
Wake-On-LAN capability
1 x CompactFlash Type I/II (Flash/MicroDrive)**
1 x C-Fast Socket
1 x SATA, 1 x mSATA connector
2 x USB front panel
2 x USB on a 2x5 pin header
AAMS Port (DB9 Female), Tx/Rx Only (optional full
RS232)
Debug COM Port (DB9 Male)
1 x ccTalk available on the JAMMA (COM3)
1 x ccTalk on front panel
JAMMA 28 + 28 way edge connector for I/O, power,
audio, security, and COMs, CCTALK
Fast SRAM 2 MB on PCI bus.
Option for up to 4 MB
Battery state software readable
Programmable time-out of 1-255 seconds
Six Intrusion detection input lines
(3 used for ‘case open’ and JAMMA disconnect)
Operates with and without system active
Logs date/time of last 254 events
Logs system resets/brownouts as events
EEPROM backup for 10 years retention
Measurement of CPU core temp. With thermal trip.
5V, 12V DC powered from JAMMA
(24V also required for 24V CCTalk devices)
wide range 4.5V-5.75 with power-on conditioning
Sheet metal
Compact size
System
Storage
Ports
CPU/Chipset
Memory
BIOS
JAMMA
NVRAM
Watchdog Timer
Video
Intrusion Detection
Security
System Health Monitoring
Power
Enclosure
Audio
*Minimum order quantities may apply for options
** Internal access with intrusion access control
www.advantech-innocore.com
See overleaf for continued specification
Last updated : 27-May-2015
Innovations in Gaming Computing
