T3011T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> T3011T

T3011T: DescriptionPULSE XFMR 1:1 100UH; CategoryPower/power management; File Size65KB，2 Pages; ManufacturerPulse Electronics Network

Download Datasheet Parametric View All

T3011T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T3011T	-	-	View	Buy Now

T3011T Overview

PULSE XFMR 1:1 100UH

T3011T Parametric

Parameter Name	Attribute value
Transformer type	-
inductance	100µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	1：1
Installation type	surface mount
size/dimensions	0.300" long x 0.276" wide (7.62mm x 7.00mm)
Height - Installation (maximum)	0.250"（6.35mm）
Operating temperature	-40°C ~ 85°C

Preview

Download Datasheet

View All

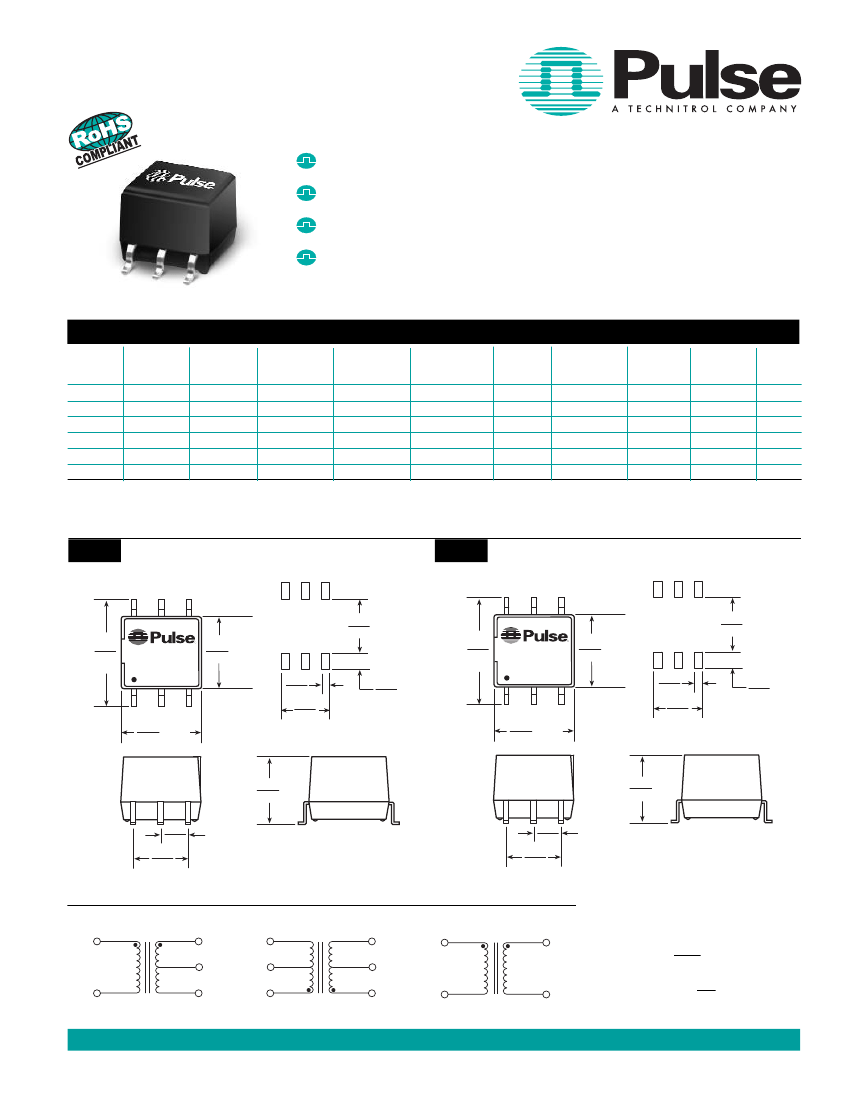

T3/DS3/E3/STS-1 TRANSFORMERS

Extended Temperature Range

Operating temperature of -40°C to +85°C

Models matched to leading transceiver ICs

Return loss meets requirements of G.703

UL recognized (some parts pending)

Electrical Specifications @ 25°C — Operating Temperature -40°C to +85°C

RoHS-5

Part No.

RoHS-6

Part No.

Turns Ratio OCL Primary

Pri:Sec

@ 25°C

(±2%)

(µH MIN)

100

OCL Primary

@ -40°C

(µH MIN)

@ 100kHz

0.2Vrms

(µH TYP)

.110

.10

.150

W/W

(pF MAX)

Bandwidth

75Ω System

(MHz TYP)

.200 - 340

.250 - 500

.200 - 340

.250 - 500

.200 - 340

Isolation

Package/ Primary

Voltage

Schematic

Pins

(Vrms MIN)

1500

LS-2/E

LS-2/C

LS-1/E

LS-1/C

LS-2/F

LS-2/C

1-3

4-6

1-3

4-6

T3001

T3001NL

1:1

T3002

T3002NL

1:2CT

T3011*

T3011NL*

1:1

T3012*

T3012NL*

1:2CT

T3027

T3027NL

1CT:1CT

T3029

T3029NL

1:1.155CT

*Models with alternate pinout configurations.

Mechanicals

LS-1

.258

6,55

LS-2

.258

6,55

.390

9,91

T301X

DATE CODE

.275 MAX

7,00

.040

1,02

.240

6,10

.390

9,91

.075

1,91

T30XX

DATE CODE

.275 MAX

7,00

.040

1,02

.240

6,10

.075

1,91

.300 MAX

7,62

SUGGESTED PAD LAYOUT

.300 MAX

7,62

SUGGESTED PAD LAYOUT

.250 MAX

6,35

.100

2,54

.200

5,08

.100

2,54

.200

5,08

.250 MAX

6,35

Schematics

Weight

. . . . . . . . . . . . . .0.6 grams

Tape & Reel

. . . . . . . . . . . .600/reel

Tube

. . . . . . . . . . . . . . . . . .70/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

USA 858 674 8100

•

Germany 49 7032 7806 0

•

Singapore 65 6287 8998

•

Shanghai

86 21 54643211 / 2

•

China 86 755 33966678

•

Taiwan 886 3 4641811

www.pulseeng.com

T619.B (11/07)
