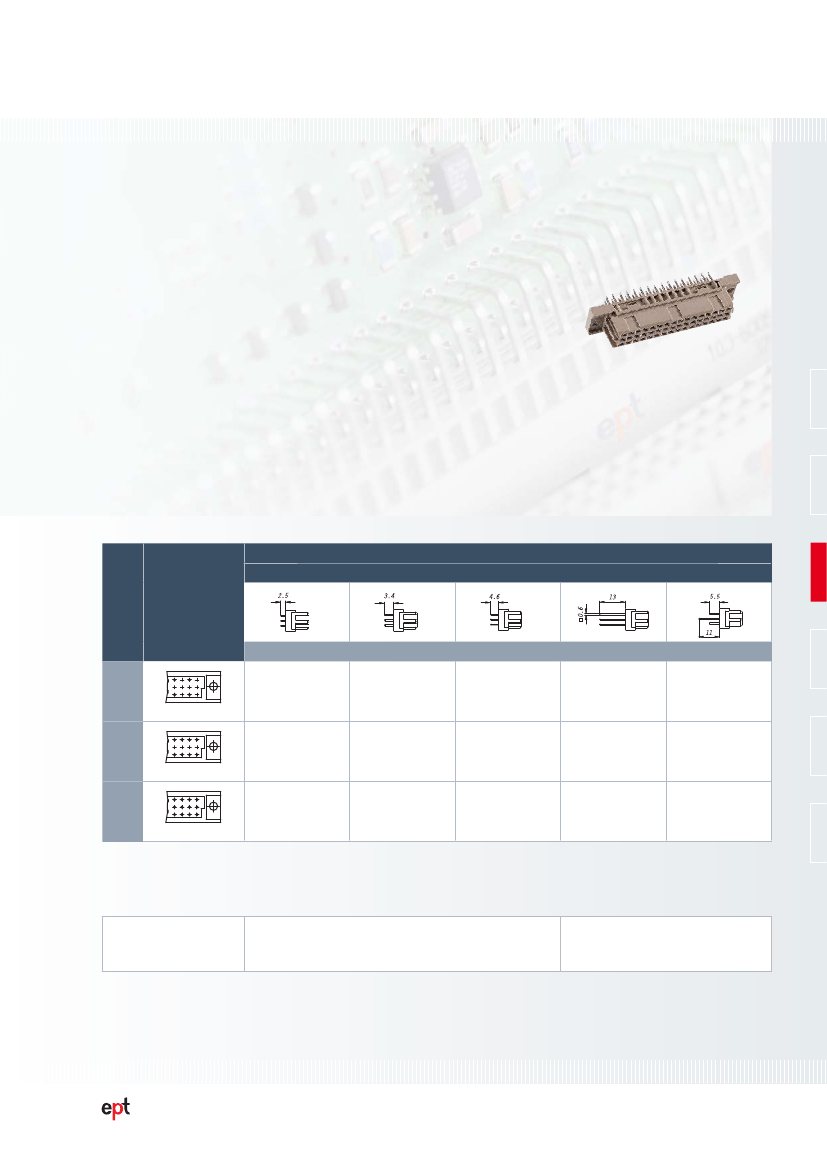

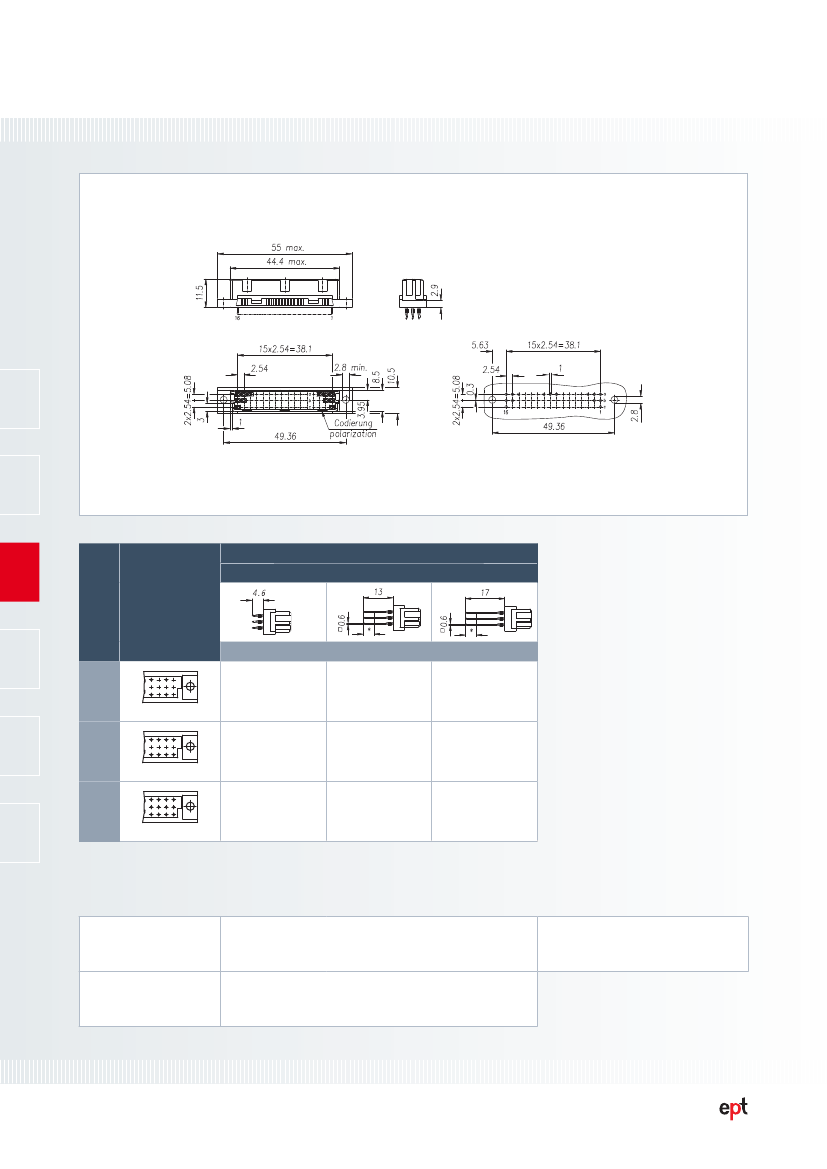

Connectors according to DIN 41612 / IEC 60603-2
Type C/2
Female connector
Dimensions in mm
Hole pattern
Press-fit technology –
Performance level II
Termination length
No. of
contacts
Contact
arrangement
a
b
c
4
3 2 1
Part number
104-69004-xx
104-79006-xx
104-79106-xx
16
32
a
b
c
4
3 2 1
304-69014-02
304-79016-03
304-79116-04
48
a
b
c
4
3 2 1
304-69064-02
304-79066-03
304-79166-04
Accessories
– Press-fit tool (see page 208)
– Support tool (see page 209)
– Coding accessories (see page 160)
Note
– * Rear mating zone
performance level II
On request
– Performance levels I + III or customer-specific
– Special contact length
– Alternative surface Sn, e. g. for WireWrap
Ordering note
Only for 104
– PCB 1.5 to 2.0 mm = xxx-xxxxx-01 with termination length = 3.2 mm
– PCB 2.0 to 2.8 mm = xxx-xxxxx-02 with termination length = 4.6 mm
– PCB > 2.8 mm
= xxx-xxxxx-03 with termination length = 4.6 mm
Options
– Without
fl
ange
– Contact arrangement (see page 162)
102
ept GmbH
I
Phone +49 (0) 88 61 / 25 01 0
I
Fax +49 (0) 88 61 / 55 07
I
E-mail sales@ept.de
I
www.ept.de
Connectors according to DIN 41612 / IEC 60603-2
Type C/2
Female connector
Solder technology –
Performance level II
Termination length
Manual soldering with solder lug
No. of
contacts
Contact
arrangement
a
b
c
4
3 2 1
Part number
104-90004
–
–
104-90006
104-90025
16
32
a
b
c
4
3 2 1
304-90014-05
304-90014-01
304-90014-02
304-90016-03
104-90035
48
a
b
c
4
3 2 1
304-90064-05
304-90064-01
304-90064-02
304-90066-03
104-90075
Accessories
– Coding accessories (see page 160)
On request
– Performance levels I + III or customer-specific
– Special contact length
– Also in THTR
Options
– Board lock (see page 159)
– Contact arrangement (see page 162)
ept GmbH
