Test disconnect terminal block - STME 6 HV - 3035693
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Test disconnect terminal block, connection method: Spring-cage connection, cross section: 0.2 mm² - 10
mm² , AWG: 24 - 10, width: 8.2 mm, color: gray
Your advantages
Connection of standard solar cables up to 10 mm² and with 7.5 mm outside diameter
The DP-STMED 6 spacer plate ensures sufficient spacing between two adjacent diode terminal blocks
A space-saving design of the same shape for compact generator connection boxes
Consistent function shafts enable the simple grouping of individual PV lines using plug-in bridges
Key Commercial Data
Packing unit
GTIN
GTIN
4046356609814
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
1
2
1
6 mm²
gray
PA
V0
8 kV
3
III
I
1.31 W
11/02/2018 Page 1 / 7
https://www.phoenixcontact.com/pi/products/3035693
Test disconnect terminal block - STME 6 HV - 3035693
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
30 A (with 10 mm² conductor cross section)
30 A
1000 V
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
9.8 kV
Test passed
2.2 kV
Test passed
Test passed
10 rpm
135
0.2 mm² / 0.2 kg
6 mm / 1.4 kg
10 mm² / 2 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Ageing test for screwless modular terminal block temperature cycles
Test passed
0.2 mm²
10 N
6 mm²
80 N
10 mm²
90 N
Test passed
NS 35
5N
Test passed
≤ 6,4 mV
Test passed
Test passed
4 mm²
0.5 kA
4 mm²
0.15 kA
4 mm²
1.25 kA
Test passed
192
11/02/2018 Page 2 / 7
2
https://www.phoenixcontact.com/pi/products/3035693
Test disconnect terminal block - STME 6 HV - 3035693
Technical data
General
Proof of thermal characteristics (needle flame) effective duration
Result of aging test
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
30 s
Test passed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
11.83 (m/s ) /Hz
4.25 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.2 mm
100.8 mm
49.6 mm
57.1 mm
Connection data
11/02/2018 Page 3 / 7
https://www.phoenixcontact.com/pi/products/3035693
Test disconnect terminal block - STME 6 HV - 3035693
Technical data
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Stripping length
Internal cylindrical gage
Spring-cage connection
IEC 60947-7-1
0.2 mm²
10 mm²
24
8
0.2 mm²
6 mm²
24
10
0.25 mm²
0.25 mm²
6 mm²
0.5 mm²
1.5 mm²
12 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 6 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CUL
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/02/2018 Page 4 / 7
https://www.phoenixcontact.com/pi/products/3035693
Test disconnect terminal block - STME 6 HV - 3035693

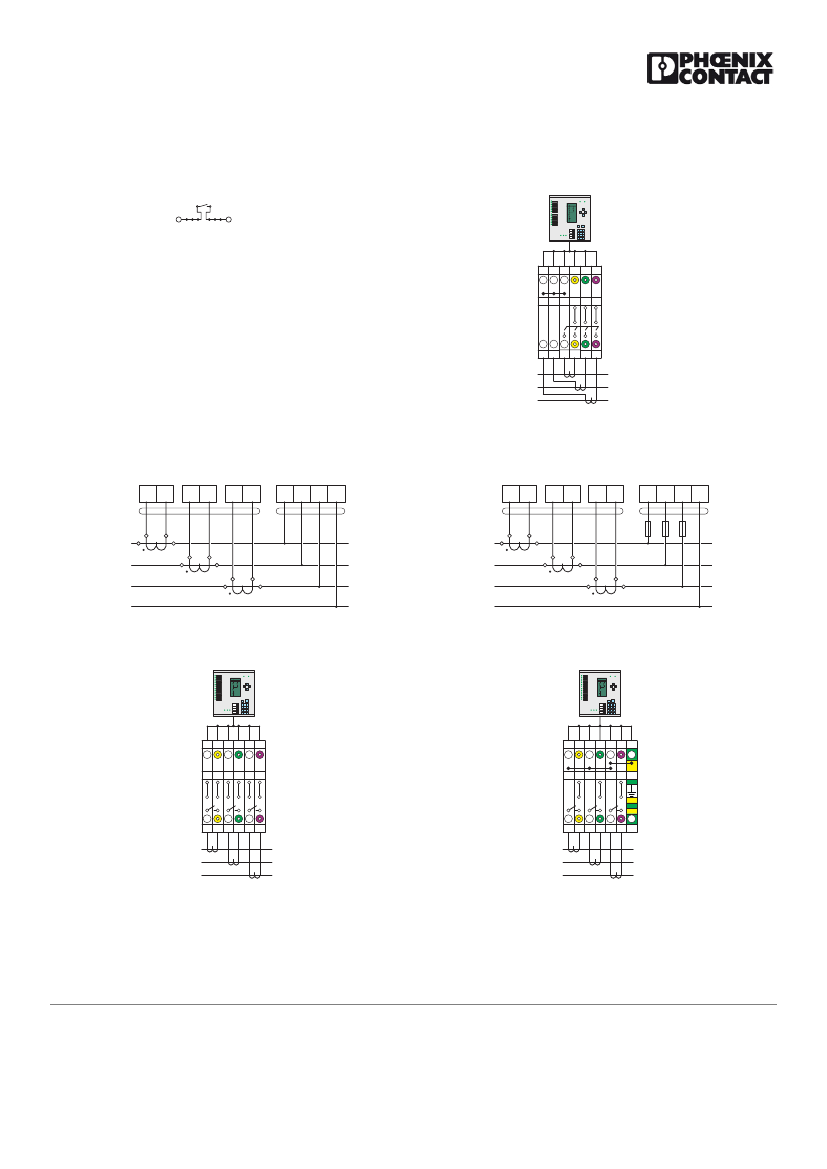

Circuit diagram
Schematic diagram
ON
OFF
ESC
YES
Meldung
Werte
Störfall
F1
F2
F3
F4
L1 L2 L3
1 2 3
4 5 6
7 8 9
0 .
1
2
3
4
5
6
s1 s1 s1 s2 s2 s2
s1 s1 s1 s2 s2 s2
L1
L2
L3
Interlinked three-phase current transformer set
Circuit diagram
S1 S2
S1 S2
S1 S2
L1 L2 L3
N
S1 S2
Circuit diagram
S1 S2
S1 S2
L1 L2 L3
N
S1
S2
P2
S1
S2
P2
S1
S2
P2
S1
S2
P2
S1
S2
P2
S1
S2
P2
L1
L2
L3
N
P1
L1
L2
L3
N
P1
P1
P1
P1
P1
Schematic diagram
ON
OFF
Schematic diagram
ON
OFF
ESC
YES
Meldung
Werte
Störfall
ESC
YES
Meldung
Werte
Störfall
F1
F2
F3
F4
L1 L2 L3
1 2 3
4 5 6
7 8 9
0 .
F1
F2
F3
F4
L1 L2 L3
1 2 3
4 5 6
7 8 9
0 .
1
2
3
4
5
6
1
2
3
4
5
6
7
s1 s2 s1 s2 s1 s2
s1 s2 s1 s2 s1 s2 PE
s1 s2 s1 s2 s1 s2
s1 s2 s1 s2 s1 s2 PE
L1
L2
L3
L1
L2
L3
Simple three-phase current transformer set
Interlinked three-phase current transformer set with grounded star point
Approvals
Approvals
11/02/2018 Page 5 / 7
