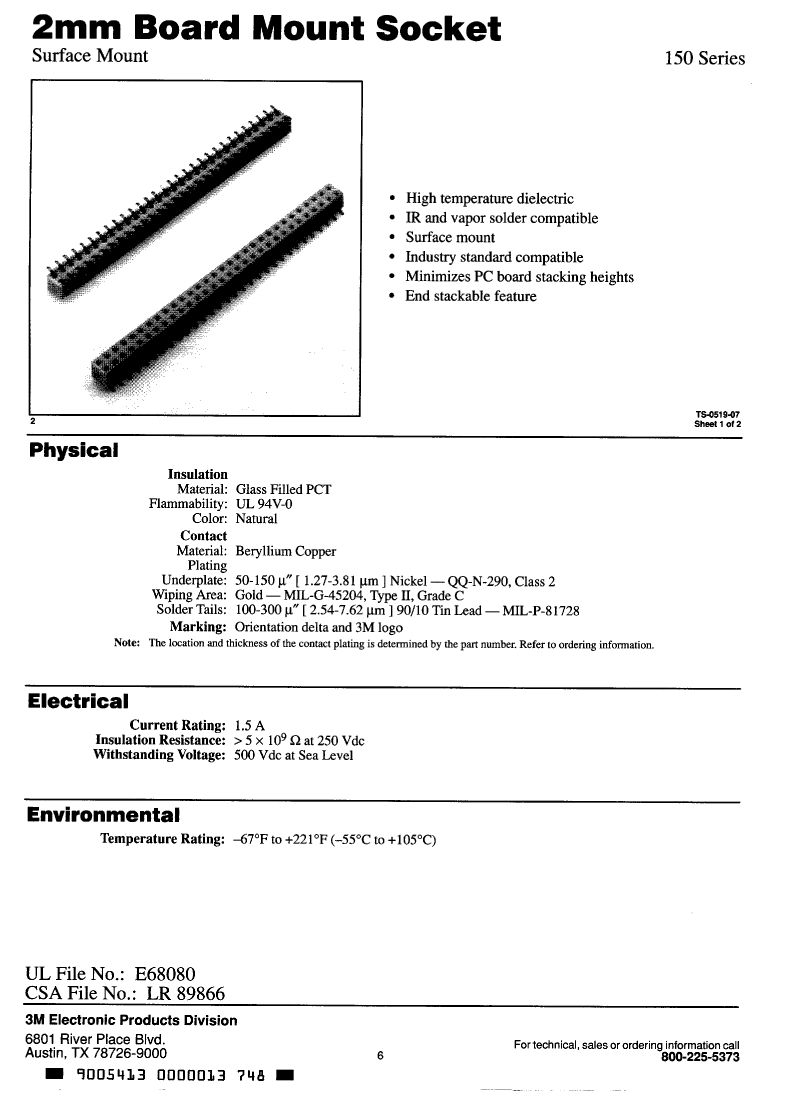

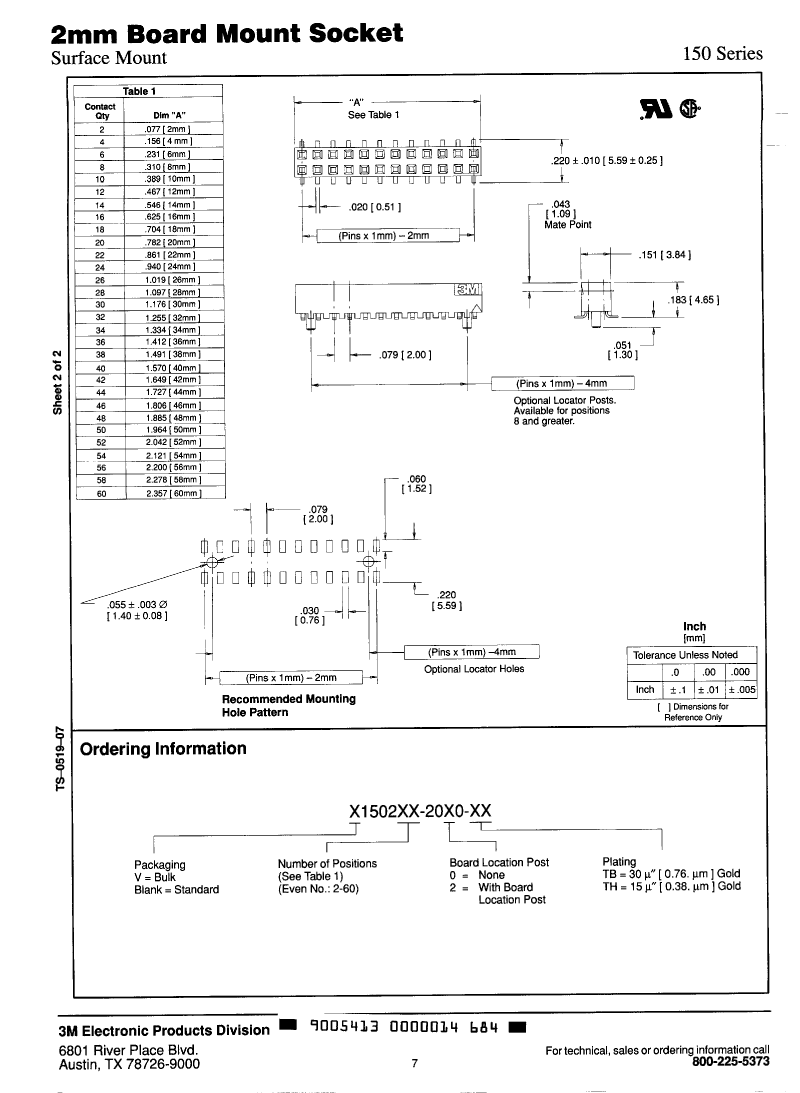

V150206-2000-TB datasheet, PDF

V150206-2000-TB: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,NATURAL; CategoryThe connector The connector; File Size139KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

V150206-2000-TB Overview

HEADER CONNECTOR,PCB MNT,PLUG,6 CONTACTS,SKT,0.079 PITCH,NATURAL

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.151 inch
subject depth	0.183 inch
body length	0.231 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
Manufacturer's serial number	150
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Total number of contacts	6
Base Number Matches	1
