HCMOS 3.2x2.5mm SMD Oscillator
O3HS
DATASHEET
____________
(Former F300, F310, F330, F340, Series)
•
HCMOS Output
•
Stabilities to ±20 PPM
•
Temperature Ranges as
•
Supply Voltages: 1.0V,
wide as
-40ºC
to +85ºC
1.8V, 2.5V, 3.3V
1.0V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Input Current
(I
DD
)
1.800
~
32.100
MHz
>
32.100
~
50.000
MHz
Standby Current
Output Symmetry (50% V
DD
)
Rise/Fall Time (20%/
80
% V
DD
Levels) (T
R
/T
F
)
1.800
~
32.100
MHz
>
32.100
~
50.000
MHz
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
OPEN
1
Active
Active
‘1’ Level V
IH
≥
70%V
DD
High Z
‘0’ Level V
IL
≤
30%V
DD
MAX (unless otherwise noted)
1.800
~
50.000
MHz
-55 ~ +125°C
1.0V±5%
2.5
mA
3.5
mA
5
uA
40
% ~
60
%
5
nS
3.5
nS
20
% V
DD
80
% V
DD
Min
15
pF
5
mS
300
nS
5 mS
•
Available Options by Stability & Operating Temp for 1.0V
Frequency
Stability
2
±100PPM
±100PPM
±50PPM
±50PPM
±25PPM
±25PPM
±20PPM*
1
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
1.800
1.800
1.800
1.800
1.800
1.800
1.800
~ 50.000
~ 50.000
~ 50.000
~ 50.000
~ 50.000
~ 50.000
~ 50.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, reflow, and one year aging. *Excludes Shock/Vibration.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
03HS
SERIES STANDARD SPECIFICATIONS
Drawing Number:
101165
Size: A
Cage:
61429
Part Number:
Draftsperson:
YM
Approved:
BEC
Revision Date:
09/07/2017
Page
1
of
6
HCMOS 3.2x2.5mm SMD Oscillator
•
HCMOS Output
•
Stabilities to ±25 PPM
•
Temperature Ranges as
•
Supply Voltages: 1.0V,
O3HS
DATASHEET
(Former F300, F310, F330, F340, Series)
______________________________________________________________________________________________________
wide as
-40ºC
to +85ºC
1.8V, 2.5V, 3.3V
1.8V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
MAX (unless otherwise noted)
0.625
~ 133.000 MHz
-55 ~ +125°C
1.8±5%
6
mA
15
mA
20 mA
10
uA
40
% ~
60
%
5
nS
3.5
nS
20
% V
DD
80
% V
DD
Min
15
pF
10
mS
300
nS
10 mS
Input Current
(I
DD
)
1.000 ~ 32.000 MHz
>32.000
~ 80.000 MHz
>80.000 ~ 133.000 MHz
Standby Current
Output Symmetry (50% V
DD
)
Rise/Fall Time (20%/
80
% V
DD
Levels) (T
R
/T
F
)
0.625
~
32.000
MHz
>
32.000
~ 133
.000
MHz
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
OPEN
1
Active
Active
‘1’ Level V
IH
≥
70%V
DD
High Z
‘0’ Level V
IL
≤
30%V
DD
•
Available Options by Stability & Operating Temp for 1.8V
Frequency
Stability
2
±100PPM
±100PPM
±50PPM
±50PPM
±25PPM
±25PPM
±20PPM*
1
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
0.625
0.625
0.625
0.625
0.625
0.625
0.625
~ 133.000
~ 133.000
~ 133.000
~ 133.000
~ 133.000
~ 133.000
~ 133.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, reflow, and one year aging. *Excludes Shock/Vibration.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
03HS SERIES STANDARD SPECIFICATIONS
Drawing Number:
101165
Size: A
Cage:
61429
Part Number:
Draftsperson:
YM
Approved:
BEC
Revision Date:
09/07/2017
Page
2
of
6
HCMOS 3.2x2.5mm SMD Oscillator
•
HCMOS Output
•
Stabilities to ±20 PPM
•
Temperature Ranges as
•
Supply Voltages: 1.0V,
O3HS
DATASHEET
(Former F300, F310, F330, F340, Series)
______________________________________________________________________________________________________
wide as
-40ºC
to +85ºC
1.8V, 2.5V, 3.3V
2.5V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Input Current
(I
DD
)
0.625 ~ 32.000 MHz
>32
.000
~ 6
0.000
MHz
>6
0.000
~ 8
0.000
MHz
>8
0.000
~ 170
.000
MHz
Standby Current
Output Symmetry (50% V
DD
)
Rise/Fall Time (10%/9
0
% V
DD
Levels) (T
R
/T
F
)
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
1
OPEN
Active
Active
‘1’ Level V
IH
≥
70%V
DD
High Z
‘0’ Level V
IL
≤
30%V
DD
MAX (unless otherwise noted)
0.625
~ 170.000 MHz
-55 ~ +125°C
2.5±5%
6 mA
15 mA
20
mA
30
mA
10
uA
45
% ~
55
%
6
nS
10
% V
DD
90
% V
DD
Min
15
pF
5
mS
150
nS
5
mS
•
Available Options by Stability & Operating Temp for 2.5V
Frequency
Stability
2
±100PPM
±100PPM
±100PPM
±50PPM
±50PPM
±50PPM
±25PPM
±25PPM
±25PPM
±20PPM*
±20PPM*
1
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, reflow, and one year aging. *Excludes Shock/Vibration.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
03HS SERIES STANDARD SPECIFICATIONS
Drawing Number:
101165
Size: A
Cage:
61429
Part Number:
Draftsperson:
YM
Approved:
BEC
Revision Date:
09/07/2017
Page
3
of
6
HCMOS 3.2x2.5mm SMD Oscillator
O3HS
DATASHEET
(Former F300, F310, F330, F340, Series)
______________________________________________________________________________________________________
•
HCMOS Output
•
Stabilities to ±20 PPM
•
Temperature Ranges as wide as
-40ºC
to +85ºC
•
Supply Voltages: 1.0V,
1.8V, 2.5V, 3.3V
3.3V ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
O
)
Storage Temperature Range (T
STG
)
Supply Voltage
(V
DD
)
Input Current
(I
DD
)
0.625 ~ 20.000 MHz
>20.000
~ 40.000 MHz
>40.000 ~ 60.000 Mhz
>60.000 ~ 75.000 Mhz
>75.000 ~ 80.000 Mhz
>80.000 ~ 125.000 Mhz
>125.000 ~ 170.000 Mhz
Standby Current
Output Symmetry (50% V
DD
)
Rise/Fall Time (10%/9
0
% V
DD
Levels) (T
R
/T
F
)
Output Voltage
(V
OL
)
(V
OH
)
Output Load
(HCMOS)
Start-up Time
(T
S
)
Output Disable Time
1
Output Enable Time
1
ENABLE / DISABLE FUNCTION
Pin1
Output (pin 3)
1
OPEN
Active
Active
‘1’ Level V
IH
≥
70%V
DD
High Z
‘0’ Level V
IL
≤
30%V
DD
MAX (unless otherwise noted)
0.625
~ 170 MHz
-55 ~ +125°C
3.3V±10%
7 mA
13 mA
19
mA
24 mA
30 mA
40 mA
50 mA
10
uA
45
% ~
55
%
6
nS
10
% V
DD
90
% V
DD
Min
15
pF
5
mS
150
nS
5 mS
•
Available Options by Stability & Operating Temp for 3.3V
Frequency
Stability
2
±100PPM
±100PPM
±100PPM
±50PPM
±50PPM
±50PPM
±25PPM
±25PPM
±25PPM
±20PPM*
±20PPM*
1
2
Operating
Temperature (ºC)
Frequency Range (MHz)
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
-40 ~ +85
-10 ~ +70
-20 ~ +70
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
0.625
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
~ 170.000
An internal pull-up resistor from pin 1 to pin 4 allows active output if pin 1 is left open
Inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, reflow, and one year aging. *Excludes Shock/Vibration.
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
03HS SERIES STANDARD SPECIFICATIONS
Drawing Number:
101165
Size: A
Cage:
61429
Part Number:
Draftsperson:
YM
Approved:
BEC
Revision Date:
09/07/2017
Page
4
of
6
HCMOS 3.2x2.5mm SMD Oscillator
O3HS
DATASHEET
(Former F300, F310, F330, F340, Series)
______________________________________________________________________________________________________

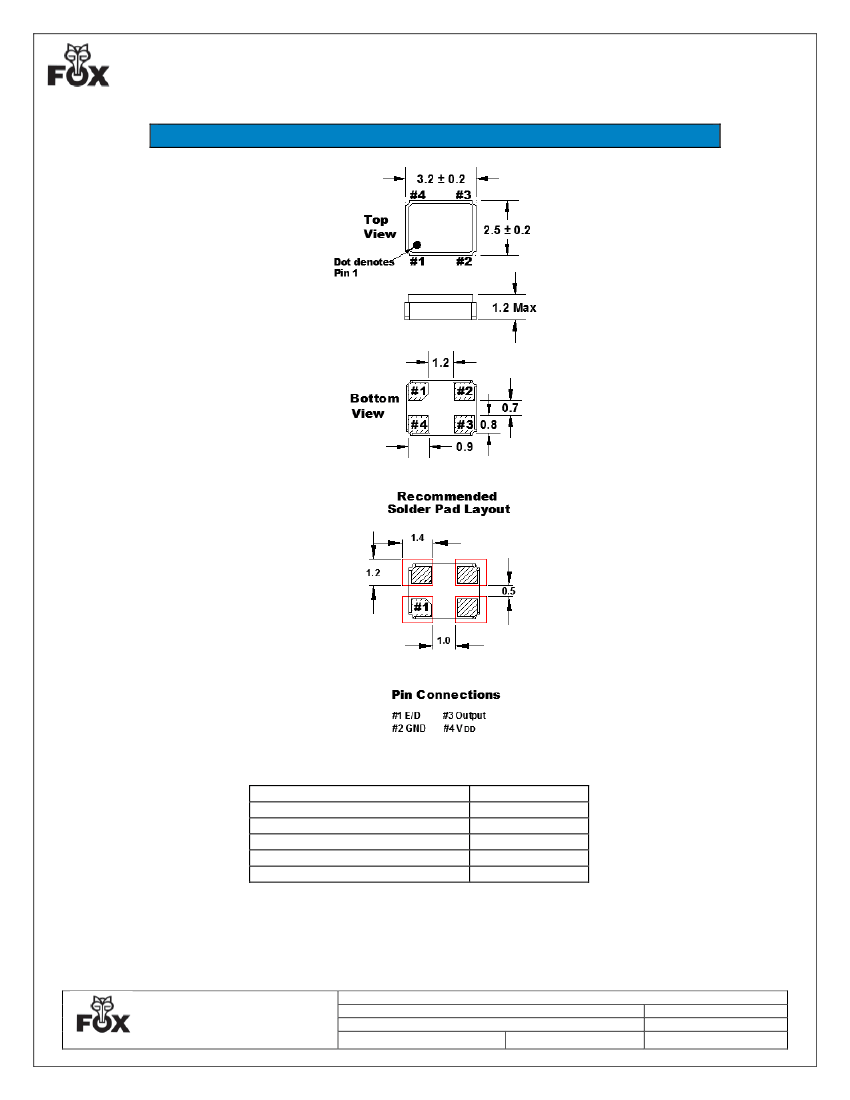

DIMENSIONS / MECHANICAL SPECIFICATIONS
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Lead (Pb) Free
ROHS/REACH Compliant
260°C / 10 Seconds
1
Au over Ni
Seam Seal
Yes
Yes
Notes:
*A 0.01μF capacitor should be placed between V
DD
(Pin 4) and GND (Pin2) to minimize power supply line noise.
*Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may vary
© Copyright 2017 Fox Electronics, All rights reserved
Title / Description:
03HS SERIES STANDARD SPECIFICATIONS
Drawing Number:
101165
Size: A
Cage:
61429
Part Number:
Draftsperson:
YM
Approved:
BEC
Revision Date:
09/07/2017
Page
5
of
6
