1609-50-02 datasheet, PDF - EEWORLD Datasheet

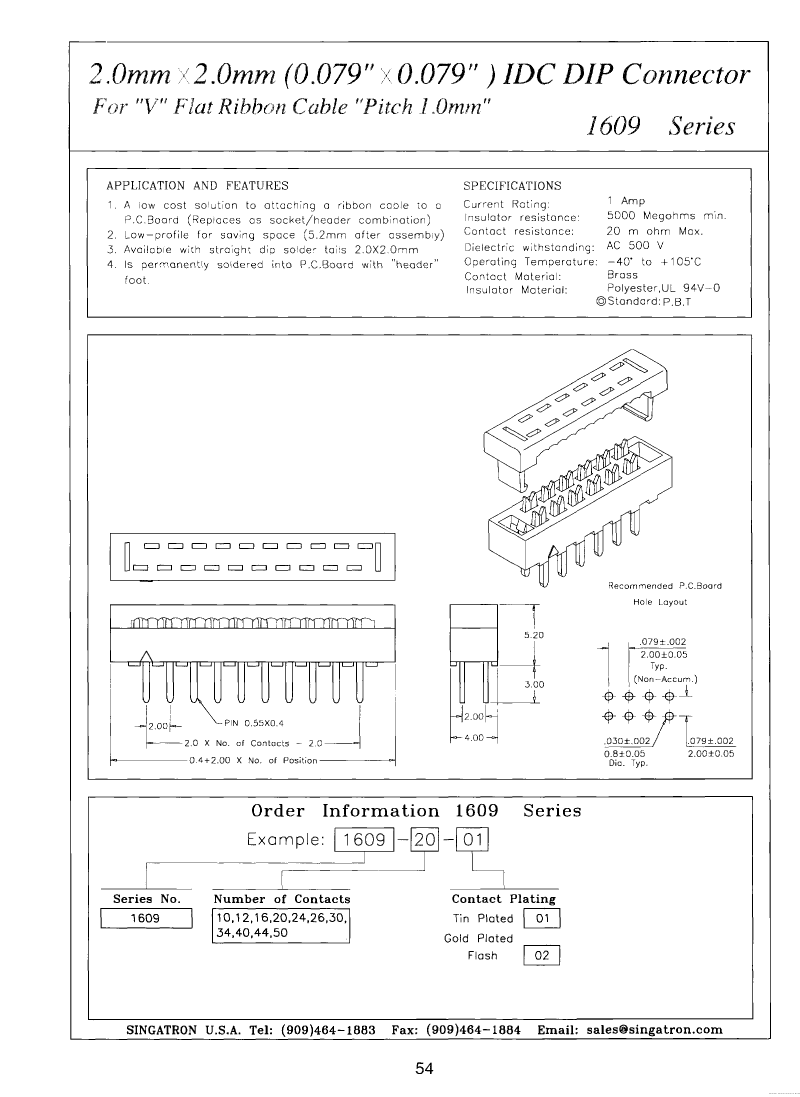

1609-50-02: DescriptionDIP Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, IDC Terminal, Receptacle; CategoryThe connector The connector; File Size39KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

1609-50-02 Overview

DIP Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, IDC Terminal, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW PROFILE, SOLDERED DIRECTLY TO THE BOARD
body width	0.157 inch
subject depth	0.205 inch
body length	2.138 inch
Body/casing type	RECEPTACLE
Connector type	DIP CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	1609
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1
