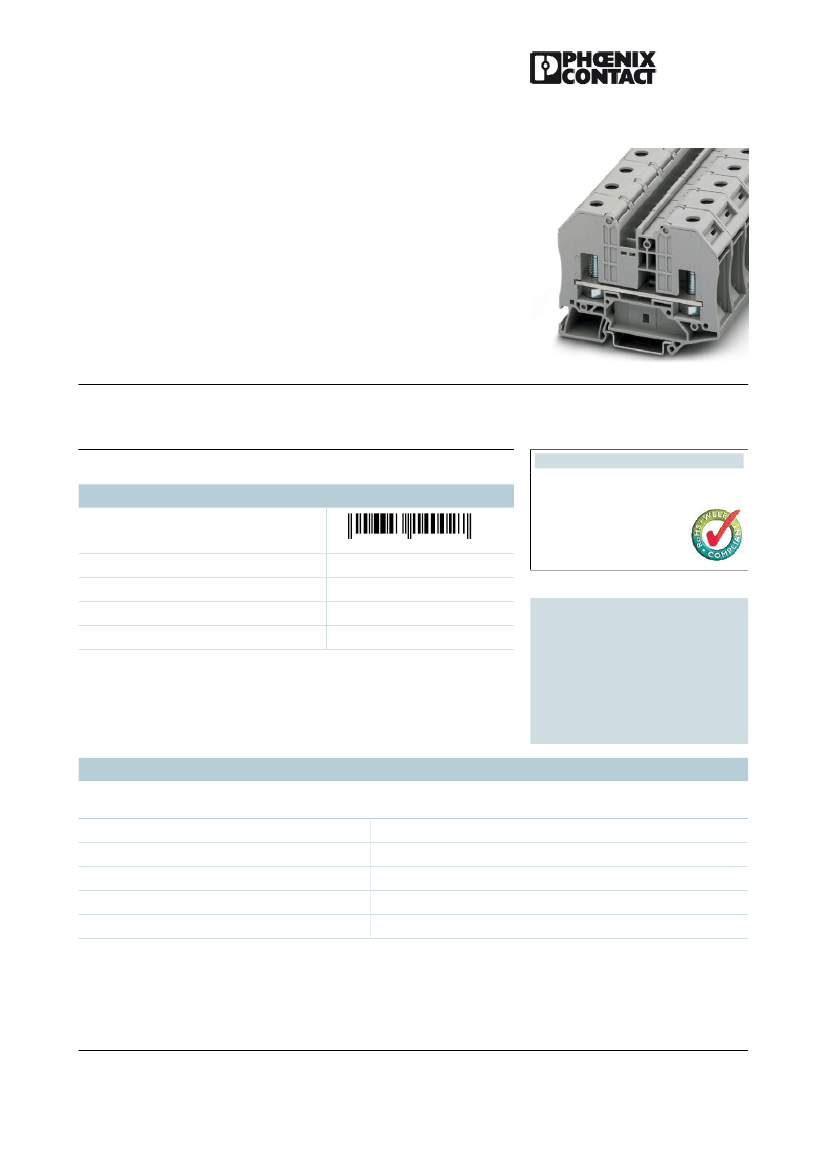

Extract from the online
catalog
RT 8
Order No.: 3049042
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3049042
Feed-through terminal block with bolt connection, cross section: 2.5 -
2
35 mm , AWG: 14 - 2, width 20.2 mm, color: Gray
Product notes
Commercial data
GTIN (EAN)
4
046356
140027
WEEE/RoHS-compliant since:
11/28/2007
sales group
Pack
Customs tariff
Catalog page information
A800
25 pcs.
85369010
Page 313 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
1
2
gray
PA
V0
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 10, 2011
RT 8
Order No.: 3049042
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3049042
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Type of connection
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
2.5 mm²
35 mm²
2.5 mm²
35 mm²
14
2
Bolt connection
M8
4.5 Nm
5 Nm
125 A (with 35 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
125 A
1000 V
ja
1
2
20.3 mm
84 mm
63.8 mm
71.3 mm
Certification
ABS, CB, CUL, UL, VDE-PZI
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 10, 2011
RT 8
Order No.: 3049042
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3049042
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
Cover, width: 2.2 mm, color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, Length: 110 mm, Width: 2 mm, Height: 69 mm,
Color: gray
Designation
Description
3049194
1201442
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
3003062
D-RT 8
E/UK
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
TPN-UK
Bridges
3005947
General
0820222
0820248
Tools
1205066
SZS 1,0X4,0 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-
component grip, with non-slip grip
ZB 16,3:UNPRINTED
ZB 20,3:UNPRINTED
Terminal marking
Terminal marking
FBS 2-10
Plug-in bridge, Number of positions: 2, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 10, 2011
