MACP-011036
16 dB Coupler
5 - 1225 MHz
Features
16 dB Coupling Ratio
Surface Mount
Available on Tape and Reel
Excellent Temperature Stability
RoHS Compliant and lead free
260ºC Reflow Compatible
Rev. V1
Description
The MACP-011036 is a 16 dB coupler in a low cost,
surface mount package. Ideally suited for broadband
CATV applications.

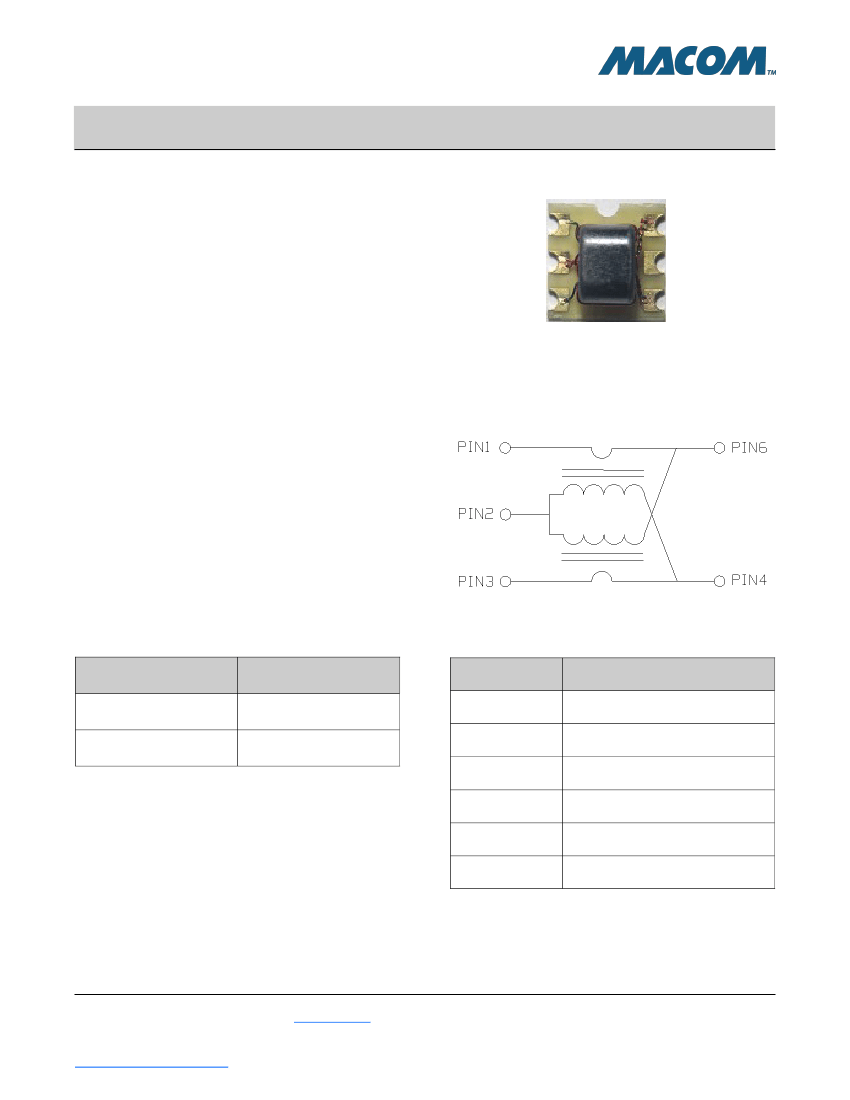

Functional Schematic
Ordering Information
Part Number
MACP-011036
MACP-011036-TB
Description
900 piece reel
Sample Test Board
Pin Configuration
Pin No.
Function
1
2
3
4
5
6
Input
Ground
Coupled
Isolated
Not Connected
Output
1
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0011516
MACP-011036
16 dB Coupler
5 - 1225 MHz

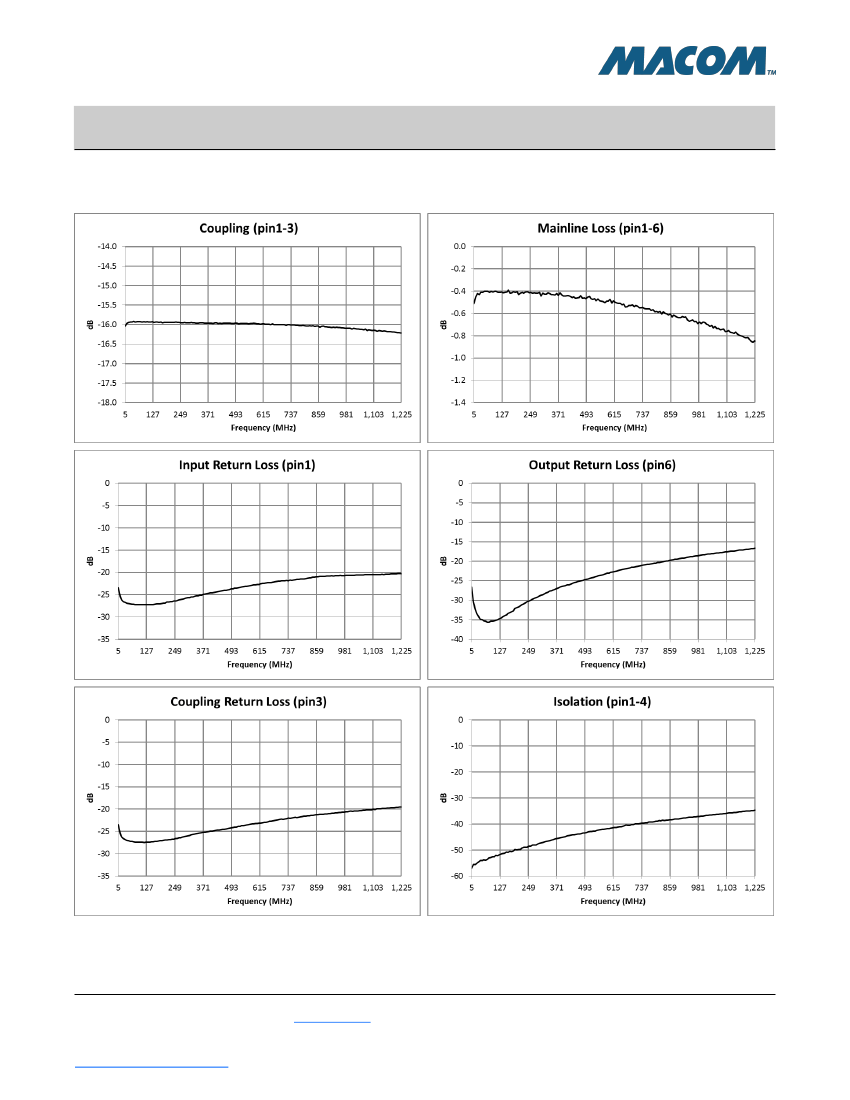

Typical Performance Curves
1
Rev. V1
1. Full temperature plots available on request.
3
MACOM Technology Solutions Inc. (MACOM) and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.macom.com
for additional data sheets and product information.
For further information and support please visit:
https://www.macom.com/support
DC-0011516
MACP-011036
16 dB Coupler
5 - 1225 MHz

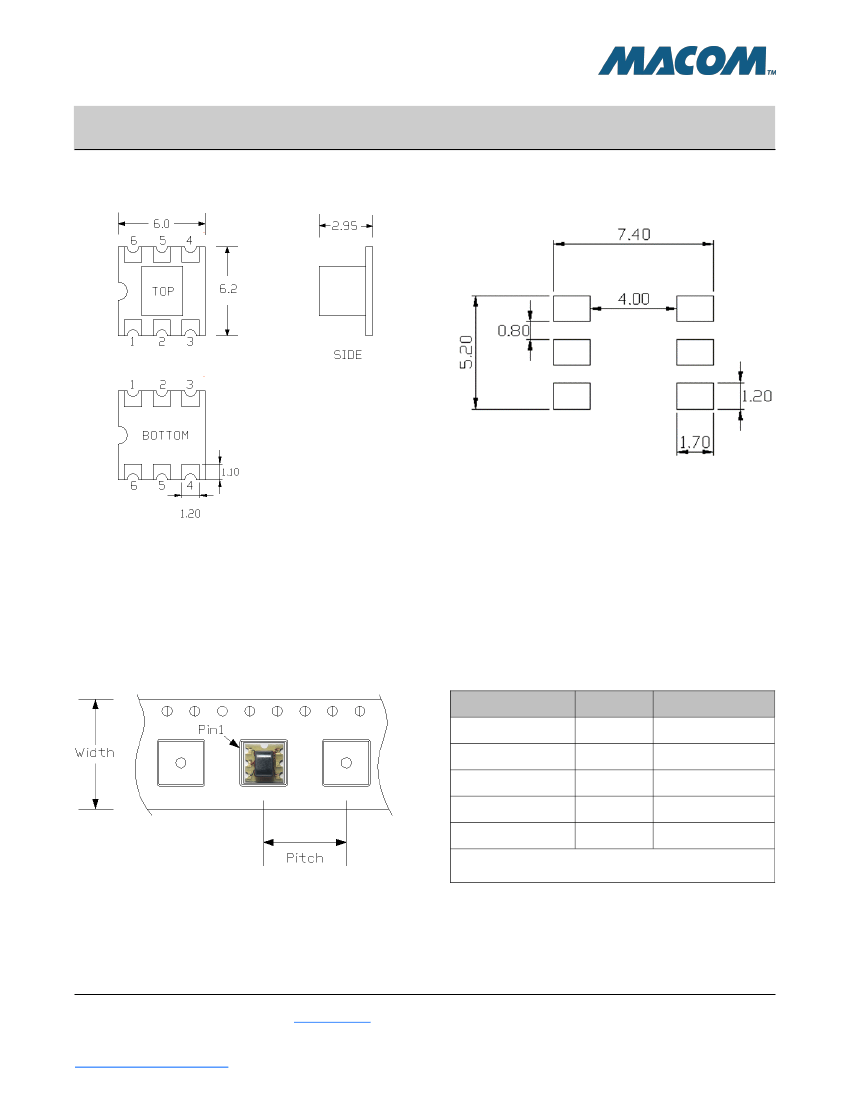

Outline Drawing
PCB Layout
Rev. V1
1.
2.
3.
4.
Dimensions in mm.
Tolerance: ±0.2mm unless otherwise noted.
Model number and lot code printed on reel.
Plating finish: ENIG on both sides, 0.05 to 0.1 µm gold over 3 to 6 µm nickel
Carrier Tape Orientation
Tape & Reel Information
Parameter
Qty per reel
Reel Size
Tape Width
Pitch
Orientation
Units
-
mm
mm
mm
-
Value
900
330
16.00
12.00
F45
Reference Application Note ANI-019 for orientation
4
