2SC3669-Y,T2PASF(M

Description
TRANS NPN 2A 80V SC71
Categorysemiconductor    Discrete semiconductor
File Size169KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

2SC3669-Y,T2PASF(M Overview

TRANS NPN 2A 80V SC71

2SC3669-Y,T2PASF(M Parametric

Parameter NameAttribute value
Transistor typeNPN
Current - Collector (Ic) (Maximum)2A
Voltage - collector-emitter breakdown (maximum)80V
Vce saturation value (maximum value) when different Ib,Ic500mV @ 50mA,1A
Current - collector cutoff (maximum)1µA(ICBO)
DC current gain (hFE) at different Ic, Vce (minimum value)70 @ 500mA,2V
Power - Max1W
Frequency - Transition100MHz
Operating temperature150°C(TJ)
Installation typeThrough hole
Package/casingSC-71
Supplier device packagingMSTM

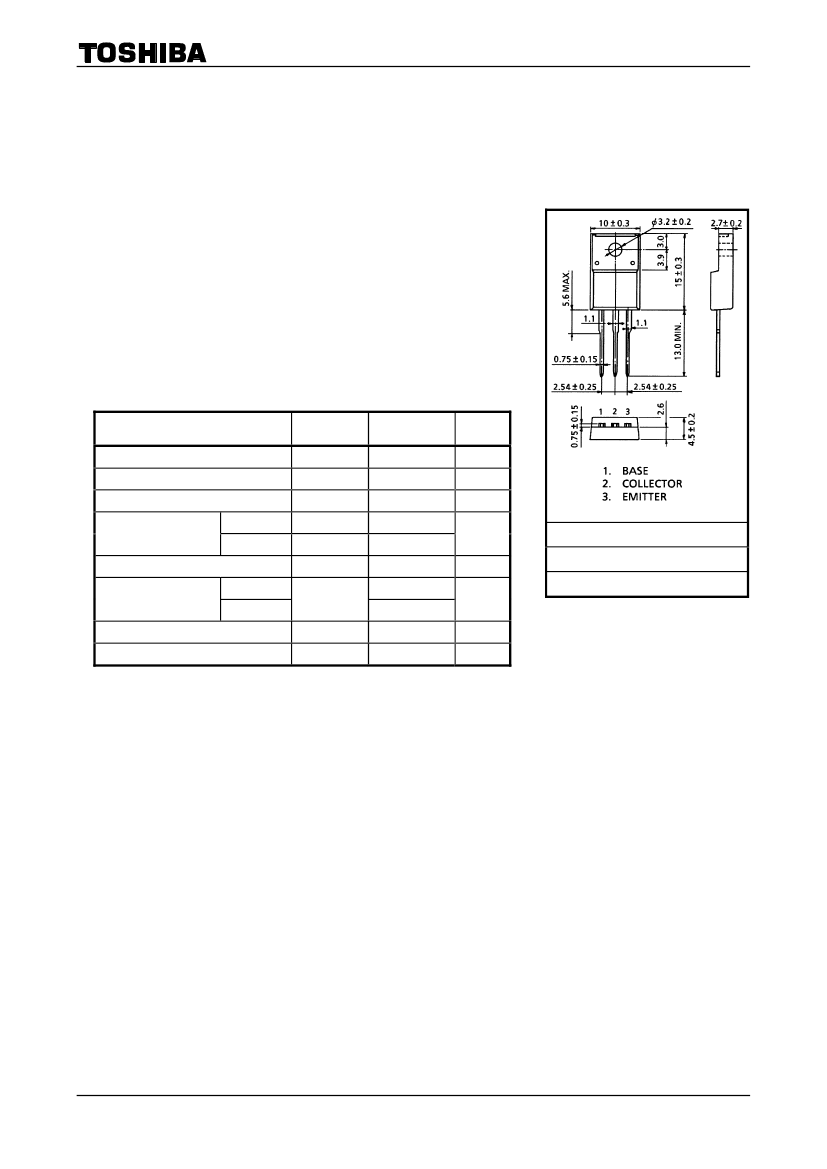

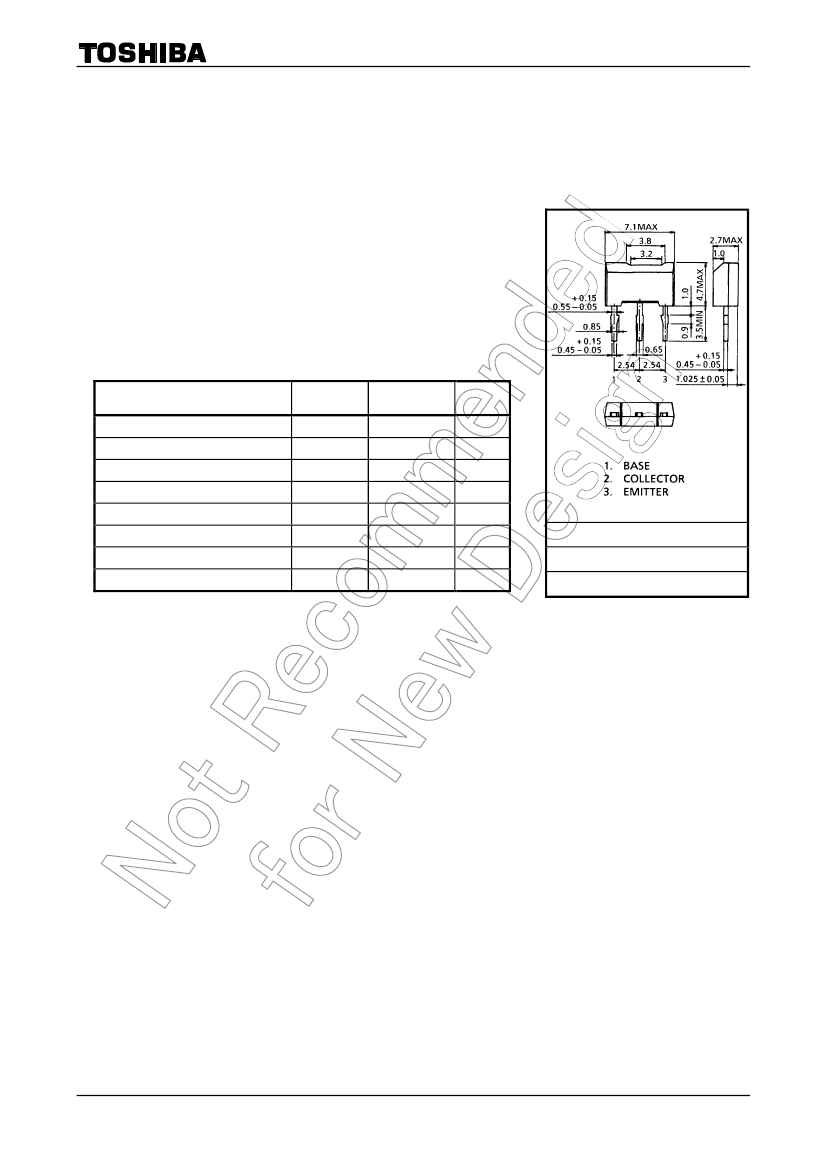

2SC3669
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
2SC3669
Power Amplifier Applications
Power Switching Applications

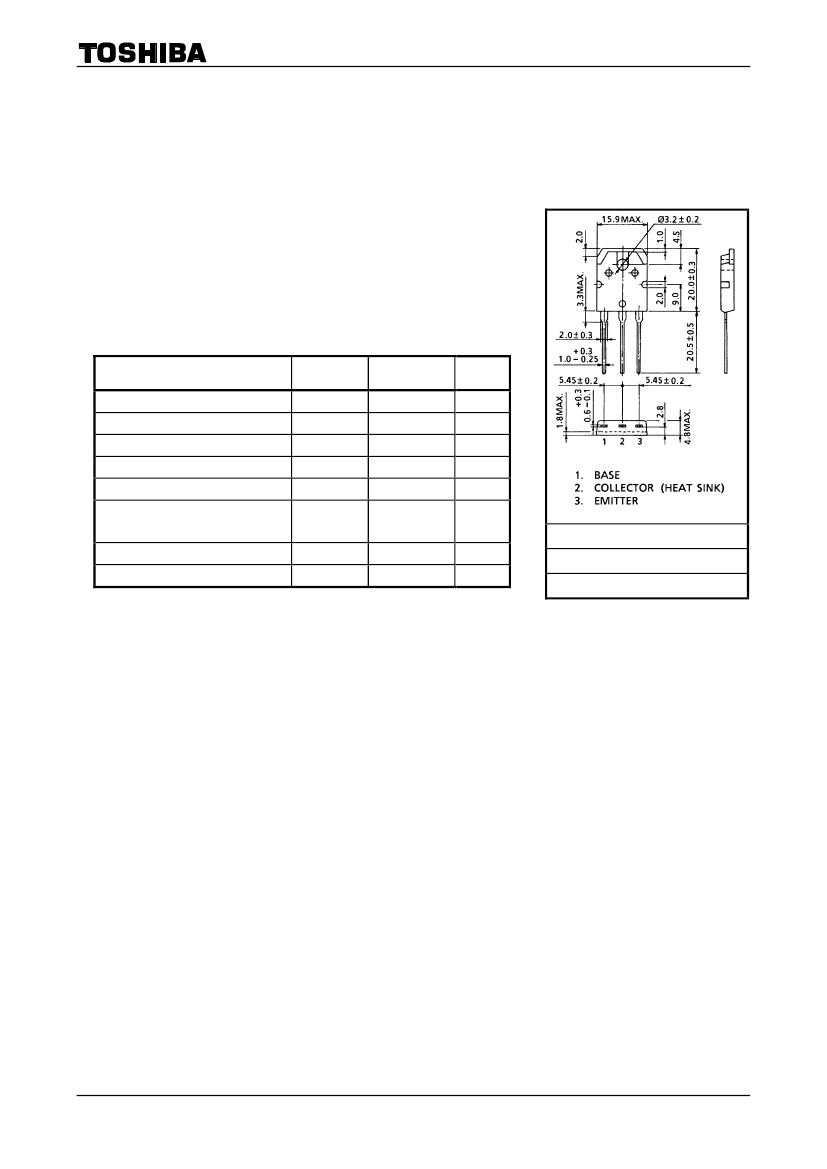

Unit: mm
Low collector saturation voltage: V
CE (sat)
= 0.5 V (max) (I
C
= 1 A)
High-speed switching: t
stg
= 1.0
μs
(typ.)
Complementary to 2SA1429
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
P
C
T
j
T
stg
Rating
80
80
5
2
1
1000
150
−55
to 150
Unit
V
V
V
A
A
mW
°C
°C
JEDEC
JEITA
TOSHIBA
2-7D101A
Note1: Using continuously under heavy loads (e.g. the application of high
Weight: 0.2 g (typ.)
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating
conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1
2009-12-21
