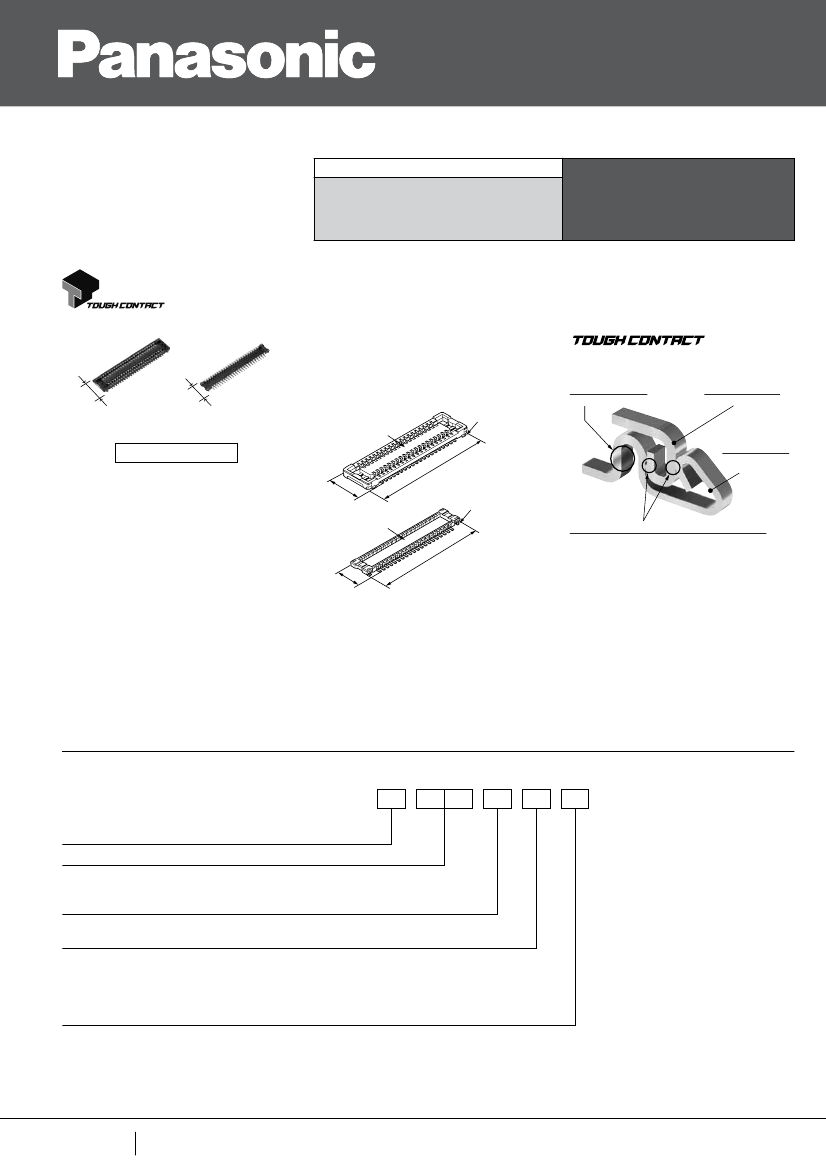

Automation Controls Catalog
For board-to-FPC
Narrow pitch connectors
(0.4mm pitch)
A4F
Series
3. Low profile and highly resistant to
various environments possible with
the use of highly reliable
“
” connector
design.
Ni barrier
construction
(Against solder rise!)
FEATURES
1. 0.6 mm mated height low profile
two-piece type connector
2. Space-saving (3.0 mm widthwise)
Smaller compared to F4 series (40 pin
contacts):
Socket — 40% smaller,
Header — 43% smaller
Header
Suction face: 0.8mm
Soldering terminals
at each corner
Bellows contact
construction
(Against dropping!)
ORDERING INFORMATION
AXE
3: Narrow Pitch Connector A4F (0.4 mm pitch) Socket
4: Narrow Pitch Connector A4F (0.4 mm pitch) Header
Number of pins (2 digits)
Mated height
<Socket> / <Header>
1: For mated height 0.6 mm
Functions
2: Without positioning bosses
Surface treatment (Contact portion / Terminal portion)
<Socket>
4: Ni plating on base, Au plating on surface (for Ni barrier available)
<Header>
4: Ni plating on base, Au plating on surface
2013.11
m
0m
3.
m
4m
2.
Socket
RoHS compliant
3.0
0
10
.50
p
(40
in
co
cts
nta
)
Porosity
treatment
Socket
Soldering terminals
at each corner
(Against corrosive
gases!)
Suction face: 1.1mm
2.4
0
pin
40
0(
9.8
ts
tac
on
c
)
V notch and Double contact constructions
(Against foreign particles and flux!)
Header
4. Simple lock structure provides
tactile feedback to ensure excellent
mating/unmating operation feel.
5. Gull-wing-shaped terminals to
facilitate visual inspections.
6. Connectors for inspection available
APPLICATIONS
Mobile devices, such as cellular
phones, digital still cameras and
digital video cameras.
1
2
4
industrial.panasonic.com/ac/e/
–1–
©
Panasonic Corporation 2013
ACCTB26E 201310-T

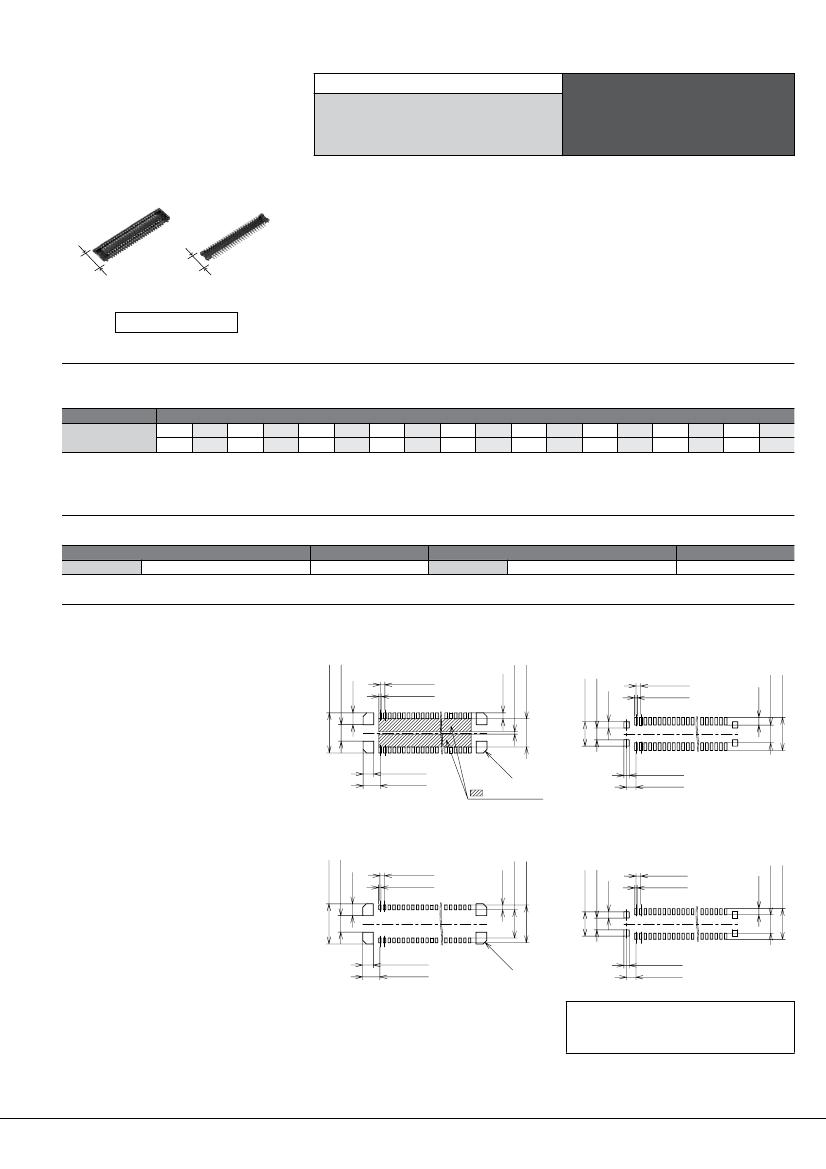

Narrow pitch connectors
A4F
(0.4mm pitch)
PRODUCT TYPES
Mated height
Number of pins
10
12
16
20
22
24
26
30
34
36
40
42
44
50
54
60
64
70
Part number
Socket
AXE310124
AXE312124
AXE316124
AXE320124
AXE322124
AXE324124
AXE326124
AXE330124
AXE334124
AXE336124
AXE340124
AXE342124
AXE344124
AXE350124
AXE354124
AXE360124
AXE364124
AXE370124
Header
AXE410124
AXE412124
AXE416124
AXE420124
AXE422124
AXE424124
AXE426124
AXE430124
AXE434124
AXE436124
AXE440124
AXE442124
AXE444124
AXE450124
AXE454124
AXE460124
AXE464124
AXE470124
Inner carton (1-reel)
Packing
Outer carton
0.6mm
5,000 pieces
10,000 pieces
Notes: 1. Order unit:
For volume production: 1-inner carton (1-reel) units
Samples for mounting check: 50-connector units. Please contact our sales office.
Samples: Small lot orders are possible. Please contact our sales office.
2. Please contact us for connectors having a number of pins other than those listed above.
SPECIFICATIONS
Characteristics
Item
Rated current
Rated voltage
Electrical
characteristics
Breakdown voltage
Insulation resistance
Contact resistance
Composite insertion force
Composite removal force
Contact holding force
(Socket contact)
Ambient temperature
Soldering heat resistance
Storage temperature
Specifications
0.3A/pin contact (Max. 5 A at total pin contacts)
60V AC/DC
150V AC for 1 min.
Min. 1,000MΩ (initial)
Max. 90mΩ
Max. 1.200N/pin contacts
×
pin contacts (initial)
Min. 0.165N/pin contacts
×
pin contacts
Min. 0.20N/pin contacts
–55°C to +85°C
Peak temperature: 260°C or less (on the surface of
the PC board around the connector terminals)
300°C within 5 sec. 350°C within 3 sec.
–55°C to +85°C (product only)
–40°C to +50°C (emboss packing)
Measuring the maximum force.
As the contact is axially pull out.
No freezing at low temperatures. No dew condensation.
Infrared reflow soldering
Soldering iron
No freezing at low temperatures. No dew condensation.
Conformed to MIL-STD-202F, method 107G
Order Temperature (°C)
0
1
–55
−3
2
3
85
+3
0
4
0
–55
−3
Bath temperature 40±2°C,
humidity 90 to 95% R.H.
Bath temperature 35±2°C,
saltwater concentration 5±1%
Bath temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200 times/
hours
Time (minutes)
30
Max. 5
30
Max. 5
Conditions
No short-circuiting or damage at a detection current of 1 mA
when the specified voltage is applied for one minute.
Using 250V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
Mechanical
characteristics
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
120 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours,
contact resistance max. 90mΩ
30 times
20 pin contact type: Socket: 0.01 g Header: 0.01 g
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–2–
©
Panasonic Corporation 2013
ACCTB26E 201310-T
Narrow pitch connectors
A4F
(0.4mm pitch)
Material and surface treatment
Part name
Molded
portion
Contact and
Post
Material
LCP resin
(UL94V-0)
Surface treatment
—
Contact portion: Base: Ni plating Surface: Au plating
Terminal portion: Base: Ni plating Surface: Au plating (except the terminal tips)
The socket terminals close to the portion to be soldered have nickel barriers (exposed nickel portions).
Soldering terminals: Sockets: Base: Ni plating Surface: Pd+Au flash plating (except the terminal tips)
Headers: Base: Ni plating Surface: Au plating (except the terminal tips)
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
Copper alloy

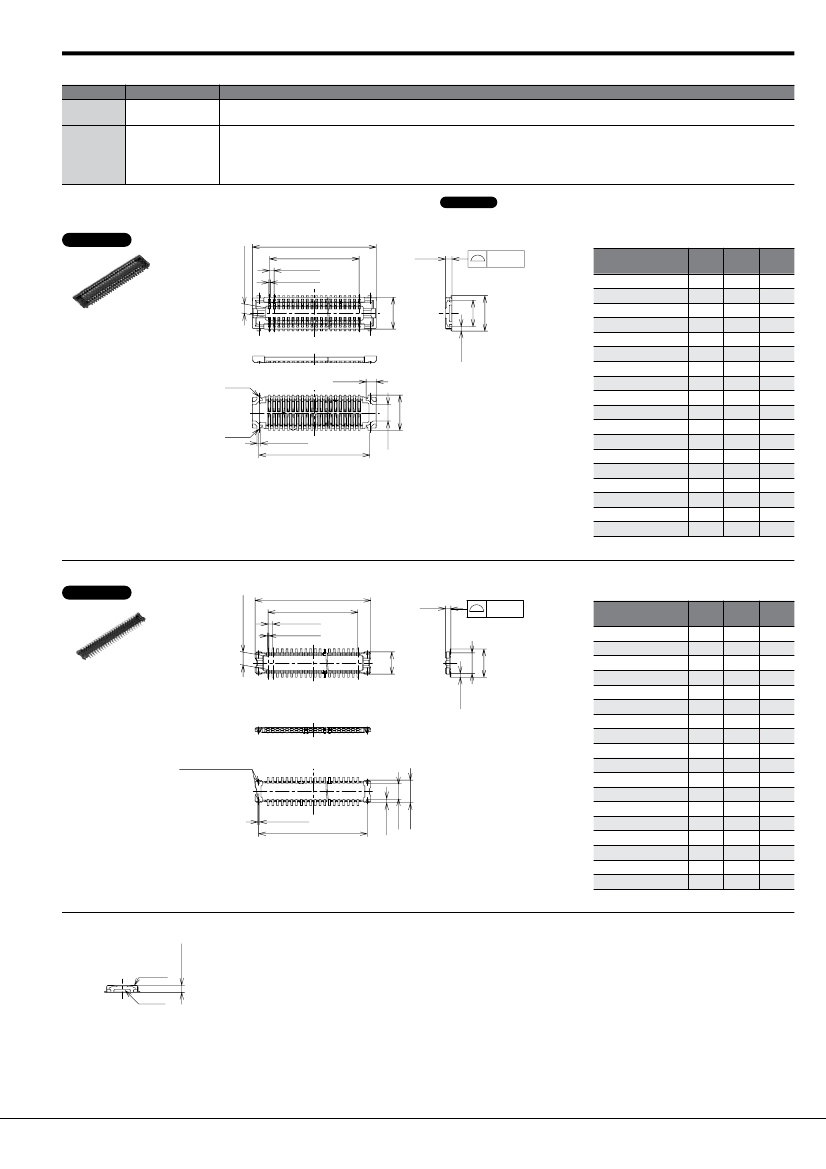

DIMENSIONS
(Unit: mm)
Socket (Mated height: 0.6 mm)
0.80
(Suction face)
CAD Data
A
B±0.1
0.40±0.05
0.15±0.03
Terminal coplanarity
0.57
0.08
(Contact and
soldering terminals)
2.70
2.22
3.00
Dimension table (mm)
Number of pins/
dimension
10
12
16
20
22
24
26
30
34
36
40
42
44
50
54
60
64
70
A
4.50
4.90
5.70
6.50
6.90
7.30
7.70
8.50
9.30
9.70
10.50
10.90
11.30
12.50
13.30
14.50
15.30
16.50
B
1.60
2.00
2.80
3.60
4.00
4.40
4.80
5.60
6.40
6.80
7.60
8.00
8.40
9.60
10.40
11.60
12.40
13.60
C
3.40
3.80
4.60
5.40
5.80
6.20
6.60
7.40
8.20
8.60
9.40
9.80
10.20
11.40
12.20
13.40
14.20
15.40
Y note
(0.86)
0.30±0.03
C±0.1
1.40
Z note
3.00
General tolerance:
±0.2
Note: Since the soldering terminals has a single-piece construction,
sections Y and Z are electrically connected.
Header (Mated height: 0.6 mm)
1.10
(Suction face)
(0.39)
CAD Data
A
B±0.1
0.40±0.05
0.15±0.03
1.90
Terminal coplanarity
0.46
0.08
(Post and
soldering terminals)
1.74
2.40
Dimension table (mm)
Number of pins/
dimension
10
12
16
20
22
24
26
30
34
36
40
42
44
50
54
60
64
70
A
3.80
4.20
5.00
5.80
6.20
6.60
7.00
7.80
8.60
9.00
9.80
10.20
10.60
11.80
12.60
13.80
14.60
15.80
B
1.60
2.00
2.80
3.60
4.00
4.40
4.80
5.60
6.40
6.80
7.60
8.00
8.40
9.60
10.40
11.60
12.40
13.60
C
3.20
3.60
4.40
5.20
5.60
6.00
6.40
7.20
8.00
8.40
9.20
9.60
10.00
11.20
12.00
13.20
14.00
15.20
Soldering terminals
0.15±0.03
C±0.1
(0.36)
1.22
1.94
Soldering terminals
General tolerance:
±0.2
Socket and Header are mated
0.60±0.1
Header
Socket
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
(0.33)
–3–
©
Panasonic Corporation 2013
ACCTB26E 201310-T
Narrow pitch connectors
A4F
(0.4mm pitch)

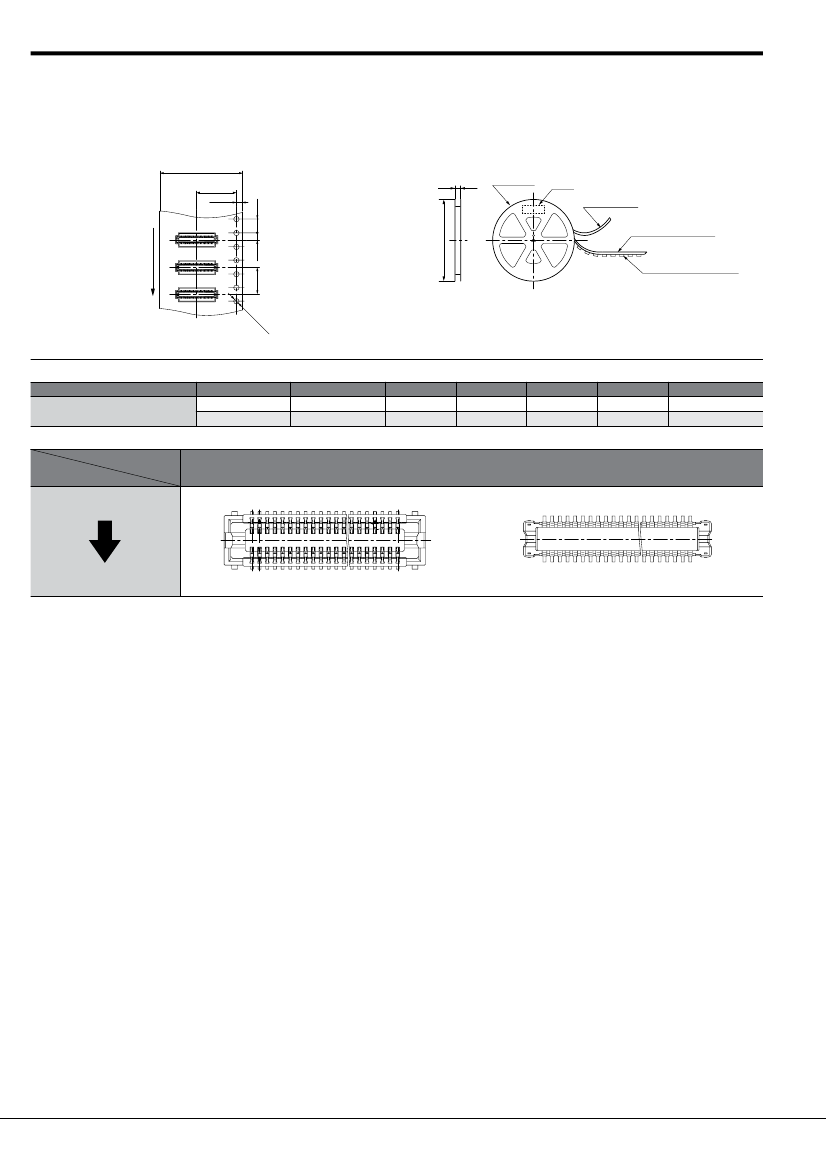

EMBOSSED TAPE DIMENSIONS
(Unit: mm) (Common for respective contact types, sockets and headers)
Specifications for taping
(In accordance with JIS C 0806-3:1999. However, not applied to
the mounting-hole pitch of some connectors.)
Tape I
Leading direction after packaging
(A
+0.3
)
−0.1
(C)
(1.75)
D±1
(4.0)
Taping reel
Label
Top cover tape
380 dia.
Specifications for the plastic reel
(In accordance with EIAJ ET-7200B.)
Embossed carrier tape
(2.0)
(8.0)
Embossed mounting-hole
50
1.
.1
+0 0
a.
di
Dimension table
(Unit: mm)
Type/Mated height
Common for sockets and headers
0.6 mm
Number of pins
Max. 24
26 to 70
Type of taping
Tape I
Tape I
A
16.0
24.0
B
—
—
C
7.5
11.5
D
17.4
25.4
Quantity per reel
5,000
5,000
Connector orientation with respect to embossed tape feeding direction
Type
Direction
of tape progress
Socket
Common for A4F
Header
Note: There is no indication on this product regarding top-bottom or left-right orientation.
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–4–
©
Panasonic Corporation 2013
ACCTB26E 201310-T
Narrow pitch connectors
A4F
(0.4mm pitch)
For board-to-FPC
Connectors for
inspection usage
(0.4mm pitch)
A4F
Series
APPLICATIONS
Ideal for module unit inspection and
equipment assembly inspection
FEATURES
1. 3,000 mating and unmating cycles
2. Same external dimensions and foot
pattern as standard type.
3. Improved mating
Insertion and removal easy due to a
reduction in mating retention force. This
is made possible by a simple locking
structure design.
Note: Mating retention force cannot be
warranted.
TABLE OF PRODUCT TYPES
✩:
Available for sale
Product name
A4F
for inspection
10
✩
12
✩
16
✩
20
✩
22
✩
24
✩
26
✩
30
✩
Number of pins
34
36
✩
✩
40
✩
42
✩
44
✩
50
✩
54
✩
60
✩
64
✩
70
✩
Notes: 1. Please inquire about number of pins other than those shown above.
2. Please inquire with us regarding availability.
3. Please keep the minimum order quantities no less than 50 pieces per lot.
4. Please inquire if further information is needed.
PRODUCT TYPES
Socket
Specifications
Without positioning bosses
Part No.
AXE3E∗∗26
Header
Specifications
Without positioning bosses
Part No.
AXE4E∗∗26
Note: When placing an order, substitute the “∗” (asterisk) in the above part number with the number of pins for the specific connector.
NOTES
Recommended PC board and metal
mask patterns
Connectors are mounted with high pitch
density, intervals of 0.35 mm, 0.4 mm or
0.5 mm.
In order to reduce solder and flux rise,
solder bridges and other issues make
sure the proper levels of solder is used.
The figures to the right are recommended
metal mask patterns. Please use them as
a reference.
• Socket (Mated height: 0.6 mm)
Recommended PC board pattern (TOP VIEW)
3.40±0.03
1.40±0.03
(1.00)
(0.50)
0.20±0.03
2.40±0.03
0.40±0.03
0.23±0.03
0.90±0.03
1.45±0.03
2.06±0.03
1.00±0.03
(0.53)
0.40±0.03
0.23±0.03
0.45±0.03
0.80±0.03
: Insulation area
Recommended metal mask pattern
Metal mask thickness: When 120µm
(Terminal opening ratio: 70%)
(Metal-part opening ratio: 100%)
3.40±0.01
1.40±0.01
(1.00)
(0.40)
2.50±0.01
3.30±0.01
0.40±0.01
0.20±0.01
Recommended metal mask pattern
Metal mask thickness: When 120µm
(Terminal opening ratio: 70%)
(Metal-part opening ratio: 100%)
2.06±0.01
1.00±0.01
(0.53)
0.40±0.01
0.20±0.01
(0.52)
1.66±0.01
2.70±0.01
0.90±0.01
1.45±0.01
0.45±0.01
0.80±0.01
Please refer to the latest product
specifications when designing your
product.
Panasonic Corporation Automation Controls Buisiness Division
industrial.panasonic.com/ac/e/
–5–
©
Panasonic Corporation 2013
ACCTB26E 201310-T
(0.65)
1.50±0.03
2.80±0.03
m
0m
3.
m
4m
2.
Socket
Header
RoHS compliant
• Header (Mated height: 0.6 mm)
Recommended PC board pattern (TOP VIEW)
C
0.
30
C
0.
30
京公网安备 11010802033920号
EEWORLD
