SM-TMIN-A-L-TL datasheet, PDF - EEWORLD Datasheet

SM-TMIN-A-L-TL: DescriptionRF Coaxial Relay, SPDT, Latched, 25875mW (Coil), 18000MHz, AC Input, AC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size160KB，2 Pages; ManufacturerReliable Capacitors Inc

Download Datasheet Parametric View All

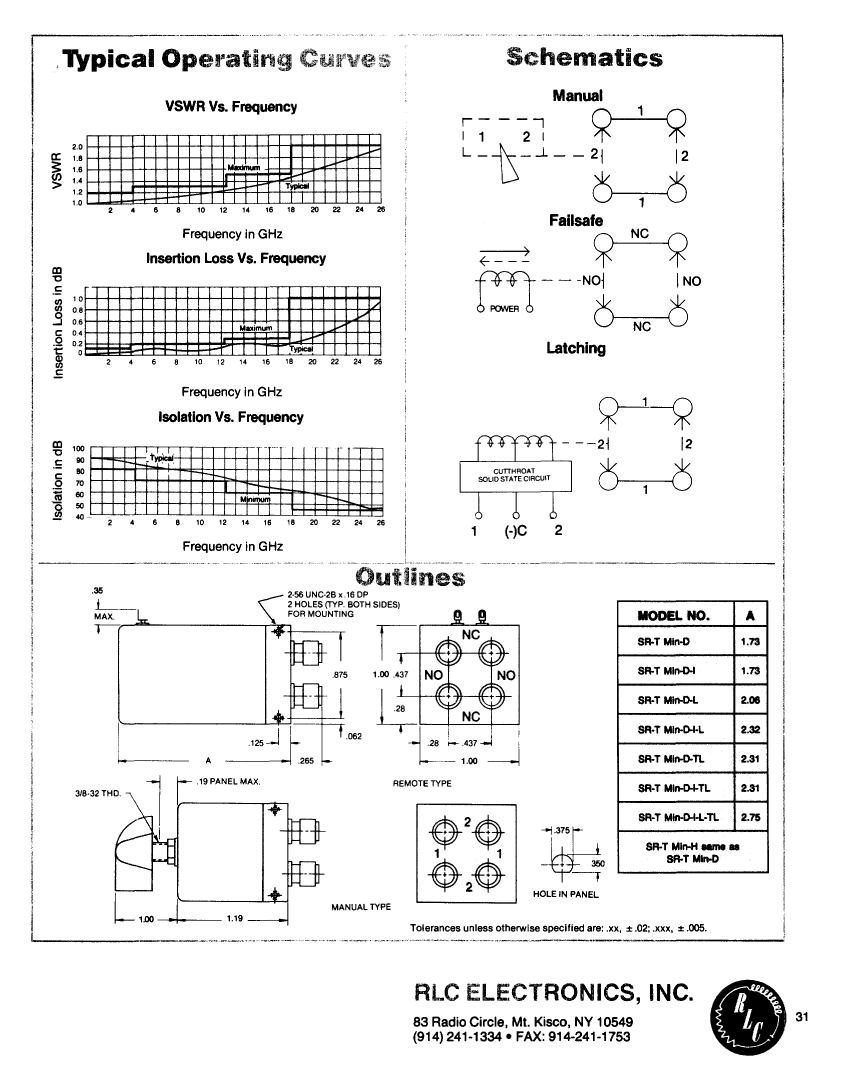

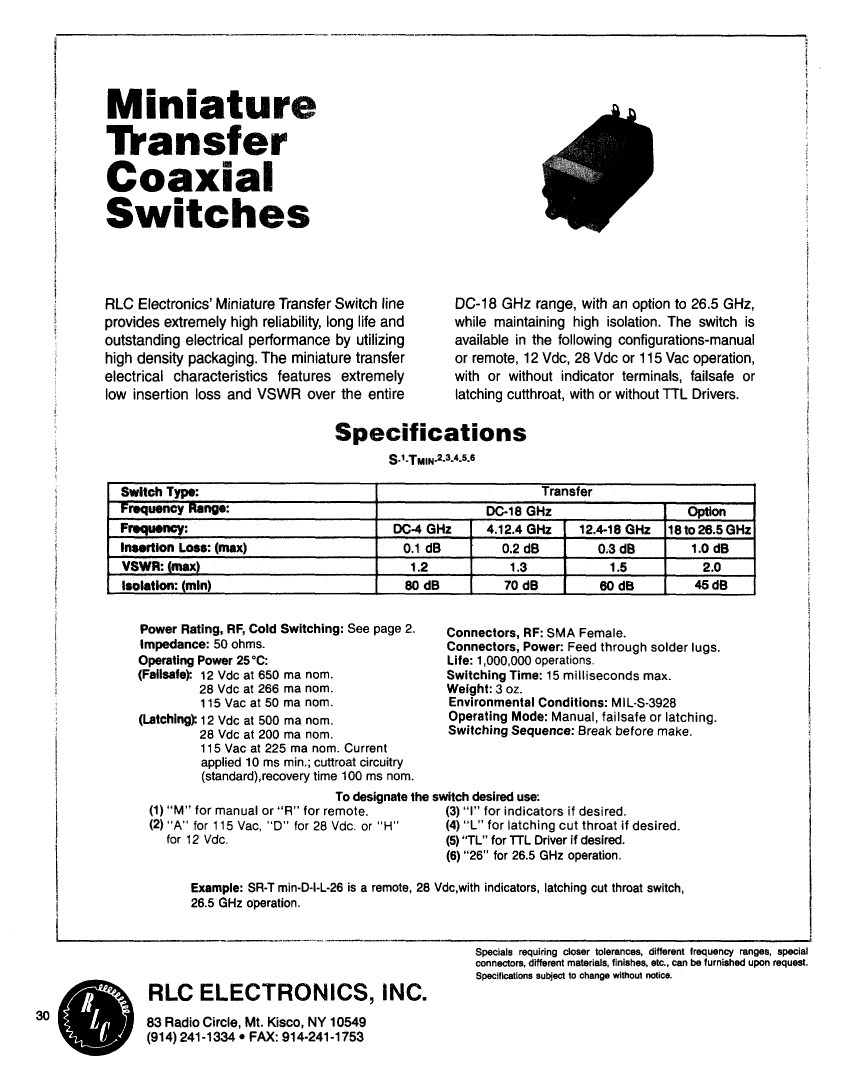

SM-TMIN-A-L-TL Overview

RF Coaxial Relay, SPDT, Latched, 25875mW (Coil), 18000MHz, AC Input, AC Output, Panel Mount

Parameter Name	Attribute value
Maker	Reliable Capacitors Inc
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SMA, BUILT-IN TTL DRIVER
body width	25.4 mm
body height	30.23 mm
Body length or diameter	25.4 mm
Characteristic impedance	50 Ω
Coil current (AC) maximum value	0.225 A
Coil power	25875 mW
Maximum coil voltage (AC)	115 V
Coil/Input Power Type	AC
Contact/Output Power Type	AC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.3 dB
Maximum isolation	60 dB
Manufacturer's serial number	SM
Installation features	PANEL MOUNT
Maximum operating frequency	18000 MHz
Minimum operating frequency
physical size	25.4mm X 25.4mm X 30.23mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.5
