SURFACE MOUNT- 85 C
UPGRADE
MVA
Series
Surface Mount
High CV
Vertical Chip
Solvent Proof
(4-63V )
85 C
Maximum
Temperature
Engineering Bulletin Dec 02
MVA
Actual
Size

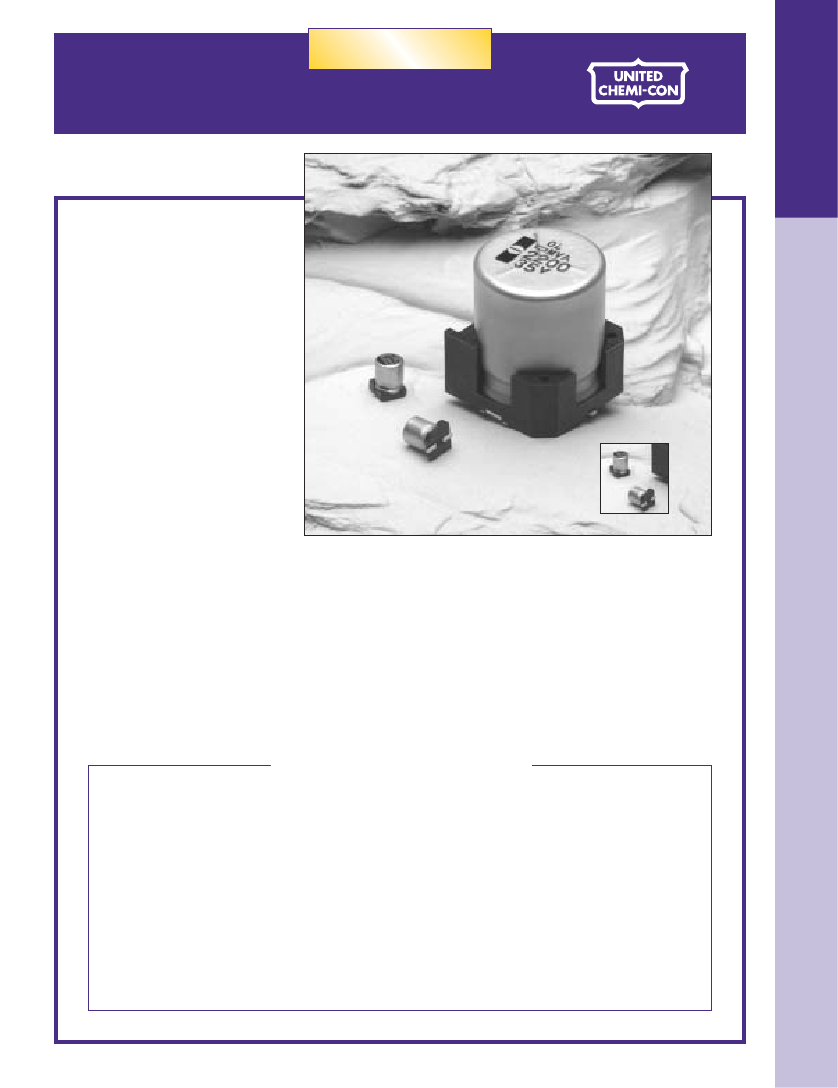

The MVA series is a general purpose 85 C surface mount capacitor series from United Chemi-Con.
This series has higher CV values, higher voltage ratings and larger case size options, when compared
to the current MV series. The larger sizes and higher voltages will allow a surface mount component
to be used in a wider variety of applications where a radial capacitor would normally be required.
The MVA series capacitors
except for those rated at 100-450 volts
are solvent proof. Refer to the
Mini-Glossary for cleaning guidelines and recommended cleaning agents that are compatible with
United Chemi-Con products.
Summary of Specifications
Surface mount lead terminals.
Capacitance range: 0.1 to 10,000µF.
Voltage range: 4 to 450VDC.
Category temperature range: 40 C to 85 C.
Leakage current: See specifications table for leakage current values at
Standard capacitance tolerance: 20%
Nominal case size (D L): 4 5.2mm to 18 21.5mm.
Rated lifetime: 2,000 hours at 85 C.
20 C.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
1/6
SURFACE MOUNT- 85 C
MVA Series
MVA Specifications
Item
Category Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
40 to
85 C
Characteristics
Engineering Bulletin Dec 02
MVA
4 to 450VDC
0.1 to 10,000 F
20% ( M ) at
Case D55 - J10
Case K14 - M22
Case K14 - M22
20 C, 120Hz
4 -100V
6.3 -100V
160 - 450V
I
I
I
0.01CV or 3 A, whichever is greater, after 2 minutes at
0.03CV or 4 A, whichever is greater, after 1 minute at
0.04CV 100 A after 1 minute at
20 C
20 C
20 C
Where I = Max. leakage current ( A ), C = Nominal capacitance ( F ) and V = Rated voltage ( V )
Dissipation Factor ( Tan )
At
20 C, 120Hz
4
0.42
–
6.3
0.35
0.38
10
0.30
0.34
16
0.26
0.30
25
0.16
0.26
35
0.14
0.22
50
0.12
0.18
63
0.12
0.14
100
0.12
0.10
160-250 400-450
–
0.20
–
0.25
Rated Voltage ( V )
Case D55 - J10
Case K14 - M22
When nominal capacitance exceeds 1,000 F, add 0.02 to the values above for each 1,000 F increase.
Low Temperature
Characteristics
At 120Hz, impedance ( Z ) ratio between the
exceed the values given below.
Rated Voltage ( V )
Z ( 25 C ) / Z ( 20 C )
D55 - J10
K14 - M22
D55 - J10
K14 - M22
4
7
–
17
–
6.3
4
5
10
12
10
3
4
8
10
25 C or
16
2
3
6
8
25
2
2
4
5
40 C value and
35
2
2
3
4
50
2
2
3
3
63
2
2
3
3
20 C value shall not
100 160-250 400-450
3
2
4
3
–
3
–
6
–
6
–
10
Z ( 40 C ) / Z ( 20 C )
Endurance
(Load Life)
The following specifications shall be satisfied when the capacitors are restored to
subjecting them to the DC rated voltage for 2,000 hours at 85 C.
Case Code D55 - J10 (4V & 6.3V )
Capacitance change:
≤
30% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
20 C after
Case Code D55 - J10 (10 -100V ) and
K14 - M22 (6.3 - 450V )
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
Shelf Life
The following specifications shall be satisfied when the capacitors are restored to 20 C after
exposing them for 1,000 hours at 85 C without voltage applied. The rated voltage shall be
applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than
48 hours before the measurements.
Case Code D55 - J10 (4V & 6.3V )
Capacitance change:
≤
30% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
Case Code D55 - J10 (10 -100V ) and
K14 - M22 (6.3 - 450V )
Capacitance change:
≤
20% of initial measured value
Tan ( DF ):
≤
200% of initial specified value
Leakage current:
≤
initial specified value
2 /6
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SURFACE MOUNT- 85 C
MVA Series

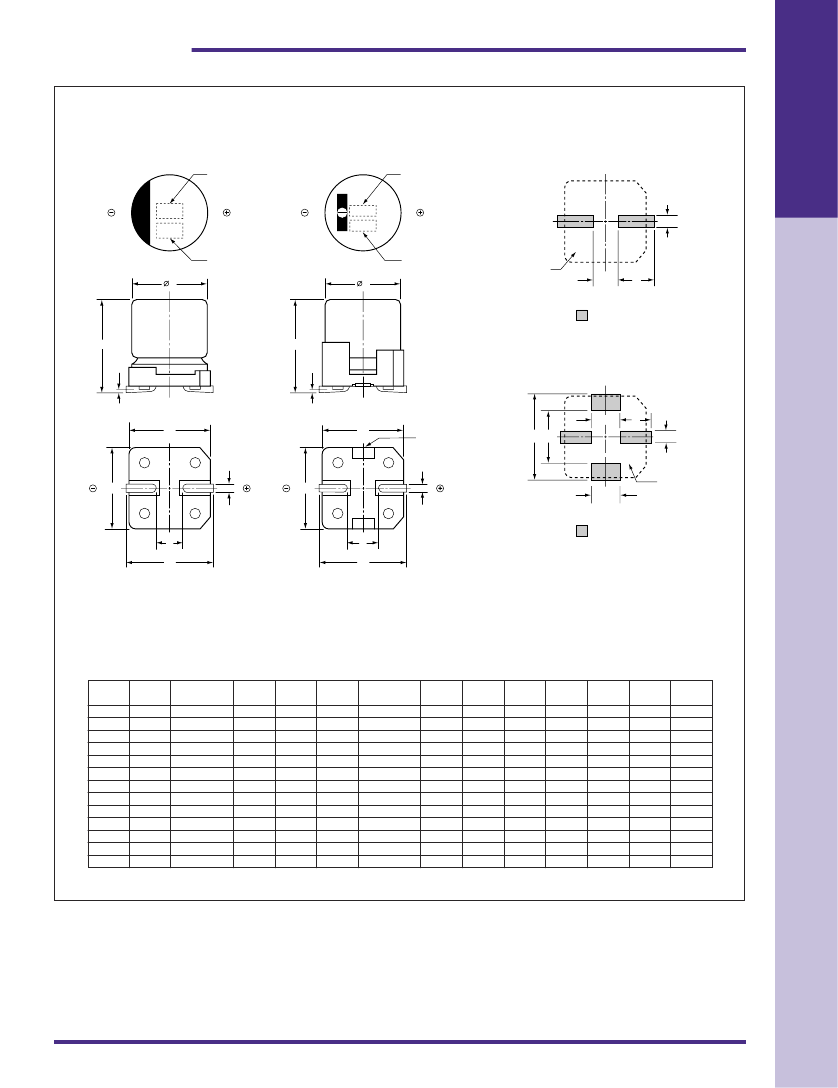

Diagram of Dimensions
Vertical Chip SMD Lead Terminals
VC Type
Ø
D =
Ø
4 -
Ø
12.5
*
MARKING STYLE A
Capacitance
Engineering Bulletin Dec 02
MVA
Unit: mm
VD Type
Ø
D =
Ø
16 &
Ø
18
MARKING STYLE B
Capacitance
Recommended PCB Land Patterns
VC Type
Ø
D =
Ø
4 -
Ø
12.5
V
Rated Voltage
D
D
V
c
Rated Voltage
Location of
Capacitor
a
b
Solder Land
L
L
VD Type
Ø
D =
Ø
16 &
Ø
18
0.3 MAX.
B
0.3 MAX.
a
B
Dummy
Terminals (2)
b
c
f
e
A
W
A
W
d
Location of
Capacitor
Solder Land
P
C
P
C
*
Marking Style B is used for all
Ø
12.5 VC Type products.
Refer to Packaging section for Surface Mount taping,
reel and tray specifications and Surface Mount Soldering
section for reflow soldering conditions.
Case and PCB Land Pattern Dimensions
Case
Code
D55
E55
F55
F60
F80
H10
J10
K14
K16
L17
L 22
M17
M22
Ø
D
0.5
Ø
4
Ø
5
Ø
6.3
Ø
6.3
Ø
6.3
Ø
8
Ø
10
Ø
12.5
Ø
12.5
Ø
16
Ø
16
Ø
18
Ø
18
L
5.2 0.3
5.2 0.3
5.2
5.7
7.7
10.0
10.0
13.5
16.0
16.5
21.5
16.5
21.5
0.3
0.3
0.3
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
A
0.2
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
B
0.2
4.3
5.3
6.6
6.6
6.6
8.3
10.3
13.0
13.0
17.0
17.0
19.0
19.0
C
0.2
5.1
5.9
7.2
7.2
7.2
9.0
11.0
13.7
13.7
18.0
18.0
20.0
20.0
W
0.5-0.8
0.5-0.8
0.5-0.8
0.5-0.8
0.5-0.8
0.7-1.1
0.7-1.1
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
1.0-1.3
P
1.0
1.4
1.9
1.9
1.9
3.1
4.5
4.2
4.2
6.5
6.5
6.5
6.5
a
1.0
1.4
1.9
1.9
1.9
3.1
4.5
4.0
4.0
6.0
6.0
6.0
6.0
b
2.6
3.0
3.5
3.5
3.5
4.2
4.4
5.7
5.7
6.9
6.9
7.9
7.9
c
1.6
1.6
1.6
1.6
1.6
2.2
2.2
2.5
2.5
2.5
2.5
2.5
2.5
d
–
–
–
–
–
–
–
–
–
6.5
6.5
6.5
6.5
e
–
–
–
–
–
–
–
–
–
11.0
11.0
13.0
13.0
f
–
–
–
–
–
–
–
–
–
19.2
19.2
21.2
21.2
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
3 /6
SURFACE MOUNT- 85 C
MVA Series
Part Numbering System for MVA Series
MVA
35
VC
10R
M
D55
TP
Engineering Bulletin Dec 02
When ordering, always specify complete catalog number for MVA Series.
MVA
Packaging: TP = Standard Taping for D55 - K16.
TR = Plastic Tray for L17- M22; Optional for K14 - K16.
Case Code: See Case Sizes in Tables.
Capacitance Tolerance: M = 20%
Capacitance Value: Expressed in Microfarads. The first two digits are
significant figures, and the third digit indicates the number of zeros
for capacitance of 100 F or more. R indicates the decimal point for
capacitance less than 100 F (e.g. R10 = .10 F; 1R0 = 1.0 F;
10R = 10 F; 101 = 100 F; 102 = 1,000 F; 103 = 10,000 F ).
Lead Configuration: VC = Vertical Chip, 2 SMD Terminals.
VD = Vertical Chip, 4 SMD Terminals (2 dummy).
DC Rated Voltage: Expressed in Volts (e.g. 35 = 35WVDC).
Series Name: Indicates Basic Capacitor Design.
Standard Voltage Ratings - Surface Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Case
Code
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
( mA rms) at
85 C, 120Hz
25
30
50
80
135
150
320
30
33
55
88
135
280
290
320
430
480
890
1,000
1,200
1,400
1,750
1,700
2,000
26
30
44
70
79
130
270
280
430
960
1,300
4 Volts
5 Volts Surge
33
47
100
220
330
470
1,000
33
47
100
220
330
470
680
820
1,000
1,500
2,200
3,300
3,300
4,700
6,800
6,800
10,000
22
33
47
100
150
220
330
470
1,000
2,200
3,300
MVA4VC33RMD55TP
MVA4VC47RMD55TP
MVA4VC101ME55TP
MVA4VC221MF55TP
MVA4VC331MF80TP
MVA4VC471MF80TP
MVA4VC102MH10TP
MVA6.3VC33RMD55TP
MVA6.3VC47RMD55TP
MVA6.3VC101ME55TP
MVA6.3VC221MF55TP
MVA6.3VC331MF80TP
MVA6.3VC471MH10TP
MVA6.3VC681MH10TP
MVA6.3VC821MH10TP
MVA6.3VC102MJ10TP
MVA6.3VC152MJ10TP
MVA6.3VC222MK14TP
MVA6.3VC332MK16TP
MVA6.3VD332ML17TR
MVA6.3VD472ML17TR
MVA6.3VD682ML22TR
MVA6.3VD682MM17TR
MVA6.3VD103MM22TR
MVA10VC22RMD55TP
MVA10VC33RMD55TP
MVA10VC47RME55TP
MVA10VC101MF55TP
MVA10VC151MF55TP
MVA10VC221MF80TP
MVA10VC331MH10TP
MVA10VC471MH10TP
MVA10VC102MJ10TP
MVA10VC222MK14TP
MVA10VD332ML17TR
4
4
5
6.3
6.3
6.3
8
4
4
5
6.3
6.3
8
8
8
10
10
12.5
12.5
16
16
16
18
18
4
4
5
6.3
6.3
6.3
8
8
10
12.5
16
5.2
5.2
5.2
5.2
7.7
7.7
10
5.2
5.2
5.2
5.2
7.7
10
10
10
10
10
13.5
16
16.5
16.5
21.5
16.5
21.5
5.2
5.2
5.2
5.2
5.2
7.7
10
10
10
13.5
16.5
D55
D55
E55
F55
F80
F80
H10
D55
D55
E55
F55
F80
H10
H10
H10
J10
J10
K14
K16
L17
L17
L22
M17
M22
D55
D55
E55
F55
F55
F80
H10
H10
J10
K14
L17
21.095
14.812
6.962
3.164
2.11
1.481
0.696
17.58
12.343
5.801
2.637
1.758
1.234
0.853
0.707
0.58
0.387
0.301
0.211
0.211
0.155
0.117
0.117
0.093
22.602
15.068
10.58
4.973
3.315
2.26
1.507
1.058
0.497
0.271
0.191
6.3 Volts
8 Volts Surge
10 Volts
13 Volts Surge
*
Refer to diagrams for detailed case size dimensions.
4 /6
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
SURFACE MOUNT- 85 C
MVA Series
Standard Voltage Ratings - Surface Mount
Rated
Voltage
(WVDC)
Capacitance
(µF )
Catalog
Part Number
Nominal
Case Size*
D L ( mm )
Case
Code
Engineering Bulletin Dec 02
MVA
Maximum ESR
(
Ω
) at
20 C, 120Hz
Rated
Ripple Current
( mA rms) at
85 C, 120Hz
1,550
1,600
1,850
26
37
44
70
110
130
270
280
380
710
1,150
1,450
1,450
1,750
24
41
47
60
66
120
210
260
300
400
820
1,450
1,400
1,800
18
24
41
54
64
120
210
260
360
600
1,100
1,700
15
18
30
47
70
85
190
320
600
740
850
1,300
1,400
10 Volts
13 Volts Surge
4,700
4,700
6,800
22
33
47
100
150
220
330
470
680
1,000
2,200
3,300
3,300
4,700
10
22
33
47
56
100
150
220
330
470
1,000
2,200
2,200
3,300
4.7
10
22
33
47
100
150
220
330
470
1,000
2,200
3.3
4.7
10
22
33
47
100
220
330
470
470
1,000
1,000
MVA10VD472ML22TR
MVA10VD472MM17TR
MVA10VD682MM22TR
MVA16VC22RMD55TP
MVA16VC33RME55TP
MVA16VC47RME55TP
MVA16VC101MF55TP
MVA16VC151MF80TP
MVA16VC221MF80TP
MVA16VC331MH10TP
MVA16VC471MH10TP
MVA16VC681MJ10TP
MVA16VC102MK14TP
MVA16VD222ML17TR
MVA16VD332ML22TR
MVA16VD332MM17TR
MVA16VD472MM22TR
MVA25VC10RMD55TP
MVA25VC22RME55TP
MVA25VC33RME55TP
MVA25VC47RMF55TP
MVA25VC56RMF55TP
MVA25VC101MF80TP
MVA25VC151MH10TP
MVA25VC221MH10TP
MVA25VC331MH10TP
MVA25VC471MJ10TP
MVA25VC102MK14TP
MVA25VD222ML22TR
MVA25VD222MM17TR
MVA25VD332MM22TR
MVA35VC4R7MD55TP
MVA35VC10RMD55TP
MVA35VC22RME55TP
MVA35VC33RMF55TP
MVA35VC47RMF60TP
MVA35VC101MF80TP
MVA35VC151MH10TP
MVA35VC221MH10TP
MVA35VC331MJ10TP
MVA35VC471MK14TP
MVA35VD102ML17TR
MVA35VD222MM22TR
MVA50VC3R3MD55TP
MVA50VC4R7MD55TP
MVA50VC10RME55TP
MVA50VC22RMF55TP
MVA50VC33RMF80TP
MVA50VC47RMF80TP
MVA50VC101MH10TP
MVA50VC221MJ10TP
MVA50VC331MK14TP
MVA50VC471MK16TP
MVA50VD471ML17TR
MVA50VD102ML22TR
MVA50VD102MM22TR
16
18
18
4
5
5
6.3
6.3
6.3
8
8
10
12.5
16
16
18
18
4
5
5
6.3
6.3
6.3
8
8
8
10
12.5
16
18
18
4
4
5
6.3
6.3
6.3
8
8
10
12.5
16
18
4
4
5
6.3
6.3
6.3
8
10
12.5
12.5
16
16
18
21.5
16.5
21.5
5.2
5.2
5.2
5.2
7.7
7.7
10
10
10
13.5
16.5
21.5
16.5
21.5
5.2
5.2
5.2
5.2
5.2
7.7
10
10
10
10
13.5
21.5
16.5
21.5
5.2
5.2
5.2
5.2
5.7
7.7
10
10
10
13.5
16.5
21.5
5.2
5.2
5.2
5.2
7.7
7.7
10
10
13.5
16
16.5
21.5
21.5
L22
M17
M22
D55
E55
E55
F55
F80
F80
H10
H10
J10
K14
L17
L22
M17
M22
D55
E55
E55
F55
F55
F80
H10
H10
H10
J10
K14
L22
M17
M22
D55
D55
E55
F55
F60
F80
H10
H10
J10
K14
L17
M22
D55
D55
E55
F55
F80
F80
H10
J10
K14
K16
L17
L22
M22
0.141
0.141
0.107
19.589
13.059
9.169
4.31
2.873
1.959
1.306
0.917
0.634
0.497
0.241
0.171
0.171
0.127
26.52
12.055
8.036
5.643
4.736
2.652
1.768
1.205
0.804
0.564
0.431
0.211
0.211
0.151
49.372
23.205
10.548
7.032
4.937
2.321
1.547
1.055
0.703
0.776
0.365
0.181
60.273
42.319
19.89
9.041
6.027
4.232
1.989
0.904
0.904
0.635
0.635
0.298
0.298
16 Volts
20 Volts Surge
25 Volts
32 Volts Surge
35 Volts
44 Volts Surge
50 Volts
63 Volts Surge
*
Refer to diagrams for detailed case size dimensions.
United Chemi-Con, Inc. 9801 W. Higgins Road, Rosemont, IL 60018 Tel 847-696-2000 Fax 847-696-9278 www.chemi-con.com
5 /6
京公网安备 11010802033920号
EEWORLD
