CDP6853D datasheet, PDF - EEWORLD Datasheet

CDP6853D: DescriptionSerial I/O Controller, 1 Channel(s), CMOS, CDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size716KB，19 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

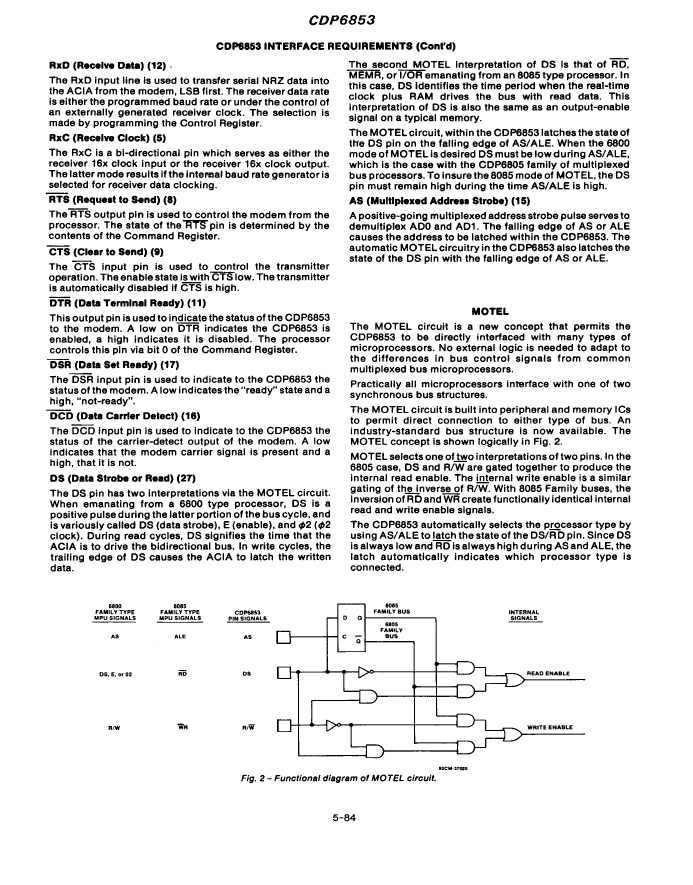

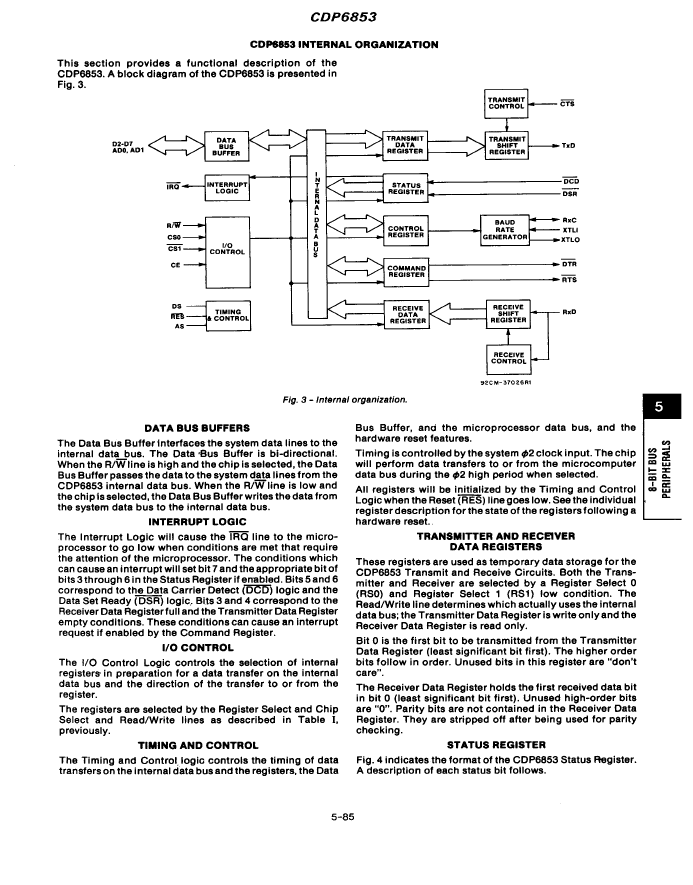

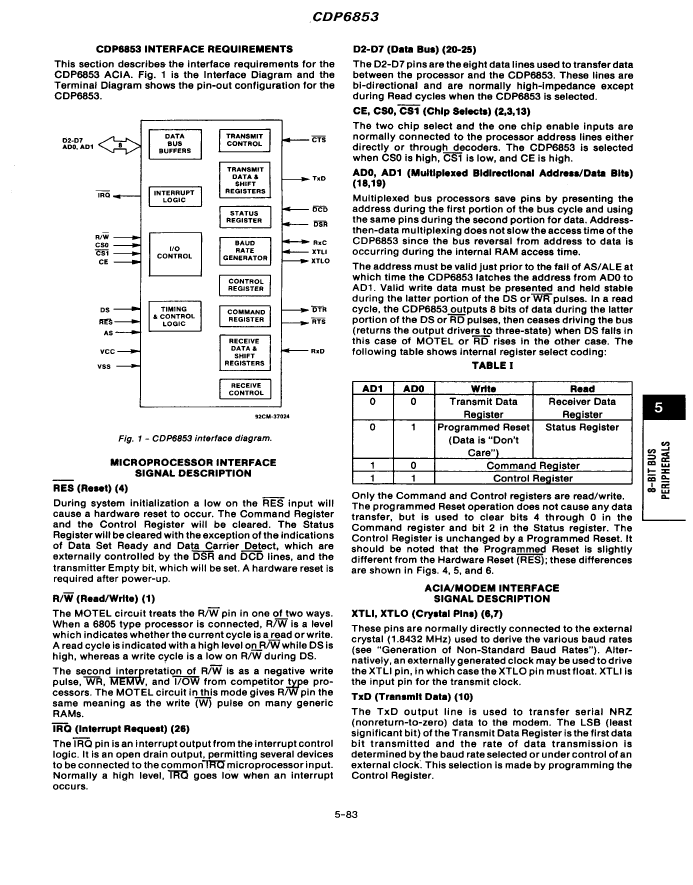

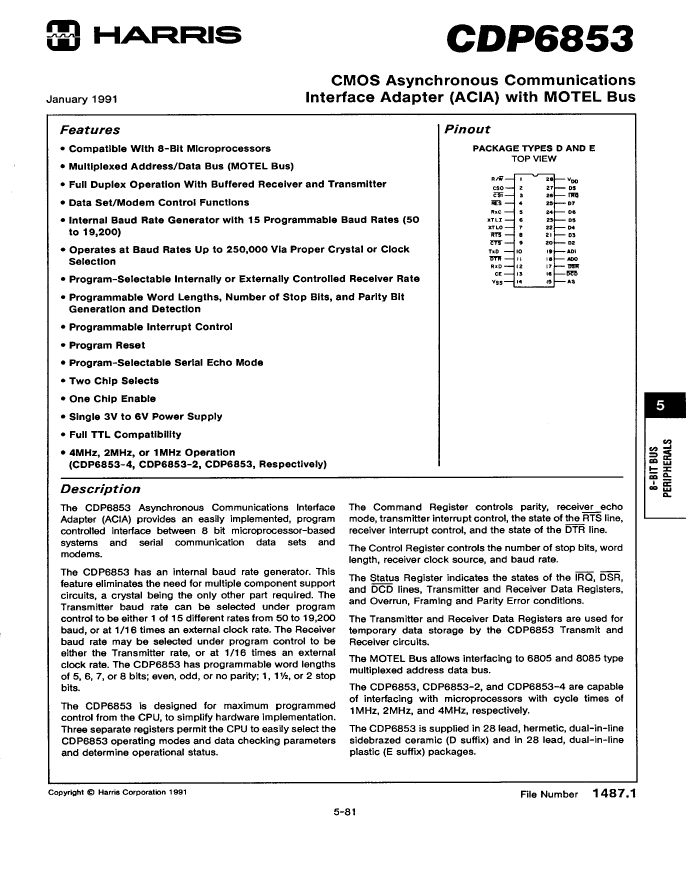

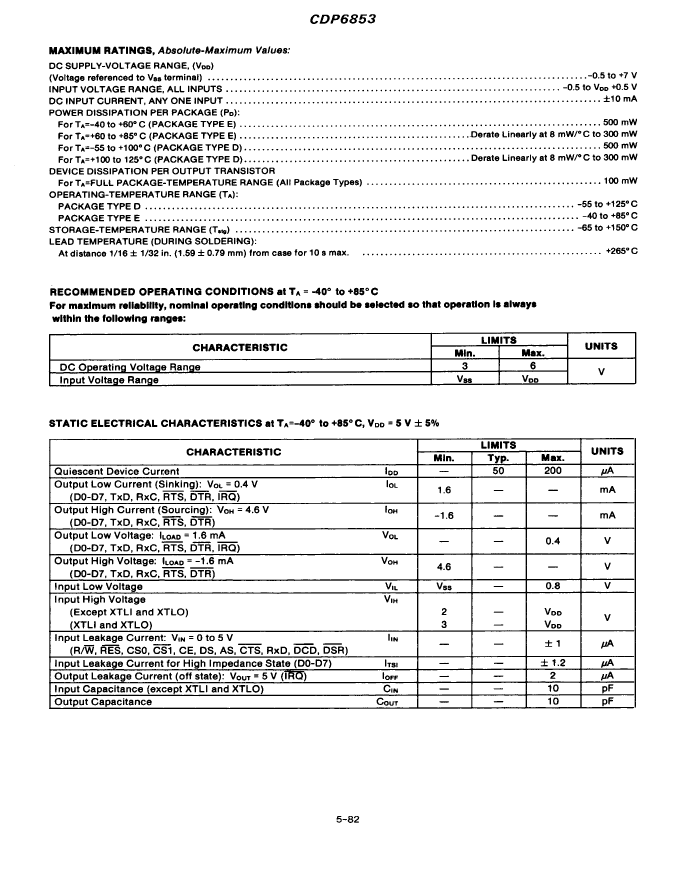

CDP6853D Overview

Serial I/O Controller, 1 Channel(s), CMOS, CDIP28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Address bus width	2
boundary scan	NO
maximum clock frequency	1 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE
External data bus width	8
JESD-30 code	R-CDIP-T28
JESD-609 code	e0
low power mode	NO
Number of serial I/Os	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

This Material Copyrighted By Its Respective Manufacturer

	CDP6853D	CDP6853E
Description	Serial I/O Controller, 1 Channel(s), CMOS, CDIP28	Serial I/O Controller, 1 Channel(s), CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP28,.6	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown
Address bus width	2	2
boundary scan	NO	NO
maximum clock frequency	1 MHz	1 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE	ASYNC, BIT; SYNC, BYTE
External data bus width	8	8
JESD-30 code	R-CDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0
low power mode	NO	NO
Number of serial I/Os	1	1
Number of terminals	28	28
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
