JACKPAC
JPP PNP NPN 24VDC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

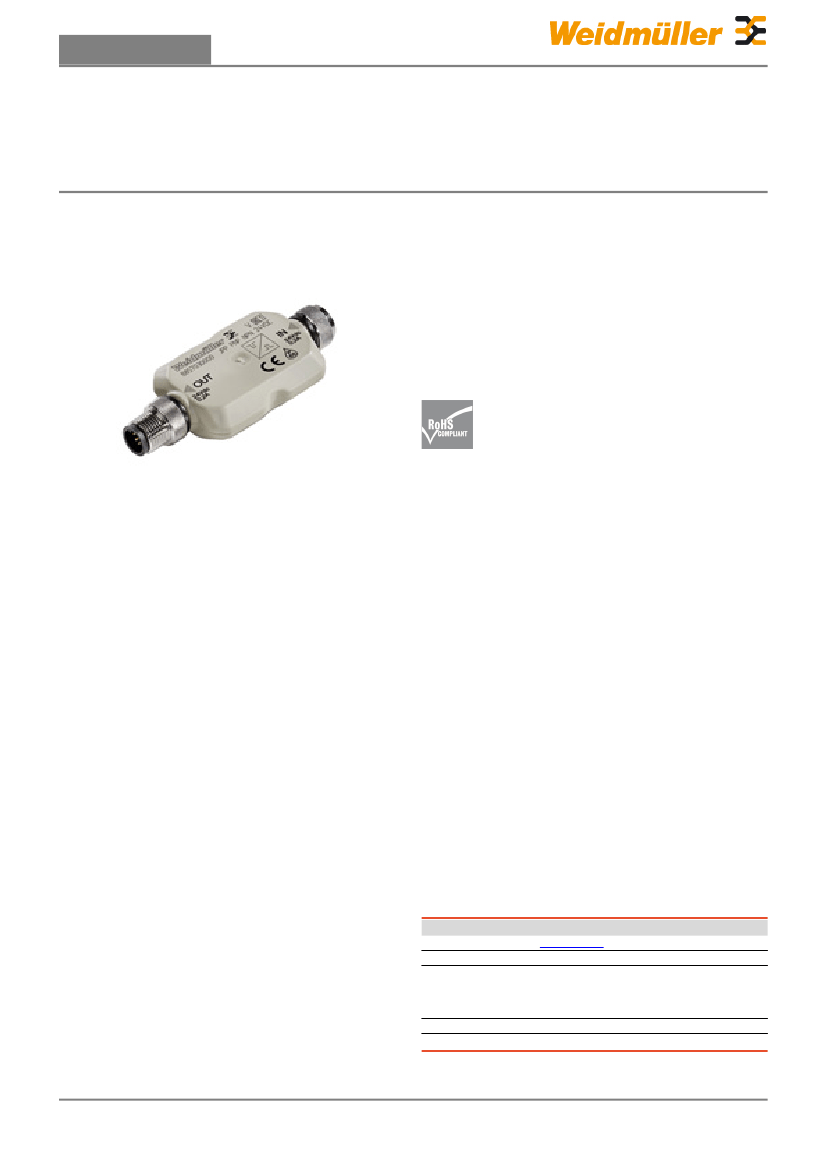

The JPP level converters convert NPN signals into
PNP signals and vice versa. This guarantees optimum
adaptation to existing circuits.
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
8857030000
JPP PNP NPN 24VDC
JACKPAC, Level converter, Rated control voltage:
18...24...30 V DC , Rated switching voltage:
18...30 V DC, Rated switching current: 400 mA,
M12 plug/socket, A-coded
4032248573332
1 pc(s).
Creation date March 6, 2013 10:42:21 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
Data sheet...
JACKPAC
JPP PNP NPN 24VDC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
83 mm
14.4 mm
Width
Net weight
Dimensions and weights
Length
Height
36 mm
55 g
Temperatures
Operating temperature
0 °C...+60 °C
Storage temperature
-20 °C...+85 °C
Control side
Rated control voltage
Input current for sensor
18...24...30 V DC
< 200 mA
Sensor
2-/ 3-Conductor Sensor
PNP-Type
Load side
Rated switching voltage
18...30 V DC
Rated switching current
400 mA
General data
Solid-state type
Conductor connection system
Solid state relay
M12 plug/socket, A-coded
No. of poles
Standards
1
DIN EN 50178, UL508
Insulation coordination
Rated voltage
Surge voltage category
32 V
I
Pollution severity
2
Further details of approvals
Standards
DIN EN 50178, UL508
Classifications
ETIM 3.0
eClass 7.0
EC000926
27-27-09-90
eClass 6.0
27-27-09-90
Notes
Notes
Approvals
Approvals
Downloads
Declaration of Conformity
3-D model
K270_06_06.pdf
Creation date March 6, 2013 10:42:21 PM CET
Catalogue status 20.12.2012 / We reserve the right to make technical changes.
2
Data sheet...
JACKPAC
JPP PNP NPN 24VDC
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com

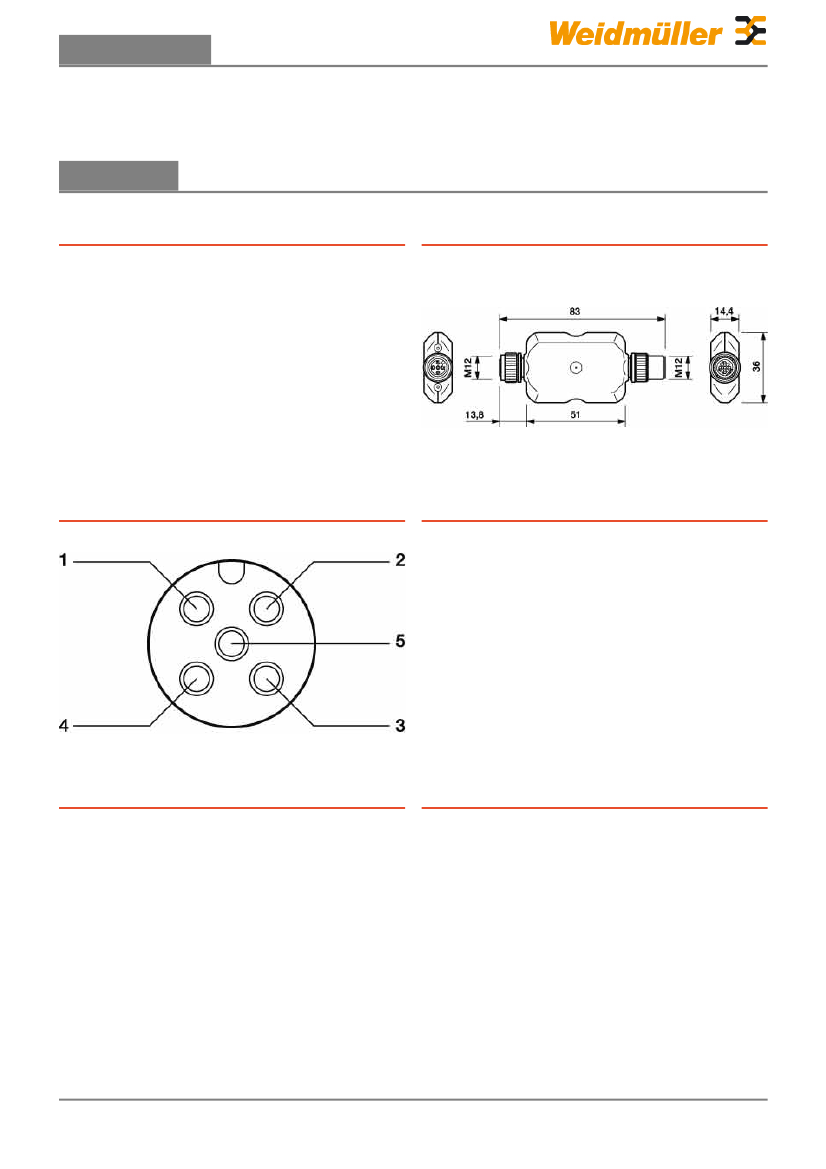

Drawings
