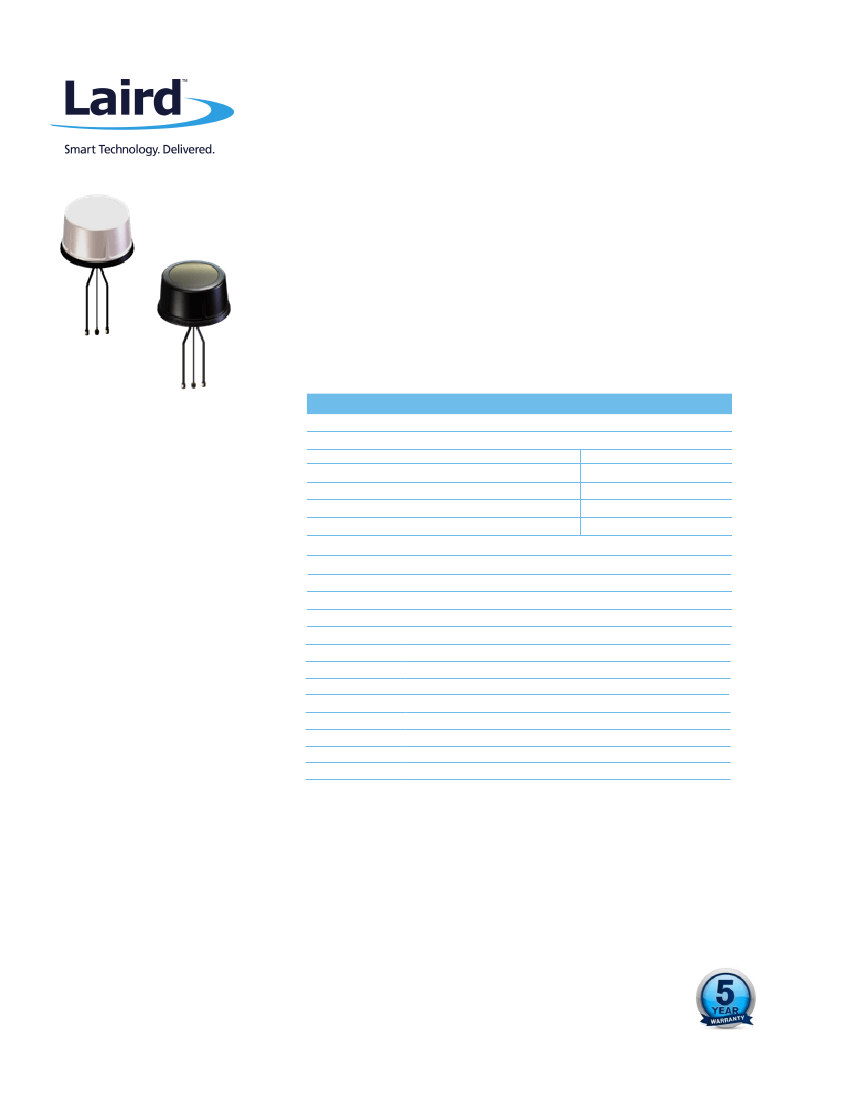

Vehicular
3-Port
MultibandAntenna
698-960 / 1710-2700
/ 2300-2700 / 4900-6000
MHz
+ GPS
ANTENNA
VLT69273x11G
The Laird vehicular
3-port
multiband
antenna covers the 698-960/1710-2700 MHz,
2300-2700/ 4900-6000 MHz
as well as GPS (1575.42 MHz)
frequency ranges.
Configured with
2-port,
dual-band elements
in addition
to 1-port with integrated GPS.
Connector
options include
SMA
male connectors for
3G/4G
LTE and
GPS ports
with
an RSMA
male connector for
the WiFi port.
The housing incorporates a low-profile, rugged design that
meets
IP67 standards. The antenna also features high impact, UV-resistant polycarbonate
plastic available in black or white.
SPECIFICATIONS
PARAMETER
Model Number
No. of Ports
Frequency
Bands (MHz)
Peak Gain *
dBi
PERFORMANCE
VLT69273B11G-518A
(Black)
VLT69273W11G-518A
(White)
3
(1 port 3G/4G LTE, 1-port WiFi, 1-port GPS)
3G/4G
Port
WiFi Port
698-960
MHz
1710-2700
MHz
2300-2700
MHz
4900-6000
MHz
2.6
4.7
N/A
< 1.6:1
<
2.0:1
>
22
dB
50 Ohm
Vertical
Linear
Omnidirectional
50
Watt
(ambient temp. of 25°C / 77°F
-30° C
to
+70° C
(-22°F to +158°F)
132
mm x 75 mm (5.2" x 2.9")
0.74 kg (1.63 lb)
SMA-Male (3G/4G port) RSMA-Male (WiFi port)
LMR195M- 518.2 cm (17 ft)
PC, UL94
-
V0 Rating,
UV Stable (Black & White)
ROHS
compliant
IP67
4.9
N/A
< 1.6:1
6.0
5.7
< 1.6:1
Max Gain +/- 30 above horizon N/A
VSWR* Typical
< 1.9:1
VSWR *
Max
Port-to-Port Isolation
Nominal
Impedance
Polarization
Azimuth Beam Width
Input
Power,
Max
Operating Temperature
Dimensions (dia. x hgt)
Weight
RF Connector
Cable (exposed length)
Radome
/ Baseplate Material
Material Compliance
IP
Dust & Water Ingress
Rating
*Measured on 1 ft.
(30.48 cm)
diameter ground plane
Americas: +1.847 839.6907
IAS-AmericasEastSales@lairdtech.com
Europe: +44.1628.858941
IAS-EUSales@lairdtech.com
Asia: +86.21.5855.0827.127
IAS-AsiaSales@lairdtech.com
Laird warrants to the original end user customer of its products that its products are free from defects in material and
workmanship. Subject to conditions and limitations Laird will, at its option, either repair or replace any part of its products
that prove defective by reason of improper workmanship or materials.
This limited warranty is in force for the useful
lifetime of the original end product into which the Laird product is installed. Useful lifetime of the original end product may
vary but is not to exceed five (5) years from the original date of the end product purchase.
www.lairdtech.com
Vehicular
3-Port
MultibandAntenna
VLT69273x11G
GPS ANTENNA SPECIFICATIONS
PARAMETER
Frequency Band
Band Width
Amplier Gain
Nominal Impedance
Output VSWR
DC Voltage
DC Current
Out-of-Band Signal Rejection
Intermodulation@
CW Mode
(-40°C - +85°C)
Power, dBm
Power, dBm
Power, dBm
PERFORMANCE
1575.42 MHz (GPS L1)
6 MHz (Typical)
27 dB ± 3 dBc
50 Ohm
< 1.5:1
2.7
- 12 Vdc
20 mA (Nominal); 30 mA ( -40°C - +85°C)
> 40 dB rejection @ ± 50 MHz from center frequency
Int1
-10(1842.8 MHz)
-10(829.58 MHz)
-10(755.42 MHz)
Int2
-10(2110 MHz)
-10(2405 MHz)
-10(820 MHz)
IM3
-100(1575.6 MHz)
-100(1575.42 MHz)
-100(1575.42 MHz)
Input 1 dB Compression @
750 MHz, 2000 MHz & 3500 MHz
RF Connector
Cable (exposed length)
> 10 dBm (-40°C - +85°C)
SMA-Male
RG174-518.2 cm (17ft)
PART NUMBERS
PART NUMBER
VLT69273B11G-518A
1-Port
4G/LTE,
1-Port GPS: SMA
Male;
1 Port WiFi:RSMA
Male(Black)
VLT69273W11G-518A
1-Port
4G/LTE, 1-Port GPS: SMA Male;
1 Port WiFi:RSMA Male(White)
ANT-DS-VLT69273x11G
070815
Any information furnished by Laird Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use
and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness,
merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All
Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2015 Laird
Inc. All Rights Reserved. Laird, Laird Technologies, the Laird Logo, and other marks are trade marks or registered trade marks of Laird Inc. or an affiliate company thereof. Other
product or service names may be the property of third parties. Nothing herein provides a license under any Laird or any third party intellectual property rights.
