Easy mounting photoelectric sensor in short M18 housing
E3FZ/E3FR
• Secure-click snap mounting for fast
installation
• High power LED for enhanced
sensing distance
• Short housing with less than
40 mm length
• Minimal optical axis deviation for easy
alignment
Features

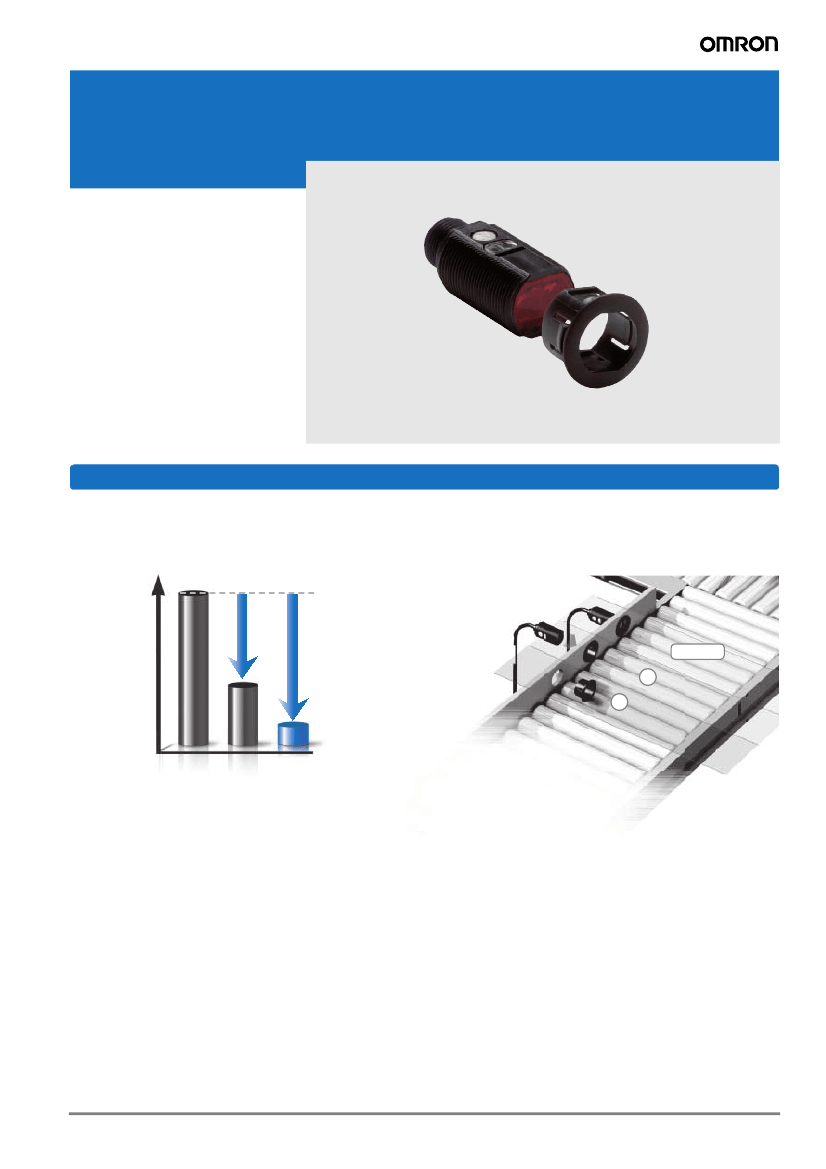

Easy and fast installation
The
SecureClick
snap mounting mechanism provides easy
installation in 2 steps and enhanced protection against vibration.
Installation time can be reduced by up to 10 times compared to
conventional sensors.
Up to 3 times faster
Up to 10 times faster
>>CLICK
2
1
Conventional
square sensors
Conventional
cylindrical
sensors
E3FZ with
SecureClick*
*SecureClick has been tested to withstand
severe
vibrations.
E3FZ/E3FR
1
Ordering Information
Snap mounting – E3FZ
*2
Sensor type
Sensing distance
Connection method
Order code
NPN output
Through-beam
15 m
–
–
Retroreflective with M.S.R.
0.1 to 4 m
*1
–
–
Diffuse reflective
1 m (adjustable)
–
–
Diffuse reflective
(background suppression)
100 mm (fixed)
–
–
–
200 mm (fixed)
–
–
–
–
–
–
–
2m
–
2m
–
2m
–
2m
–
2m
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
E3FZ-T61H 2M
E3FZ-T66H
E3FZ-R61H 2M
E3FZ-R66H
E3FZ-D62 2M
E3FZ-D67
E3FZ-LS61H 2M
E3FZ-LS66H
E3FZ-LS64H 2M
E3FZ-LS69H
PNP output
E3FZ-T81H 2M
E3FZ-T86H
E3FZ-R81H 2M
E3FZ-R86H
E3FZ-D82 2M
E3FZ-D87
E3FZ-LS81H 2M
E3FZ-LS86H
E3FZ-LS84H 2M
E3FZ-LS89H
Radial mounting – E3FR
Sensor type
Sensing distance
Connection method
Order code
NPN output
Through-beam
15 m
E3FR-T61H 2M
E3FR-T66H
E3FR-R61H 2M
E3FR-R66H
E3FR-D62 2M
E3FR-D67
E3FR-LS61H 2M
E3FR-LS66H
E3FR-LS64H 2M
E3FR-LS69H
PNP output
E3FR-T81H 2M
E3FR-T86H
E3FR-R81H 2M
E3FR-R86H
E3FR-D82 2M
E3FR-D87
E3FR-LS81H 2M
E3FR-LS86H
E3FR-LS84H 2M
E3FR-LS89H
–
–
–
2m
–
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
–
*3
Retroreflective with M.S.R.
0.1 to 4 m
*1
–
–
–
2m
–
Diffuse reflective
1 m (adjustable)
–
–
–
2m
–
Diffuse reflective
(background suppression)
100 mm (fixed)
–
–
–
–
2m
–
–
2m
–
200 mm (fixed)
–
*1.
*2.
*3.
Measured with reflector E39-R1S
The reflector is sold separately.
Mounting with Snap-Holder (provided with product) or M18 Nuts (provided with product) possible.
Pre-wired connectors are available on request (item description see "Model Number Legend" on page 4)
2
Standard Photoelectric Sensors

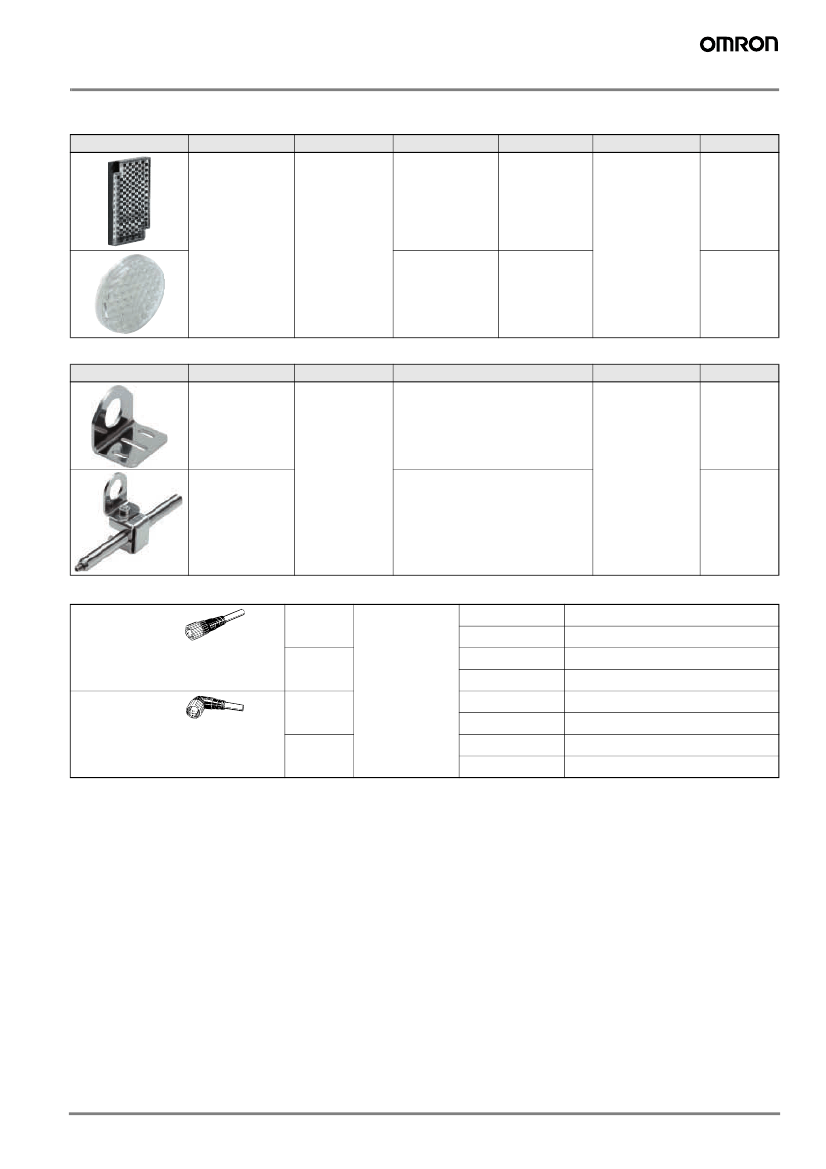

Accessories
Reflectors
Shape
Type
General purpose
reflectors
Material
- ABS
base
- Acrylic surface
Features
Surface screw
mounting
(diagonal holes)
Size in mm
59.9x40.3x7.5
Applicable Sensor
Order code
E39-R1S
- Retroreflective
photo electric
sensors –
non polarizing
- Retroreflective
photo electric
sensors –
polarizing (MSR) E39-R49
Snap mounting
dia
30
mm
(reflector)
dia 6.5 mm
(snap mount)
Mounting
brackets
Shape
Type
General purpose
mounting
Material
stainless steel
Features
Horizontal angle adjustment
Applicable Sensor
E3FZ (dia 20mm
snap holder)
Order code
E39-EL8
Telescope
mounting
3D
rotation (fits to 12 mm mounting
rod)
E39-EL9
Sensor I/O connectors
Straight
2m
4-wire
PVC
PUR
5m
PVC
PUR
L-shaped
2m
PVC
PUR
5m
PVC
PUR
Note: For the complete list of sensor I/O connectors refer to E26E Accessories datasheet.
XS2F-D421-D80-A
Y92E-M12PUR4S2M-L
XS2F-D421-G80-A
Y92E-M12PUR4S5M-L
XS2F-D422-D80-A
Y92E-M12PUR4A2M-L
XS2F-D422-G80-A
Y92E-M12PUR4A5M-L
E3FZ/E3FR
3
Model Number Legend
E3F@-@@@@-@-@@
1
2 3456 7 8 9
e.g., E3FZ-T81H; short housing/ through-beam/PNP output/2 m cable/without an adjustor/L-on/D-on by wire/
E3FZ-T86H-D; short housing/through-beam/PNP output/M12 connector/without an adjustor/L-on/D-on by wire/receiver
E3FR-LS86; radial housing/background-suppression/PNP output/M12 connector/sensing distance of 100 mm/without an adjustor/
L-on/D-on by wire/
1. Cylindrical family name: E3F
2. Series name
2: standard housing (seperate naming rule)
Z: short housing
R: radial housing
3. Sensing method
T: through-beam
R: retroreflective
D: diffuse reflective
LS: background suppression
4. Output
6: NPN output
8: PNP output
5. Connection
Through-beam, retroreflective types
1: 2 m cable
6: M12 connector
Diffuse reflective types
2: 2 m cable
7: M12 connector
Background suppression types
1: 2 m cable/sensing distance of 100 mm
4: 2 m cable/sensing distance of 200 mm
6: M12 connector/sensing distance of 100 mm
9: M12 connector/sensing distance of 200 mm
6. Adjuster
Blank: with volume adjuster/L-on/D-on by wire
H:
without volume adjuster/L-on/D-on by wire
7. Emitter/ Receiver
L: emitter
D: receiver
8. Kind of connection
Blank: standard 2 m cable or M12 connector
M1J: pre-wired with 30 cm cable and
M12 plug connector (4 pin)
M3J: pre-wired with 30 cm cable and
M8 plug connector (4 pin)
M5J: pre-wired with 30 cm cable and
M8 plug connector (3 pin)
M1TJ: pre-wired with 30cm cable and Twist&Click
M12 plug connector (4 pin)
9. Cable length
Blank: M12 connector
Number: cable length
4
Standard Photoelectric Sensors

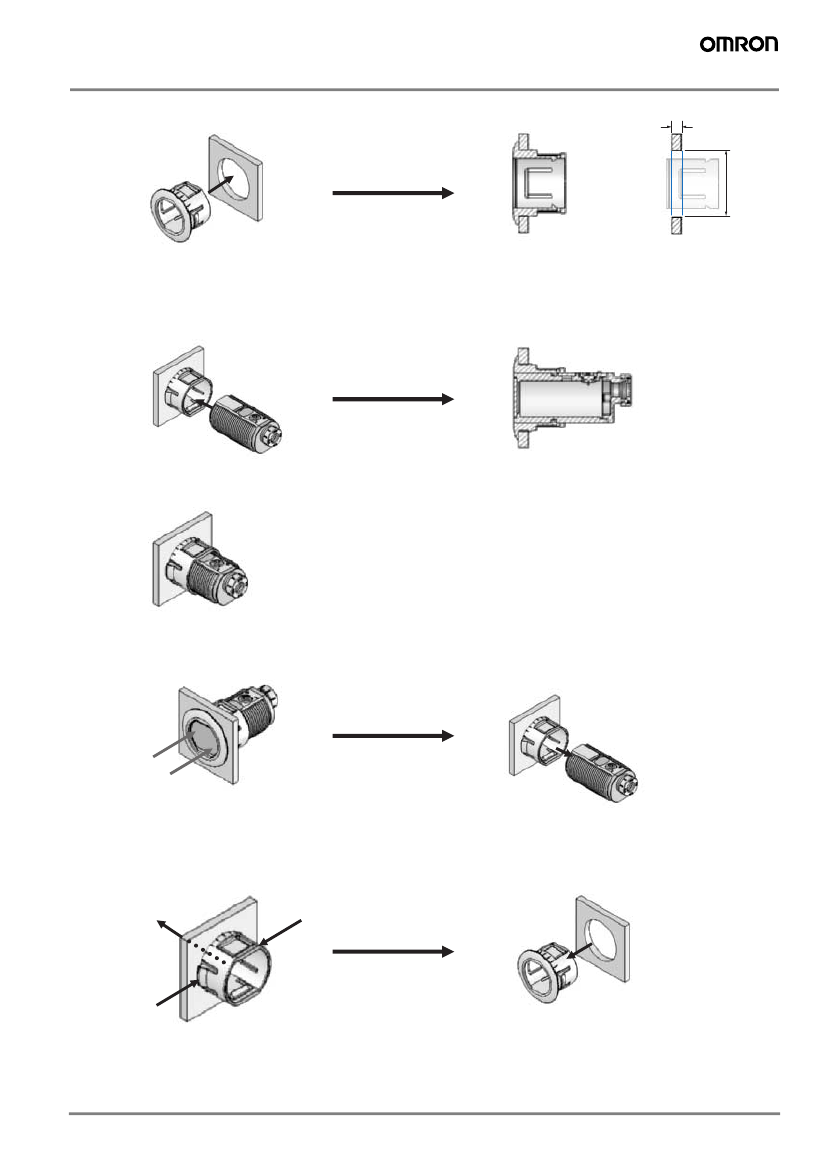

Mounting and dismounting
Mounting
Step 1
2.5 to 2.9 mm
dia 20.1 to 20.2 mm
Insert the snap holder into the
mounting hole from the front
Verify the correct position
(a clicking sound can
be
heard)
Step 2
Insert the sensor into the snap
holder from the
back
Verify the correct position
(a clicking sound can
be
heard)
Dismounting
Step 1
Apply soft pressure to the sensor
lens in the indicated areas (e.g. with
two thumbs)
Remove the sensor
Step 2
Press down
both
snap-fits and push
the snap holder forward.
Remove the snap holder
E3FZ/E3FR
5
