130-D34-428 datasheet, PDF - EEWORLD Datasheet

130-D34-428: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size288KB，1 Pages; ManufacturerWinchester Electronics

Download Datasheet Parametric View All

130-D34-428 Overview

Board Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.198 inch
subject depth	0.11 inch
body length	3.398 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (150)
Contact completed and terminated	GOLD (30) OVER NICKEL (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	130
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.181 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
Base Number Matches	1

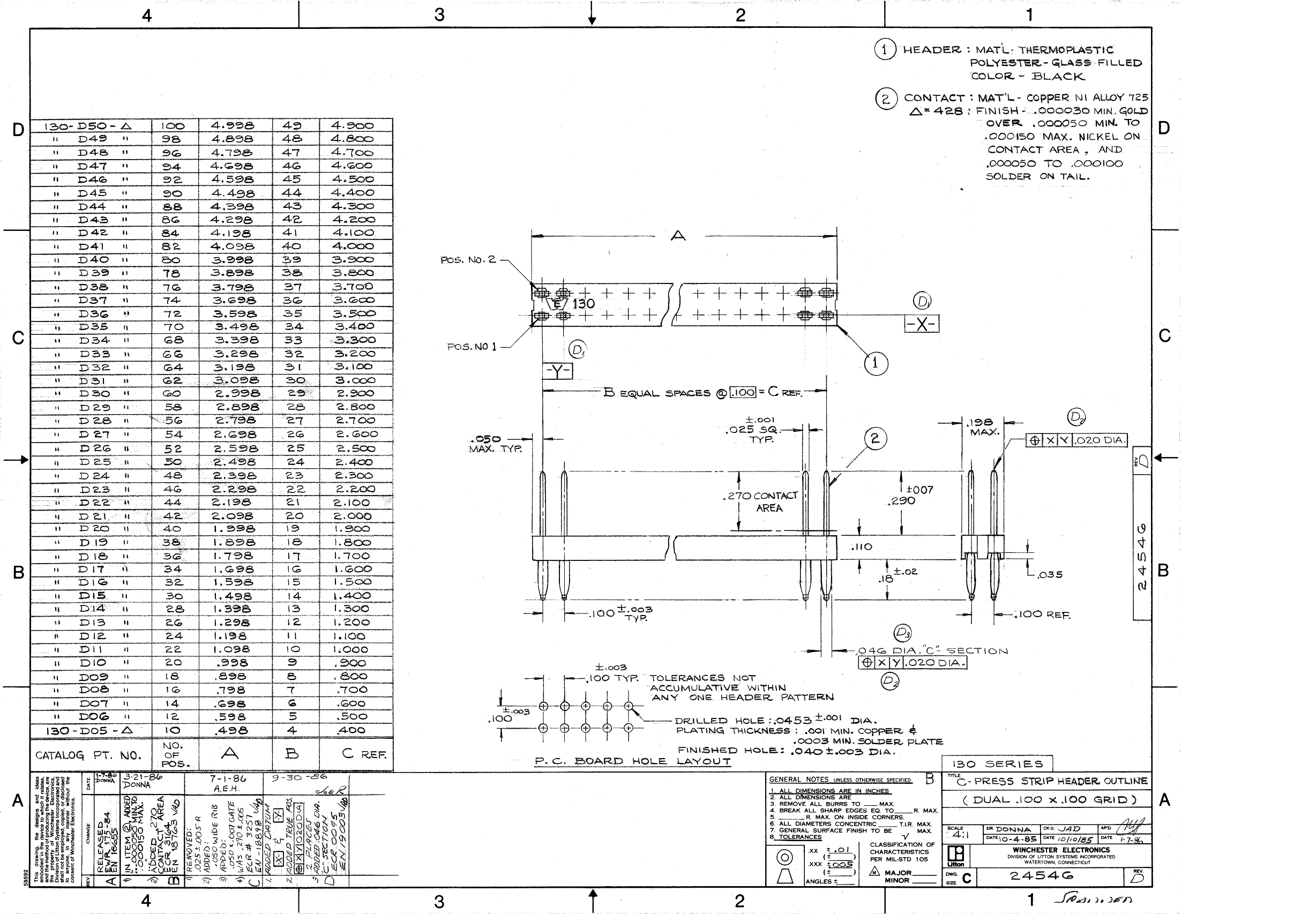

June 2006 - This drawing became the property of Winchester Electronics Corporation, Wallingford, CT.
