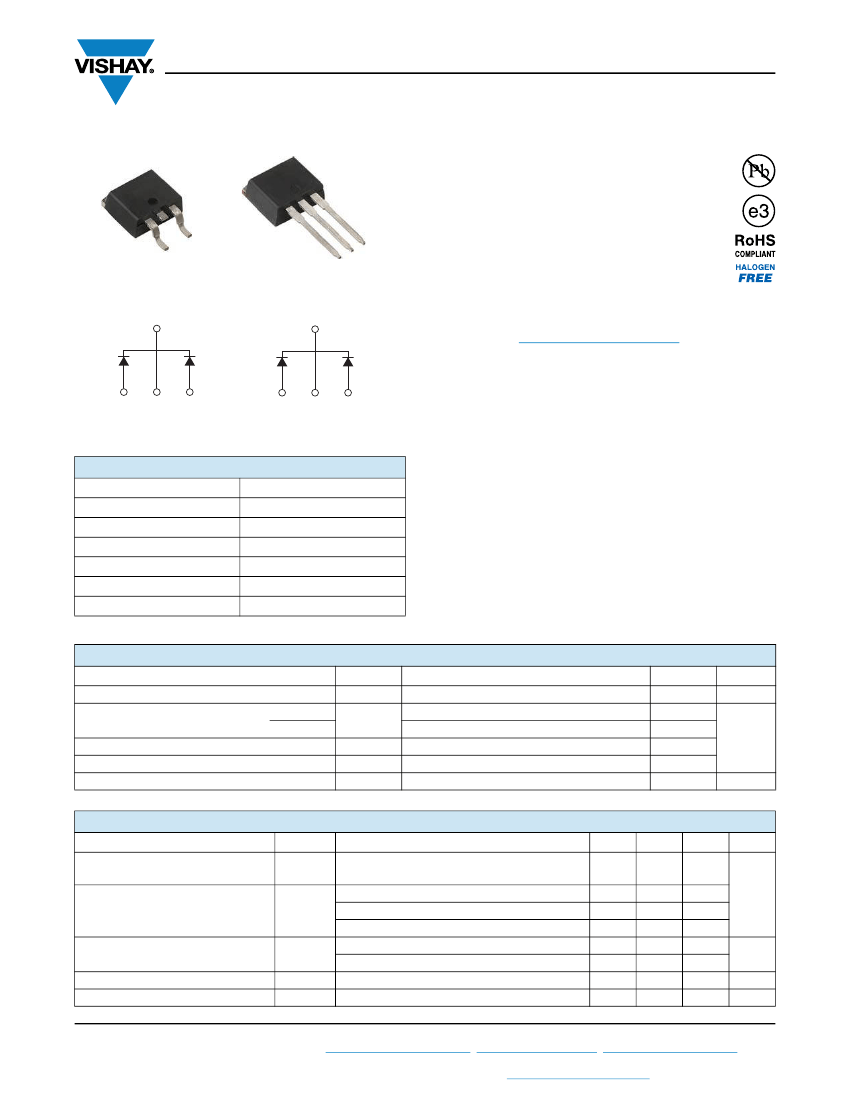

VS-MURB1620CTHM3, VS-MURB1620CT-1HM3
www.vishay.com
Vishay Semiconductors
Ultrafast Rectifier, 2 x 8 A FRED Pt
®
FEATURES
•
•
•
•
•
Ultrafast recovery time
Low forward voltage drop
Low leakage current
175 °C operating junction temperature
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260 °C
2
3
1
1
2
3
TO-263AB (D
2
PAK)
Base
common
cathode
2
TO-262AA
Base
common
cathode
2
• AEC-Q101 qualified
• Meets JESD 201 class 1 whisker test
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESCRIPTION / APPLICATIONS
1
2
3
Anode
2
1
2
3
Anode
2
Anode Common
1 cathode
Anode Common
1 cathode
VS-MURB1620CTHM3
VS-MURB1620CT-1HM3
PRODUCT SUMMARY
Package
I
F(AV)
V
R
V
F
at I
F
t
rr
(typ)
T
J
max.
Diode variation
TO-263AB (D
2
PAK), TO-262AA
2x8A
200 V
0.895 V
19 ns
175 °C
Common cathode
MUR.. series are the state of the art ultrafast recovery
rectifiers specifically designed with optimized performance
of forward voltage drop and ultrafast recovery time.
The planar structure and the platinum doped life time
control, guarantee the best overall performance,
ruggedness and reliability characteristics.
These devices are intended for use in the output rectification
stage of SMPS, UPS, DC/DC converters as well as
freewheeling diode in low voltage inverters and chopper
motor drives.
Their extremely optimized stored charge and low recovery
current minimize the switching losses and reduce over
dissipation in the switching element and snubbers.
ABSOLUTE MAXIMUM RATINGS
PARAMETER
Peak repetitive reverse voltage
Average rectified forward current
per leg
total device
SYMBOL
V
RRM
I
F(AV)
I
FSM
I
FM
T
J
, T
Stg
Rated V
R
, square wave, 20 kHz, T
C
= 150 °C
Rated V
R
, T
C
= 150 °C
TEST CONDITIONS
MAX.
200
8.0
16
100
16
-65 to +175
°C
A
UNITS
V
Non-repetitive peak surge current per leg
Peak repetitive forward current per leg
Operating junction and storage temperatures
ELECTRICAL SPECIFICATIONS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
Breakdown voltage, blocking voltage
SYMBOL
V
BR
,
V
R
V
F
I
R
= 100 μA
I
F
= 8 A
Forward voltage
I
F
= 8 A, T
J
= 150 °C
V
R
= V
R
rated
Reverse leakage current
Junction capacitance
Series inductance
I
R
C
T
L
S
T
J
= 150 °C, V
R
= V
R
rated
V
R
= 200 V
Measured lead to lead 5 mm from package body
I
R
= 100 μA
TEST CONDITIONS
MIN.
200
-
-
-
-
-
-
200
TYP.
-
-
-
-
-
25
8.0
-
MAX.
-
0.975
0.895
5
250
-
-
-
μA
pF
nH
V
UNITS
Revision: 10-Jul-15
Document Number: 94852
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURB1620CTHM3, VS-MURB1620CT-1HM3
www.vishay.com
Vishay Semiconductors
DYNAMIC RECOVERY CHARACTERISTICS
(T
J
= 25 °C unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
I
F
= 1.0 A, dI
F
/dt = 100 A/μs, V
R
= 30 V
Reverse recovery time
t
rr
T
J
= 25 °C
T
J
= 125 °C
Peak recovery current
I
RRM
Q
rr
T
J
= 25 °C
T
J
= 125 °C
T
J
= 25 °C
T
J
= 125 °C
I
F
= 8 A
dI
F
/dt = 200 A/μs
V
R
= 160 V
MIN.
-
-
-
-
-
-
-
TYP.
19
20
34
1.7
4.2
23
75
MAX.
-
-
-
-
-
-
-
A
ns
UNITS
Reverse recovery charge
nC
THERMAL - MECHANICAL SPECIFICATIONS
PARAMETER
Maximum junction and storage
temperature range
Thermal resistance,
junction to case per leg
Thermal resistance,
junction to ambient per leg
Thermal resistance,
case to heatsink
Weight
Mounting torque
Marking device
Case style TO-263AB (D
2
PAK)
Case style TO-262AA
SYMBOL
T
J
, T
Stg
R
thJC
R
thJA
R
thCS
Mounting surface, flat, smooth and greased
TEST CONDITIONS
MIN.
-65
-
-
-
-
-
6.0
(5.0)
TYP.
-
-
-
0.5
2.0
0.07
-
MAX.
175
3.0
50
-
-
-
12
(10)
g
oz.
kgf · cm
(lbf · in)
°C/W
UNITS
°C
MURB1620CTH
MURB1620CT-1H
I
F
- Instantaneous Forward Current (A)
100
100
I
R
- Reverse Current (μA)
T
J
= 175 °C
10
T
J
= 150 °C
1
T
J
= 125 °C
T
J
= 100 °C
0.1
10
T
J
= 175 °C
T
J
= 150 °C
T
J
= 25 °C
1
0.01
T
J
= 25 °C
0.001
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0
50
100
150
200
250
V
F
- Forward Voltage Drop (V)
Fig. 1 - Typical Forward Voltage Drop Characteristics
V
R
- Reverse Voltage (V)
Fig. 2 - Typical Values of Reverse Current vs.
Reverse Voltage
Revision: 10-Jul-15
Document Number: 94852
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURB1620CTHM3, VS-MURB1620CT-1HM3
www.vishay.com
Vishay Semiconductors
1000
C
T
- Junction Capacitance (pF)
100
T
J
= 25 °C
10
1
10
100
1000
V
R
- Reverse Voltage (V)

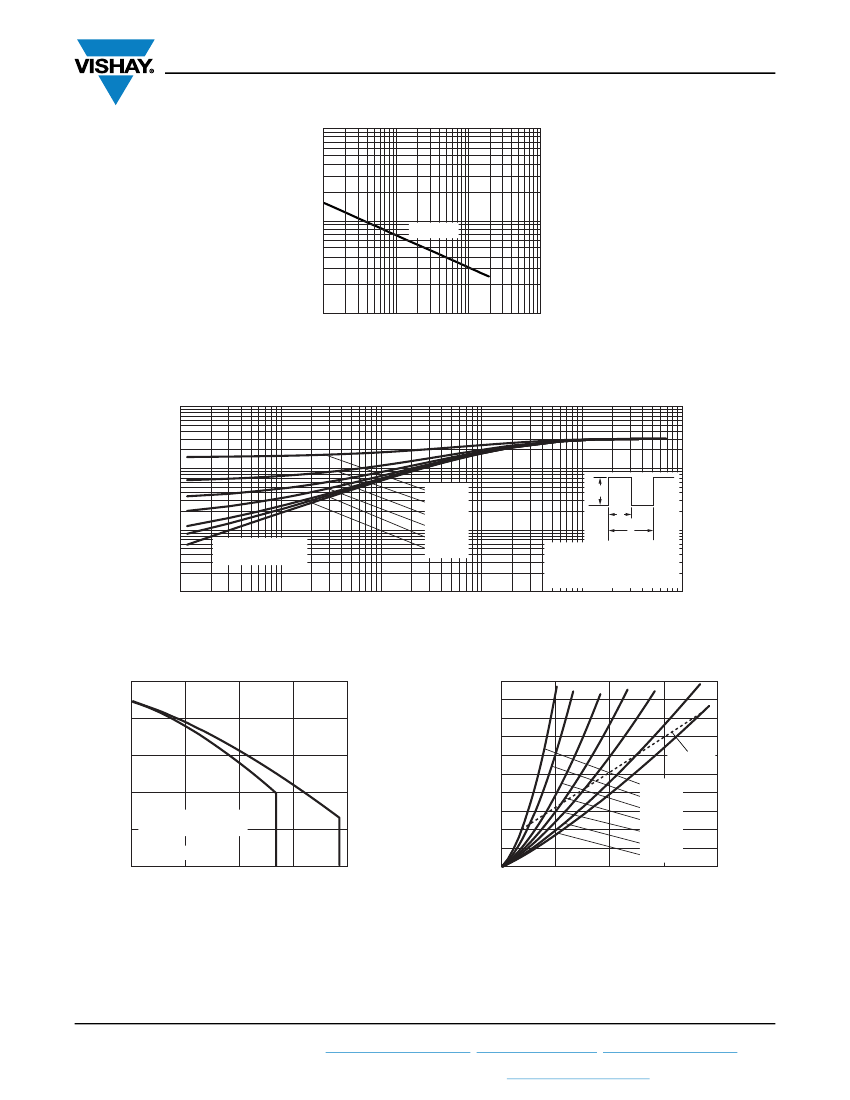

Fig. 3 - Typical Junction Capacitance vs. Reverse Voltage
Z
thJC
- Thermal Impedance (°C/W)
10
1
D = 0.50
D = 0.20
D = 0.10
D = 0.05
D = 0.02
D = 0.01
P
DM
t
1
t
2
0.1
Single
pulse
(thermal resistance)
Notes:
1. Duty factor D = t
1
/t
2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.01
0.1
1
0.01
0.00001
0.0001
0.001
t
1
- Rectangular Pulse Duration (s)
Fig. 4 - Maximum Thermal Impedance Z
thJC
Characteristics
Allowable Case Temperature (°C)
180
10
170
DC
160
Average Power Loss (W)
8
6
RMS limit
D = 0.01
D = 0.02
D = 0.05
D = 0.10
D = 0.20
D = 0.50
DC
0
3
6
9
12
150
Square
wave (D = 0.50)
Rated V
R
applied
See
note (1)
130
0
3
6
9
12
4
140
2
0
I
F(AV)
- Average Forward Current (A)
Fig. 5 - Maximum Allowable Case Temperature vs.
Average Forward Current
I
F(AV)
- Average Forward Current (A)
Fig. 6 - Forward Power Loss Characteristics
Revision: 10-Jul-15
Document Number: 94852
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURB1620CTHM3, VS-MURB1620CT-1HM3
www.vishay.com
60
V
R
= 160 V
T
J
= 125 °C
T
J
= 25 °C
I
F
= 30 A
I
F
= 15 A
I
F
= 8 A
200
V
R
= 160 V
T
J
= 125 °C
T
J
= 25 °C
I
F
= 30 A
I
F
= 15 A
I
F
= 8 A
Vishay Semiconductors
50
160
30
Q
rr
(nC)
t
rr
(ns)
40
120
80
20
40
10
100
1000
0
100
1000
dI
F
/dt (A/μs)

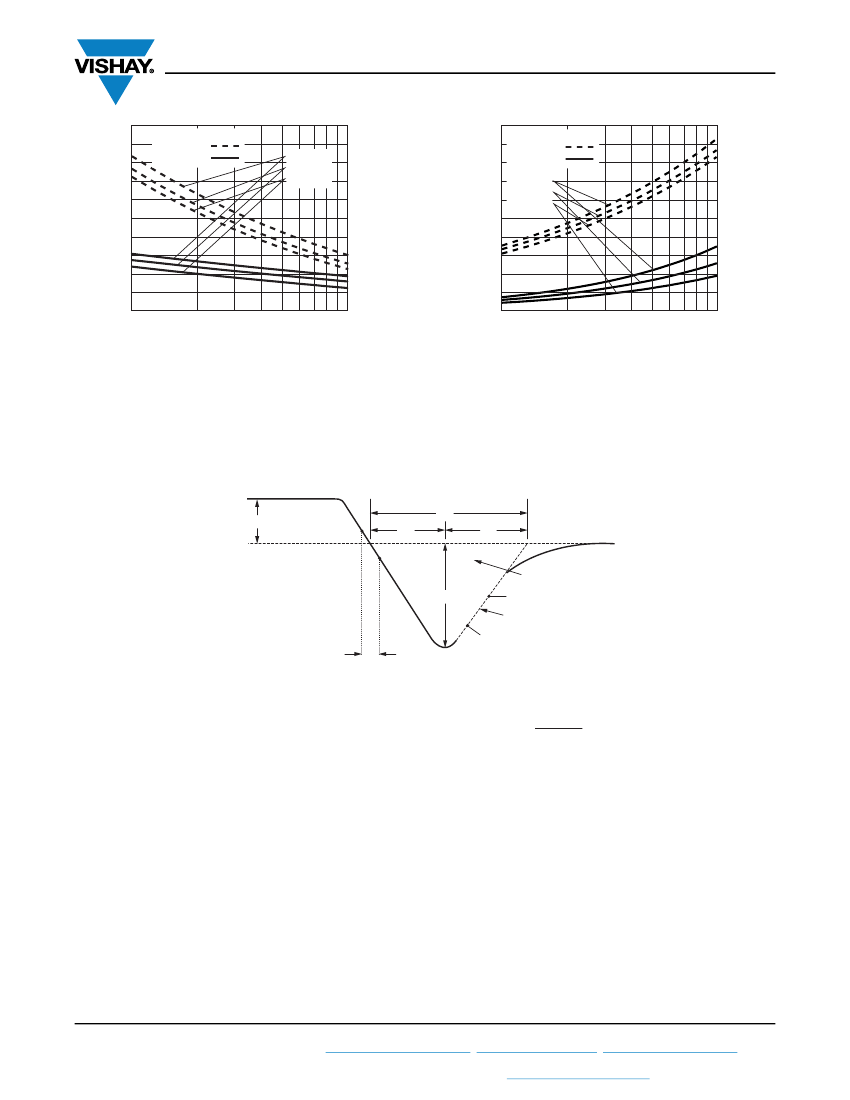

Fig. 7 - Typical Reverse Recovery Time vs. dI
F
/dt
dI
F
/dt (A/μs)
Fig. 8 - Typical Stored Charge vs. dI
F
/dt
(1)
Note
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward power loss = I
F(AV)
x V
FM
at (I
F(AV)
/D) (see fig. 6);
Pd
REV
= Inverse power loss = V
R1
x I
R
(1 - D); I
R
at V
R1
= Rated V
R
(3)
I
F
0
t
rr
t
a
t
b
Q
rr
(2)
(4)
I
RRM
0.5 I
RRM
dI
(rec)M
/dt
(5)
0.75 I
RRM
(1)
dI
F
/dt
(1) dI
F
/dt - rate of change of current
through zero crossing
(2) I
RRM
- peak reverse recovery current
(3) t
rr
- reverse recovery time measured
from zero crossing point of negative
going I
F
to point where a line passing
through 0.75 I
RRM
and 0.50 I
RRM
extrapolated to zero current.
(4)
Q
rr
- area under curve defined by t
rr
and I
RRM
Q
rr
=
t
rr
x I
RRM
2
(5) dI
(rec)M
/dt - peak rate of change of
current during t
b
portion of t
rr
Fig. 9 - Reverse Recovery Waveform and Definitions
Revision: 10-Jul-15
Document Number: 94852
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VS-MURB1620CTHM3, VS-MURB1620CT-1HM3
www.vishay.com
ORDERING INFORMATION TABLE
Vishay Semiconductors
Device code
VS- MUR
1
1
2
3
4
5
6
7
8
-
-
-
-
-
-
-
-
2
B
3
16
4
20
5
CT
6
-1
7
L
8
H
9
M3
10
Vishay Semiconductors product
Ultrafast MUR series
B = D
2
PAK/TO-262
Current rating (16 = 16 A)
Voltage rating (20 = 200 V)
CT = center tap (dual)
None = D
2
PAK
-1 = TO-262
None = tube (50 pieces)
L = tape and reel (left oriented, for D
2
PAK package)
R = tape and reel (right oriented, for D
2
PAK package)
9
10
-
-
H = AEC-Q101 qualified
Environmental digit:
M3 = halogen-free, RoHS-compliant, and terminations lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N
VS-MURB1620CTHM3
VS-MURB1620CT-1HM3
VS-MURB1620CTLHM3
VS-MURB1620CTRHM3
QUANTITY PER T/R
50
50
800
800
MINIMUM ORDER QUANTITY
1000
1000
800
800
PACKAGING DESCRIPTION
Antistatic plastic tube
Antistatic plastic tube
13" diameter reel
13" diameter reel
LINKS TO RELATED DOCUMENTS
Dimensions
TO-263AB (D
2
PAK)
TO-262AA
TO-263AB (D
2
PAK)
TO-262AA
TO-263AB (D
2
PAK)
www.vishay.com/doc?95046
www.vishay.com/doc?95419
www.vishay.com/doc?95444
www.vishay.com/doc?95443
www.vishay.com/doc?95032
Part marking information
Packaging information
Revision: 10-Jul-15
Document Number: 94852
5
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
