VS-5080-DCE-205X-873M5154185 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> VS-5080-DCE-205X-873M5154185

VS-5080-DCE-205X-873M5154185: DescriptionSAW Oscillator; CategoryPassive components oscillator; File Size827KB，6 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

VS-5080-DCE-205X-873M5154185 Overview

SAW Oscillator

VS-5080-DCE-205X-873M5154185 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMD, 10 PIN
Reach Compliance Code	unknow
Other features	COMPLEMENTARY OUTPUT
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency offset/pull rate	20 ppm
Installation features	SURFACE MOUNT
Number of terminals	10
Nominal operating frequency	873.5154185 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	SAW OSCILLATOR
Output compatibility	LVPECL
Encapsulate equivalent code	DILCC10,.37,152/100
physical size	14.4mm x 9.5mm x 4.9mm
Maximum slew rate	65 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

Voltage Controlled SAW Oscillator

Low G-Sensitivity

VS-508

Description

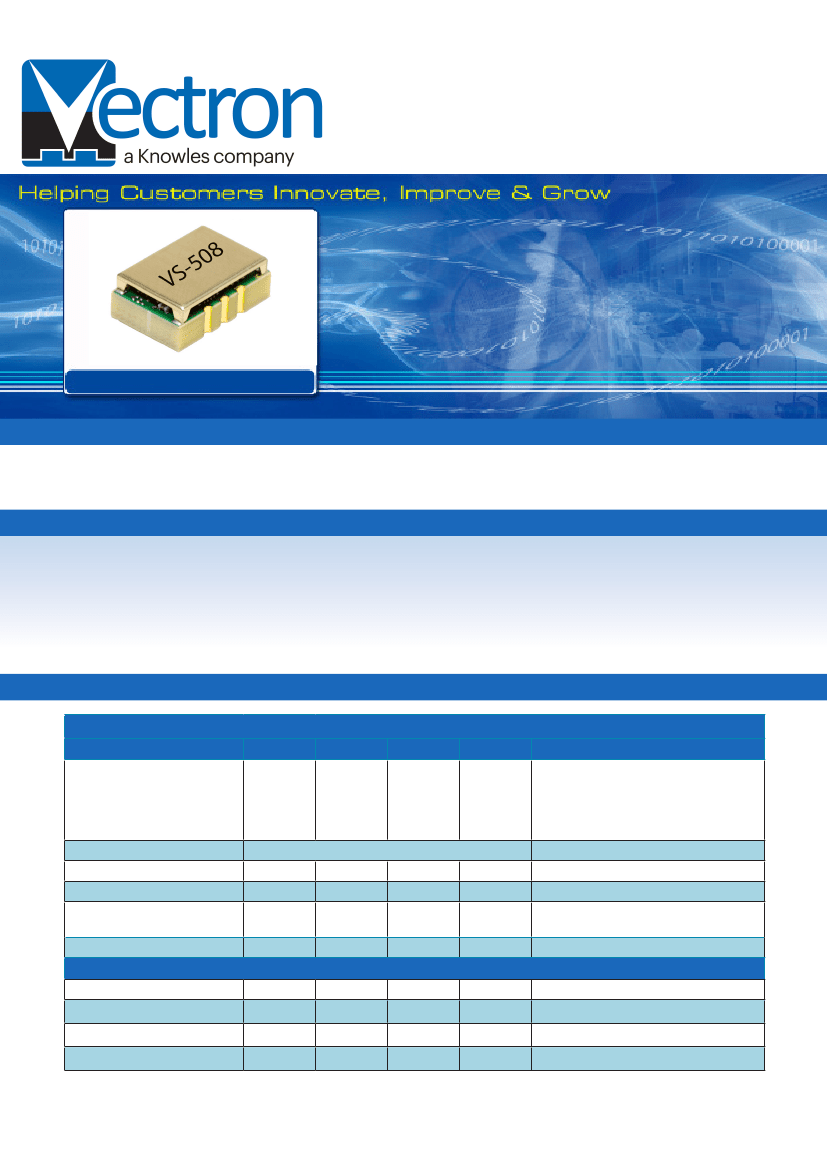

The VS-508 VCSO (Voltage Controlled Saw Oscillator) from Vectron is a high frequency, ultra low phase noise and low g-sensitivity

oscillator designed to support harsh environmental applications. The VS-508 provides 12fs rms jitter in a 12kHz to 20MHz

integration bandwidth and is available from 0.8 to 2.9GHz.

Features

•

Frequency Range 0.8 to 2.9 GHz

Ultra low jitter performance

Typical Jitter: 12fsec rms, 12kHz to 20MHz

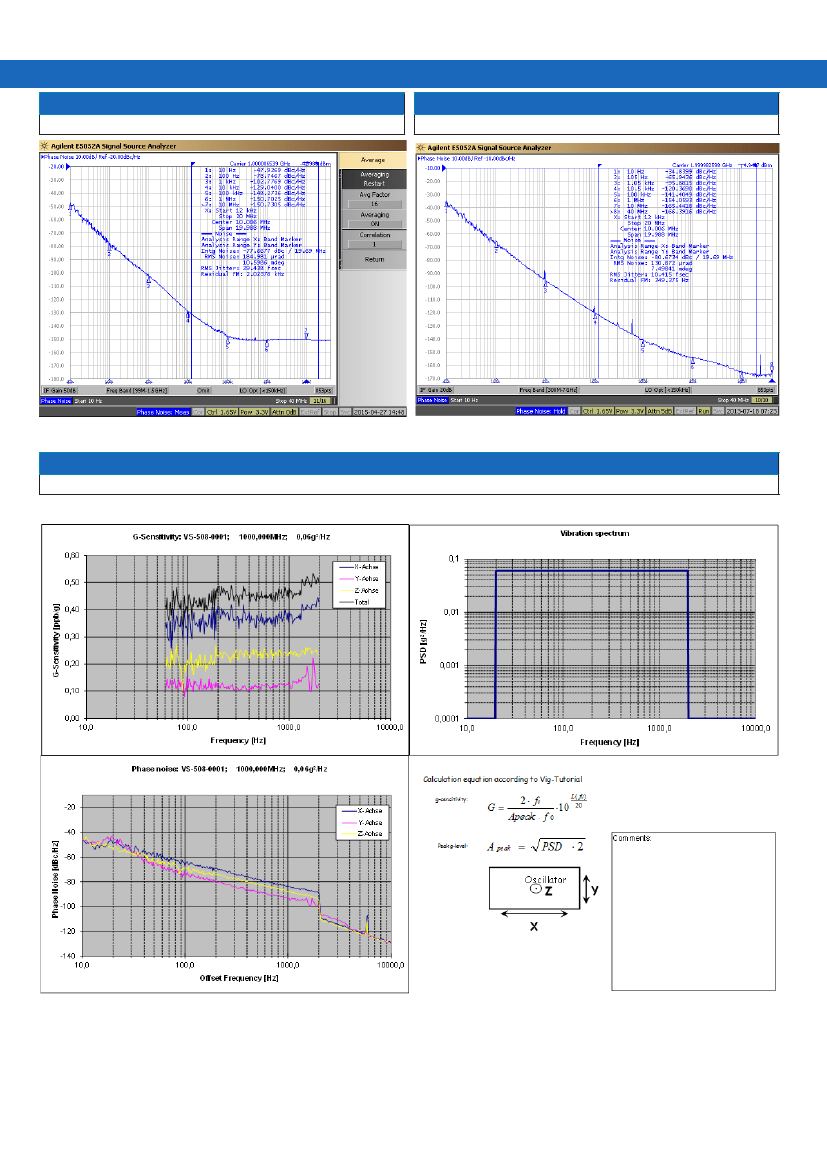

G-Sensitivity <0.6ppb/g

3.3 + 5V supply voltage

Output: Sinewave, balanced Sinewave, LVPECL

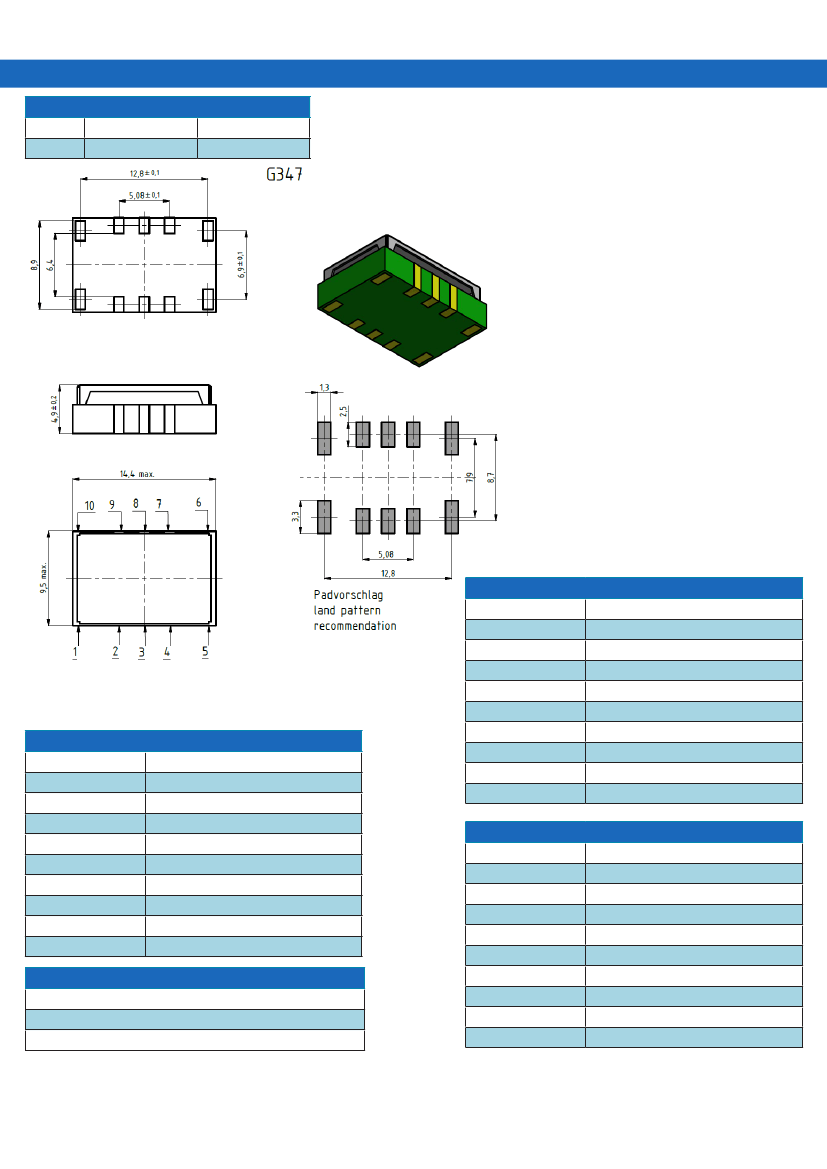

9x14 mm SMD package

See table on Page 5 for standard frequencies

•

Applications

Harsh Environment

Military

Test & Measurement

Performance Specifications

Pulling Characteristics

Parameter

Absolute Pull Range (APR)

Min

±20

Typ

Max

Units

ppm

Notes

Includes df vs:

•Operating temperature range +10 .. 85°C

•Aging 10 years

•Supply Voltage Change 5%

•Load change 10%

Positive

with V

= 5V

with V

= 3.3V

Tuning Slope

Control Voltage Range

Frequency control input

impedance

Modulation bandwidth

Supply voltage (standard)

Current consumption

Supply voltage (standard)

Current consumption

3.135

3.3

0.5

100

2.5

1.65

4.5

3.3

V DC

VDC

kΩ

kHz

@ -3dB

Supply Voltage (Vs)

4.75

5.00

5.25

3.465

100

V DC

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com

1 of 6

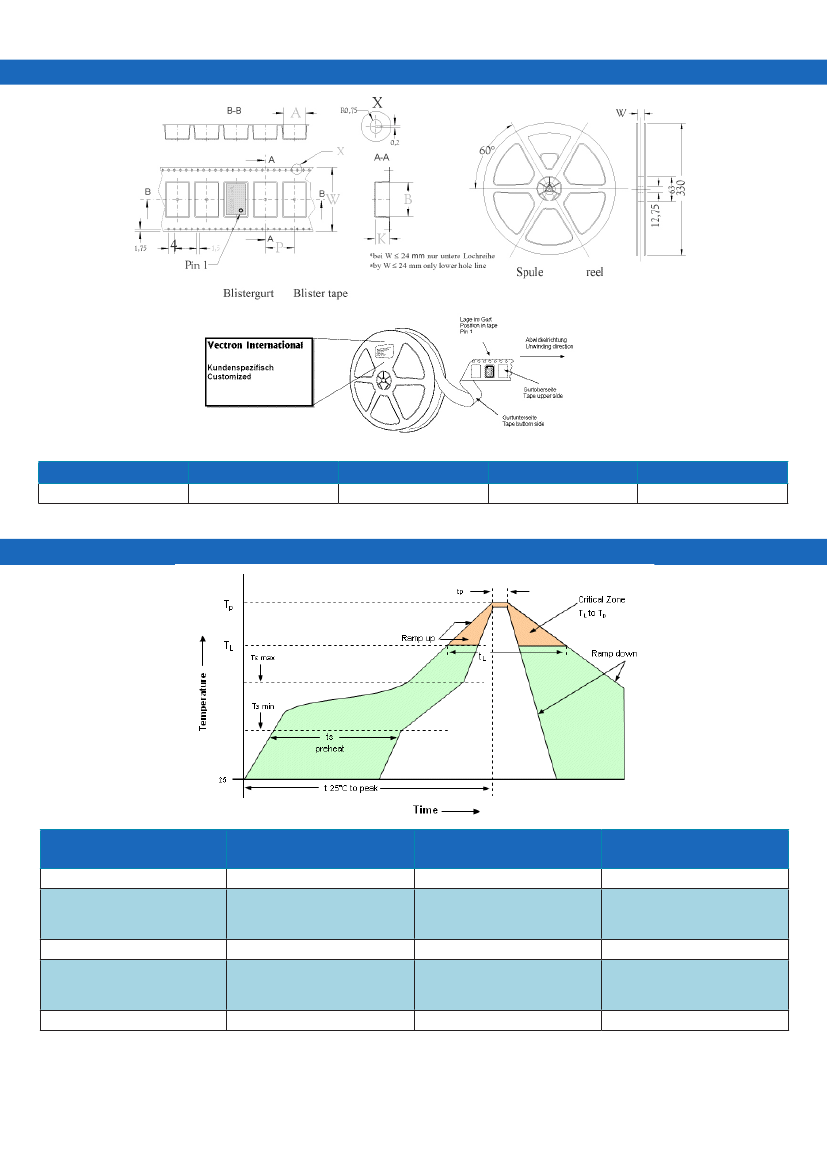

VS-5080-DCE-205X-873M5154185 Related Products

	VS-5080-DCE-205X-873M5154185	VS-5080-EFE-205X-1899M952044	VS-5080-ECE-205X-873M5154185	VS-5080-ECX-205X-1899M952044	VS-5080-EFX-205X-873M5154185	VS-5080-DCX-205X-873M5154185	VS-5080-DEE-205X-873M5154185	VS-5080-DFE-205X-873M5154185	VS-5080-ECX-205X-873M5154185
Description	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator	SAW Oscillator
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMD, 10 PIN	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	SMD, 10 PIN	DILCC10,.37,152/100	SMD, 10 PIN	SMD, 10 PIN	DILCC10,.37,152/100
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum control voltage	4.5 V	3.3 V	3.3 V	3.3 V	3.3 V	4.5 V	4.5 V	4.5 V	3.3 V
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of terminals	10	10	10	10	10	10	10	10	10
Nominal operating frequency	873.5154185 MHz	1899.952044 MHz	873.5154185 MHz	1899.952044 MHz	873.5154185 MHz	873.5154185 MHz	873.5154185 MHz	873.5154185 MHz	873.5154185 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	10 °C	10 °C	10 °C	-40 °C	-40 °C	10 °C
Oscillator type	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR	SAW OSCILLATOR
Encapsulate equivalent code	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100	DILCC10,.37,152/100
physical size	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm	14.4mm x 9.5mm x 4.9mm
Maximum slew rate	65 mA	100 mA	100 mA	100 mA	100 mA	65 mA	65 mA	65 mA	100 mA
Maximum supply voltage	5.25 V	3.465 V	3.465 V	3.465 V	3.465 V	5.25 V	5.25 V	5.25 V	3.465 V
Minimum supply voltage	4.75 V	3.135 V	3.135 V	3.135 V	3.135 V	4.75 V	4.75 V	4.75 V	3.135 V
Nominal supply voltage	5 V	3.3 V	3.3 V	3.3 V	3.3 V	5 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Other features	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT	-	COMPLEMENTARY OUTPUT	COMPLEMENTARY OUTPUT
Frequency offset/pull rate	20 ppm	-	20 ppm	20 ppm	-	20 ppm	-	-	20 ppm
Output compatibility	LVPECL	-	LVPECL	LVPECL	-	LVPECL	-	-	LVPECL
maximum symmetry	55/45 %	-	55/45 %	55/45 %	-	55/45 %	-	-	55/45 %
Maker	-	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.	Vectron International, Inc.
