MBR340S
Technical Data
Data Sheet N0028, Rev. B
MBR340S SCHOTTKY RECTIFIER
Features
Designed as Bypass Diodes for Solar Panels
High Forward Surge Capability
Ultra Low Forward Voltage Drop
Excellent High Temperature Stability
This is a Halogen Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
TO-277B

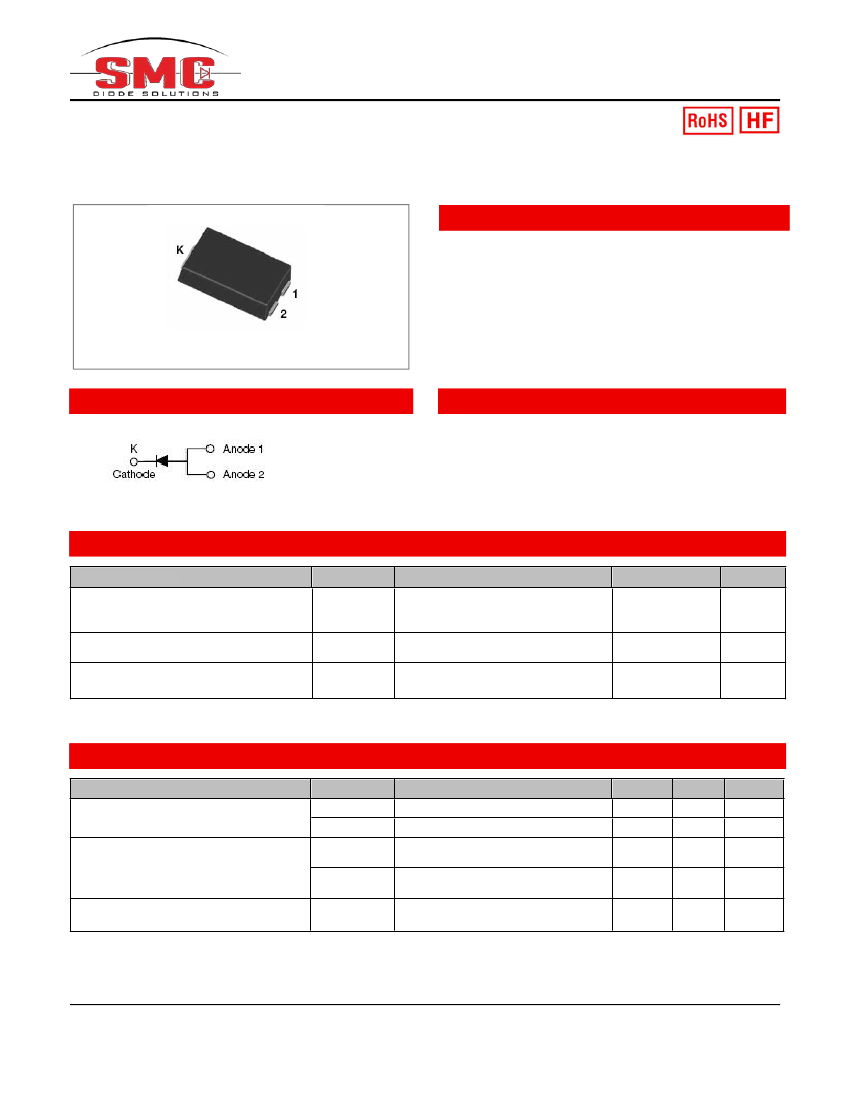

Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Forward Current
Peak One Cycle Non-Repetitive Surge
Current
Symbol
V
RRM
V
RWM
V
R
I
F (AV)
I
FSM
Condition
-
50% duty cycle @Tc=80°C,
rectangular wave form
8.3ms, Half Sine pulse, Tc=25°C
Max.
40
3
75
Units
V
A
A
Electrical Characteristics:
Characteristics
Forward Voltage Drop *
Reverse Current*
Symbol
V
F1
V
F2
I
R1
I
R2
Condition
@ 3A, Pulse, T
J
= 25
C
@ 3A, Pulse, T
J
= 125
C
@V
R
= rated V
R
T
J
= 25
C
@V
R
= rated V
R
T
J
= 100C
@V
R
= 5.0 V, Tc=25℃
f
SIG
= 1MHz
Typ.
0.40
0.33
0.03
3
130
Max.
0.63
0.57
1.0
20
200
Units
V
V
mA
mA
pF
Junction Capacitance
* Pulse width < 300 µs, duty cycle < 2%
C
J
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MBR340S
Technical Data
Data Sheet N0028, Rev. B
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance Junction to
Case
Approximate Weight
Symbol
T
J
T
stg
R
JC
wt
Condition
-
-
-
-
Specification
-55 to +150
-55 to +150
8
0.08
Units
C
C
C/W
g

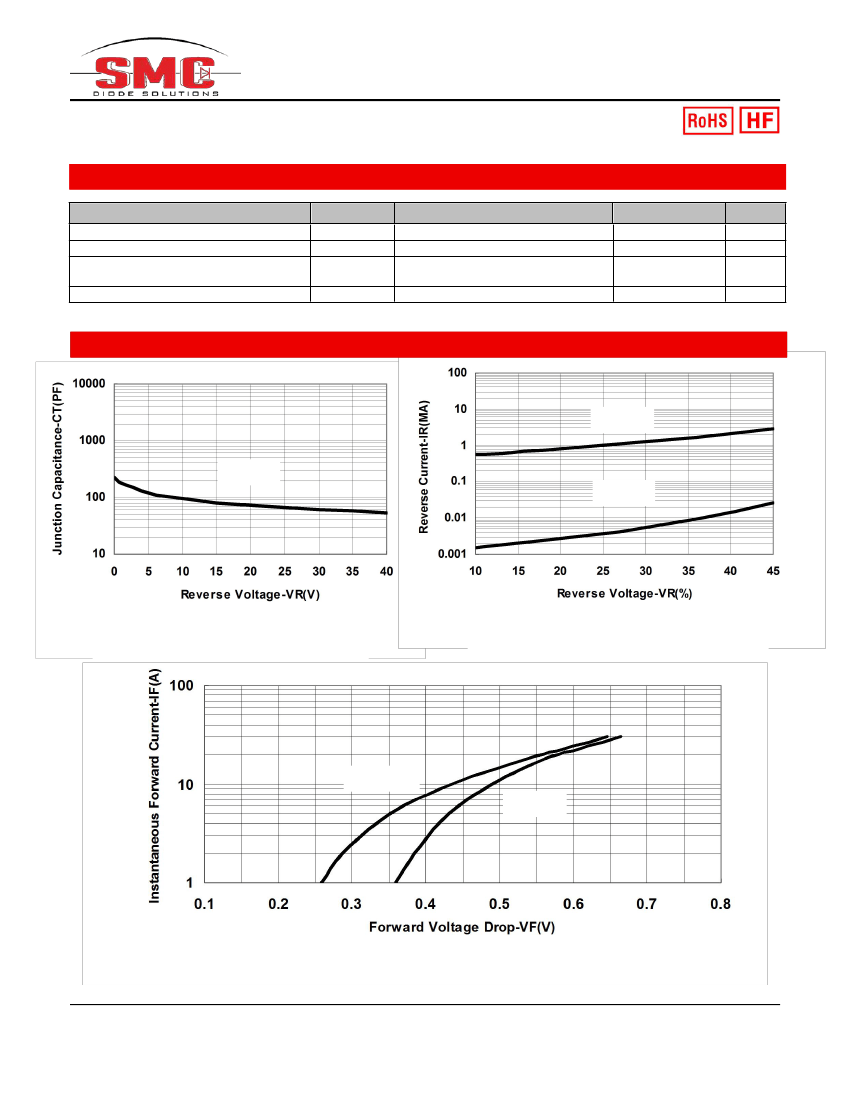

Ratings and Characteristics Curves
TJ=125℃
TJ=25℃
TJ=25℃
Fig.1-Typical Junction Capacitance
Fig.2-Typical Reverse Characteristics
TJ=125℃
TJ=25℃
Fig.3-Typical Instantaneous Forward Voltage Characteristics
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
MBR340S
Technical Data
Data Sheet N0028, Rev. B

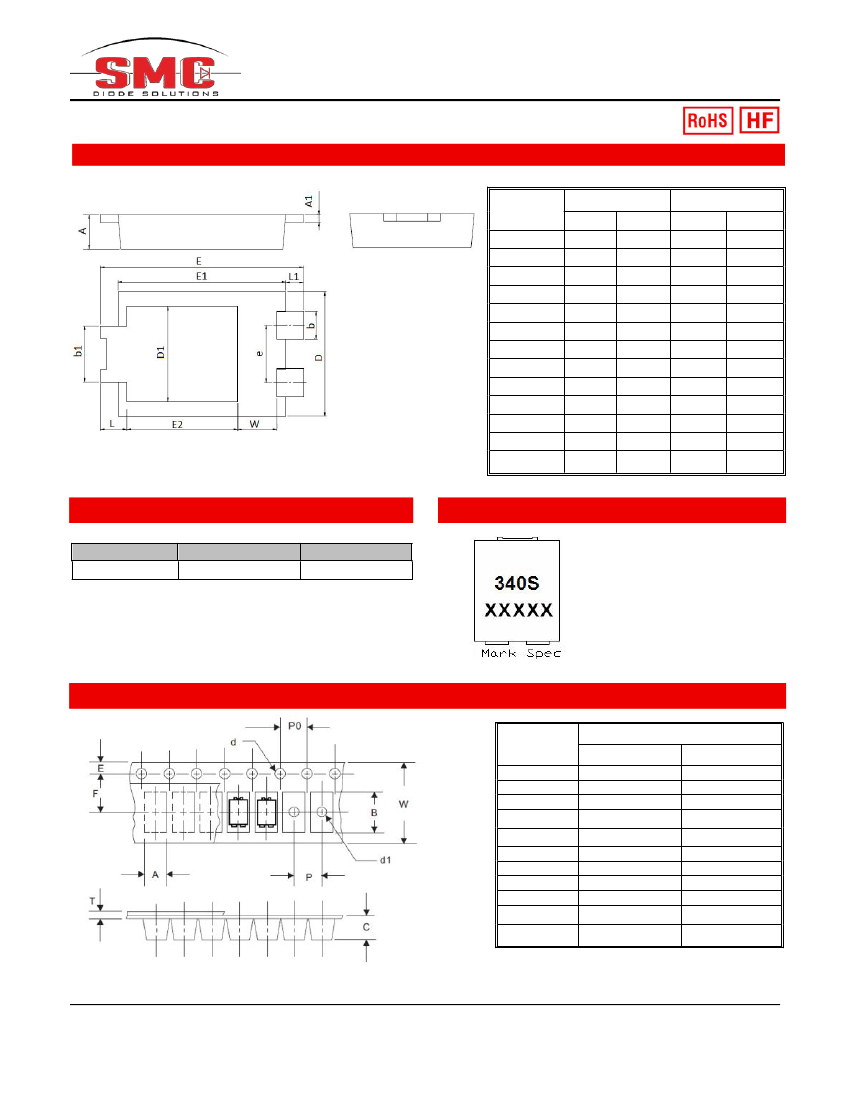

Mechanical Dimensions TO-277B
SYMBOL
A
A1
b
b1
D
D1
e
E
E1
E2
L
L1
W
Millimeters
Min.
0.95
0.20
0.85
1.70
3.88
2.90
1.74
6.30
5.28
3.40
0.70
0.41
1.10
Max.
1.25
0.30
0.95
1.90
4.08
3.20
1.94
6.70
5.48
3.70
1.00
0.71
1.40
Inches
Min.
0.037
0.008
0.033
0.067
0.153
0.114
0.069
0.248
0.208
0.134
0.028
0.016
0.043
Max.
0.049
0.012
0.037
0.075
0.161
0.126
0.076
0.264
0.216
0.146
0.039
0.028
0.055
Ordering Information
Device
MBR340S
TO-277B(Pb-Free)
Marking Diagram
5000pcs/ reel
Package
Shipping
Where XXXXX is YYWWL
MBR
3
40
S
YY
WW
L
= Device Type
= Forward Current (3A)
= Reverse Voltage (40V)
= Package type
= Year
= Week
= Lot Number
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
Cautions：Molding
resin
Epoxy resin UL:94V-0
Carrier Tape Specification TO-277B
SYMBOL
A
B
C
d
d1
E
F
P
P0
T
W
Millimeters
Min.
Max.
4.28
6.80
1.30
1.40
-
1.65
5.40
7.90
3.90
0.24
4.48
7.10
1.50
1.60
1.50
1.85
5.60
8.10
4.10
0.44
11.70
12.30
