4710PS-22T-B30-B00: DescriptionFAN AXIAL 119X25.5MM 220VAC TERM; CategoryThermal management products; File Size424KB，2 Pages; ManufacturerNMB Technologies Corporation; Environmental Compliance

Download Datasheet Parametric View All

4710PS-22T-B30-B00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4710PS-22T-B30-B00	-	-	View	Buy Now

4710PS-22T-B30-B00 Overview

FAN AXIAL 119X25.5MM 220VAC TERM

4710PS-22T-B30-B00 Parametric

Parameter Name	Attribute value
Voltage - Rated	220VAC
size/dimensions	Square - 119mm length x 119mm height
width	25.50mm
airflow	70.6 CFM（1.98m³/min）
static pressure	0.165 inches water column (41.1 Pa)
Bearing type	ball
Fan type	Tube shaft type
characteristic	-
noise	38.0 dB
Power (W)	11.00W
RPM	2700 RPM
Termination	2 terminals
Intrusion protection	-
Operating temperature	14 ~ 158°F （-10 ~ 70°C）
Approval	CE，CSA，UL，VDE
weight	0.8 lbs (362.87g)
Rated current	0.080A
voltage range	-
Material - Frame	aluminum
Material - Blade	Polycarbonate (PC), fiberglass reinforced
Service life at different temperatures	50,000 hours at 25°C

Preview

Download Datasheet

View All

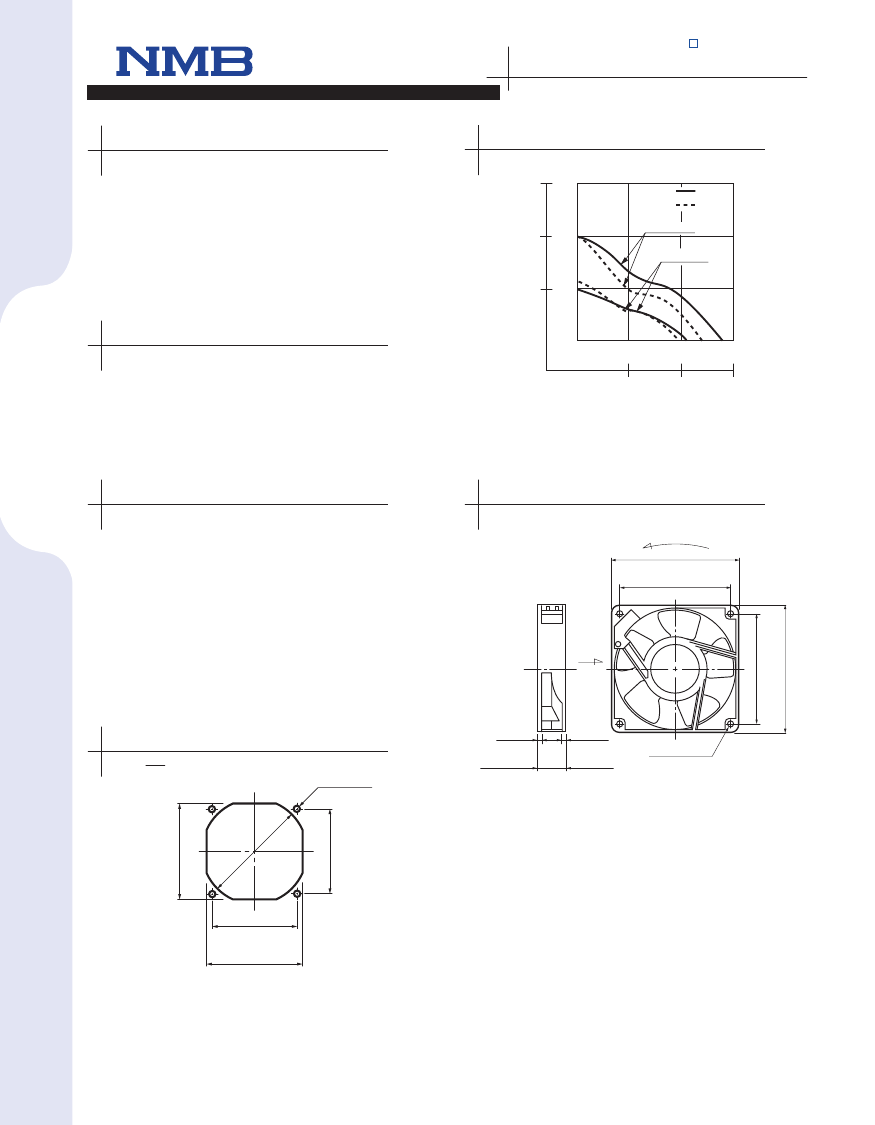

(119

X

25

L

)

11925PB

NMBTC.COM / 248.919.2250

Legacy Part No. 4710PS

General Specifications

Motor Structure:

Shaded Pole Induction Motor

Motor Protection:

Impedance Protection

Insulation Resistance:

100M Ω or over with a DC500V Megger

Characteristic Curves

In H

2

O

.24

60

40

20

(Pa)

60Hz

50Hz

L

K

Static Pressure

Ps

Dielectric Withstand Voltage:

AC 1800V 3s

Allowable Ambient Temperature Range:

-10°C ~ +70°C (Operating)

-40°C ~ +70°C (Storage)

(non-condensing environment)

.16

.08

AC Axial Fans

Expected Life

Failure Rate: 10%

25°C

100,000 Hours

0

0.7

24.7

1.5

53

2.25

(m

3

/min)

79.4

CFM

Air Flow

Material

Casing

Impeller

Bearing

Lead Wire

or

Terminal

: Aluminum (Black Painting)

: Plastic (Black) UL93V-0

: Ball Bearing

: AWG22, UL3266

: Faston #110 or equivalent

Outline

ROTATION

4.69

± .04

(119)

4.13

± 0.2

(105

± 0.3

)

NAME PLATE

Panel Cut-Outs

inch

Units: (mm)

.169

4 – (φ4.3)

(

φ φ

5.

13 35

6)

1.00

± .04

(25.5

± 0.5

)

.14

± .02

(3.5)

.14

± .02

(3.5)

.169

8 – (φ4.3

± 0.2

)

Flange Type

4.52

(115)

4.14

(105)

4.52

(115)

INLET SIDE / OUTLET SIDE

4.14

(105)

4.69

± .04

(119)

4.13

± 0.2

(105

± 0.3

)

AIR
