Sensor/actuator cable - SAC-8P-M12MS/ 5,0-28X OD - 1407272
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

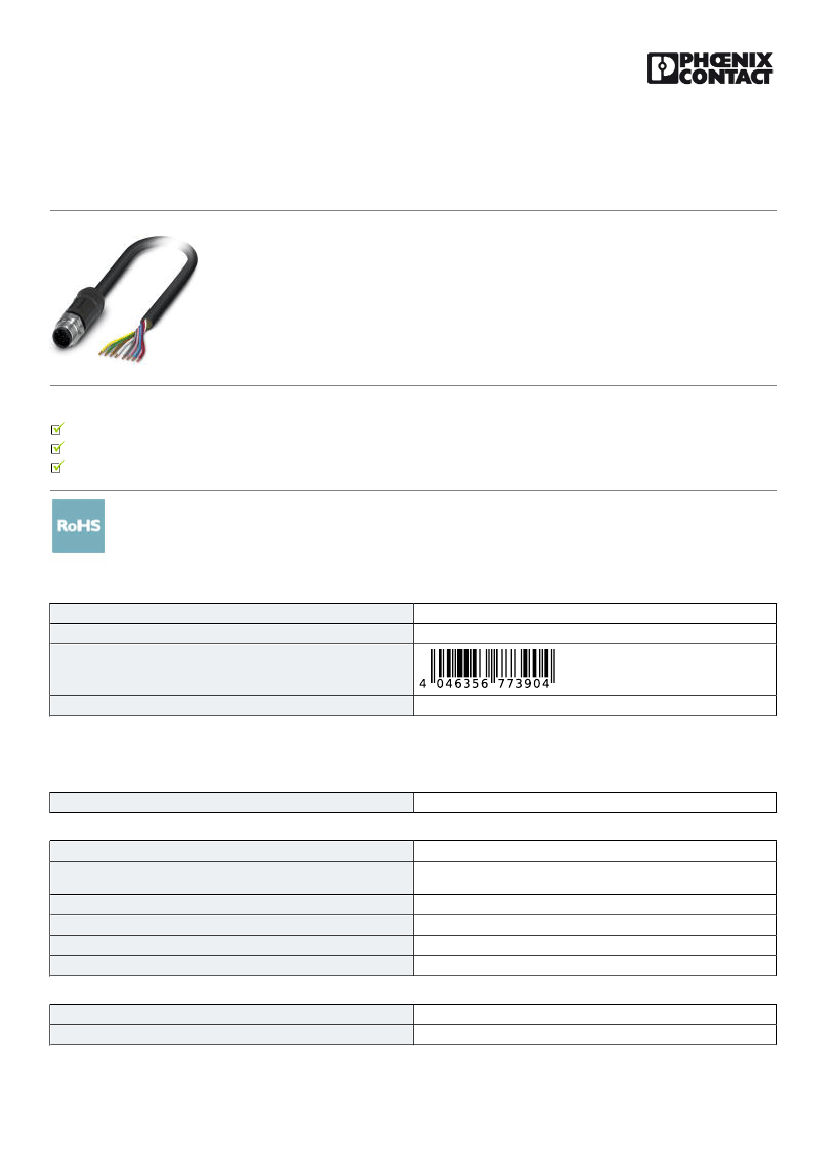

Sensor/actuator cable, 8-position, PE-X halogen-free, black-gray RAL 7021, Plug straight M12, A-coded, on
free cable end, cable length: 5 m, for outdoor applications, with high-grade steel knurl
Your advantages
Easy and safe: 100% electrically tested plug-in components
Corrosion protection for all exposed metal parts, thanks to the use of stainless steel type 1.4404
Robust throughout: resistant to oil, UV, and ozone, withstands temperatures from -40°C to +105°C
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
4046356773904
1 pc
10 pc
Technical data
Dimensions
Length of cable
5m
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C (Plug / socket)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC
60512-11-4))
Degree of protection
IP65
IP67
IP68
IP69K
General
Rated current at 40°C
Rated voltage
2A
30 V AC
11/01/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1407272
Sensor/actuator cable - SAC-8P-M12MS/ 5,0-28X OD - 1407272
Technical data
General
30 V DC
Number of positions
Insulation resistance
Coding
Standards/regulations
Status display
Protective circuit/component
Degree of pollution
Insertion/withdrawal cycles
Torque
8
≥ 100 MΩ
A - standard
M12 connector IEC 61076-2-101
No
Unwired
3
≥ 100
0.4 Nm (M12 connector)
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
V0
CuSn
Ni/Au
PP
PP
Stainless steel
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
V0
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
Length of twist, overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
Minimum bending radius, fixed installation
Minimum bending radius, flexible installation
Number of bending cycles
PE-X black
28X
Li2X2X
8x 0.25 mm²
24
32x 0.10 mm
1.17 mm ±0.02 mm
approx. 0.25 mm (Core insulation)
white, brown, green, yellow, gray, pink, blue, red
8 wires around filler to the core
67 mm
black-gray RAL 7021
approx. 1.3 mm
6.8 mm ±0.2 mm
5xD
10 x D
2000000
11/01/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1407272
Sensor/actuator cable - SAC-8P-M12MS/ 5,0-28X OD - 1407272
Technical data
Cable
Minimum bending radius, drag chain applications
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material, filler
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
Flame resistance
Halogen-free
Resistance to oil
Other resistance
Ambient temperature (operation)
10 x D
10 m
3 m/s
10 m/s²
65 kg/km
PE-X
PP yarn
PE-X
Bare Cu litz wires
≥ 100 MΩ*km (at 20 °C)
≤ 78 Ω/km (at 20 °C)
≤ 300 V AC
≥ 3000 V AC (Spark test)
Irradiated
According to DIN EN 60332-1-2
according to DIN EN 50266-2-5
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 50267-2-1
According to DIN EN 60811-2-1, 168 h at 100°C
According to DIN EN 50306
Resistance to fuels according to IEC 60811, 168 h at 70°C
UV resistant according to DIN VDE 0276-605
-40 °C ... 105 °C (cable, fixed installation)
-15 °C ... 105 °C (cable, flexible installation)
20 °C ±5 °C (cable, drag chain applications)
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

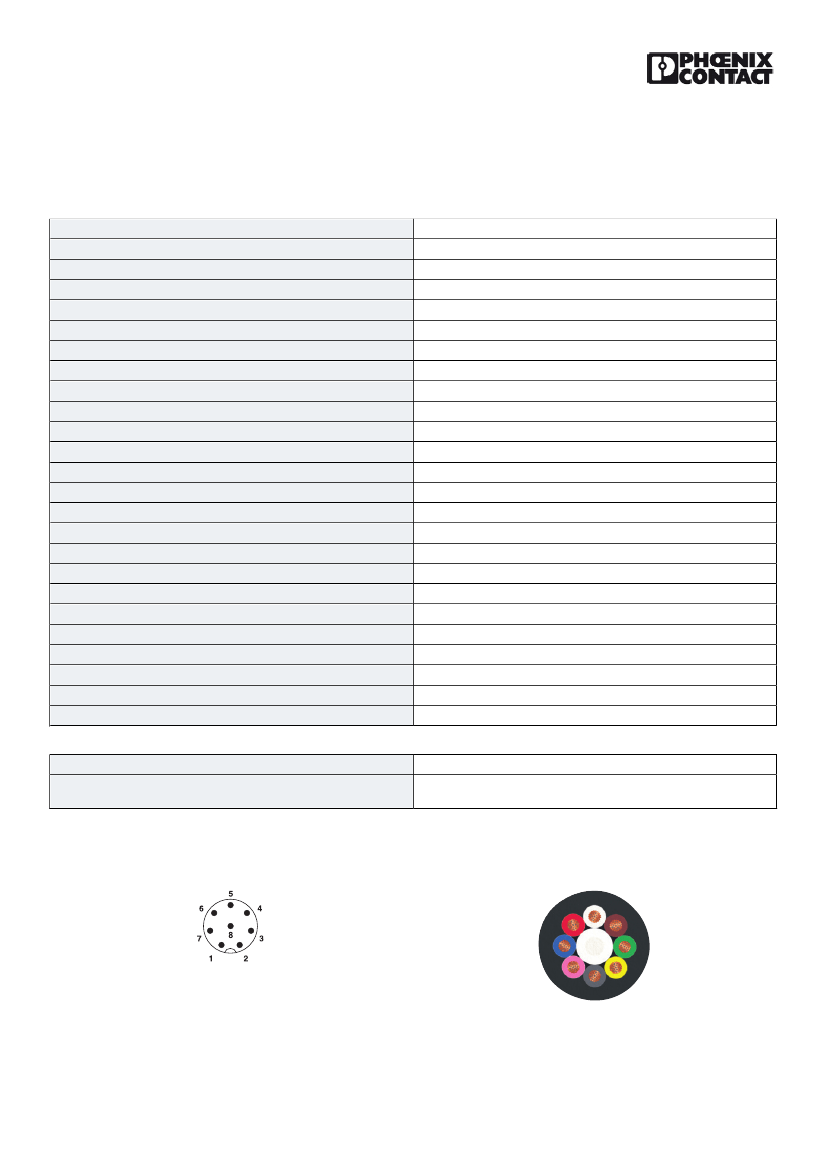

Drawings
Schematic diagram
Cable cross section
Pin assignment M12 plug, 8-pos., A-coded, view plug side
PE-X black [28X]
11/01/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1407272
Sensor/actuator cable - SAC-8P-M12MS/ 5,0-28X OD - 1407272
Dimensional drawing
46,8
1
2
WH
BN
GN
YE
GY
PK
BU
RD
Circuit diagram
Ø16
3
4
5
14
6
7
8
Plug, M12 x 1, straight, shielded
Contact assignment of the M12 plug
Approvals
Approvals
Approvals
DNV GL
Ex Approvals
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00002K4
