EHT-117-01-L-D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> EHT-117-01-L-D

EHT-117-01-L-D: Description2MM EJECTOR HEADER; CategoryThe connector; File Size732KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EHT-117-01-L-D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EHT-117-01-L-D	-	-	View	Buy Now

EHT-117-01-L-D Overview

2MM EJECTOR HEADER

EHT-117-01-L-D Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.079"（2.00mm）
Number of pins	34
Number of rows	2
Line spacing - patching	0.079"（2.00mm）
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	Through hole
Termination	welding
Fastening type	lock/eject hook
Contact Length - Mating	0.120"（3.05mm）
Contact length - terminal	0.114"（2.90mm）
Overall contact length	-
Insulation height	0.370"（9.40mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	15.0µin（0.38µm）
Contact Surface Preparation - Column	tin
Contact material	Phosphor bronze
Insulation Materials	Liquid Crystal Polymer (LCP)
characteristic	keyway
Operating temperature	-55°C ~ 125°C
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	black
Rated current	3A
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	-

Preview

Download Datasheet

View All

F-219

EC2–12

EHT–120–01–F–D–SM–LC

(2.00 mm) .0787"

EHT–112–01–L–D

EHT, EC2 SERIES

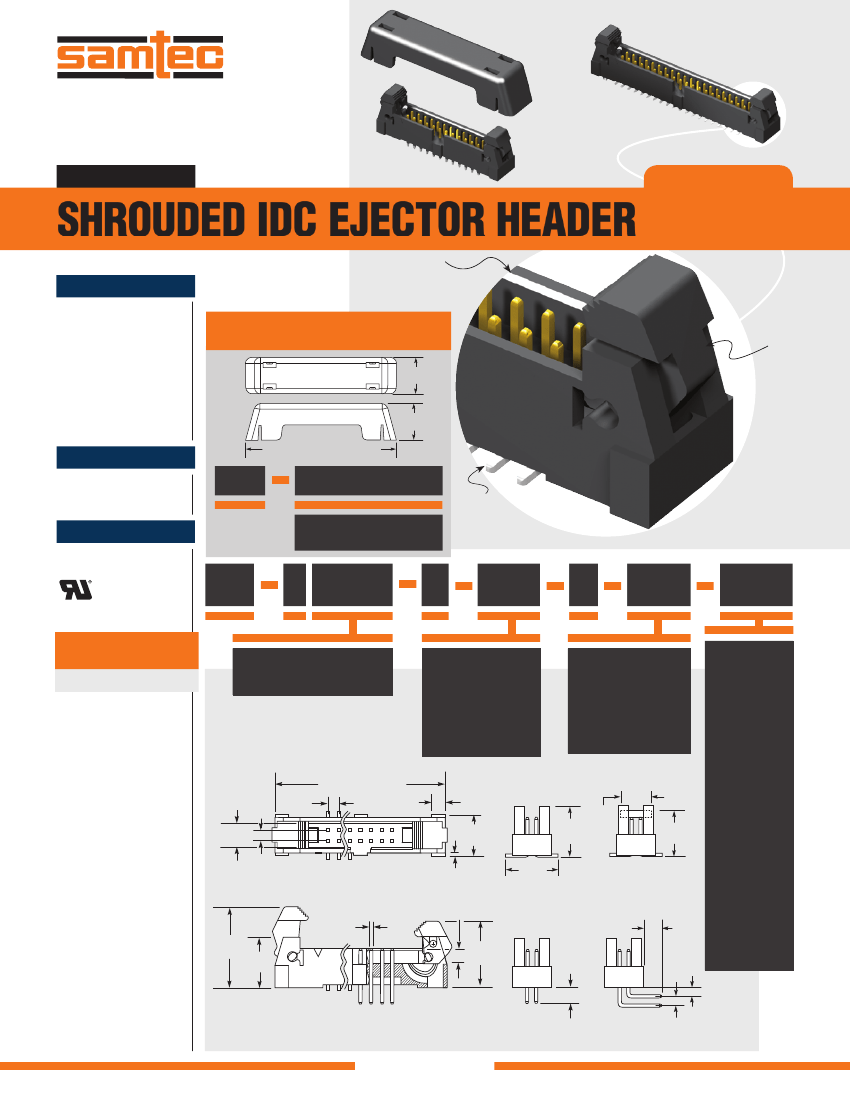

SHROUDED IDC EJECTOR HEADER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?EHT

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

TCSD

Ten standard

sizes mate with

common 2 mm IDC

cable assemblies

Ejector

latches

(Locks TCSD cable to EHT header)

(9.65)

.380

EJECTOR HEADER CAP

(9.65)

.380

No. of positions x (2.00) .0787

+ (19.89) .783

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

EC2

NO. PINS PER ROW

05, 08, 10, 12, 13,

15, 17, 20, 22, 25

Straight

through-hole,

right-angle, or

surface mount

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

EHT

NO. PINS

PER ROW

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other platings

05, 08, 10, 12, 13,

15, 17, 20, 22, 25

= Gold flash on post,

Matte Tin on tail

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

–F

Leave blank

for Through-hole

= Polarized Position

–“XX”

–SR

–LC

–L

= Right-angle

–RA

= Surface Mount

–SM

= Strain Relief

(Leave Blank for

no strain relief)

No. of positions x (2.00) .0787

+ (13.79) .543

(2.00)

.0787

(4.51)

.178

(2.00)

.0787

(2.54)

.100

(7.62)

.300

(0.51)

.020

(3.05)

.120

(12.19)

.480

(8.89)

.350

–SM

= Locking Clip

(–SM only)

(Manual placement

required)

(8.26)

.325

(9.53)

.375 (6.02)

.237

(8.58)

.338

–P

= (6.50 mm) .256"

DIA Polyimide Film

Pick & Place Pad

(–SM only)

–K

(15.07)

.593

(0.50)

.020 SQ

(9.40)

.370

(3.05)

.120

= Pick & Place Pad

(–SM only)

–P

(2.90)

.114

(2.00)

.0787

= Tape & Reel

(–SM only)

–TR

–SR

–RA

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(Latch removed for clarity)

Due to technical progress, all designs, specifications and components are subject to change without notice.

(1.52)

.060

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
