5044491107 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5044491107

5044491107: DescriptionCONN HEADER 11POS 1MM VERT SMD; CategoryThe connector; File Size214KB，3 Pages; ManufacturerMolex Premise Network; Environmental Compliance

Download Datasheet Parametric Compare View All

5044491107 Overview

CONN HEADER 11POS 1MM VERT SMD

5044491107 Parametric

Parameter Name	Attribute value
Connector type	Connector
Contact type	Male pin
Spacing - Mating	0.039"（1.00mm）
Number of pins	11
Number of rows	1
Line spacing - patching	-
Number of pins loaded	all
style	Board to cable/wire
shield	Covered - 4 walls
Installation type	surface mount
Termination	welding
Fastening type	latch holder
Contact Length - Mating	-
Contact length - terminal	-
Overall contact length	-
Insulation height	0.213"（5.40mm）
Contact shape	Square
Contact surface treatment - mating	gold
Contact Surface Treatment Thickness - Mating	1.00µin（0.025µm）
Contact Surface Preparation - Column	-
Contact material	Phosphor bronze
Insulation Materials	Polyamide (PA), nylon
characteristic	Pick and place, weld hold
Operating temperature	-
Intrusion protection	-
Material flammability rating	UL94 V-0
Insulation color	natural
Rated current	-
Rated voltage	-
Joint stack height	-
Contact Surface Treatment Thickness - Column	-
application	automotive, general, industrial

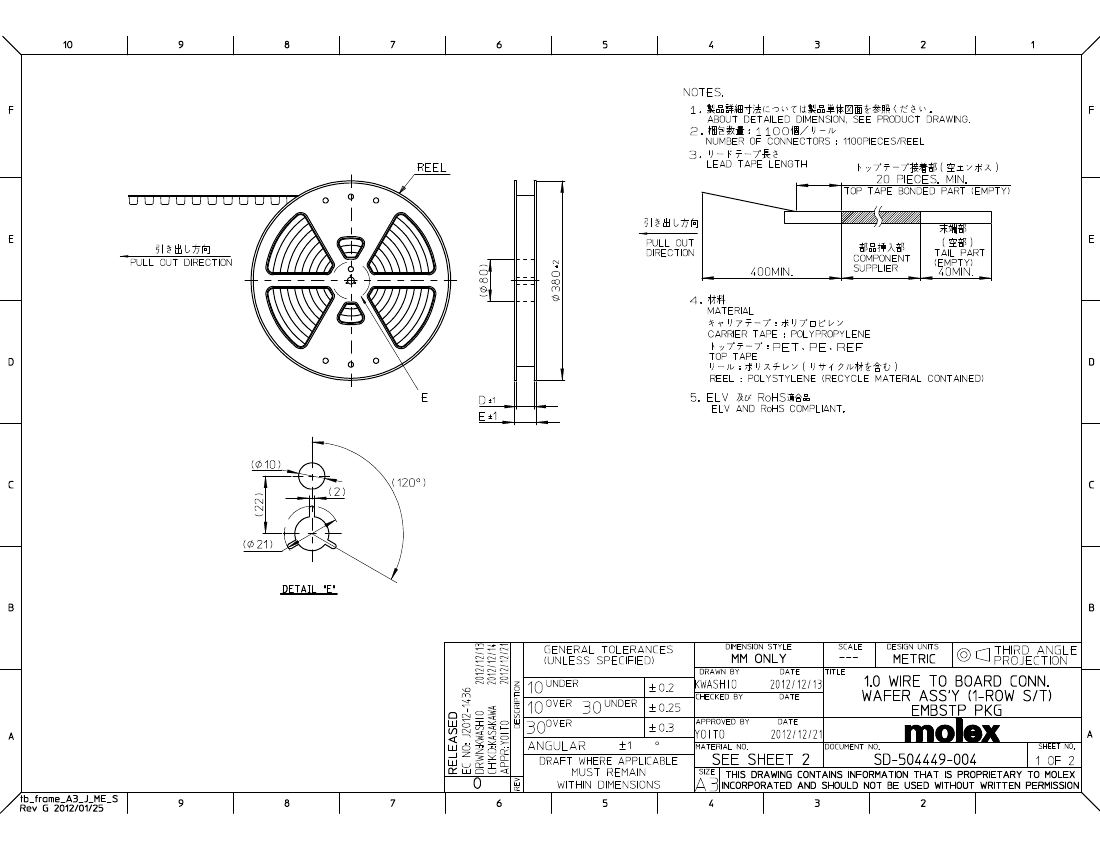

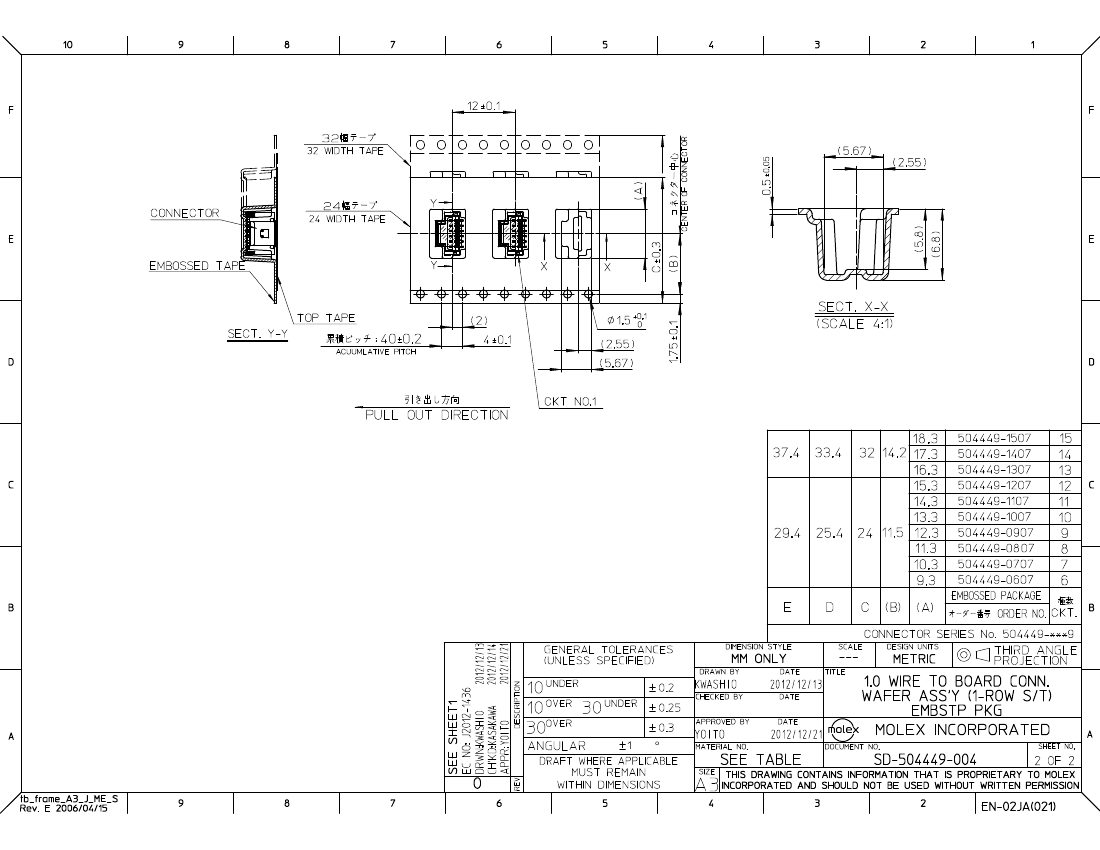

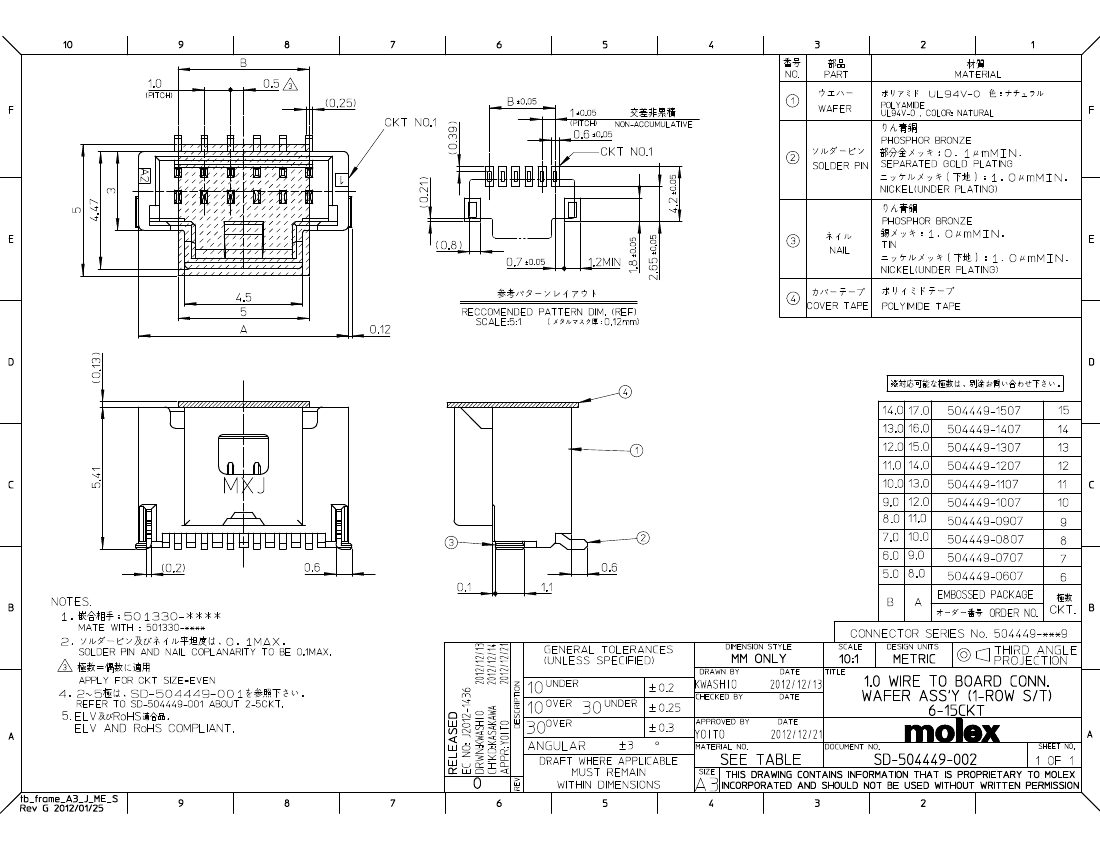

Preview

Download Datasheet

View All

5044491107 Related Products

	5044491107	5044490607	5044491007	5044490807	5044491307	5044490707	5044491407
Description	CONN HEADER 11POS 1MM VERT SMD	CONN HEADER 6POS 1MM VERT SMD	CONN HEADER 10POS 1MM VERT SMD	CONN HEADER 8POS 1MM VERT SMD	CONN HEADER 13POS 1MM VERT SMD	CONN HEADER 7POS 1MM VERT SMD	CONN HEADER 14POS 1MM VERT SMD
Connector type	Connector	Connector	Connector	Connector	Connector	Connector	Connector
Contact type	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin	Male pin
Spacing - Mating	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）	0.039"（1.00mm）
Number of pins	11	6	10	8	13	7	14
Number of rows	1	1	1	1	1	1	1
Number of pins loaded	all	all	all	all	all	all	all
style	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire	Board to cable/wire
shield	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls	Covered - 4 walls
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Termination	welding	welding	welding	welding	welding	welding	welding
Fastening type	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder	latch holder
Insulation height	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）	0.213"（5.40mm）
Contact shape	Square	Square	Square	Square	Square	Square	Square
Contact surface treatment - mating	gold	gold	gold	gold	gold	gold	gold
Contact Surface Treatment Thickness - Mating	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）	1.00µin（0.025µm）
Contact material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Insulation Materials	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon	Polyamide (PA), nylon
characteristic	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold	Pick and place, weld hold
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation color	natural	natural	natural	natural	natural	natural	natural
application	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial	automotive, general, industrial
